L 221 AK (967959101-00) - Husqvarna 21" Walk-Behind Mower (2018-10) HANDLE Parts Diagram

21" Walk-Behind Mower

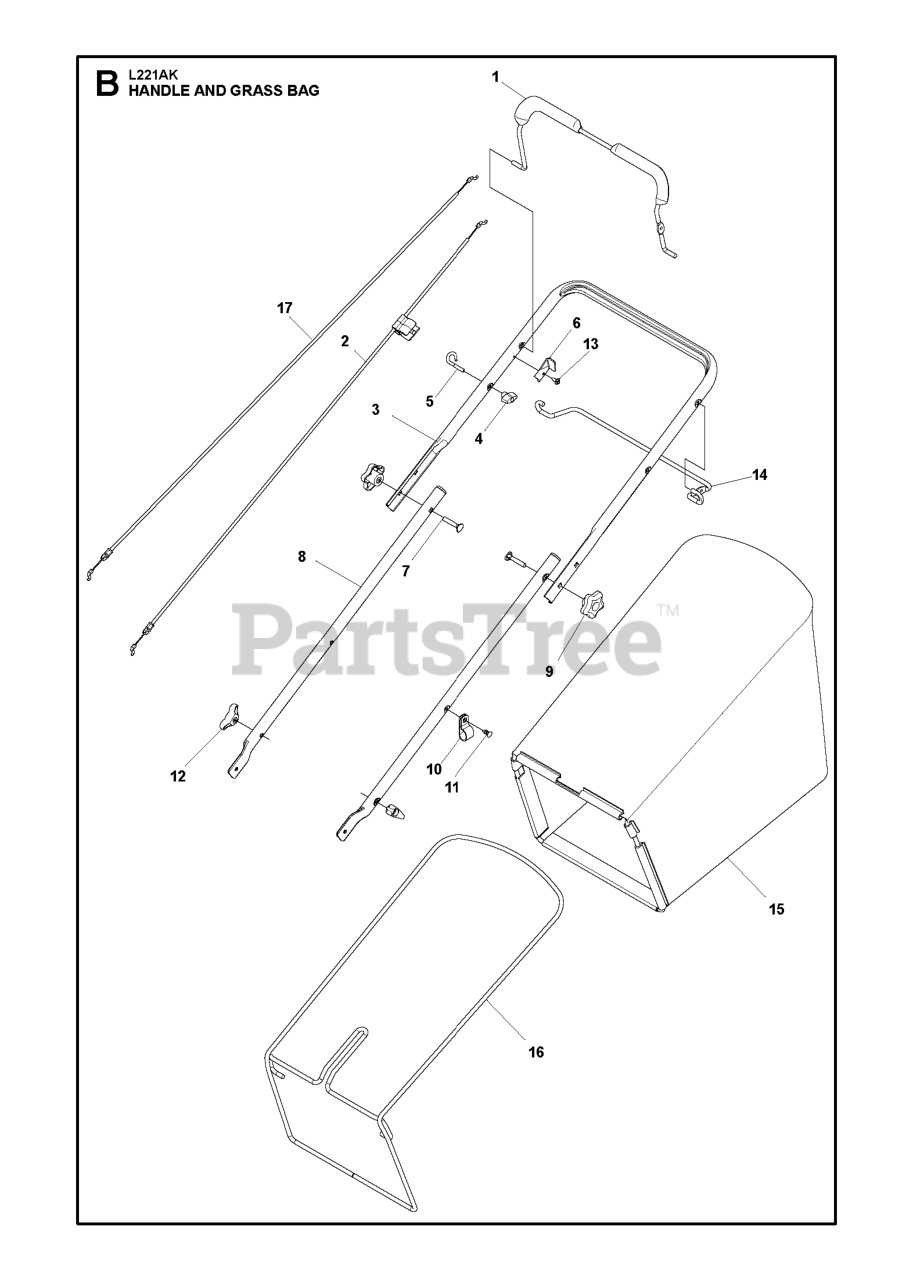

HANDLE Parts Diagram

  • Title

12

Husqvarna 532191938

KNOB, DEFLECTOR
(Superseded to 532189713)

Note: Handle, STANDARD

$9.49

$

In Stock, Qty 18

0

7

Husqvarna 588040401

BOLT.CONCAVE.HEAD.RETAINING

Note: Concave Head, Retaining

$4.99

$

In Stock, only 4 left!

0

10

Husqvarna 532197991

CLIP.CABLE.BLK

Note: P/Cable

$7.49

$

In Stock, Qty 6

0

5

Husqvarna 581902101

GUIDE.ROPE.BLK.ZINC.CHROM

Note: Rope

$

$

Not available

4

Husqvarna 581912601

T-KNOB.NEW ROPE GUIDE

Note: T, Rope Guide

$4.99

$

In Stock, only 2 left!

0

6

Husqvarna 532430034

BRACKET.UPSTOP.RT

Note: Upstop bracket

$6.99

$

In Stock, only 3 left!

0

11

Husqvarna 532428124

FASTENER.PUSH.O.250X0.783

Note: Push, 0.250 X 0.783

$6.49

$

In Stock, only 2 left!

0

9

Husqvarna 532182398

KNOB.HANDLE.PLASTIC.STAR.BLACK

Note: Handle, Star

$7.49

$

In Stock, only 4 left!

0

14

Husqvarna 194185428

NEEDS DESCRIPTION

Note: "Bail Drive UB 21"" EEF"

$

$

Currently unavailable

15

Husqvarna 587100409

GBAG.C361029EM.HUSQ.GRY.21EFF
(Superseded to 587100402)

Note: "Husqvarna 21"" AWD"

$37.99

$

Usually ships in 3-10 days

0

8

Husqvarna 593270401

HANDLEBAR ASSY TWO PIECE LOWER

Note: Lower 2 piece, 3 Position

$

$

Not available

3

Husqvarna 589197902

HANDLE.UPP.DST.EXTCR.SM.SP.498

Note: Upper, Curved

$14.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532178848

SCREW

Note: Screw 10-16x5/8 Hex

$7.49

$

In Stock, Qty 20+

0

1

Husqvarna 587478302

BAIL.ARM.ASSY:STRAIGHT OM

Note: Straight, Overmolded, Operator Presence

$26.99

$

In Stock, only 1 left!

0

2

Husqvarna 501188801

CABLE.MZR.DUAL.5.95EXT45.92CON

Note: Operator Presence Bail

$9.49

$

In Stock, Qty 8

0

17

Husqvarna 582598601

CABLE.DRIVE.UB.NA.21EFF.AW

Note: "Drive, Under-bail, 21"" AWD"

$22.99

$

In Stock, Qty 20+

0

16

Husqvarna 586929102

FRAME.GBAG.AWD.21.BLACK

$

$

Not available
