L 221 AHK (967958901-00) - Husqvarna 21" Walk-Behind Mower (2018-09) ENGINE Parts Diagram

21" Walk-Behind Mower

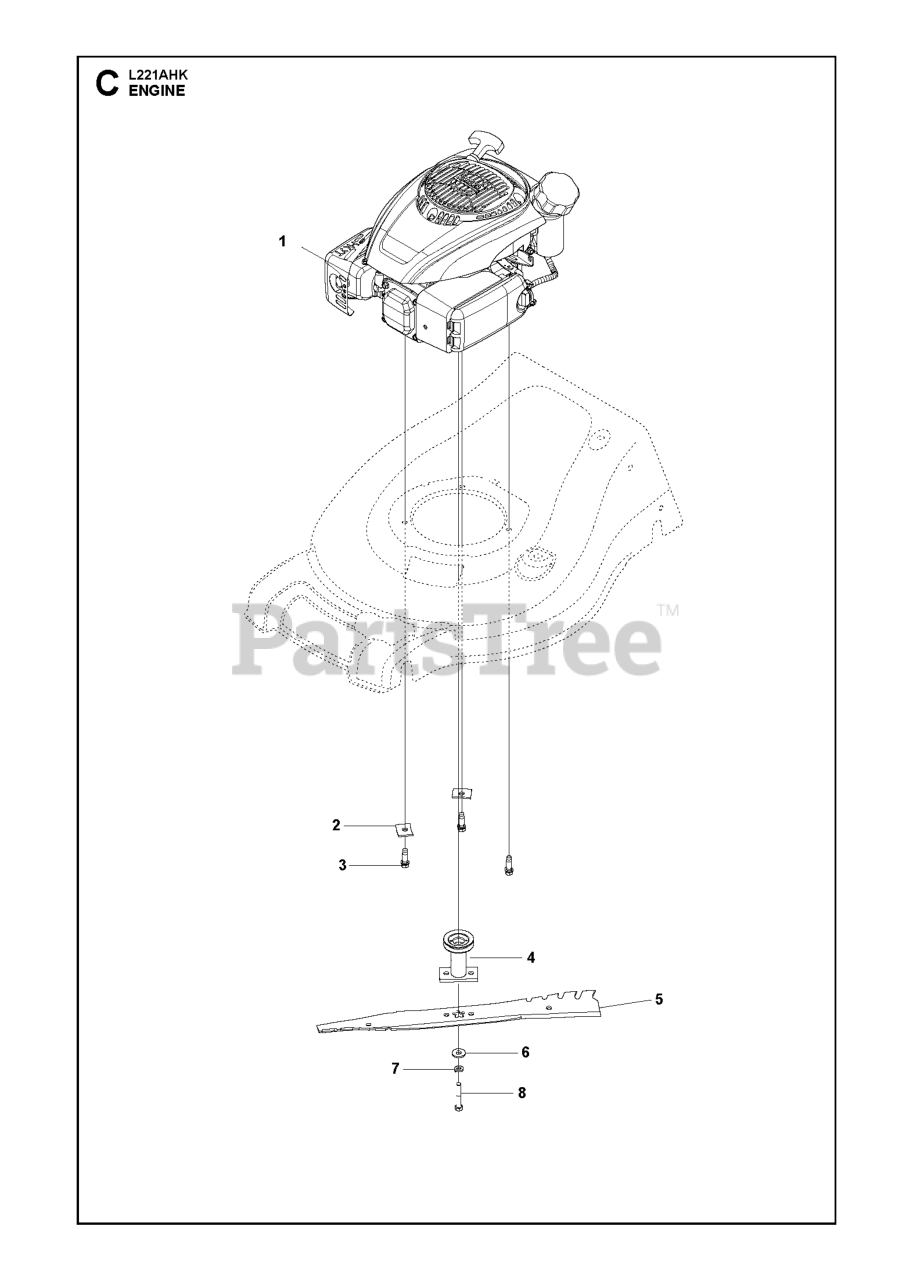

ENGINE Parts Diagram

  • Title

5

Husqvarna 586859602

BLADE.21.REAPER.WO/NOTCHES
(Superseded to 586859604)

Note: High Lift

$17.99

$

In Stock, Qty 20+

0

1

000000000

Note: """XTX775-3102 (For engine service and replacement parts, call Kohler at 1-800-544-2444)"""

$

$

Not available

6

Husqvarna 532851074

WASHER,HARDEN

Note: Hardened

$4.99

$

In Stock, only 4 left!

0

8

Husqvarna 582388401

BOLT.ENGINE.PULLEY

Note: Blade, Hex Head Machine Screw

$5.99

$

Usually ships in 3-10 days

0

7

Husqvarna 532850263

LOCKWASHER
(Superseded to 810040600)

Note: 3/8, Helical Spring

$4.99

$

In Stock, Qty 20+

0

2

Husqvarna 532125078

WASHER.ENGINE.BZP

Note: Engine

$5.99

$

Usually ships in 3-10 days

0

4

Husqvarna 590044201

ADAPTER.BLD.25M.2P.AW/RW/21EFF

Note: "25, 21"" AWD"

$11.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532150406

BOLT 3/8-16X1-1/8

Note: Engine, 3/8-16

$7.49

$

Usually ships in 3-10 days

0
