L 221 AHK (961450031-00) - Husqvarna 21" Walk-Behind Mower (2016-09) ENGINE Parts Diagram

21" Walk-Behind Mower

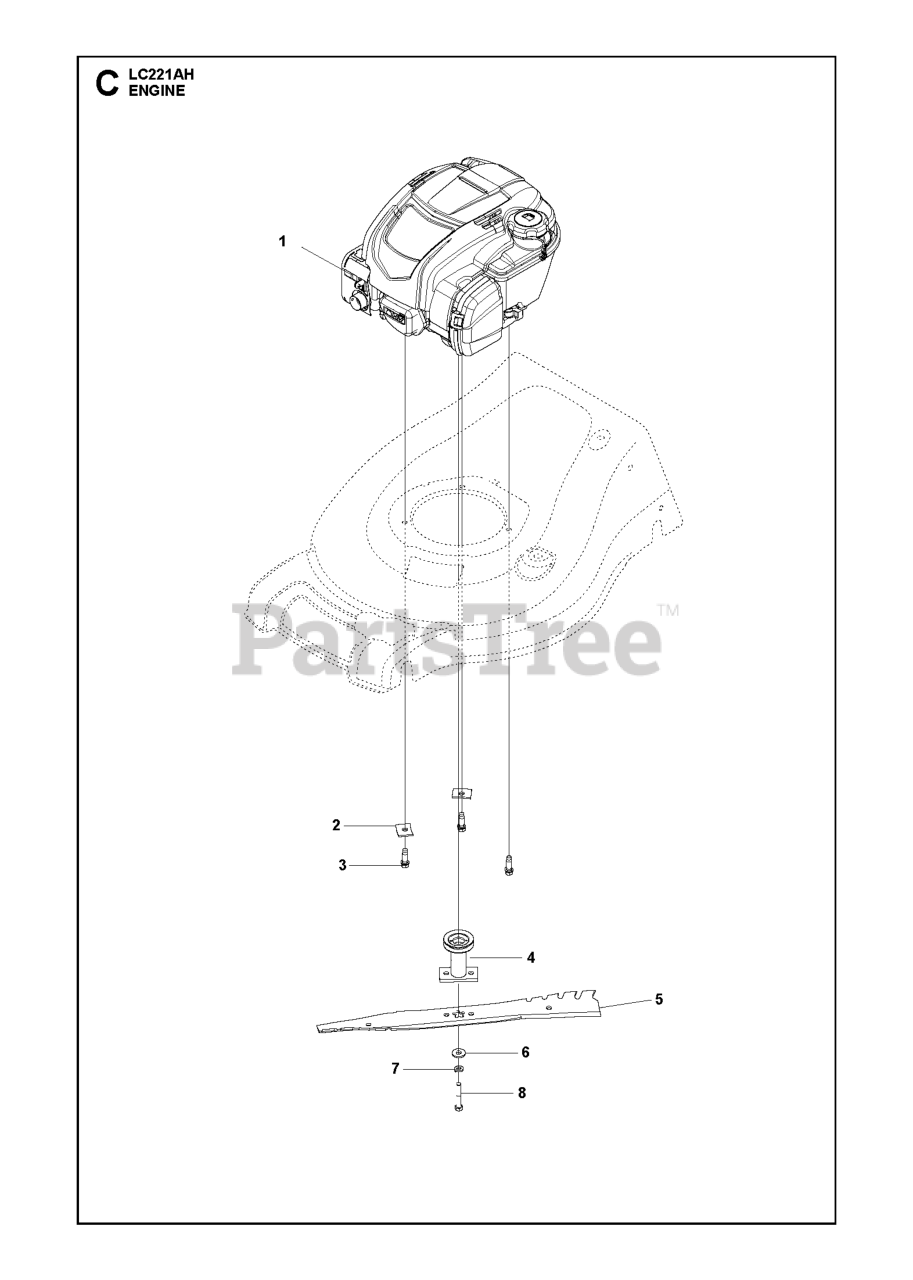

ENGINE Parts Diagram

  • Title

7

Husqvarna 532850263

LOCKWASHER
(Superseded to 810040600)

Note: "3/8, Helical Spring"

$4.99

$

In Stock, Qty 20+

0

6

Husqvarna 532851074

WASHER,HARDEN

Note: Hardened

$4.99

$

In Stock, only 4 left!

0

3

Husqvarna 532150406

BOLT 3/8-16X1-1/8

Note: "Engine, 3/8-16"

$7.49

$

Usually ships in 3-10 days

0

5

Husqvarna 586859602

BLADE.21.REAPER.WO/NOTCHES
(Superseded to 586859604)

Note: High Lift

$17.99

$

In Stock, Qty 20+

0

4

Husqvarna 590044201

ADAPTER.BLD.25M.2P.AW/RW/21EFF

Note: "25, 21"" AWD"

$11.99

$

Usually ships in 3-10 days

0

1

000000000

Note: KOHLER XTX775-3102 FOR SERVICE & PARTS 1-800-544-2444

$

$

Not available

Husqvarna 114096349

NEEDS DESCRIPTION

$

$

Currently unavailable

8

Husqvarna 582388401

BOLT.ENGINE.PULLEY

Note: "Blade, Hex Head Machine Screw"

$5.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532125078

WASHER.ENGINE.BZP

Note: Engine

$5.99

$

Usually ships in 3-10 days

0
