L 21550 (80652) - Snapper 21" Walk-Behind Mower, 5.5hp Handles & Controls Parts Diagram

21" Walk-Behind Mower, 5.5hp

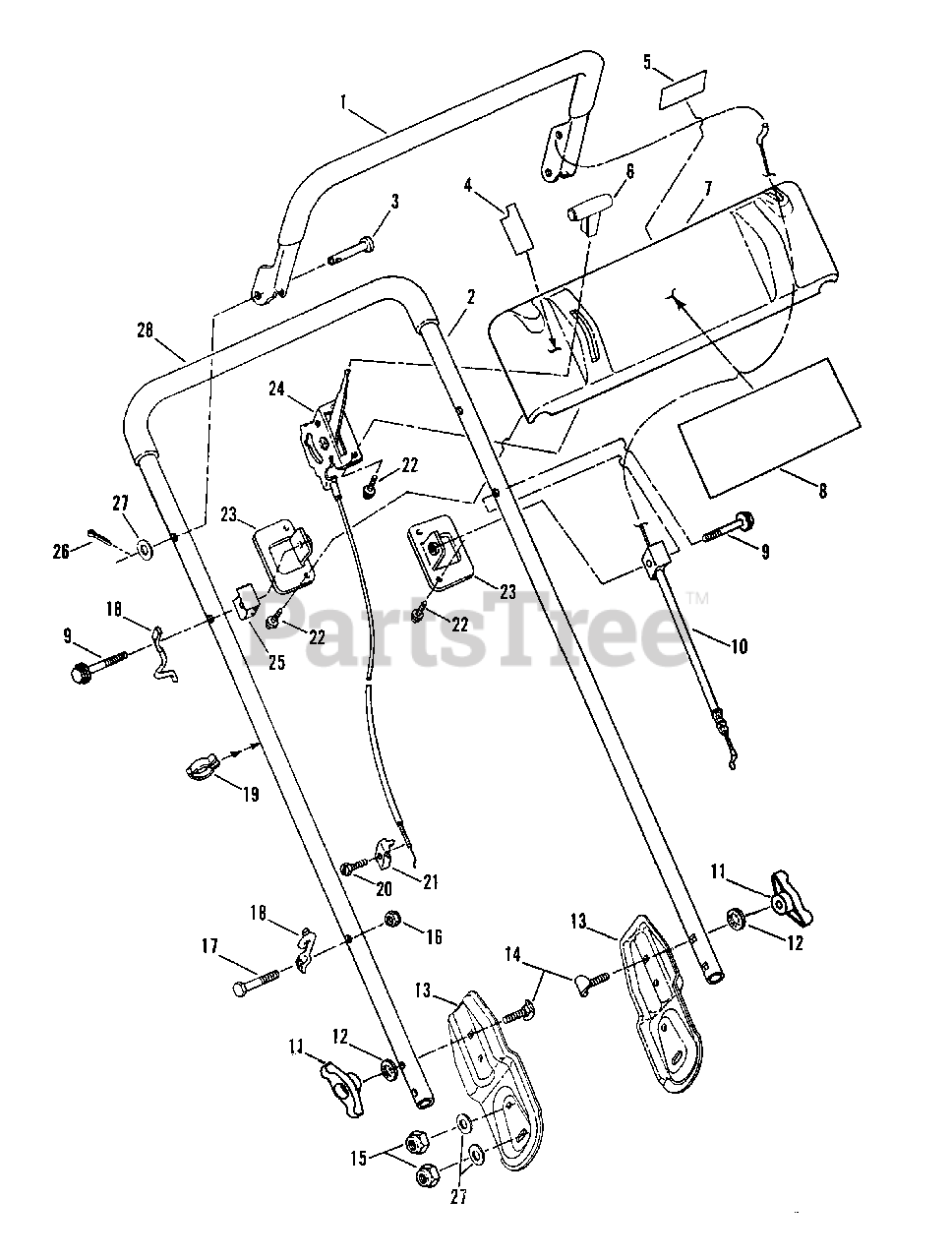

Handles & Controls Parts Diagram

  • Title

1

Snapper 7026422

CONTROL, Blade
(Superseded to 7026422YP)

$43.99

$

Usually ships in 2-12 days

0

2

Snapper 7033853

HANDLE, Upper

$

$

Currently unavailable

3

Snapper 7079831

PIN, 5/16 x 1-7/16" Clevis
(Superseded to 7079831YP)

Note: Was 91645

$3.99

$

Usually ships in 2-12 days

0

4

Snapper 7028433

DECAL, Engine Speed (W/O Choke)

$

$

Currently unavailable

5

Snapper 7028437

DECAL, OPC Instruction
(Superseded to 7028437YP)

$5.99

$

Usually ships in 2-12 days

0

6

Snapper 7028396

KNOB, Throttle Control
(Superseded to 7028396YP)

$5.99

$

Usually ships in 2-12 days

0

7

Snapper 7024881

CONSOLE, Control
(Superseded to 7024881YP)

$15.99

$

Usually ships in 2-12 days

0

8

Snapper 7028432

DECAL - SNAPPER (Platinum Series)

$

$

Currently unavailable

9

Snapper 7091288

SCREW, 1/4-20 x 2" Hex Washer Head, Self-Tapping

$

$

Currently unavailable

10

Snapper 7028803

ASSEMBLY, Cable, Blade Control (L21550 & NL21550)
(Superseded to 7028803YP)

Note: Was 24561

$91.99

$

In Stock, only 1 left!

0

Snapper 7028803

ASSEMBLY, Cable, Blade Control (L21500)
(Superseded to 7028803YP)

$91.99

$

In Stock, only 1 left!

0

11

Snapper 7035744

KNOB, 5/16-18
(Superseded to 7105085YP)

$3.99

$

In Stock, Qty 20+

0

12

Snapper 7090391

WASHER, 5/16 Internal Tooth Lock
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

13

Snapper 7034848

BRACKET, Handle

Note: Was 34329

$

$

Not available

14

Snapper 7091740

SCREW, 5/16-18 x 2" Curved Head
(Superseded to 7091740SM)

Note: Was 91189

$3.49

$

In Stock, Qty 12

0

15

Snapper 7091298

NUT, 5/16-18 Hex Nyloc
(Superseded to 703902)

Note: Was 91646

$3.99

$

In Stock, Qty 20+

0

16

Snapper 7076978

NUT, 1/4-20 Hex Nyloc
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

17

Snapper 7079577

SCREW, 1/4-20 x 1 1/2" Hex Head Cap, Grade 5
(Superseded to 703234)

$4.49

$

In Stock, only 4 left!

0

18

Snapper 7022779

GUIDE, Rope
(Superseded to 7022779YP)

$7.49

$

Usually ships in 2-12 days

0

19

Snapper 7026219

CLAMP, Cable
(Superseded to 7026219YP)

$4.49

$

In Stock, Qty 10

0

20

Snapper 7023154

SCREW, #10-32 x 5/8" Slotted Hex Head, Self-Tapping
(Superseded to 7023154YP)

$

$

Not available

21

Snapper 7023153

CLAMP, Cable
(Superseded to 7023153YP)

Note: (Attaches to Engine)

$3.99

$

Usually ships in 2-12 days

0

22

Snapper 7091105

SCREW, #10-16 x 1/2" Hex Washer Head, Self-Tapping
(Superseded to 7091105YP)

$5.49

$

In Stock, only 4 left!

0

23

Snapper 7034376

BRACKET, Console
(Superseded to 7034376YP)

$15.99

$

Usually ships in 2-12 days

0

24

Snapper 7028397

CONTROL, Engine Speed (Briggs & Stratton Engine W/O Choke)
(Superseded to 7028397YP)

$24.99

$

Usually ships in 2-12 days

0

25

Snapper 7026440

FITTING, Handle Bar
(Superseded to 7026440YP)

$3.49

$

Usually ships in 2-12 days

0

26

Snapper 7091597

COTTER-PIN, 3/32" x 1/2"
(Superseded to 703312)

Note: Was 90555

$3.99

$

In Stock, Qty 20+

0

27

Snapper 7091076

WASHER, Flat, .34 I.D. x .69 O.D.
(Superseded to 703350)

$4.49

$

In Stock, only 1 left!

0

28

Snapper 7026216

GRIP, Foam
(Superseded to 7026216SM)

$26.99

$

Usually ships in 2-12 days

0
