L 21 ZSN C - Lawn-Boy Walk-Behind Mower (SN: K00000001 - K99999999) (1991) Drive Group Model: C21zsn Parts Diagram

Walk-Behind Mower

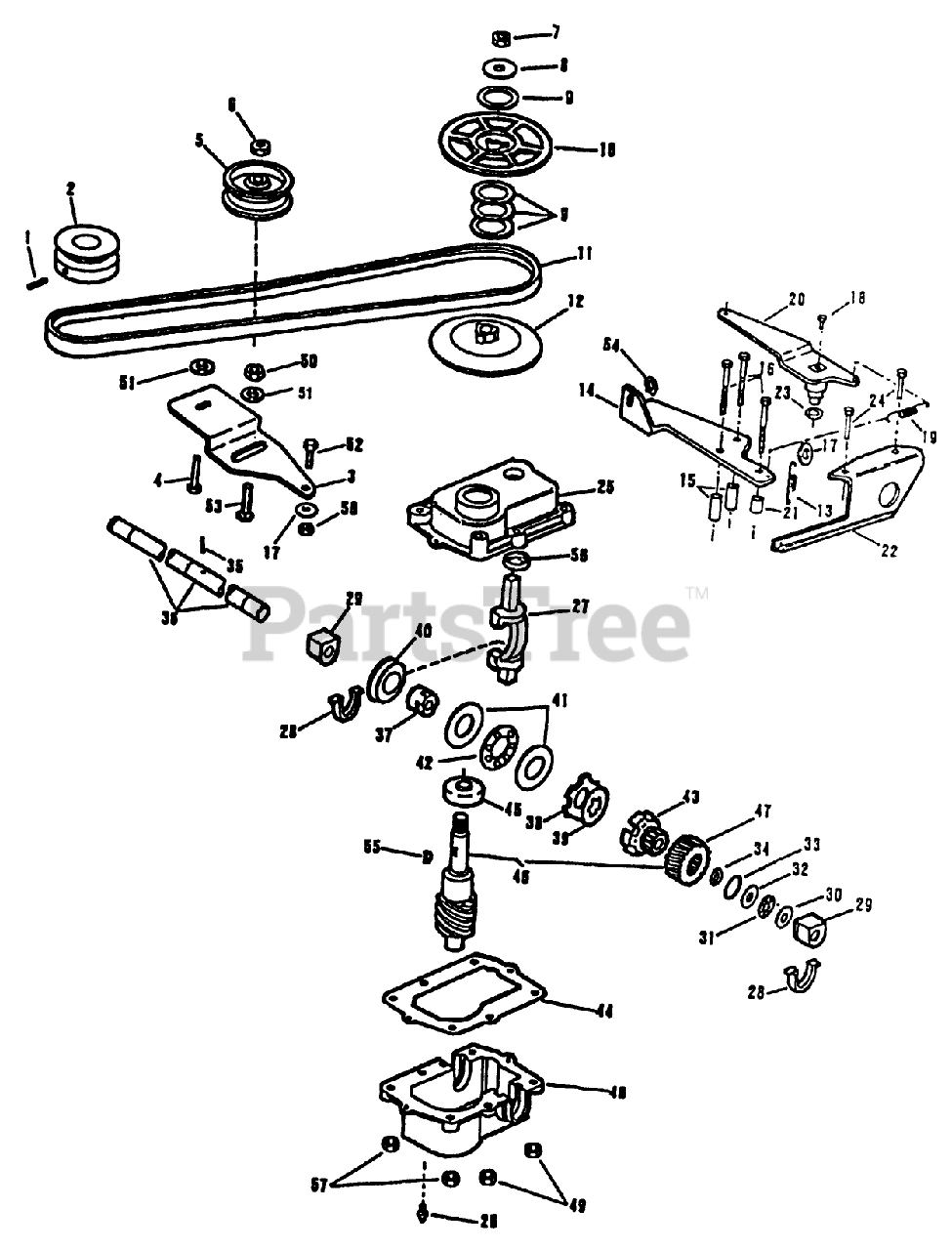

Drive Group Model: C21zsn Parts Diagram

  • Title

1

Lawn-Boy 610345

SET SCREW F

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$9.49

$

In Stock, Qty 5

0

2

Lawn-Boy 613154

PULLEY ENG F

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

3

Lawn-Boy 684194

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

4

Lawn-Boy 612371

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

4

Lawn-Boy 612371

DISCONTINUED

Note: Note: Parts shown with included with assembly above.

$

$

Not available

5

Lawn-Boy 607978

PULLEY IDLER NHI

Note: Note: Parts shown with included with assembly above.

$27.99

$

In Stock, only 1 left!

0

5

Lawn-Boy 607978

PULLEY IDLER NHI

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$27.99

$

In Stock, only 1 left!

0

6

Lawn-Boy 610358

NUT-JAM, LOCKING

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.99

$

In Stock, only 2 left!

0

6

Lawn-Boy 610358

NUT-JAM, LOCKING

Note: Note: Parts shown with included with assembly above.

$2.99

$

In Stock, only 2 left!

0

7

Lawn-Boy 603773

LOCKNUT

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.99

$

In Stock, Qty 8

0

8

Lawn-Boy 611839

WASHER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

9

Lawn-Boy 611838

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

10

Lawn-Boy 611836

PULLEY UPPER PL

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$23.99

$

Usually ships in 3-6 days

0

11

Lawn-Boy 613368

V-BELT F

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$54.99

$

Usually ships in 3-6 days

0

12

Lawn-Boy 611837

PULLEY LOWER PL

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$23.99

$

Usually ships in 3-6 days

0

13

Lawn-Boy 612994

SPRING EXTEN D&B

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$5.99

$

Usually ships in 3-6 days

0

14

Lawn-Boy 613043

CONDUIT ANCHOR BRKT

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

15

Lawn-Boy 145929

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

16

Lawn-Boy 145926

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

17

Lawn-Boy 609005

WASHER S

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

18

Lawn-Boy 612428

SCREW SEMS SM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.49

$

In Stock, only 4 left!

0

19

Lawn-Boy 145935

SPRING

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

20

Lawn-Boy 153635

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

21

Lawn-Boy 145928

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

Lawn-Boy 684488

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

22

Lawn-Boy 613023

DISCONTINUED

Note: Note: Parts shown with included with assembly above.

$

$

Not available

22

Lawn-Boy 613023

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

23

Lawn-Boy 611835

O-RING

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$6.49

$

In Stock, only 1 left!

0

23

Lawn-Boy 611835

O-RING

Note: Note: Parts shown with included with assembly above.

$6.49

$

In Stock, only 1 left!

0

24

Lawn-Boy 609892

DISCONTINUED

Note: Note: Parts shown with included with assembly above.

$

$

Not available

24

Lawn-Boy 609892

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

25

Lawn-Boy 611828

See Supercession: 683624
(Superseded to 683624)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

25

Lawn-Boy 611828

See Supercession: 683624
(Superseded to 683624)

Note: Note: Parts shown with included with assembly above.

$

$

Not available

26

Lawn-Boy 146093

DISCONTINUED

Note: Note: Parts shown with included with assembly above.

$

$

Not available

26

Lawn-Boy 146093

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

27

Lawn-Boy 613245

FORK SHIFT

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

27

Lawn-Boy 613245

FORK SHIFT

Note: Note: Parts shown with included with assembly above.

$

$

Not available

28

Lawn-Boy 611830

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

28

Lawn-Boy 611830

DISCONTINUED

Note: Note: Parts shown with included with assembly above.

$

$

Not available

29

Lawn-Boy 683186

BEARING & SEAL AY (12)

Note: Note: Parts shown with included with assembly above.

$

$

Not available

29

Lawn-Boy 683186

BEARING & SEAL AY (12)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

30

Lawn-Boy 608030

THRUST WASHER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.49

$

Usually ships in 3-6 days

0

30

Lawn-Boy 608030

THRUST WASHER

Note: Note: Parts shown with included with assembly above.

$2.49

$

Usually ships in 3-6 days

0

31

Lawn-Boy 381791

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

31

Lawn-Boy 381791

DISCONTINUED

Note: Note: Parts shown with included with assembly above.

$

$

Not available

32

Lawn-Boy 611878

WASHER-THRUST

Note: Note: Parts shown with included with assembly above.

$19.99

$

Usually ships in 3-6 days

0

32

Lawn-Boy 611878

WASHER-THRUST

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$19.99

$

Usually ships in 3-6 days

0

33

Lawn-Boy 611822

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

33

Lawn-Boy 611822

DISCONTINUED

Note: Note: Parts shown with included with assembly above.

$

$

Not available

34

Lawn-Boy 607676

RET RING

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$5.99

$

In Stock, Qty 6

0

34

Lawn-Boy 607676

RET RING

Note: Note: Parts shown with included with assembly above.

$5.99

$

In Stock, Qty 6

0

35

Lawn-Boy 611814

PIN DRIVE LOCK

Note: Note: Parts shown with included with assembly above.

$

$

Not available

35

Lawn-Boy 611814

PIN DRIVE LOCK

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

36

Lawn-Boy 613022

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

36

Lawn-Boy 613022

DISCONTINUED

Note: Note: Parts shown with included with assembly above.

$

$

Not available

37

Lawn-Boy 611815

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

37

Lawn-Boy 611815

DISCONTINUED

Note: Note: Parts shown with included with assembly above.

$

$

Not available

Lawn-Boy 684494

See Supercession: 684684
(Superseded to 684684)

Note: Note: Parts shown with included with assembly above.

$

$

Not available

Lawn-Boy 684494

See Supercession: 684684
(Superseded to 684684)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

38

Lawn-Boy 613247

ORD 684683,

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

39

Lawn-Boy 613246

ORD KIT 684683

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

40

Lawn-Boy 614183

DISCONTINUED
(Superseded to 684684)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

41

Lawn-Boy 614167

USE 684684,SRVC LTR 28

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

42

Lawn-Boy 684473

SVC LTR#28,ORD 684684

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

43

Lawn-Boy 611821

DRIVER BROCKWAY

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

43

Lawn-Boy 611821

DRIVER BROCKWAY

Note: Note: Parts shown with included with assembly above.

$

$

Not available

44

Lawn-Boy 611827

GASKET HOOSIER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

44

Lawn-Boy 611827

GASKET HOOSIER

Note: Note: Parts shown with included with assembly above.

$

$

Not available

45

Lawn-Boy 683187

BEARING-BALL

Note: Note: Parts shown with included with assembly above.

$

$

Not available

45

Lawn-Boy 683187

BEARING-BALL

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

46

Lawn-Boy 683343

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

46

Lawn-Boy 683343

DISCONTINUED

Note: Note: Parts shown with included with assembly above.

$

$

Not available

47

Lawn-Boy 613454

WORM WHEEL

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$188.99

$

Usually ships in 3-6 days

0

48

Lawn-Boy 612406

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

48

Lawn-Boy 612406

DISCONTINUED

Note: Note: Parts shown with included with assembly above.

$

$

Not available

49

Lawn-Boy 602315

LOCKNUT E

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$4.99

$

In Stock, only 2 left!

0

49

Lawn-Boy 602315

LOCKNUT E

Note: Note: Parts shown with included with assembly above.

$4.99

$

In Stock, only 2 left!

0

50

Lawn-Boy 608311

NUT-LOCK F

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$3.49

$

Usually ships in 3-6 days

0

51

Lawn-Boy 145875

WASHER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

52

Lawn-Boy 146209

SCREW - HEX

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.99

$

Usually ships in 3-6 days

0

53

Lawn-Boy 800358

See Supercession: 3230-22
(Superseded to 3230-22)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.49

$

In Stock, only 2 left!

0

54

Lawn-Boy 611224

RET. RING

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

55

Lawn-Boy 611840

KEY GALGER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

56

Lawn-Boy 611834

GUIDE ELCO

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

57

Lawn-Boy 602315

LOCKNUT E

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$4.99

$

In Stock, only 2 left!

0
