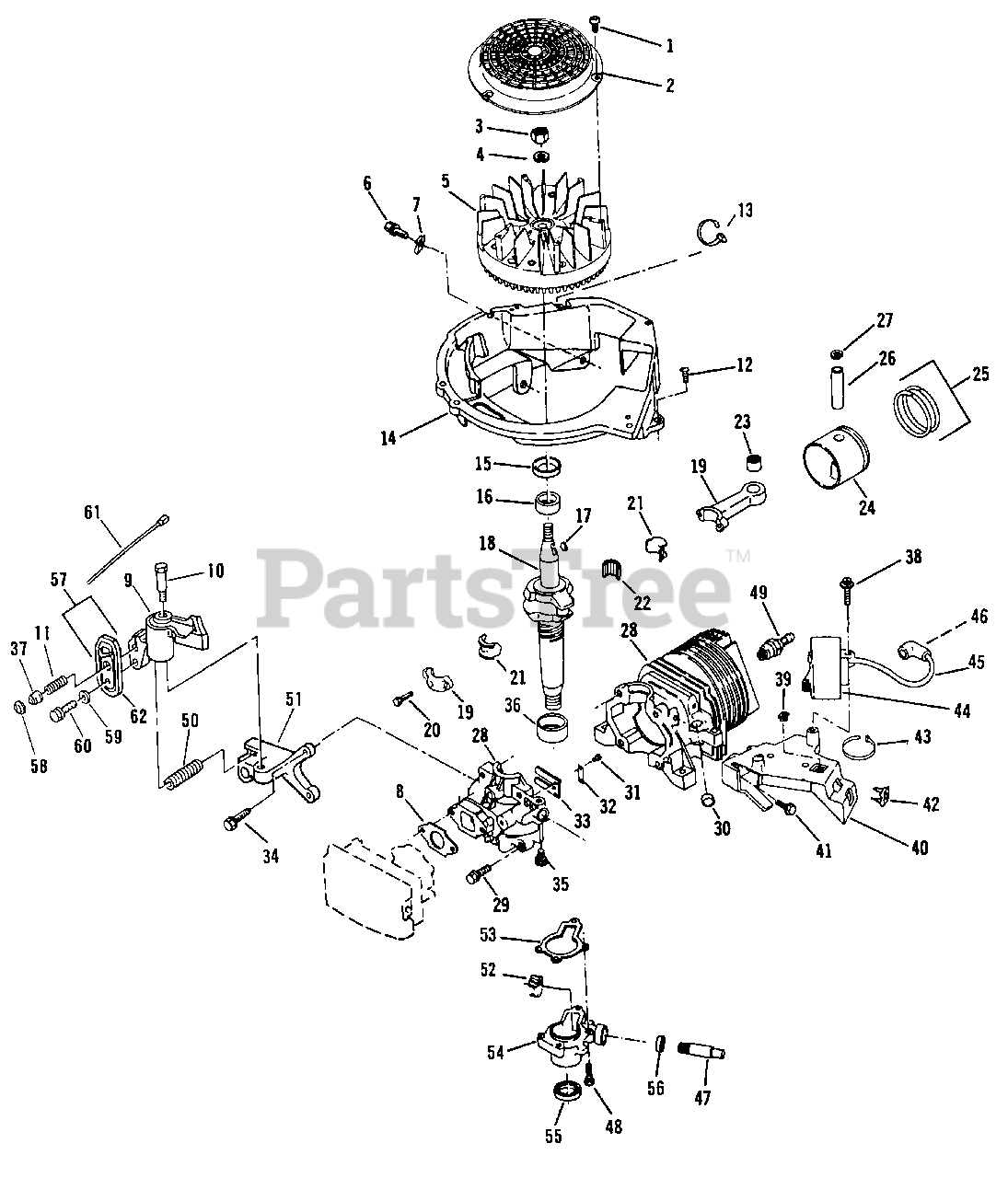

L 21 ZSN A - Lawn-Boy Walk-Behind Mower (SN: H00000001 - H99999999) (1989) ENGINE GROUP MODELS: L21ZSN Parts Diagram

Walk-Behind Mower

ENGINE GROUP MODELS: L21ZSN Parts Diagram

  • Title

1

Lawn-Boy 606537

Screw-Flywheel

Note: Important Note: Replacement parts may not be available in matching colors.

$2.49

$

In Stock, only 4 left!

0

2

Lawn-Boy 610745

Screen-Flywheel

Note: Important Note: Replacement parts may not be available in matching colors.

$

$

Not available

3

Lawn-Boy 130743

Nut-Flywheel

Note: Important Note: Replacement parts may not be available in matching colors.

$3.49

$

In Stock, Qty 6

0

4

Lawn-Boy 303807

Lockwasher

Note: Important Note: Replacement parts may not be available in matching colors.

$

$

Not available

5

Lawn-Boy 683580

Flywheel

Note: Important Note: Replacement parts may not be available in matching colors.

$318.99

$

In Stock, only 1 left!

0

6

Lawn-Boy 609947

Screw

Note: Important Note: Replacement parts may not be available in matching colors.

$10.99

$

Usually ships in 3-6 days

0

7

Lawn-Boy 611191

"J" Clip

Note: Important Note: Replacement parts may not be available in matching colors.

$

$

Not available

8

Lawn-Boy 612574

Gasket-Carb. to Crankcase Cvr.

Note: Important Note: Replacement parts may not be available in matching colors.

$6.49

$

In Stock, Qty 13

0

9

Lawn-Boy 682683

Brake Assembly

Note: Important Note: Replacement parts may not be available in matching colors.

$

$

Not available

10

Lawn-Boy 611212

Bolt-Shoulder
(Superseded to 613529)

Note: Important Note: Replacement parts may not be available in matching colors.

$13.99

$

Usually ships in 3-6 days

0

11

Lawn-Boy 611214

Spring-Cable Retainer

Note: Important Note: Replacement parts may not be available in matching colors.

$9.99

$

In Stock, only 1 left!

0

12

Lawn-Boy 609808

Screw-Shroud Base to C.D. Brkt.

Note: Important Note: Replacement parts may not be available in matching colors.

$11.99

$

Usually ships in 3-6 days

0

13

Lawn-Boy 317893

Tie Strap

Note: Important Note: Replacement parts may not be available in matching colors.

$

$

Not available

14

Lawn-Boy 611190

Base-Shroud

Note: Important Note: Replacement parts may not be available in matching colors.

$

$

Not available

15

Lawn-Boy 611396

Oil Seal-Upper

Note: Important Note: Replacement parts may not be available in matching colors.

$6.99

$

In Stock, only 2 left!

0

16

Lawn-Boy 681830

Bearing-Upper

Note: Important Note: Replacement parts may not be available in matching colors.

$41.99

$

Usually ships in 3-6 days

0

17

Lawn-Boy 607199

Key-Flywheel

Note: Important Note: Replacement parts may not be available in matching colors.

$5.49

$

In Stock, Qty 9

0

18

Lawn-Boy 609407

Crankshaft

Note: Important Note: Replacement parts may not be available in matching colors.

$

$

Not available

19

Lawn-Boy 682970

Connecting Rod Assembly
(Superseded to 92-4921)

Note: Important Note: Replacement parts may not be available in matching colors.

$241.99

$

In Stock, only 2 left!

0

20

Lawn-Boy 611393

Screw-Cap

Note: Important Note: Replacement parts may not be available in matching colors.

$22.99

$

Usually ships in 3-6 days

0

21

Lawn-Boy 677982

Liner Split

Note: Important Note: Replacement parts may not be available in matching colors.

$46.99

$

In Stock, only 2 left!

0

22

Lawn-Boy 683911

Needle Bearing Set

Note: Important Note: Replacement parts may not be available in matching colors.

$23.99

$

In Stock, Qty 5

0

23

Lawn-Boy 679144

Bearing Assembly

Note: Important Note: Replacement parts may not be available in matching colors.

$

$

Not available

24

Lawn-Boy 682986

Piston and Ring Set
(Superseded to 92-4923)

Note: Important Note: Replacement parts may not be available in matching colors.

$

$

Not available

25

Lawn-Boy 681737

Ring Set

Note: Important Note: Replacement parts may not be available in matching colors.

$

$

Not available

26

Lawn-Boy 606608

Wrist Pin
(Superseded to 94-5774)

Note: Important Note: Replacement parts may not be available in matching colors.

$11.99

$

Usually ships in 3-6 days

0

27

Lawn-Boy 303712

Retaining Ring

Note: Important Note: Replacement parts may not be available in matching colors.

$3.49

$

In Stock, Qty 11

0

28

Lawn-Boy 683708

Cylinder and Crk'c Cover Asy

Note: Important Note: Replacement parts may not be available in matching colors.

$

$

Not available

Lawn-Boy 610372

Sealant

Note: Important Note: Replacement parts may not be available in matching colors.

$27.99

$

Usually ships in 3-6 days

0

29

Lawn-Boy 613110

Screw-Cover to Crankcase

Note: Important Note: Replacement parts may not be available in matching colors.

$

$

Not available

30

Lawn-Boy 609123

Plug

Note: Important Note: Replacement parts may not be available in matching colors.

$3.49

$

Usually ships in 3-6 days

0

31

Lawn-Boy 612872

Screw-Reed to Crk'c Cover

Note: Important Note: Replacement parts may not be available in matching colors.

$2.49

$

In Stock, Qty 5

0

32

Lawn-Boy 602587

Plate-Reed Hold Down

Note: Important Note: Replacement parts may not be available in matching colors.

$3.49

$

Usually ships in 3-6 days

0

33

Lawn-Boy 602588

Reed

Note: Important Note: Replacement parts may not be available in matching colors.

$

$

Not available

34

Lawn-Boy 613233

Screw-Brake Mtg. Brkt.

Note: Important Note: Replacement parts may not be available in matching colors.

$4.49

$

Usually ships in 3-6 days

0

35

Lawn-Boy 611073

Set Screw-Starter Assembly
(Superseded to 3274-10)

Note: Important Note: Replacement parts may not be available in matching colors.

$9.99

$

In Stock, Qty 13

0

36

Lawn-Boy 681832

Bearing-Lower

Note: Important Note: Replacement parts may not be available in matching colors.

$

$

Not available

37

Lawn-Boy 611509

Actuator-Brake Lever

Note: Important Note: Replacement parts may not be available in matching colors.

$5.49

$

In Stock, only 3 left!

0

38

Lawn-Boy 607526

Screw-C.D. Mounting
(Superseded to 32105-12)

Note: Important Note: Replacement parts may not be available in matching colors.

$2.99

$

In Stock, only 2 left!

0

39

Lawn-Boy 605120

Grommet-C.D. Bracket

Note: Important Note: Replacement parts may not be available in matching colors.

$4.49

$

In Stock, Qty 9

0

40

Lawn-Boy 609120

Bracket-Ignition Mounting

Note: Important Note: Replacement parts may not be available in matching colors.

$

$

Not available

41

Lawn-Boy 307028

Screw
(Superseded to 614343)

Note: Important Note: Replacement parts may not be available in matching colors.

$3.49

$

In Stock, only 4 left!

0

42

Lawn-Boy 611380

Grommet-C.D. Bracket

Note: Important Note: Replacement parts may not be available in matching colors.

$

$

Not available

43

Lawn-Boy 320107

Tie Strap
(Superseded to 614249)

Note: Important Note: Replacement parts may not be available in matching colors.

$1.49

$

In Stock, Qty 6

0

44

Lawn-Boy 683215

C.D. Ignition Module and Lead Asy
(Superseded to 100-2948)

Note: Important Note: Replacement parts may not be available in matching colors.

$125.99

$

In Stock, only 1 left!

0

Lawn-Boy 318535

Adhesive

Note: Important Note: Replacement parts may not be available in matching colors.

$

$

Currently unavailable

45

Lawn-Boy 681678

High Tension Lead and Cvr. Asy

Note: Important Note: Replacement parts may not be available in matching colors.

$24.99

$

Usually ships in 3-6 days

0

46

Lawn-Boy 510231

Spring Terminal
(Superseded to 684698)

Note: Important Note: Replacement parts may not be available in matching colors.

$7.49

$

Usually ships in 3-6 days

0

47

Lawn-Boy 612927

Driveshaft

Note: Important Note: Replacement parts may not be available in matching colors.

$76.99

$

Usually ships in 3-6 days

0

48

Lawn-Boy 609418

Screw-Gear Box

Note: Important Note: Replacement parts may not be available in matching colors.

$

$

Not available

49

Lawn-Boy 605885

Spark Plug
(Superseded to 614009)

Note: Important Note: Replacement parts may not be available in matching colors.

$5.49

$

In Stock, only 3 left!

0

50

Lawn-Boy 611211

Spring-Brake

Note: Important Note: Replacement parts may not be available in matching colors.

$15.99

$

Usually ships in 3-6 days

0

51

Lawn-Boy 611192

Bracket-Brake

Note: Important Note: Replacement parts may not be available in matching colors.

$129.99

$

Usually ships in 3-6 days

0

52

Lawn-Boy 612926

Gear
(Superseded to 613113)

Note: Important Note: Replacement parts may not be available in matching colors.

$

$

Not available

53

Lawn-Boy 609419

Gasket-Gear Box

Note: Important Note: Replacement parts may not be available in matching colors.

$1.99

$

In Stock, only 2 left!

0

54

Lawn-Boy 683914

Gear Box Assembly
(Superseded to 683876)

Note: Important Note: Replacement parts may not be available in matching colors.

$

$

Not available

55

Lawn-Boy 611396

Oil Seal Crankshaft

Note: Important Note: Replacement parts may not be available in matching colors.

$6.99

$

In Stock, only 2 left!

0

56

Lawn-Boy 608224

Seal-Driveshaft

Note: Important Note: Replacement parts may not be available in matching colors.

$15.99

$

In Stock, only 1 left!

0

57

Lawn-Boy 683968

Switch Assembly
(Superseded to 93-4307)

Note: Important Note: Replacement parts may not be available in matching colors.

$50.99

$

Usually ships in 3-6 days

0

58

Lawn-Boy 611213

Retainer

Note: Important Note: Replacement parts may not be available in matching colors.

$2.49

$

In Stock, only 4 left!

0

59

Lawn-Boy 602945

Washer

Note: Important Note: Replacement parts may not be available in matching colors.

$

$

Not available

60

Lawn-Boy 609760

Screw

Note: Important Note: Replacement parts may not be available in matching colors.

$

$

Not available

61

Lawn-Boy 683821

Lead Assembly

Note: Important Note: Replacement parts may not be available in matching colors.

$

$

Not available

62

Lawn-Boy 683819

Case Assembly Only
(Superseded to 93-4301)

Note: Important Note: Replacement parts may not be available in matching colors.

$16.99

$

Usually ships in 3-6 days

0
