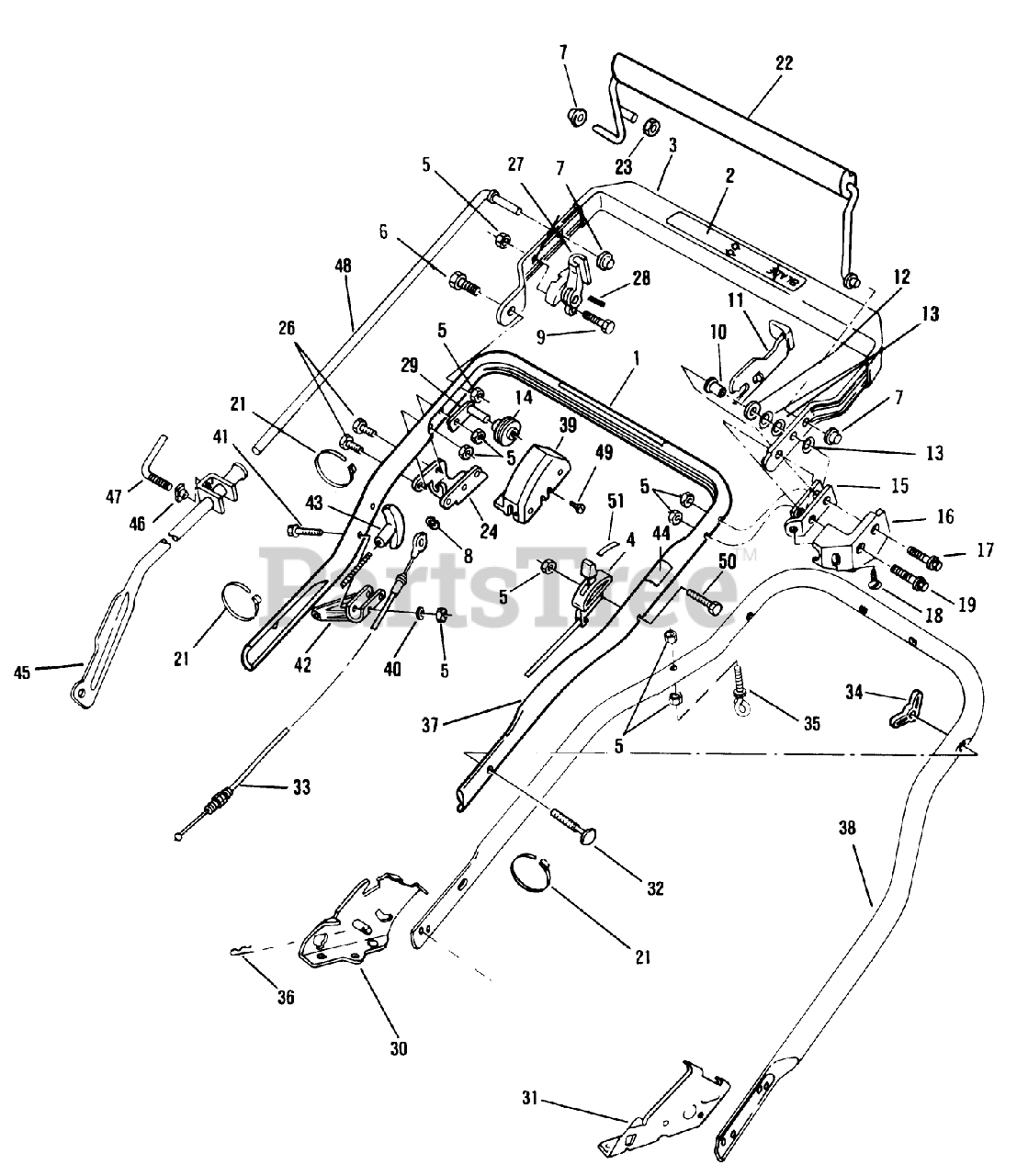

L 20 ZPR - Lawn-Boy Walk-Behind Mower (SN: H00000001 - H99999999) (1989) Handle Group Models: L21zsn Parts Diagram

Walk-Behind Mower

Handle Group Models: L21zsn Parts Diagram

  • Title

1

Lawn-Boy 612579

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$

$

Not available

2

Lawn-Boy 612645

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$

$

Not available

3

Lawn-Boy 683511

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$

$

Not available

4

Lawn-Boy 684042

CONTROL THROT WES

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$178.99

$

Usually ships in 3-6 days

0

5

Lawn-Boy 602315

LOCKNUT E

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$4.99

$

In Stock, only 2 left!

0

6

Lawn-Boy 611202

BOLT

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$

$

Not available

7

Lawn-Boy 605546

See Supercession: 32112-11
(Superseded to 32112-11)

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$1.49

$

In Stock, only 3 left!

0

8

Lawn-Boy 611224

RET. RING

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$

$

Not available

9

Lawn-Boy 611222

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$

$

Not available

10

Lawn-Boy 611203

SPACER

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$42.99

$

Usually ships in 3-6 days

0

11

Lawn-Boy 612657

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$

$

Not available

12

Lawn-Boy 306359

WASHER M

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$

$

Not available

13

Lawn-Boy 303254

See Supercession: 121-4605
(Superseded to 121-4605)

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$4.49

$

In Stock, only 1 left!

0

14

Lawn-Boy 612564

PULLEY PL

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$5.99

$

Usually ships in 3-6 days

0

15

Lawn-Boy 611221

DOWN STOP

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$

$

Not available

16

Lawn-Boy 611218

LOCKOUT GUARD

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$

$

Not available

17

Lawn-Boy 611220

BOLT SHOU

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$

$

Not available

18

Lawn-Boy 606537

SCREW F

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$2.49

$

In Stock, only 4 left!

0

19

Lawn-Boy 611217

SCREW

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$

$

Not available

21

Lawn-Boy 320107

See Supercession: 614249
(Superseded to 614249)

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$1.49

$

In Stock, only 2 left!

0

22

Lawn-Boy 683728

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$

$

Not available

23

Lawn-Boy 612168

NUT ACORN

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$19.99

$

Usually ships in 3-6 days

0

24

Lawn-Boy 611196

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$

$

Not available

26

Lawn-Boy 609891

See Supercession: 700138
(Superseded to 700138)

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$

$

Not available

27

Lawn-Boy 683430

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$

$

Not available

Lawn-Boy 612637

CAM HOFFER

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$

$

Not available

28

Lawn-Boy 309301

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$

$

Not available

29

Lawn-Boy 611194

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$

$

Not available

30

Lawn-Boy 682736

BRACKET ASM - HANDLE, SP, RH

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$93.99

$

In Stock, only 1 left!

0

31

Lawn-Boy 682737

BRACKET ASM - HANDLE, SP, LH

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$

$

Not available

32

Lawn-Boy 611184

BOLT QUALITY

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$8.49

$

In Stock, only 2 left!

0

33

Lawn-Boy 682685

CONTROL CABLE

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$

$

Not available

34

Lawn-Boy 607544

NUT-WING

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$25.99

$

In Stock, only 4 left!

0

35

Lawn-Boy 611571

EYE BOLT WAS MFG

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$14.99

$

Usually ships in 3-6 days

0

36

Lawn-Boy 605803

HAIR PIN

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$

$

Not available

37

Lawn-Boy 612590

HANDLE SECTION

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$201.99

$

Usually ships in 3-6 days

0

38

Lawn-Boy 612787

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$

$

Not available

39

Lawn-Boy 612319

DISCONTINUED
(Superseded to 612638)

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$

$

Not available

40

Lawn-Boy 602945

WASHER

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$

$

Not available

41

Lawn-Boy 611233

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$

$

Not available

42

Lawn-Boy 153254

DISCONTINUED
(Superseded to 682684)

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$

$

Not available

43

Lawn-Boy 612430

HANDLE START UM&D

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$

$

Not available

44

Lawn-Boy 611236

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$

$

Not available

45

Lawn-Boy 683812

CONTROL LEVER AY

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$

$

Not available

46

Lawn-Boy 602992

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$

$

Not available

47

Lawn-Boy 603699

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$

$

Not available

48

Lawn-Boy 611229

CONTROL ROD

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$81.99

$

Usually ships in 3-6 days

0

49

Lawn-Boy 612585

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$

$

Not available

50

Lawn-Boy 612065

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$

$

Not available

51

Lawn-Boy 612568

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$

$

Not available
