L 20 ZPR B - Lawn-Boy Walk-Behind Mower (SN: J00000001 - J99999999) (1990) Housing And Shroud Group Model: L21zpnb Parts Diagram

Walk-Behind Mower

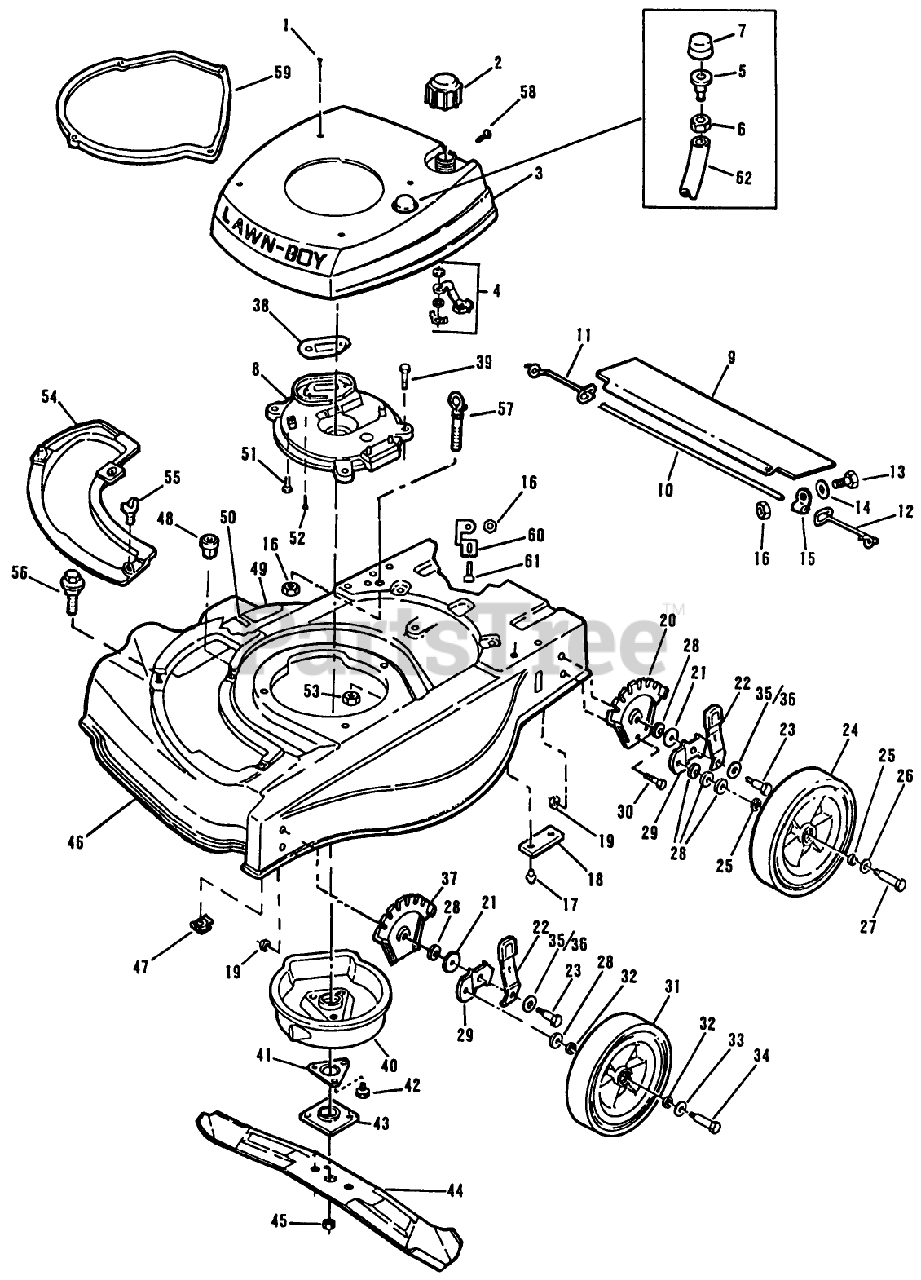

Housing And Shroud Group Model: L21zpnb Parts Diagram

  • Title

1

Lawn-Boy 611381

SCREW LAWRENCE

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.99

$

In Stock, only 3 left!

0

2

Lawn-Boy 682755

FUEL CAP & INSERT

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$25.99

$

In Stock, only 1 left!

0

Lawn-Boy 607213

GASKET S

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.99

$

In Stock, Qty 20+

0

Lawn-Boy 607213

GASKET S

Note: Parts shown with bullet (

$1.99

$

In Stock, Qty 20+

0

Lawn-Boy 607213

GASKET S

Note: ) included with assembly above.

$1.99

$

In Stock, Qty 20+

0

Lawn-Boy 609150

BAFFLE - FOAM SM

Note: ) included with assembly above.

$6.49

$

In Stock, Qty 11

0

Lawn-Boy 609150

BAFFLE - FOAM SM

Note: Parts shown with bullet (

$6.49

$

In Stock, Qty 11

0

Lawn-Boy 609150

BAFFLE - FOAM SM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$6.49

$

In Stock, Qty 11

0

3

Lawn-Boy 684413

SHROUD,TANK&VAVLE

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

4

Lawn-Boy 683034

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

4

Lawn-Boy 683034

DISCONTINUED

Note: Parts shown with bullet (

$

$

Not available

4

Lawn-Boy 683034

DISCONTINUED

Note: ) included with assembly above.

$

$

Not available

5

Lawn-Boy 607311

DISCONTINUED

Note: ) included with assembly above.

$

$

Not available

5

Lawn-Boy 607311

DISCONTINUED

Note: Parts shown with bullet (

$

$

Not available

5

Lawn-Boy 607311

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

6

Lawn-Boy 608027

LOCKNUT S

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.49

$

In Stock, Qty 6

0

6

Lawn-Boy 608027

LOCKNUT S

Note: ) included with assembly above.

$2.49

$

In Stock, Qty 6

0

6

Lawn-Boy 608027

LOCKNUT S

Note: Parts shown with bullet (

$2.49

$

In Stock, Qty 6

0

7

Lawn-Boy 610482

P-BULB LAV-RUB

Note: ) included with assembly above.

$

$

Not available

7

Lawn-Boy 610482

P-BULB LAV-RUB

Note: Parts shown with bullet (

$

$

Not available

7

Lawn-Boy 610482

P-BULB LAV-RUB

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

8

Lawn-Boy 609989

PLATE,MUFFLER F

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$161.99

$

In Stock, only 2 left!

0

9

Lawn-Boy 611263

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

10

Lawn-Boy 608160

ROD T/SHIELD ADV WIRE

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

11

Lawn-Boy 608497

SPRING;TRAILING SHIELD RH

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

12

Lawn-Boy 608498

SPRIG T/SHLD ASOC

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

13

Lawn-Boy 609891

See Supercession: 700138
(Superseded to 700138)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

14

Lawn-Boy 610566

WASHER F

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

15

Lawn-Boy 608161

CLAMP ROD KMC

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$11.99

$

Usually ships in 3-6 days

0

16

Lawn-Boy 602315

LOCKNUT E

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$4.99

$

In Stock, only 2 left!

0

17

Lawn-Boy 607188

SCREW

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$3.99

$

In Stock, only 3 left!

0

18

Lawn-Boy 612337

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

19

Lawn-Boy 603773

LOCKNUT

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.99

$

In Stock, Qty 6

0

20

Lawn-Boy 610142

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

21

Lawn-Boy 608834

WASHER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$14.99

$

In Stock, only 2 left!

0

22

Lawn-Boy 682231

KNOB&SPRING FORMCO

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$29.99

$

Usually ships in 3-6 days

0

23

Lawn-Boy 610646

BOLT

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$7.49

$

Usually ships in 3-6 days

0

24

Lawn-Boy 682974

See Supercession: 131-4520
(Superseded to 131-4520)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$37.99

$

In Stock, only 1 left!

0

25

Lawn-Boy 605255

WASHER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.99

$

In Stock, Qty 20+

0

25

Lawn-Boy 605255

WASHER

Note: Parts shown with bullet (

$1.99

$

In Stock, Qty 20+

0

25

Lawn-Boy 605255

WASHER

Note: ) included with assembly above.

$1.99

$

In Stock, Qty 20+

0

26

Lawn-Boy 605256

SPACER

Note: Parts shown with bullet (

$2.99

$

In Stock, Qty 20+

0

26

Lawn-Boy 605256

SPACER

Note: ) included with assembly above.

$2.99

$

In Stock, Qty 20+

0

26

Lawn-Boy 605256

SPACER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.99

$

In Stock, Qty 20+

0

27

Lawn-Boy 611267

See Supercession: 614139
(Superseded to 614139)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

28

Lawn-Boy 603620

WASHER WROUGHT

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$5.99

$

In Stock, Qty 20+

0

29

Lawn-Boy 608833

See Supercession: 608833-03
(Superseded to 608833-03)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$27.99

$

In Stock, only 2 left!

0

30

Lawn-Boy 610039

See Supercession: 323-4
(Superseded to 323-4)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$3.99

$

In Stock, only 1 left!

0

31

Lawn-Boy 678636

WHEEL & TIRE KIT

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$28.99

$

In Stock, only 1 left!

0

32

Lawn-Boy 605255

WASHER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.99

$

In Stock, Qty 20+

0

32

Lawn-Boy 605255

WASHER

Note: ) included with assembly above.

$1.99

$

In Stock, Qty 20+

0

32

Lawn-Boy 605255

WASHER

Note: Parts shown with bullet (

$1.99

$

In Stock, Qty 20+

0

33

Lawn-Boy 605256

SPACER

Note: Parts shown with bullet (

$2.99

$

In Stock, Qty 20+

0

33

Lawn-Boy 605256

SPACER

Note: ) included with assembly above.

$2.99

$

In Stock, Qty 20+

0

33

Lawn-Boy 605256

SPACER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.99

$

In Stock, Qty 20+

0

34

Lawn-Boy 603441

BOLT WHEEL

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$7.99

$

In Stock, Qty 20+

0

35

Lawn-Boy 146014

WASHER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

36

Lawn-Boy 146015

WASHER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$3.49

$

In Stock, only 1 left!

0

37

Lawn-Boy 610826

PLATE HGT ADJ TRO

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

38

Lawn-Boy 613755

GASKET-EXHAUST F

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$11.99

$

Usually ships in 3-6 days

0

39

Lawn-Boy 611774

SCREW-HH

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$4.49

$

In Stock, only 2 left!

0

40

Lawn-Boy 682873

See Supercession: 682873-03
(Superseded to 682873-03)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

41

Lawn-Boy 609980

SUPPORT F

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

42

Lawn-Boy 609471

SCREW

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$4.99

$

In Stock, Qty 14

0

43

Lawn-Boy 677525

PLATE AND COLLAR ASM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$51.99

$

In Stock, only 1 left!

0

44

Lawn-Boy 683682

See Supercession: 612543-03
(Superseded to 612543-03)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$33.99

$

In Stock, only 3 left!

0

45

Lawn-Boy 603164

NUT-BLADE
(Superseded to 121-3611)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$5.99

$

In Stock, only 1 left!

0

46

Lawn-Boy 683252

See Supercession: 684513
(Superseded to 684513)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

47

Lawn-Boy 613765

NUT-CAGE

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$9.99

$

In Stock, Qty 9

0

47

Lawn-Boy 613765

NUT-CAGE

Note: Parts shown with bullet (

$9.99

$

In Stock, Qty 9

0

47

Lawn-Boy 613765

NUT-CAGE

Note: ) included with assembly above.

$9.99

$

In Stock, Qty 9

0

48

Lawn-Boy 604604

See Supercession: 94-1610
(Superseded to 94-1610)

Note: ) included with assembly above.

$1.49

$

In Stock, Qty 7

0

48

Lawn-Boy 604604

See Supercession: 94-1610
(Superseded to 94-1610)

Note: Parts shown with bullet (

$1.49

$

In Stock, Qty 7

0

48

Lawn-Boy 604604

See Supercession: 94-1610
(Superseded to 94-1610)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.49

$

In Stock, Qty 7

0

49

Lawn-Boy 610640

See Supercession: 43-8480
(Superseded to 43-8480)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$6.99

$

In Stock, Qty 6

0

49

Lawn-Boy 610640

See Supercession: 43-8480
(Superseded to 43-8480)

Note: Parts shown with bullet (

$6.99

$

In Stock, Qty 6

0

49

Lawn-Boy 610640

See Supercession: 43-8480
(Superseded to 43-8480)

Note: ) included with assembly above.

$6.99

$

In Stock, Qty 6

0

50

Lawn-Boy 610860

DISCONTINUED

Note: ) included with assembly above.

$

$

Not available

50

Lawn-Boy 610860

DISCONTINUED

Note: Parts shown with bullet (

$

$

Not available

50

Lawn-Boy 610860

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

51

Lawn-Boy 609994

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

52

Lawn-Boy 607601

SCREW V

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$4.49

$

In Stock, only 2 left!

0

53

Lawn-Boy 608311

NUT-LOCK F

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$3.49

$

Usually ships in 3-6 days

0

54

Lawn-Boy 607650

Cover Plate
(Superseded to 611113)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

55

Lawn-Boy 606733

WING SCREW LAWRE

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$9.99

$

In Stock, Qty 6

0

56

Lawn-Boy 607809

See Supercession: 614677
(Superseded to 614677)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$4.49

$

In Stock, Qty 12

0

57

Lawn-Boy 611243

BOLT-EYE

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$20.99

$

Usually ships in 3-6 days

0

58

Lawn-Boy 608997

SCREW S

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.49

$

In Stock, only 2 left!

0

59

Lawn-Boy 611379

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

60

Lawn-Boy 612495

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

61

Lawn-Boy 609891

See Supercession: 700138
(Superseded to 700138)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

62

Lawn-Boy 612951

TUBING-PRIMER POLY

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$3.99

$

In Stock, only 1 left!

0
