L 1950 BR - Electrolux/AYP Lawn Tractor STEERING AND ALL WHEELS Parts Diagram

Lawn Tractor

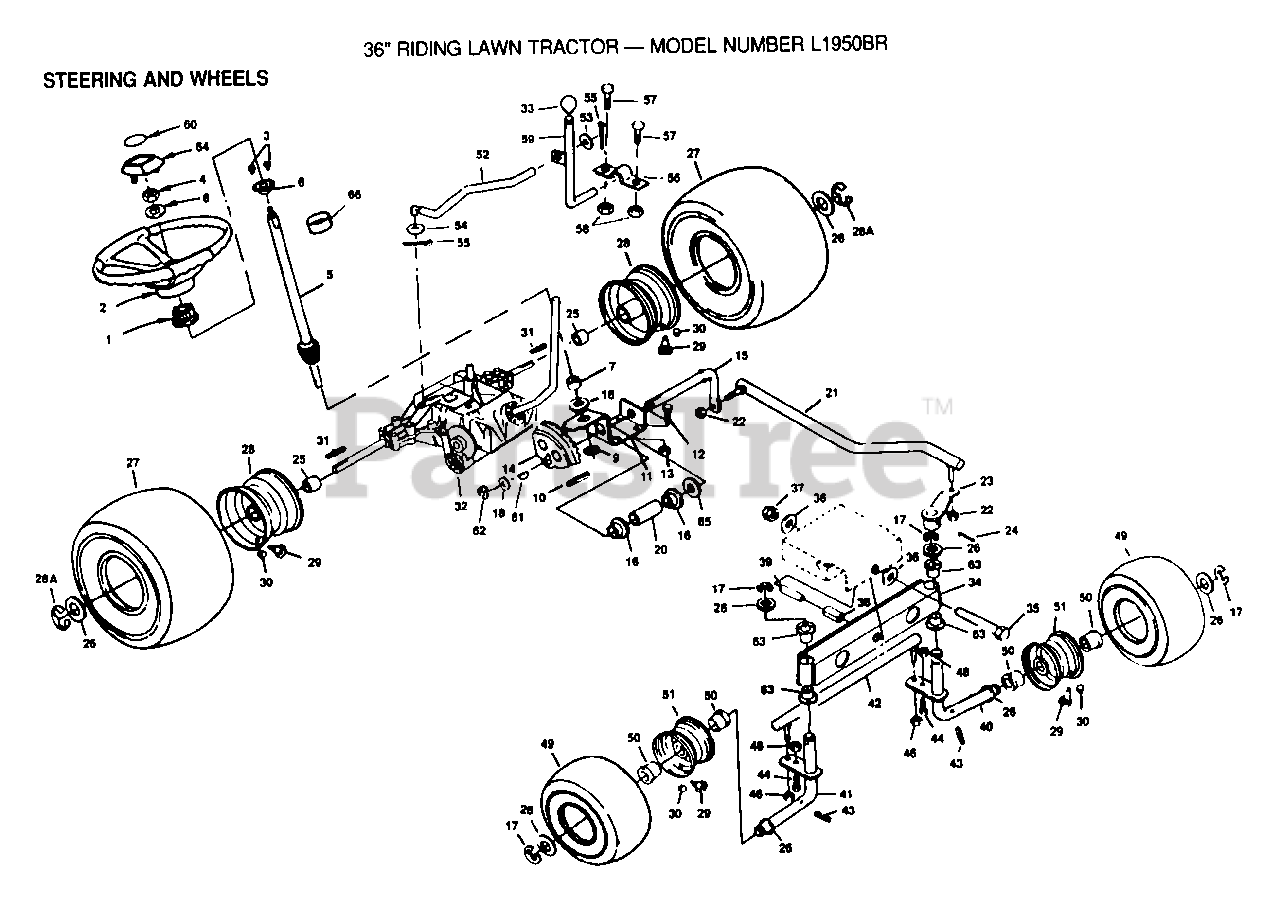

STEERING AND ALL WHEELS Parts Diagram

  • Title

1

Electrolux/AYP 100711L

ADAPTER LT
(Superseded to 587738905)

$9.49

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 100713N

SUB= 150547

$

$

Not available

3

Electrolux/AYP 17211008

SCREW
(Superseded to 817211008)

$4.99

$

Usually ships in 3-10 days

0

4

Electrolux/AYP 73940800

SUB= 73360800
(Superseded to 873940800)

$7.49

$

In Stock, only 4 left!

0

5

Electrolux/AYP 677A208

STEERING SHFT LT

$

$

Not available

6

Electrolux/AYP 1554J

SUB= 155108

$

$

Not available

7

Electrolux/AYP 74580

SHAFT SPACER LT

$

$

Not available

8

Electrolux/AYP 100712K

WASHER
(Superseded to 532100712)

$

$

Not available

9

Electrolux/AYP 19212013

WASHER
(Superseded to 583609801)

$

$

Not available

10

Murray 1572H

SUB= 2882J

$

$

Not available

11

Electrolux/AYP 120017X

STEERING BRKT T
(Superseded to 584367801)

$4.99

$

Usually ships in 3-10 days

0

12

Electrolux/AYP 74760512

BOLT
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

13

Murray 73680500

SUB= 73690500
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

14

Electrolux/AYP 101060M

GEAR LT
(Superseded to 583638301)

$61.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 101429X

STEERING ROD LT

$

$

Not available

16

Electrolux/AYP 71208

BUSHING
(Superseded to 532071208)

$3.99

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 12000040

KLIP RING
(Superseded to 812000040)

$6.49

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 19211621

WASHER
(Superseded to 819211621)

$6.49

$

In Stock, only 2 left!

0

20

Electrolux/AYP 101171K

SPACER LT

$

$

Not available

21

Electrolux/AYP 71219

NLA

$

$

Not available

22

Electrolux/AYP 7810H

GRIPCO NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 71185

STEERING ARM T

$

$

Not available

24

Electrolux/AYP 62079

SPIROL PIN

$5.99

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 2935J

WHEEL SPACER LT
(Superseded to 583731601)

$

$

Not available

26

Electrolux/AYP 19252016

SUB= 121749X

$

$

Not available

27

Electrolux/AYP 71653

SUB= 122074X

$

$

Not available

Electrolux/AYP 4445H1

TUBE.4.0/4.8-8
(Superseded to 583765701)

$36.99

$

Usually ships in 3-10 days

0

28

Electrolux/AYP 71652

SUB= 106108X427

$

$

Not available

28A

Electrolux/AYP 12000001

E-RING LT
(Superseded to 812000001)

$4.99

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 65139

VALVE STEM LT
(Superseded to 532065139)

$9.99

$

In Stock, only 1 left!

0

30

Electrolux/AYP 59192

VALVE CAP
(Superseded to 532059192)

$7.49

$

In Stock, Qty 9

0

31

Electrolux/AYP 2703J

SUB= 123583X

$

$

Not available

32

Electrolux/AYP 4000-11

TRANSAXLE ASSY

$

$

Not available

33

Electrolux/AYP 7803J

SUB= 106932X

$

$

Not available

34

Electrolux/AYP 104532X

SUB= 108894X

$

$

Not available

35

Electrolux/AYP 74760848

SUB= 64606

$

$

Not available

36

Electrolux/AYP 19171416

WASHER
(Superseded to 819171416)

$4.99

$

In Stock, Qty 8

0

37

Electrolux/AYP 73680800

NUT LTV
(Superseded to 596433401)

$3.99

$

In Stock, Qty 18

0

38

Electrolux/AYP 67151

ROCKER PIVOT LT

$

$

Not available

39

Electrolux/AYP 71188

PIVOT SPACER LT

$

$

Not available

40

Electrolux/AYP 677A169

KINGPIN ASSY LH

$

$

Not available

41

Electrolux/AYP 677A168

NLA

$

$

Not available

42

Electrolux/AYP 73240

TIR ROD LT

$

$

Not available

43

Electrolux/AYP 9530R

SUB= 5142H
(Superseded to 532437620)

$4.99

$

Usually ships in 3-10 days

0

44

Electrolux/AYP 74760612

SUB= 74780612
(Superseded to 874760612)

$4.99

$

In Stock, only 2 left!

0

46

Electrolux/AYP 73810500

NUT.LOCK.5/16-24
(Superseded to 873810500)

$5.99

$

Usually ships in 3-10 days

0

48

Electrolux/AYP 73680600

SUB= 73690600
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

49

Electrolux/AYP 71651

SUB= 122073X

$

$

Not available

Electrolux/AYP 4479R

SUB= 59904

$

$

Not available

50

Electrolux/AYP 625J

"LT, BEARING"
(Superseded to 583771201)

$

$

Not available

51

Electrolux/AYP 677A98

RIM ASSY LT

$

$

Not available

52

Electrolux/AYP 5926J

SUB= 8712J

$

$

Not available

53

Electrolux/AYP 19111216

WASHER M
(Superseded to 819111216)

$0.99

$

Usually ships in 3-10 days

0

54

Electrolux/AYP 19090816

WASHER

$2.49

$

Usually ships in 3-10 days

0

55

Electrolux/AYP 76020312

SUB= 3145
(Superseded to 539003145)

$133.99

$

Usually ships in 3-10 days

0

56

Electrolux/AYP 5917J

PIVOT

$

$

Not available

57

Electrolux/AYP 74760408

SUB= 74230408

$

$

Not available

58

Electrolux/AYP 73680400

SUB= 73690400
(Superseded to 586668901)

$4.99

$

In Stock, Qty 18

0

59

Electrolux/AYP 677A742

LEVER ASSY LT

$

$

Not available

60

Electrolux/AYP 109325X

SUB= 127075

$

$

Not available

61

Murray 2228M

SUB= 2228M1

$

$

Not available

62

Electrolux/AYP 12000040

KLIP RING
(Superseded to 812000040)

$6.49

$

Usually ships in 3-10 days

0

63

Electrolux/AYP 3366R

COL. SRTG. BEAR.
(Superseded to 532003366)

$4.99

$

In Stock, Qty 20+

0

64

Electrolux/AYP 100710L

INSERT-WHEEL LT
(Superseded to 532100710)

$

$

Not available

65

Electrolux/AYP 19211616

WASHER LT
(Superseded to 819211616)

$6.49

$

Usually ships in 3-10 days

0

66

Electrolux/AYP 109420X

SLEEVE LT

$

$

Not available
