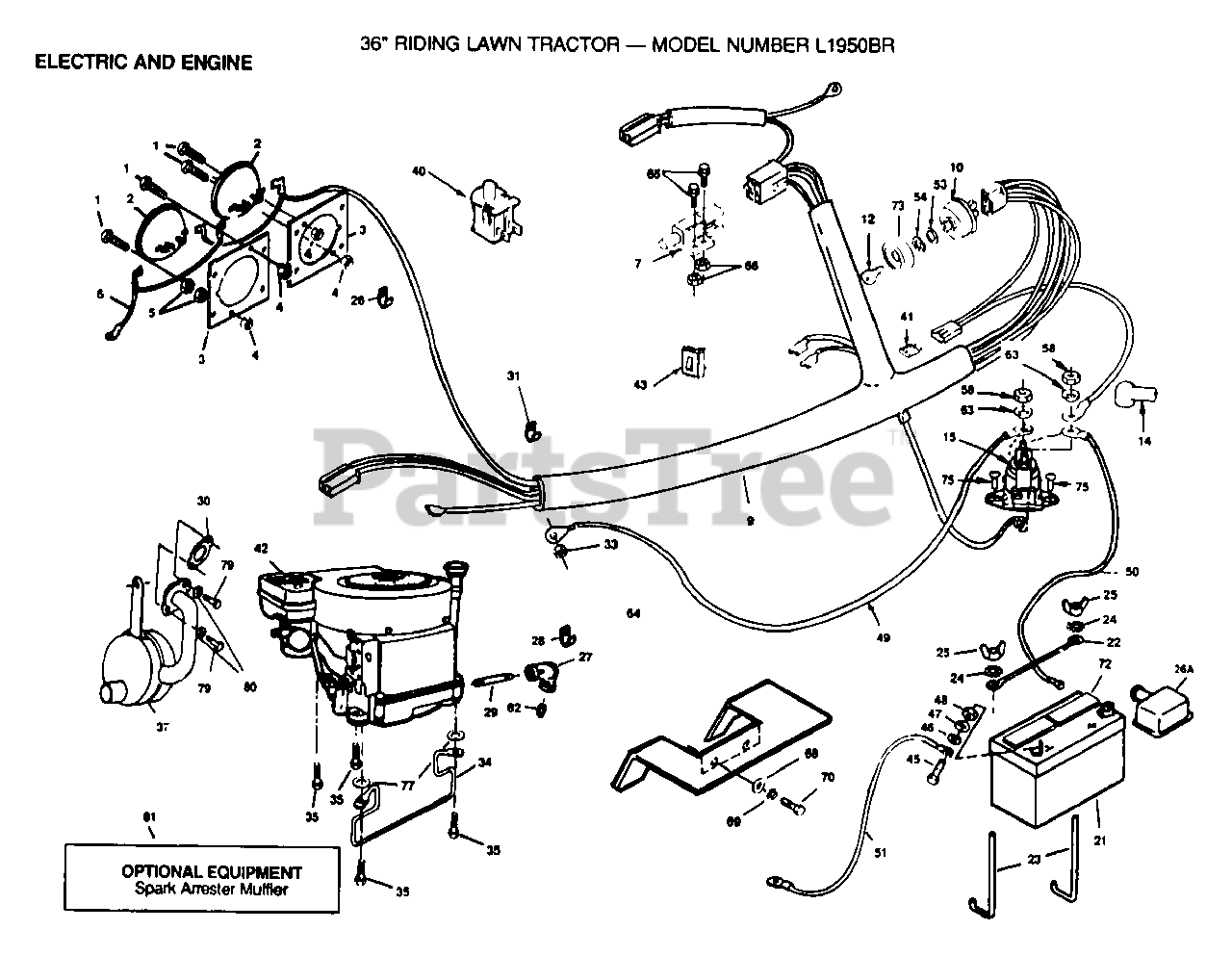

L 1950 BR - Electrolux/AYP Lawn Tractor ELECTRICAL, BATTERY, ENGINE Parts Diagram

Lawn Tractor

ELECTRICAL, BATTERY, ENGINE Parts Diagram

  • Title

$

$

Not available

2

$

$

Not available

3

$

$

Not available

$2.49

$

Usually ships in 3-10 days

0

$2.49

$

Usually ships in 3-10 days

0

6

$

$

Not available

7

Electrolux/AYP 109553X

SWITCH INTERLOCKT
(Superseded to 539101080)

$17.99

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 74191008

SCREW
(Superseded to 871191008)

$6.49

$

Usually ships in 3-10 days

0

$

$

Not available

10

Electrolux/AYP 4406R

SUB= STD365402

$

$

Not available

11

Electrolux/AYP 10040500

LOCKWASHER
(Superseded to 810040500)

$4.99

$

Usually ships in 3-10 days

0

12

Electrolux/AYP 7552H

SUB= STD365410

$

$

Not available

14

Electrolux/AYP 719J

SUB= 154336

$

$

Not available

15

$

$

Not available

$

$

Not available

21

Electrolux/AYP 121265X

SUB= 123899X

$

$

Not available

22

Electrolux/AYP 67187

"ROD, BATTERY"
(Superseded to 582935901)

$7.49

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 70456

"BOLT, BATTERY"

$

$

Not available

24

Electrolux/AYP 11030400

LOCKWASHER GT

$2.49

$

Usually ships in 3-10 days

0

25

$

$

Not available

26

Electrolux/AYP 2521R

CLIP SB
(Superseded to 583730101)

$

$

Not available

26A

Electrolux/AYP 719J

SUB= 154336

$

$

Not available

27

Electrolux/AYP 13200300

ELBOW
(Superseded to 532428287)

$18.99

$

In Stock, Qty 5

0

28

Electrolux/AYP 5320R

INSUL CLIP T
(Superseded to 532005320)

$5.99

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 13280328

PIPE NIPPLE
(Superseded to 813280328)

$4.99

$

Usually ships in 3-10 days

0

30

Electrolux/AYP 1407J

SUB= 272293

$

$

Not available

31

$

$

Not available

$2.49

$

Usually ships in 3-10 days

0

34

Electrolux/AYP 1795J

BELT KEEPER LT
(Superseded to 583700001)

$8.99

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 17490624

SCREW LT
(Superseded to 817060624)

$7.49

$

In Stock, only 1 left!

0

37

$

$

Not available

40

Electrolux/AYP 121305X

SWITCH SEAT
(Superseded to 532421062)

$14.99

$

In Stock, only 1 left!

0

41

Electrolux/AYP 108824X

FUSE HYT
(Superseded to 532108824)

$6.49

$

Usually ships in 3-10 days

0

42

Electrolux/AYP 281707

ENGINE 12 H.P. TYPE 0201-01

$

$

Not available

43

Electrolux/AYP 110712X

SWITCH LT
(Superseded to 532110712)

$9.49

$

In Stock, only 2 left!

0

45

Electrolux/AYP 74760412

BOLT LT
(Superseded to 874760412)

$7.49

$

In Stock, only 1 left!

0

46

Electrolux/AYP 19091016

WASHER
(Superseded to 819091016)

$4.99

$

Usually ships in 3-10 days

0

47

Electrolux/AYP 10040400

LOCKWASHER
(Superseded to 810040400)

$3.99

$

In Stock, only 2 left!

0

48

Electrolux/AYP 73220400

SUB= 50675
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

49

Electrolux/AYP 2957J

"CABLE T, BATTERY"

$

$

Not available

50

$

$

Not available

51

Electrolux/AYP 596J

SUB= 2955J

$

$

Not available

53

Electrolux/AYP 19221616

WASHER T
(Superseded to 583610001)

$

$

Not available

54

Electrolux/AYP 109788X

SUB= 124211X

$

$

Not available

55

$

$

Not available

58

Electrolux/AYP 73350400

NUT
(Superseded to 873350400)

$

$

Not available

62

Electrolux/AYP 91084

PLUG OIL DRAIN

$

$

Not available

63

Electrolux/AYP 10090400

SUB= 10040400

$

$

Not available

64

Electrolux/AYP 109730X

SHIELD HEAT LT

$

$

Not available

65

Electrolux/AYP 74191008

SCREW
(Superseded to 871191008)

$6.49

$

Usually ships in 3-10 days

0

66

Electrolux/AYP 73951000

"NUT,KEPS"
(Superseded to 873951000)

$5.99

$

Usually ships in 3-10 days

0

$

$

Not available

69

Electrolux/AYP 10040400

LOCKWASHER
(Superseded to 810040400)

$3.99

$

In Stock, only 2 left!

0

70

Electrolux/AYP 74780416

NLA
(Superseded to 874780416)

$6.49

$

Usually ships in 3-10 days

0

$

$

Not available

72

Electrolux/AYP 121264X

"CAP,BATTERY "
(Superseded to 532121264)

$

$

Not available

73

$

$

Not available

75

Electrolux/AYP 74230408

"SCREW,MACHINE"
(Superseded to 74780408)

$3.99

$

Usually ships in 3-10 days

0

77

Electrolux/AYP 19131210

WASHER
(Superseded to 819131210)

$

$

Not available

79

Electrolux/AYP 74760512

BOLT
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

80

Electrolux/AYP 10040500

LOCKWASHER
(Superseded to 810040500)

$4.99

$

Usually ships in 3-10 days

0

$

$

Not available

Electrolux/AYP 101539X

SHEET INSTR LT
(Superseded to 532101539)

$

$

Not available
