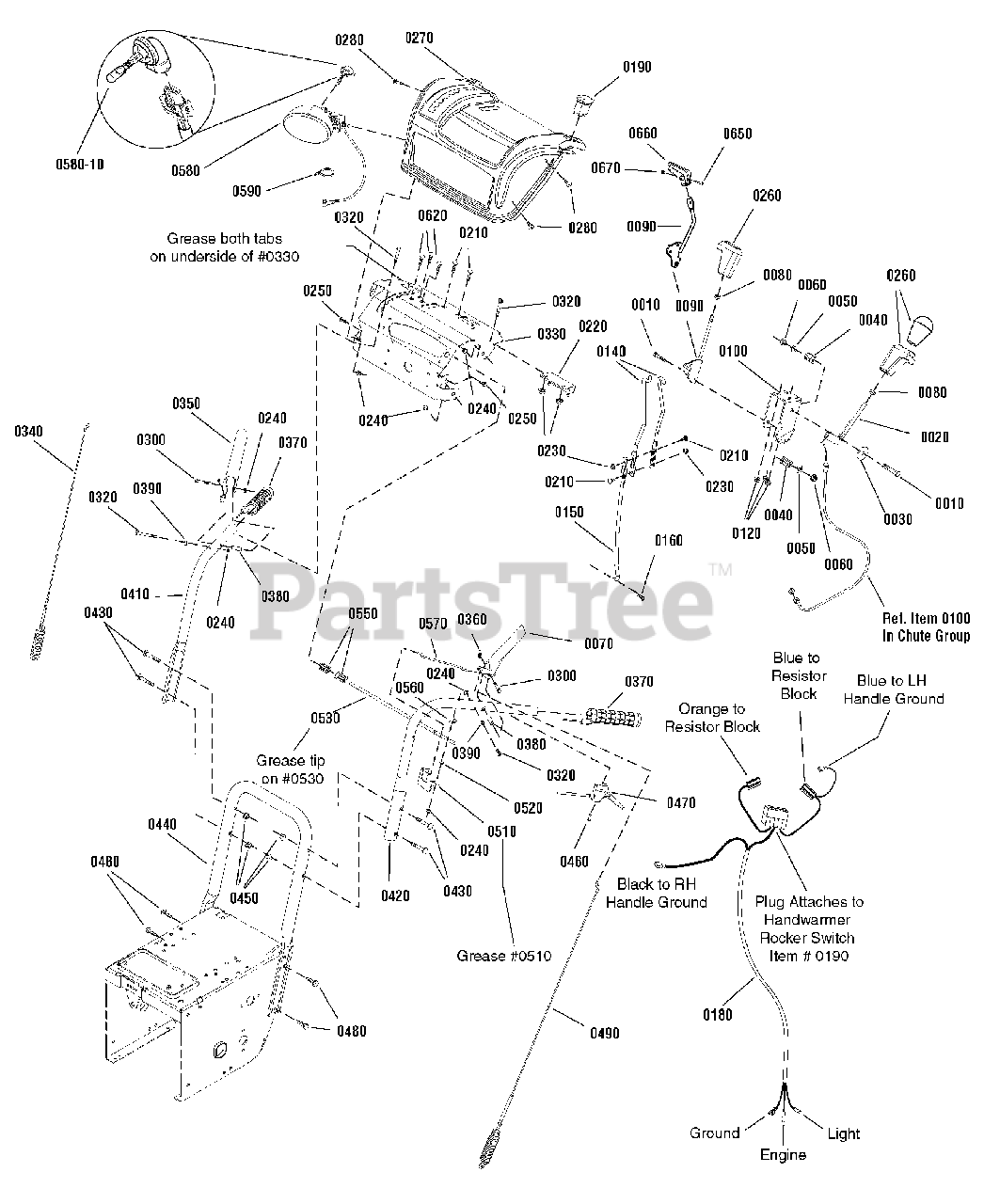

L 1732EX (1695856) - Snapper 32" Snow Thrower, 16.5hp Handles & Controls Group Parts Diagram

32" Snow Thrower, 16.5hp

Handles & Controls Group Parts Diagram

  • Title

0010

Snapper 1923701

CAPSCREW, Hex Head, 3/8-16 x 2, G5
(Superseded to 703589)

$4.49

$

In Stock, only 1 left!

0

0020

Snapper 1732427

ROD, Chute
(Superseded to 1732427SM)

$14.99

$

Usually ships in 2-12 days

0

0030

Snapper 1924356

WASHER, 3/8
(Superseded to 703591)

$5.49

$

In Stock, Qty 20+

0

0040

Snapper 724361

SPRING, 3/4"
(Superseded to 50786MA)

$5.49

$

Usually ships in 2-12 days

0

0050

Snapper 1918266

WASHER, 3/8
(Superseded to 71072MA)

$4.49

$

In Stock, only 4 left!

0

0060

Snapper 1919439

NUT, Hex Lock, ESNA Light, 3/8-16
(Superseded to 703117)

$3.49

$

In Stock, Qty 20+

0

0070

Snapper 1739782BM

LEVER, Clutch, LH
(Superseded to 1739782AYP)

$

$

Not available

0080

Snapper 1917421

NUT, Hex Jam, 3/8-16
(Superseded to 1917421SM)

$4.99

$

In Stock, Qty 10

0

0090

Snapper 1736836

SHIFT LEVER ASSEMBLY
(Superseded to 703047)

Note: (32" Models Only)

$56.99

$

Usually ships in 2-12 days

0

0090

Snapper 1735644

SHIFT LEVER ASSEMBLY
(Superseded to 1735644YP)

Note: (38" Models Only)

$86.99

$

Usually ships in 2-12 days

0

0100

Snapper 1737684

BRACKET, Controls
(Superseded to 1737684YP)

$16.99

$

Usually ships in 2-12 days

0

0120

Snapper 1931277

NUT, Hex Flange, Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0140

Snapper 1735647

ROD, Shift Linkage, Upper
(Superseded to 1735647YP)

Note: (38" Models Only)

$

$

Not available

0140

Snapper 1750635

ROD, Shift Linkage, Upper
(Superseded to 1750635YP)

Note: (32" Models Only)

$18.99

$

In Stock, only 1 left!

0

0150

Snapper 1666255

ROD, Shift
(Superseded to 1666255SM)

$51.99

$

In Stock, only 4 left!

0

0160

Snapper 1722460

PIN, Quick
(Superseded to 703430)

$3.49

$

In Stock, only 1 left!

0

0180

Snapper 1735652

HARNESS, Wiring
(Superseded to 1735652YP)

$91.99

$

Usually ships in 2-12 days

0

0190

Snapper 1732563

SWITCH, Rocker, Hand Warmer
(Superseded to 1732563SM)

$47.99

$

Usually ships in 2-12 days

0

0210

Snapper 1931317

BOLT, Carriage, Short Neck, 1/4-20 x 3/4, G5

$3.99

$

In Stock, only 3 left!

0

0220

Snapper 1724037

RESISTOR BLOCK
(Superseded to 1724037SM)

$39.99

$

Usually ships in 2-12 days

0

0230

Snapper 1960685

NUT, Hex KEPS, Conical Washer, 1/4-20
(Superseded to 703061)

$3.49

$

In Stock, Qty 11

0

0240

Snapper 1920397

NUT, Hex Lock, ESNA Light, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

0250

Snapper 1927429

CAPSCREW, Hex Washer Head, Taptite, 1/4-20 x 5/8
(Superseded to 703054)

$4.49

$

In Stock, Qty 5

0

0260

Snapper 1732470

KNOB, Internal Thread, 3/8-16
(Superseded to 1732470SM)

Note: (32" Models Only)

$19.99

$

In Stock, Qty 6

0

0260

Snapper 723073

GRIP, Lever, 3/8-16
(Superseded to 304437MA)

Note: (38" Models Only)

$11.99

$

Usually ships in 2-12 days

0

0270

Snapper 1735642D

COVER, Panel
(Superseded to 1735642DSM)

$91.99

$

Usually ships in 2-12 days

0

0280

Snapper 1960715

SCREW, Truss Head Torx, 1/4-20 x 3/4
(Superseded to 770135)

$3.99

$

In Stock, Qty 15

0

0300

Snapper 1750554

SCREW, Hex Washer Head, Shoulder, 10-24
(Superseded to 1750554YP)

$4.99

$

In Stock, only 1 left!

0

0320

Snapper 1921962

CAPSCREW, Hex Head, 1/4-20 x 1-3/4, G5
(Superseded to 703586)

$4.99

$

Usually ships in 2-12 days

0

0330

Snapper 1732064BM

COVER, Dash
(Superseded to 1732064BMYP)

$136.99

$

Usually ships in 2-12 days

0

0340

Snapper 1735643

CABLE & SPRING ASSEMBLY, Auger Drive, RH
(Superseded to 1735643YP)

$26.99

$

Usually ships in 2-12 days

0

0350

Snapper 1739783BM

LEVER, Clutch, RH
(Superseded to 1739783AYP)

$28.99

$

In Stock, only 1 left!

0

0360

Snapper 1933896

NUT, Hex Lock, Nylon Insert, 10-24
(Superseded to 703412)

$4.49

$

In Stock, only 2 left!

0

0370

Snapper 1723965

HAND GRIP, Heated
(Superseded to 1723965SM)

$86.99

$

Usually ships in 2-12 days

0

0380

Snapper 1736542

SPACER, Stepped
(Superseded to 703223)

$4.49

$

Usually ships in 2-12 days

0

0390

Snapper 1678392

SPACER, 1/4 ID x 3/8 OD x .33"
(Superseded to 703137)

$6.99

$

Usually ships in 2-12 days

0

0410

Snapper 1734587BM

HANDLE, Upper, RH
(Superseded to 1734587ASM)

$51.99

$

Usually ships in 2-12 days

0

0420

Snapper 1734586BM

HANDLE, Upper, LH
(Superseded to 1734586ASM)

$55.99

$

In Stock, only 1 left!

0

0430

Snapper 1960723

BOLT, Carriage, Short Neck, 5/16-18 x 2-1/4, G5
(Superseded to 1960723SM)

$3.99

$

In Stock, Qty 18

0

0440

Snapper 1735641BM

HANDLE, Lower
(Superseded to 1735641AYP)

$79.99

$

Usually ships in 2-12 days

0

0450

Snapper 1960686

NUT, Hex Flange, ESNA, 5/16-18
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

0460

Snapper 1725702

SCREW, Pan Head Torx, #10 x 1/2
(Superseded to 1725702SM)

$5.49

$

Usually ships in 2-12 days

0

0470

Snapper 1718791

CABLE & HANDLE ASSEMBLY
(Superseded to 1718791SM)

$70.99

$

In Stock, only 3 left!

0

0480

Snapper 1921333

CAPSCREW, Hex-Head, 5/16-18 x 1, G5
(Superseded to 703585)

$4.99

$

Usually ships in 2-12 days

0

0490

Snapper 1735646

CABLE & SPRING ASSEMBLY, Auger Drive
(Superseded to 1735646YP)

$21.99

$

Usually ships in 2-12 days

0

0510

Snapper 1733505BM

BRACKET, Pivot, Free Hand
(Superseded to 1733505BMYP)

$14.99

$

Usually ships in 2-12 days

0

0520

Snapper 1733095

SPACER, 1/4 ID x 3/8 OD x 1/8"
(Superseded to 1733095SM)

$4.49

$

Usually ships in 2-12 days

0

0530

Snapper 1733509

ROD & SPRING ASSEMBLY
(Superseded to 1733509SM)

$81.99

$

Usually ships in 2-12 days

0

0550

Snapper 2108360

SPRING, Comperssion, 2-1/4"
(Superseded to 2108360SM)

$5.49

$

In Stock, only 1 left!

0

0560

Snapper 1960353

WASHER, 1/4
(Superseded to 703229)

$4.49

$

In Stock, Qty 7

0

0570

Snapper 1736360

ROD, Hold Down
(Superseded to 1736360YP)

$11.99

$

Usually ships in 2-12 days

0

0580

Snapper 1737966

HEADLIGHT, Oval
(Superseded to 1737966YP)

$97.99

$

Usually ships in 2-12 days

0

0580-10

Snapper 1737966

* BULB, Headlight, Halogen, 881-12V 27W
(Superseded to 1737966YP)

Note: (Included with Ref. No. 0580)

$97.99

$

Usually ships in 2-12 days

0

0590

Snapper 2825094

TIE, Self Locking
(Superseded to 1701011SM)

$5.49

$

In Stock, only 2 left!

0

0620

Snapper 723873

BOLT, Carriage, 5/16-18 x 3/4
(Superseded to 703225)

$3.99

$

In Stock, Qty 18

0

0650

Snapper 1960589

SCREW, Round Head Phillips, #10-24 x 3/4
(Superseded to 1960589SM)

Note: (32" Models Only)

$3.99

$

Usually ships in 2-12 days

0

0660

Snapper 1733192

KNOB, Slot Speed
(Superseded to 1733192SM)

Note: (32" Models Only)

$8.49

$

Usually ships in 2-12 days

0

0670

Snapper 1933896

NUT, Hex Lock, Nylon Insert, 10-24
(Superseded to 703412)

$4.49

$

In Stock, only 2 left!

0
