L 1730 E (1695823) - Simplicity 30" Snow Thrower, 16.5hp Traction Drive Group - Easy Turn Parts Diagram

30" Snow Thrower, 16.5hp

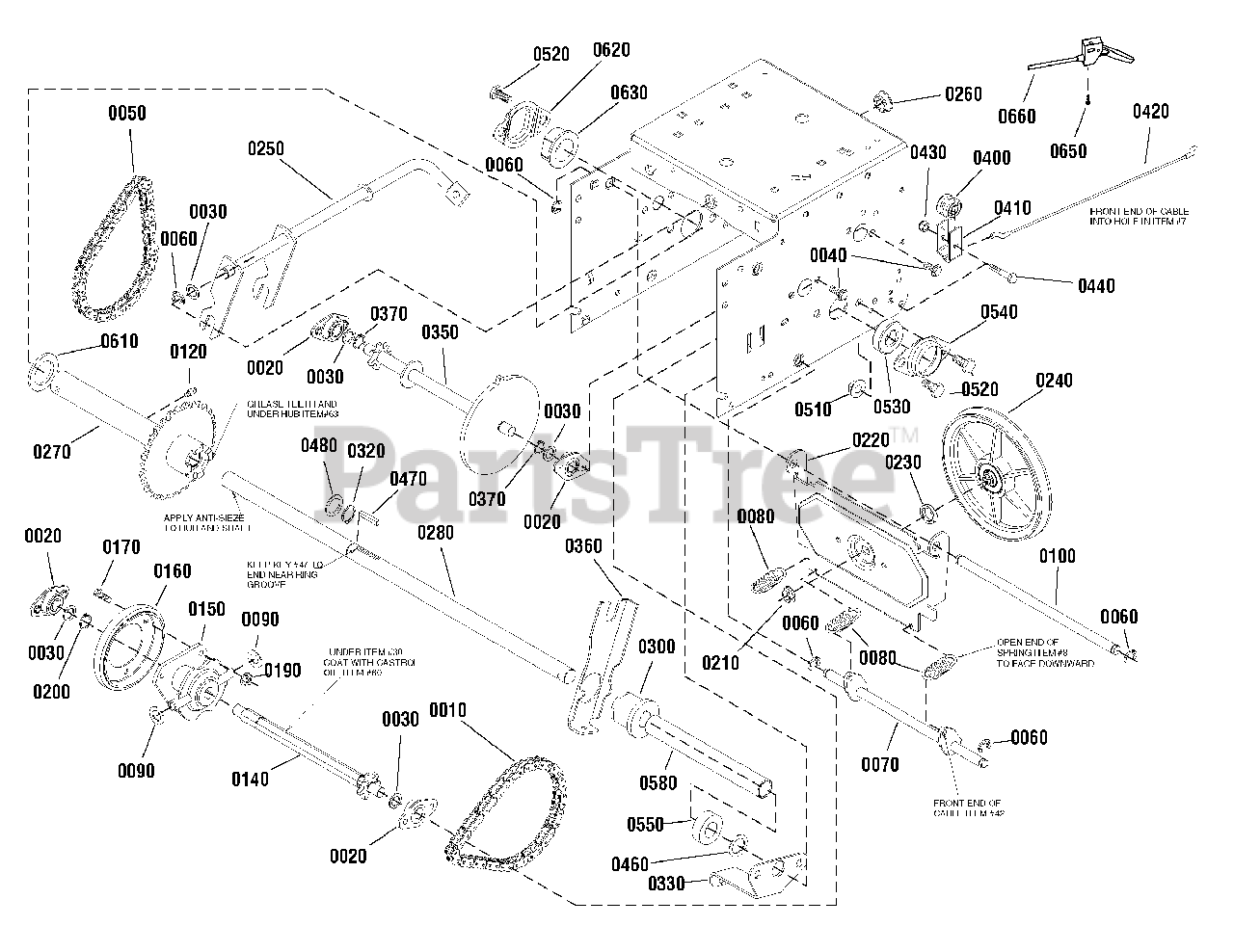

Traction Drive Group - Easy Turn Parts Diagram

  • Title

0010

Simplicity 724613

CHAIN, Roller 420 x 19" Lg
(Superseded to 579851MA)

$21.99

$

In Stock, Qty 16

0

0020

Simplicity 723655

RETAINER & BUSHING ASSEMBLY
(Superseded to 334163MA)

$11.99

$

In Stock, Qty 8

0

0030

Simplicity 724619

WASHER, Flat, 1/2
(Superseded to 579858MA)

$4.49

$

In Stock, Qty 20+

0

0040

Simplicity 1924856

CAPSCREW, Hex Washer Head, 5/16-18 x 1/2
(Superseded to 703985)

$4.49

$

In Stock, only 3 left!

0

0050

Simplicity 724627

CHAIN, Roller 420 X 18 Lg
(Superseded to 579868MA)

$20.99

$

In Stock, Qty 17

0

0060

Simplicity 721910

RETAINER, Ring, 7/16
(Superseded to 11X30MA)

$4.49

$

In Stock, Qty 12

0

0070

Simplicity 722377

SPRING LINK ASSEMBLY
(Superseded to 1502105YZMA)

$33.99

$

Usually ships in 2-12 days

0

0080

Simplicity 1736469

SPRING, Extension
(Superseded to 1736469YP)

$6.99

$

In Stock, Qty 20+

0

0090

Simplicity 80003590

WASHER, 1/2
(Superseded to 703128)

$3.49

$

In Stock, Qty 20+

0

0100

Simplicity 722082

AXLE, Swing Plate, 7/16 Dia., 10-1/2 Lg
(Superseded to 703328)

$21.99

$

Usually ships in 2-12 days

0

0120

Simplicity 2812808

FITTING, Lube, 1/4-28
(Superseded to 2812808SM)

$4.49

$

In Stock, Qty 20+

0

0140

Simplicity 722083

HEX SHAFT & SPROCKET ASSEMBLY
(Superseded to 1501100MA)

$

$

Not available

0150

Simplicity 723694

HUB, Friction Wheel & Bearing
(Superseded to 1739282YP)

$39.99

$

In Stock, Qty 5

0

0160

Simplicity 722185

WHEEL, Friction
(Superseded to 1501435MA)

$27.99

$

In Stock, Qty 9

0

0170

Simplicity 1921959

CAPSCREW, Hex Head, 1/4-20 x 5/8, G5
(Superseded to 001X38MA)

$4.49

$

In Stock, Qty 18

0

0190

Simplicity 1928372

NUT, Hex, 1/4-20
(Superseded to 703914)

$3.49

$

In Stock, Qty 14

0

0200

Simplicity 1733326

RING, Retaining, # 63
(Superseded to 1733326SM)

$4.49

$

In Stock, only 1 left!

0

0210

Simplicity 722391

NUT, Flange Lock, 3/8-24
(Superseded to 15X114MA)

$4.49

$

Usually ships in 2-12 days

0

0220

Simplicity 722069

PLATE, Swinging
(Superseded to 1501057YZMA)

$37.99

$

In Stock, only 1 left!

0

0230

Simplicity 722110

SPACER, Friction Pulley
(Superseded to 1501158MA)

$4.99

$

In Stock, Qty 10

0

0240

Simplicity 722092

FRICTION PULLEY ASSEMBLY
(Superseded to 1501115MA)

$

$

Not available

0250

Simplicity 722087

SPEED SELECTOR ASSEMBLY
(Superseded to 1501110YZMA)

$50.99

$

In Stock, only 2 left!

0

0260

Simplicity 724636

BEARING, Flange, 1/2 ID X 7/8 OD
(Superseded to 579944MA)

$15.99

$

Usually ships in 2-12 days

0

0270

Simplicity 1733085

ASSEMBLY, Sprocket & Hub w/ Bushings
(Superseded to 1733085SM)

$107.99

$

Usually ships in 2-12 days

0

0280

Simplicity 1732381

AXLE, 3/4 Dia. x 22-3/4 Lg
(Superseded to 1732381SM)

$59.99

$

Usually ships in 2-12 days

0

0300

Simplicity 1732382

GEAR, Clutching 3/4 ID 17/8 OD 1.50 Lg
(Superseded to 1732382SM)

$108.99

$

Usually ships in 2-12 days

0

0320

Simplicity 2827732

RING, Retaining, # 74, 3/4 Dia.
(Superseded to 703979)

$4.49

$

In Stock, Qty 10

0

0330

Simplicity 1732948A

SUPPORT, Cable
(Superseded to 1751336AYP)

$12.99

$

Usually ships in 2-12 days

0

0350

Simplicity 1732389

SPROCKET & SHAFT ASSEMBLY
(Superseded to 1732389SM)

$81.99

$

Usually ships in 2-12 days

0

0360

Simplicity 1732383A

ARM, Clutch
(Superseded to 1732383ASM)

$9.49

$

Usually ships in 2-12 days

0

0370

Simplicity 720009

RING, Retaining, 1/2 Dia.
(Superseded to 704211)

$3.99

$

Usually ships in 2-12 days

0

0400

Simplicity 724621

SPOOL CABLE, Auger Control
(Superseded to 579860MA)

$5.99

$

In Stock, Qty 10

0

0410

Simplicity 722070

BRACKET, Cablel Spool
(Superseded to 1501059YZMA)

$3.49

$

In Stock, only 1 left!

0

0420

Simplicity 722095

CABLE, Front Drive, Lower
(Superseded to 1501122MA)

$8.49

$

In Stock, Qty 18

0

0430

Simplicity 1920397

NUT, Hex Lock, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

0440

Simplicity 1922837

CAPSCREW, Hex Head, 1/4-20 x 1-1/2, G5
(Superseded to 703234)

$4.49

$

In Stock, only 4 left!

0

0460

Simplicity 725394

WASHER, Flat, 3/4 x 1-1/8
(Superseded to 712120MA)

$4.99

$

In Stock, Qty 20+

0

0470

Simplicity 1667622

KEY, 1-9/64
(Superseded to 1667622SM)

$8.49

$

Usually ships in 2-12 days

0

0480

Simplicity 1960114

WASHER, 3/4
(Superseded to 80003650)

$3.49

$

In Stock, Qty 20+

0

0510

Simplicity 1928352

NUT, Hex Flange, Locking, 3/8-16
(Superseded to 703793)

$4.49

$

In Stock, Qty 5

0

0520

Simplicity 1921965

CAPSCREW, Hex Head, 3/8-16 x 3/4, G5
(Superseded to 703237)

$4.99

$

Usually ships in 2-12 days

0

0530

Simplicity 724409

BEARING, Ball, 3/4 ID x 1-5/8 OD
(Superseded to 53263MA)

$38.99

$

In Stock, only 2 left!

0

0540

Simplicity 1736396

RETAINER, Bearing, Flanged
(Superseded to 1736396YP)

$10.99

$

In Stock, Qty 6

0

0550

Simplicity 722228

COLLAR, Locking
(Superseded to 1501620MA)

$16.99

$

Usually ships in 2-12 days

0

0580

Simplicity 720298

SPRING, Compression

$

$

Not available

0610

Simplicity 2860169

WASHER, 3/16
(Superseded to 2860169SM)

$6.99

$

Usually ships in 2-12 days

0

0620

Simplicity 1733101

RETAINER, Bushing
(Superseded to 1733101SM)

$

$

Not available

0630

Simplicity 1720305

BUSHING, 5/32
(Superseded to 1720305SM)

$16.99

$

In Stock, Qty 8

0

0650

Simplicity 1725702

SCREW, Pan Head, #10 x 1/2
(Superseded to 1725702SM)

$5.49

$

Usually ships in 2-12 days

0

0660

Simplicity 1718791

CABLE & HANDLE ASSEMBLY
(Superseded to 1718791SM)

$70.99

$

In Stock, only 4 left!

0
