L 1632 E (1695338) - Simplicity 32" Snow Thrower, 15.5hp Decal Group Parts Diagram

32" Snow Thrower, 15.5hp

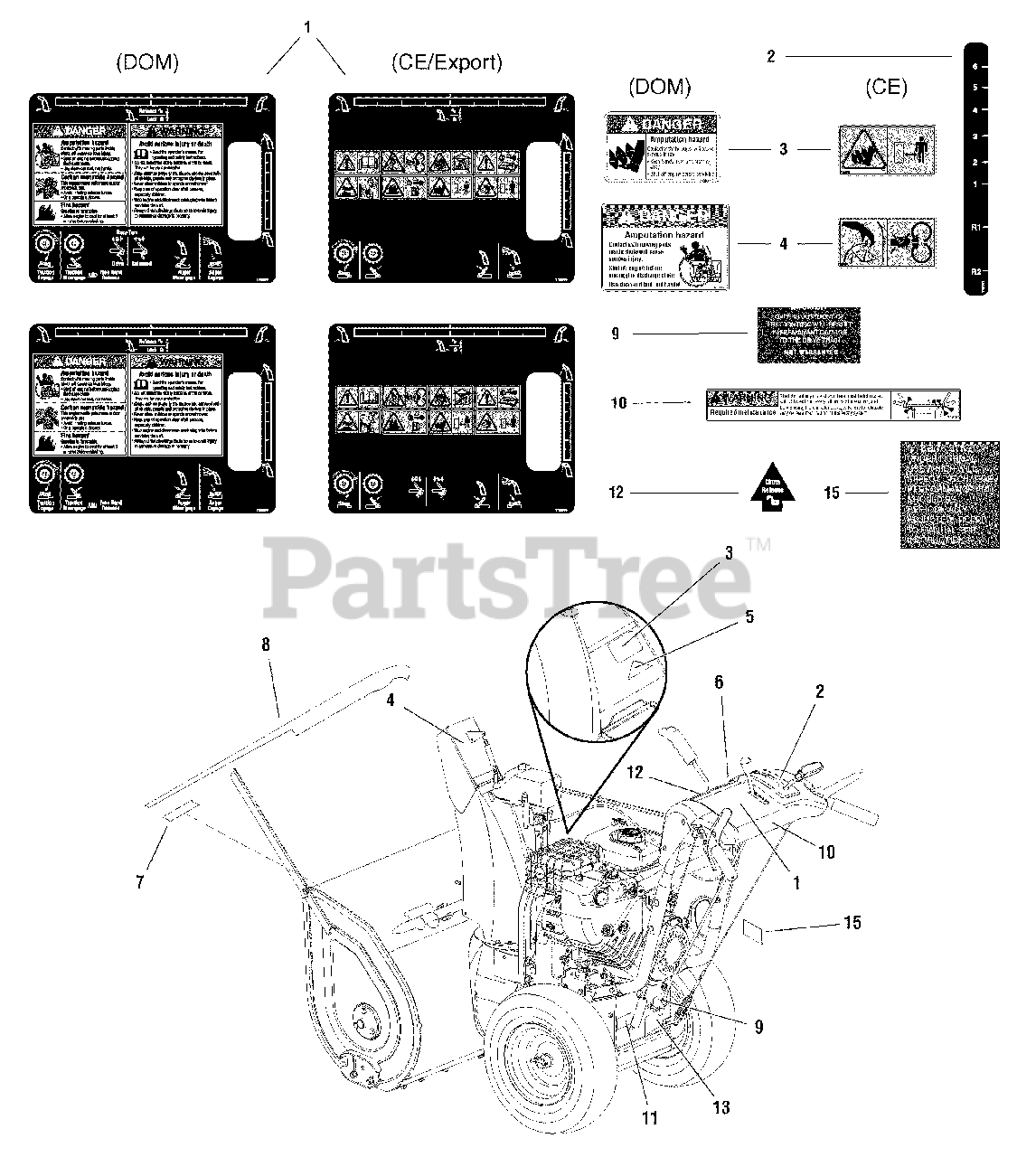

Decal Group Parts Diagram

  • Title

1

Simplicity 1733056SM

DECAL, Dashboard Standard Drive

Note: (Domestic Only)

$18.99

$

Usually ships in 2-12 days

0

1

Simplicity 1733033SM

DECAL, Dashboard EZ Turn

Note: (Domestic Only)

$20.99

$

Usually ships in 2-12 days

0

1

Simplicity 1733059SM

DECAL, Dashboard Standard Drive

Note: (CE/Export Only)

$29.99

$

Usually ships in 2-12 days

0

1

Simplicity 1733060SM

DECAL, Dashboard EZ Turn

Note: (CE/Export Only)

$29.99

$

Usually ships in 2-12 days

0

2

Simplicity 1733772SM

DECAL, Shift 1,2,3,4,5,6 R1 R2
(Superseded to 1751582YP)

$12.99

$

Usually ships in 2-12 days

0

3

Simplicity 1716532SM

DECAL, Danger Avoid Injury From Auger

Note: (Domestic Only)

$12.99

$

Usually ships in 2-12 days

0

3

Simplicity 1727208SM

DECAL, Impeller Warning

Note: (CE/Export Only)

$18.99

$

Usually ships in 2-12 days

0

4

Simplicity 1733057SM

DECAL, Danger Amputation Hazard

Note: (Domestic Only)

$7.99

$

Usually ships in 2-12 days

0

4

Simplicity 1727207SM

DECAL, Chute Warning

Note: (CE/Export Only)

$18.99

$

Usually ships in 2-12 days

0

5

DECAL, Opei Certified ANSI

Note: (Domestic Only)

$

$

Not available

6

Simplicity 1733199SM

DECAL, SMI Dash Swoosh

$11.99

$

Usually ships in 2-12 days

0

7

Simplicity 1734637SM

DECAL, SMI 1428L

$16.99

$

Usually ships in 2-12 days

0

7

Simplicity 1734636SM

DECAL, SMI 1226L

$13.99

$

Usually ships in 2-12 days

0

7

Simplicity 1734638SM

DECAL, SMI 1530L

$13.99

$

Usually ships in 2-12 days

0

7

Simplicity 1734639SM

DECAL, SMI 1632L

$11.99

$

Usually ships in 2-12 days

0

8

Simplicity 1733246SM

DECAL, SMI Stripe 27.07 Long

$18.99

$

Usually ships in 2-12 days

0

8

Simplicity 1733247SM

DECAL, SMI Stripe 25.09 Long

$19.99

$

Usually ships in 2-12 days

0

8

Simplicity 1733245SM

DECAL, SMI Stripe 29.00 Long

$24.99

$

Usually ships in 2-12 days

0

8

Simplicity 1733244SM

DECAL, SMI Stripe 31.00 Long

$34.99

$

Usually ships in 2-12 days

0

9

Simplicity 7859MA

DECAL, Over Adjustment of Friction Disc

Note: (Domestic Only)

$11.99

$

Usually ships in 2-12 days

0

10

Simplicity 1733526SM

DECAL, Warning Lubrication

Note: (Domestic Only)

$15.99

$

Usually ships in 2-12 days

0

11

Simplicity 1720454SM

DECAL, Touch Up Paint Orange, Black, Red

$13.99

$

In Stock, only 1 left!

0

12

Simplicity 1733443SM

DECAL, Chute Release Arrow

$10.99

$

Usually ships in 2-12 days

0

13

STICKER, Serial w/Bar Code

$

$

Not available

15

Simplicity 7390MA

DECAL, Belt Stretch & Adjustment

Note: (Domestic Only)

$23.99

$

Usually ships in 2-12 days

0
