L 1630E (1695682) - Snapper 30" Snow Thrower, 15.5hp Wheel & Tire Group Parts Diagram

30" Snow Thrower, 15.5hp

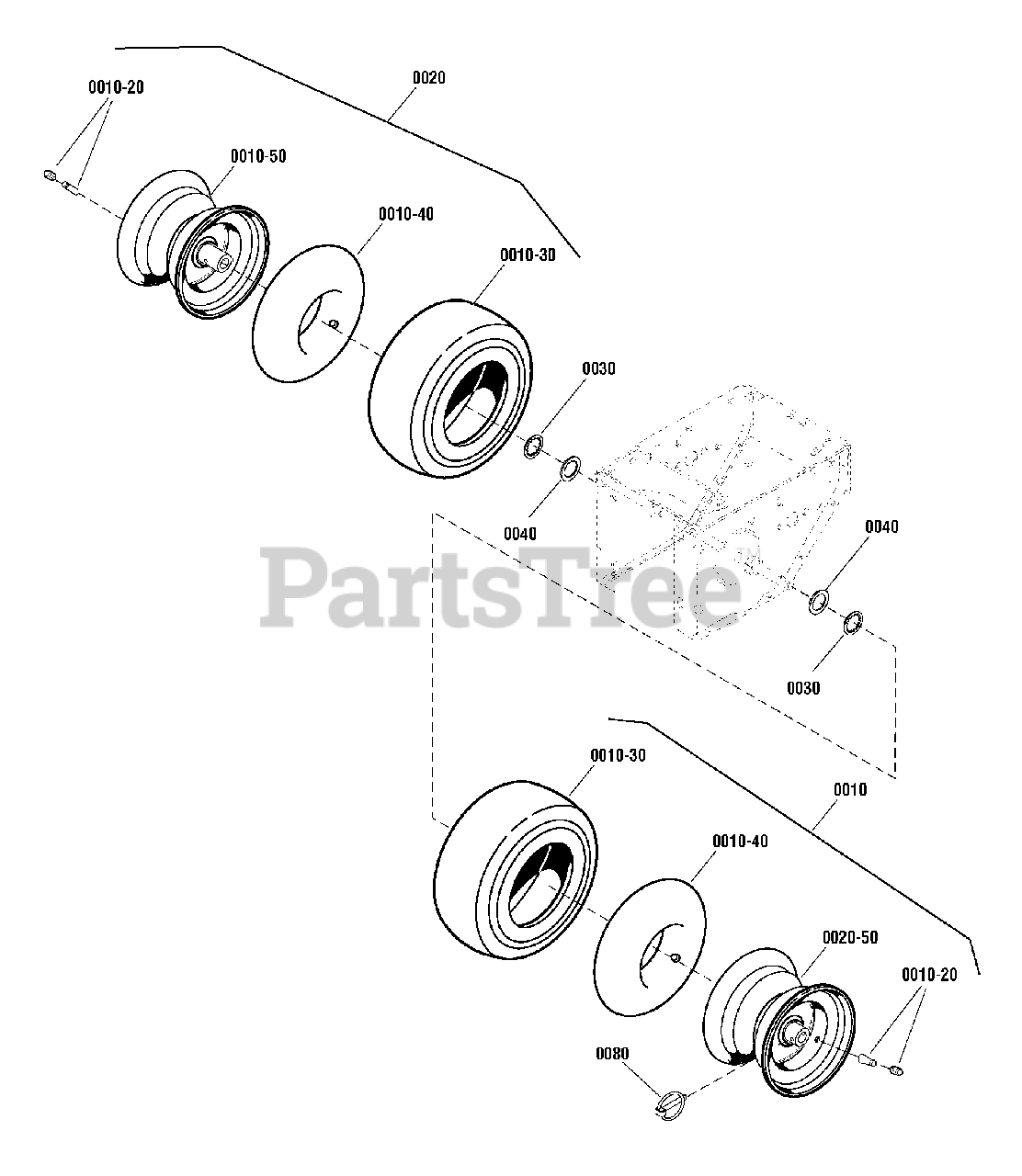

Wheel & Tire Group Parts Diagram

  • Title

0010

Snapper 1738357

WHEEL ASSEMBLY, K467, 15 x 5-6 2P, L.H. (Inc. 0010-20, 0010-30, 0010-40 & 0010-50)
(Superseded to 1738357YP)

Note: (Used with 26" CE/Export)

$142.99

$

Usually ships in 2-12 days

0

0010

Snapper 1738361

WHEEL ASSEMBLY, Artic Trac, 4.80 L.H. (Inc. 0010-20, 0010-30, 0010-40 & 0010-50)
(Superseded to 1738361YP)

Note: (Used with 26" Domestic & all 28")

$152.99

$

Usually ships in 2-12 days

0

0010

Snapper 1738363

WHEEL ASSEMBLY, W3, 6.5, L.H. Complete
(Superseded to 1738363YP)

Note: (Used with all 30")

$153.99

$

Usually ships in 2-12 days

0

0010-20

Snapper 2172353

VALVE STEM & CAP
(Superseded to 7012234SM)

Note: (All Tires)

$6.49

$

Usually ships in 2-12 days

0

0010-30

Snapper 1739104

TIRE, 15 x 5-6 (L.H. & R.H.)

Note: (Used with 26" CE/Export)

$

$

Not available

0010-30

Snapper 1737155

TIRE, 4.80-8, 2-Ply, K467
(Superseded to 1737155YP)

Note: (Used with 26" Domestic & all 28")

$74.99

$

Usually ships in 2-12 days

0

0010-40

Snapper 1664090

TUBE, Tire 15 x 5-6
(Superseded to 1664090SM)

Note: (Used with 26" CE/Export)

$26.99

$

In Stock, only 3 left!

0

0010-40

Snapper 164247

TUBE, Tire 1 x 6-1/2
(Superseded to 2164247SM)

Note: (Used with all 30")

$40.99

$

Usually ships in 2-12 days

0

0010-50

RIM, Tire, L.H.

Note: (Not a servicable part. Order complete assembly)

$

$

Not available

0020

Snapper 1738356

WHEEL ASSEMBLY, K467, 15 x 5-6 2P, R.H. (Inc. 0010-20, 0010-30, 0010-40, 0020-50)
(Superseded to 1738356YP)

Note: (Used with 26" CE/Export)

$145.99

$

Usually ships in 2-12 days

0

0020

Snapper 1738360

WHEEL ASSEMBLY, Artic Trac, 4.80 R.H. (Inc. 0010-20, 0010-30, 0010-40 & 0020-50)
(Superseded to 1738360YP)

Note: (Used with 26" Domestic & all 28")

$152.99

$

Usually ships in 2-12 days

0

0020

Snapper 1738362

WHEEL ASSEMBLY, W3, 6.5, R.H. Complete (Inc. 0010-20, 0010-30, 0010-40 & 0020-50)
(Superseded to 1738362YP)

Note: (Used with all 30")

$153.99

$

Usually ships in 2-12 days

0

0020-50

RIM, Tire, R.H.

Note: (Not a servicable part. Order complete assembly)

$

$

Not available

0030

Snapper 1657528

RING, Retaining
(Superseded to 1657528SM)

Note: (Used with 26" CE/Export)

$4.49

$

In Stock, Qty 20+

0

0040

Snapper 725394

WASHER, Flat, 3/4 ID x 1-1/8 OD
(Superseded to 712120MA)

Note: (Used with 26" CE/Export)

$4.99

$

In Stock, Qty 20+

0

0080

Snapper 725431

PIN, Klik, 1/4 x 1-3/8
(Superseded to 500016MA)

Note: (Used with 26" CE/Export)

$15.99

$

In Stock, only 1 left!

0

0080

Snapper 1731186

PIN, Klick, 5/16 x 2
(Superseded to 703160)

$5.49

$

In Stock, Qty 7
