L 1630E (1695682) - Snapper 30" Snow Thrower, 15.5hp Chute & Rotation Group - Electric Parts Diagram

30" Snow Thrower, 15.5hp

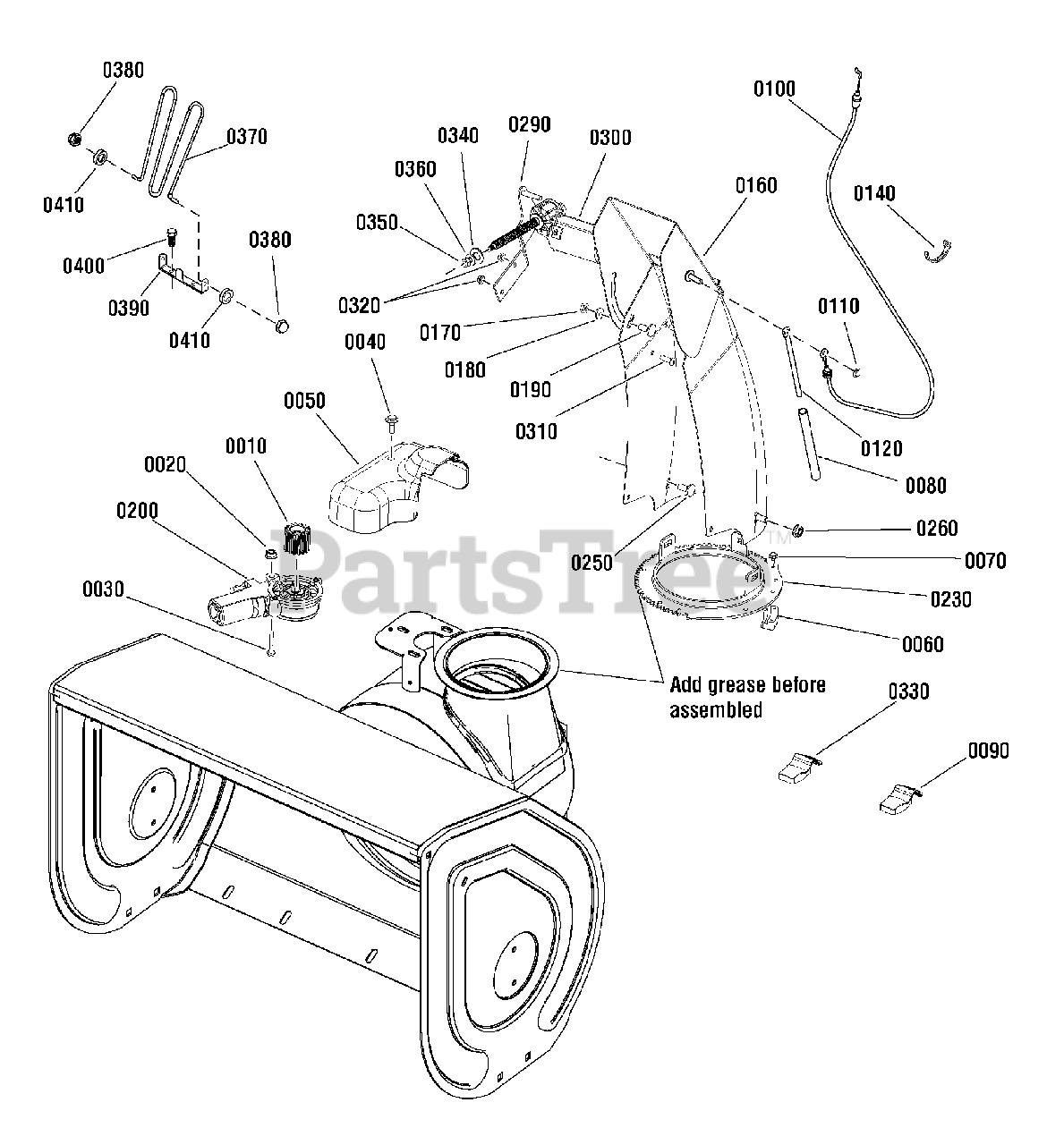

Chute & Rotation Group - Electric Parts Diagram

  • Title

0010

Snapper 1728967

PINION, 1-1/4 Lg
(Superseded to 1728967SM)

$17.99

$

In Stock, only 2 left!

0

0020

Snapper 1960745

NUT, Whiz Lock, #10-24
(Superseded to 703917)

$3.49

$

In Stock, Qty 20+

0

0030

Snapper 2860604

CAPSCREW, Hex Washer, #10 x 1-1/4
(Superseded to 2860604SM)

$4.49

$

Usually ships in 2-12 days

0

0040

Snapper 1925592

CAPSCREW, Hex Washer,Taptite, 1/4-20 x 3/4
(Superseded to 703466)

$3.99

$

In Stock, Qty 10

0

0050

Snapper 1737455

COVER, Electric Chute Rotation
(Superseded to 1752877YP)

$16.99

$

In Stock, only 1 left!

0

0060

Snapper 7011938

RETAINER, Spout
(Superseded to 7011938SM)

$

$

Not available

0070

Snapper 1960001

CAPSCREW, Hex Washer, 10-14 x 5/8
(Superseded to 703062)

$4.49

$

In Stock, only 3 left!

0

0080

Snapper 1734647

SPRING, Compression, 9/16 OD x 6-1/16 Lg
(Superseded to 1734647SM)

Note: (26" CE/Export Only)

$3.99

$

Usually ships in 2-12 days

0

0090

Snapper 1738243

SWITCH, Chute Rotation
(Superseded to 1738243YP)

$54.99

$

Usually ships in 2-12 days

0

0100

Snapper 1732971

CABLE, Deflector Control
(Superseded to 1750623YP)

Note: (26" CE/Export Only)

$49.99

$

In Stock, Qty 5

0

0110

Snapper 1932718

PUSHNUT, 5/16 Dia., 5/8 OD
(Superseded to 704028)

Note: (26" CE/Export Only)

$5.49

$

In Stock, only 3 left!

0

0120

Snapper 1734708A

ROD, 5/16 Dia., 6-1/4 Lg
(Superseded to 1734708ASM)

Note: (26" CE/Export Only)

$13.99

$

Usually ships in 2-12 days

0

0140

Snapper 2825094

TIE, Self-Locking, 7-5/16 Lg
(Superseded to 1701011SM)

$5.49

$

In Stock, only 2 left!

0

0160

Snapper 1738231BM

CHUTE ASSEMBLY, Tall, Steel
(Superseded to 1738231BMYP)

Note: (28" CE/Export and Domestic Only)

$111.99

$

Usually ships in 2-12 days

0

0160

Snapper 1738230D

CHUTE ASSEMBLY, Tall, Steel, Red
(Superseded to 1738230DYP)

Note: (26" CE/Export Only)

$136.99

$

Usually ships in 2-12 days

0

0170

Snapper 1960686

NUT, Hex-Flange, 5/16-18
(Superseded to 703115)

Note: (26" CE/Export Only)

$3.49

$

In Stock, Qty 20+

0

0180

Snapper 2860210

WASHER, Nylon, 3/8
(Superseded to 2860210SM)

Note: (26" CE/Export Only)

$4.49

$

In Stock, only 2 left!

0

0190

Snapper 1931333

BOLT, Carriage, 5/16-18 x 3/4, G5
(Superseded to 703185)

Note: (28" Domestic and 26" CE/Export Only)

$3.49

$

In Stock, Qty 12

0

0200

Snapper 1728965

MOTOR, Spout Rotator, 38"
(Superseded to 1728965SM)

$176.99

$

In Stock, Qty 8

0

0230

Snapper 1737962

GEAR, Tall, Steel Chute
(Superseded to 1737962BMYP)

$40.99

$

Usually ships in 2-12 days

0

0250

Snapper 1931317

BOLT, Carriage, 1/4-20 x 3/4, G5

$3.99

$

In Stock, only 3 left!

0

0260

Snapper 2860694

NUT, Hex-Flange, 1/4-20
(Superseded to 703463)

$4.49

$

In Stock, Qty 20+

0

0290

Snapper 1738267BM

BRACKET ASSEMBLY
(Superseded to 1738267BMYP)

Note: (28" CE/Export and Domestic Only)

$30.99

$

Usually ships in 2-12 days

0

0300

Snapper 1737941

MOTOR, Chute Deflector
(Superseded to 1737941YP)

Note: (28" CE/Export and Domestic Only)

$143.99

$

In Stock, Qty 5

0

0310

Snapper 1960715

SCREW, Truss Head, Torx, 1/4-20 x 3/4
(Superseded to 770135)

Note: (28" CE/Export and Domestic Only)

$3.99

$

In Stock, Qty 15

0

0320

Snapper 1960694

NUT, Hex Flange, 1/4-20
(Superseded to 703463)

Note: (28" CE/Export and Domestic Only)

$4.49

$

In Stock, Qty 20+

0

0330

Snapper 1738242

SWITCH, Deflector Control
(Superseded to 1738242YP)

Note: (28" CE/Export and Domestic Only)

$54.99

$

Usually ships in 2-12 days

0

0340

Snapper 1738244

WASHER, Rubber
(Superseded to 1738244YP)

Note: (28" CE/Export and Domestic Only)

$4.49

$

In Stock, Qty 10

0

0350

Snapper 1738245

NUT, L.H.
(Superseded to 703143)

Note: (28" CE/Export and Domestic Only)

$3.49

$

In Stock, Qty 5

0

0360

Snapper 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

0370

Snapper 1733475

GUARD, Chute
(Superseded to 1733475SM)

Note: (26" and 28" C/E Export Only)

$21.99

$

Usually ships in 2-12 days

0

0380

Snapper 1960140

PUSHNUT, 3/16 Dia.
(Superseded to 1960140SM)

Note: (26" and 28" C/E Export Only)

$3.49

$

Usually ships in 2-12 days

0

0390

Snapper 1737683

BRACKET, Chute Guard
(Superseded to 1737683AYP)

Note: (26" and 28" C/E Export Only)

$17.99

$

Usually ships in 2-12 days

0

0390

Snapper 725330

WASHER, Flat, 9/32
(Superseded to 71067MA)

Note: (28" Domestic Only)

$4.49

$

In Stock, only 1 left!

0

0400

Snapper 1925003

CAPSCREW, Hex Washer, Taptite, 1/4-20 x 1/2
(Superseded to 704130)

Note: (26" and 28" C/E Export Only)

$3.99

$

In Stock, only 4 left!

0

0410

Snapper 1738174

GROMMET, Chute Guard Bracket
(Superseded to 1738174YP)

Note: (26" and 28" C/E Export Only)

$4.49

$

Usually ships in 2-12 days

0
