L 1528 E (1695822) - Simplicity 28" Snow Thrower, 14.5hp Handles & Controls Group Parts Diagram

28" Snow Thrower, 14.5hp

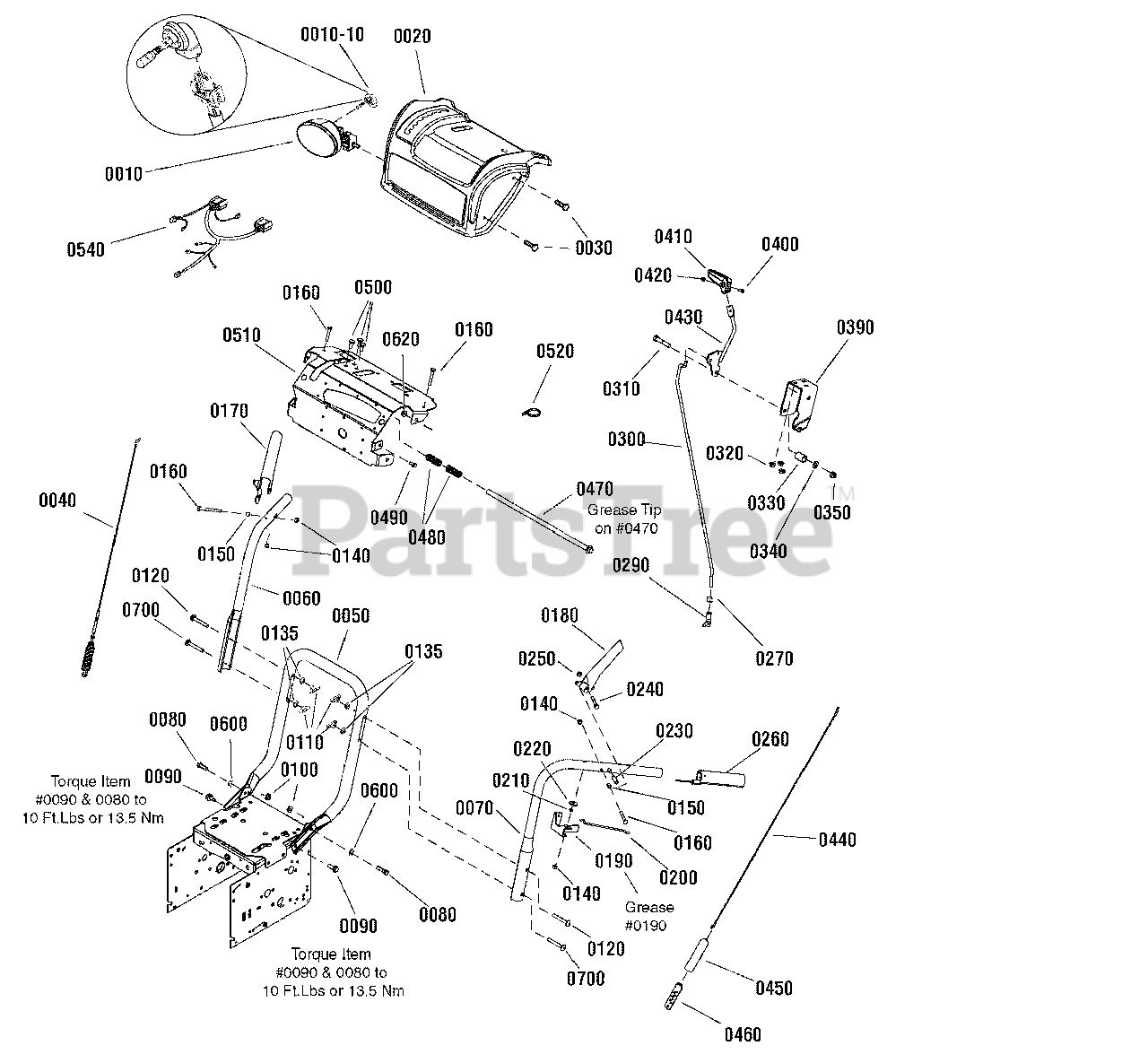

Handles & Controls Group Parts Diagram

  • Title

0010

Simplicity 1737965

HEADLIGHT ASSEMBLY
(Superseded to 1687723YP)

$

$

Not available

0010-10

* BULB, Headlight, Halogen, 881-12V 27W

Note: (Included with Ref. No. 0010)

$

$

Not available

0020

Simplicity 1738247C

COVER, Panel
(Superseded to 1738247CSM)

$95.99

$

Usually ships in 2-12 days

0

0030

Simplicity 1960715

SCREW, Truss Head Torx, 1/4-20 x 3/4
(Superseded to 770135)

$3.99

$

In Stock, Qty 15

0

0040

Simplicity 1732471

CABLE AND SPRING ASSEMBLY, Auger Drive, Right
(Superseded to 1732471SM)

$

$

Not available

0050

Simplicity 1737759A

HANDLE, Lower
(Superseded to 1737759AYP)

$176.99

$

Usually ships in 2-12 days

0

0060

Simplicity 1734587A

HANDLE, Upper, Right
(Superseded to 1734587ASM)

$51.99

$

Usually ships in 2-12 days

0

0070

Simplicity 1734586A

HANDLE, Upper, Left
(Superseded to 1734586ASM)

$55.99

$

In Stock, only 1 left!

0

0080

Simplicity 1921333

CAPSCREW, Hex Head, 5/16-18 x 1 G5
(Superseded to 703585)

$4.99

$

In Stock, only 1 left!

0

0090

Simplicity 1664847SM

SCREW, Hex Washer Head, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0100

Simplicity 1935048

NUT, Hex Flange, Two Way Lock, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 14

0

0110

Simplicity 7035744

KNOB, Wing, 5/16-18
(Superseded to 7105085YP)

$6.99

$

In Stock, Qty 20+

0

0120

Simplicity 1750299

BOLT, Carriage, 5/16-18 x 2-1/4 G5
(Superseded to 703168)

$3.99

$

In Stock, only 4 left!

0

0135

Simplicity 7090391

WASHER, Internal Tooth, 5/16
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

0140

Simplicity 1920397

NUT, Hex Lock, ESNA Light, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

0150

Simplicity 1678392

SPACER, 1/4ID x 3/8OD
(Superseded to 703137)

$6.99

$

Usually ships in 2-12 days

0

0160

Simplicity 1921962

CAPSCREW, Hex Head, 1/4-20 x 1-3/4 G5
(Superseded to 703586)

$4.99

$

Usually ships in 2-12 days

0

0170

Simplicity 1739783A

LEVER, Clutch, Right
(Superseded to 1739783AYP)

$28.99

$

In Stock, only 1 left!

0

0180

Simplicity 1739782A

LEVER, Clutch, Left
(Superseded to 1739782AYP)

$

$

Not available

0190

Simplicity 1733505BM

BRACKET, Pivot, Free Hand
(Superseded to 1733505BMYP)

$14.99

$

Usually ships in 2-12 days

0

0200

Simplicity 1736360

ROD, 5-5/8 Inch
(Superseded to 1736360YP)

$11.99

$

Usually ships in 2-12 days

0

0210

Simplicity 1733095

SPACER, 1/4ID x 3/8OD
(Superseded to 1733095SM)

$4.49

$

Usually ships in 2-12 days

0

0220

Simplicity 1960353

WASHER, 1/4
(Superseded to 703229)

$4.49

$

In Stock, Qty 8

0

0230

Simplicity 1736542

SPACER, Stepped
(Superseded to 703223)

$4.49

$

Usually ships in 2-12 days

0

0240

Simplicity 1750554

BOLT, Shoulder, 1/4 x 1-1/4
(Superseded to 1750554YP)

$4.99

$

In Stock, only 1 left!

0

0250

Simplicity 1933896

NUT, Hex Lock, Nylon Insert, 10-24
(Superseded to 703412)

$4.49

$

In Stock, only 2 left!

0

0260

Simplicity 1726317

HAND GRIP
(Superseded to 1726317SM)

$8.49

$

In Stock, only 1 left!

0

0270

Simplicity 2820263

NUT, Hex, 5/16-24
(Superseded to 703331)

$3.99

$

In Stock, Qty 20+

0

0290

Simplicity 1739290

BALL JOINT
(Superseded to 703224)

$21.99

$

In Stock, only 2 left!

0

0300

Simplicity 1734354

ROD, 25"
(Superseded to 704085)

$22.99

$

Usually ships in 2-12 days

0

0310

Simplicity 1923701

CAPSCREW, Hex Head, 3/8-16 x 2 G5
(Superseded to 703589)

$4.49

$

In Stock, only 1 left!

0

0320

Simplicity 1931277

NUT, Hex Flange, Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0330

Simplicity 724361

SPRING
(Superseded to 50786MA)

$5.49

$

Usually ships in 2-12 days

0

0340

Simplicity 1918266

WASHER, 3/8
(Superseded to 71072MA)

$4.49

$

In Stock, only 4 left!

0

0350

Simplicity 1919439

NUT, Hex Lock, Esna Light, 3/8-16
(Superseded to 703117)

$3.49

$

In Stock, Qty 20+

0

0390

Simplicity 1737684

BRACKET, Controls
(Superseded to 1737684YP)

$16.99

$

Usually ships in 2-12 days

0

0400

Simplicity 1960589

SCREW, Phillips, #10-24 x 3/4
(Superseded to 1960589SM)

$3.99

$

Usually ships in 2-12 days

0

0410

Simplicity 1733192

GRIP, Lever
(Superseded to 1733192SM)

$8.49

$

Usually ships in 2-12 days

0

0420

Simplicity 1933896

NUT, Hex Lock Nylon Insert, 10-24
(Superseded to 703412)

$4.49

$

In Stock, only 2 left!

0

0430

Simplicity 1736836

SPEED LEVER
(Superseded to 703047)

$56.99

$

Usually ships in 2-12 days

0

0440

Simplicity 727331

CABLE, Hydro Drive
(Superseded to 1502113MA)

$22.99

$

In Stock, Qty 20+

0

0450

Simplicity 723154

BOOT, Spring End Cover
(Superseded to 308146MA)

$6.49

$

In Stock, only 2 left!

0

0460

Simplicity 723259

BRACKET, Cable Adjusting
(Superseded to 313441MA)

$

$

Not available

0470

Simplicity 1733509

ROD & SPRING ASSEMBLY
(Superseded to 1733509SM)

$81.99

$

Usually ships in 2-12 days

0

0480

Simplicity 2108360

SPRING, Compression
(Superseded to 2108360SM)

$5.49

$

In Stock, only 1 left!

0

0490

Simplicity 1927429

SCREW, Hex Washer Head, Taptite, 1/4-20 x 5/8
(Superseded to 703054)

$4.49

$

In Stock, Qty 5

0

0500

Simplicity 1931333

BOLT, Carriage, 5/16-18 x 3/4 G5
(Superseded to 703185)

$3.49

$

In Stock, Qty 16

0

0510

Simplicity 1732064BM

COVER, Dash
(Superseded to 1732064BMYP)

$136.99

$

Usually ships in 2-12 days

0

0520

Simplicity 1701011

TIE, Self Lock
(Superseded to 1701011SM)

$5.49

$

In Stock, only 2 left!

0

0540

Simplicity 1738239

WIRING HARNESS
(Superseded to 1738239YP)

$110.99

$

Usually ships in 2-12 days

0

0600

Simplicity 725331

WASHER, Flat
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

0620

Simplicity 703463

NUT, 1/4-20 HEX NYLOCK FLANGE (5025391)

$4.49

$

In Stock, Qty 20+

0

0700

Simplicity 7091189

BOLT, Carriage, Short Neck, 5/16-18 x 2
(Superseded to 703059)

$4.49

$

In Stock, Qty 14

0
