L 1428E (1695572) - Snapper 28" Snow Thrower, 13.5hp (2009) Engine & Frame Group Parts Diagram

28" Snow Thrower, 13.5hp

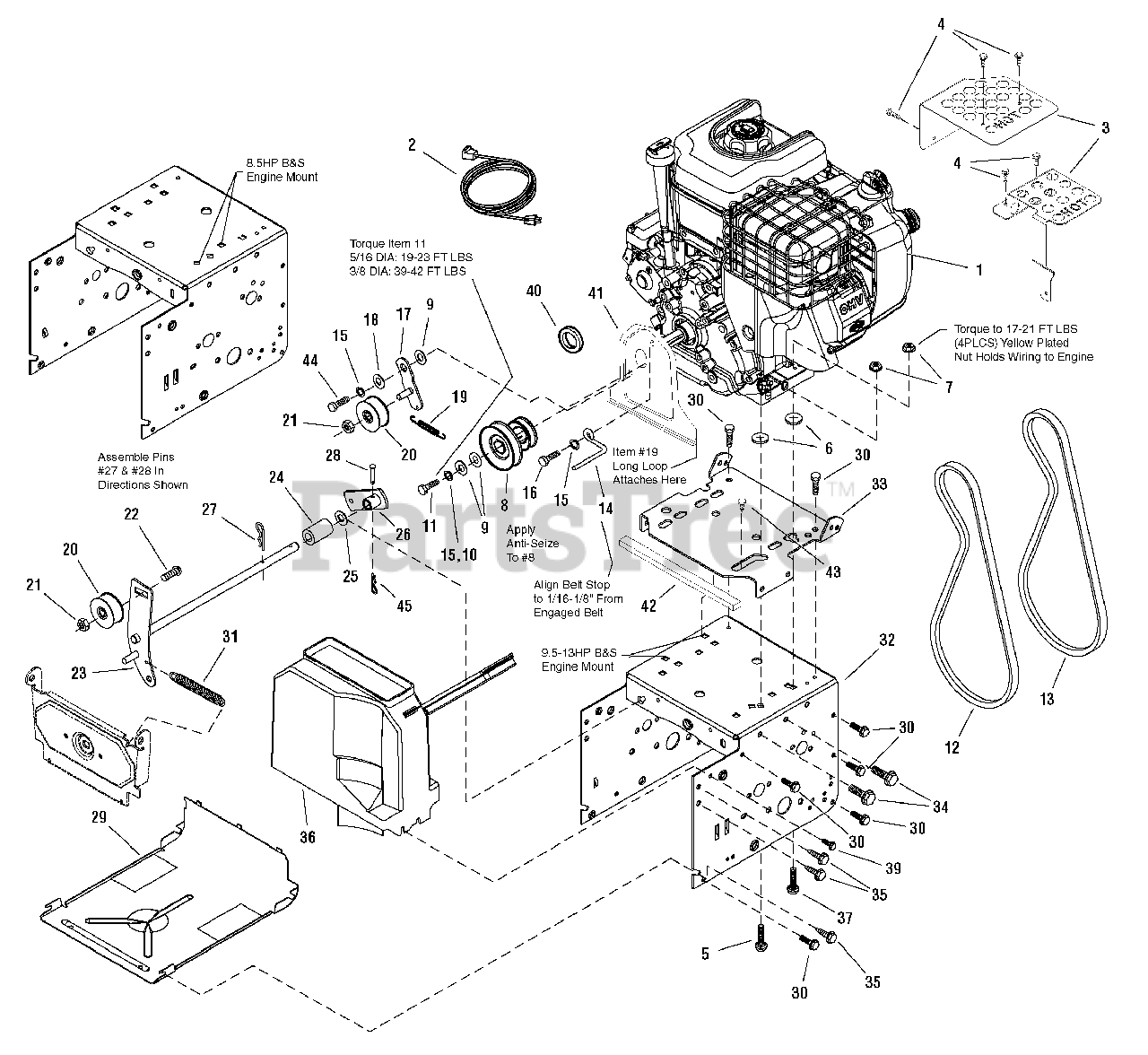

Engine & Frame Group Parts Diagram

  • Title

1

Snapper 15C114-0117-E8

* ENGINE, 11.5GT B&S Mod. #15C114-0117-E8

$

$

Not available

1

Snapper 20M214-0117-E1

* ENGINE, 13.5GT B&S Mod. #20M214-0117-E1

$

$

Currently unavailable

2

Snapper 1724064

CORD, Electric Start
(Superseded to 1724064SM)

$40.99

$

Usually ships in 2-12 days

0

3

Snapper 1734698

GUARD, Muffler
(Superseded to 1734698SM)

Note: (Used on 28" Models)

$15.99

$

Usually ships in 2-12 days

0

3

Snapper 1734732

GUARD, Muffler
(Superseded to 1734732SM)

Note: (Used on 26" Models)

$20.99

$

Usually ships in 2-12 days

0

4

Snapper 1736103

SCREW, Hex Washer Head Taptite, 10-24 x 3/8
(Superseded to 1736103SM)

$4.49

$

Usually ships in 2-12 days

0

5

Snapper 720064

CARRIAGE BOLT, 5/16-18 x 1-1/2
(Superseded to 704210)

$4.99

$

In Stock, Qty 12

0

6

Snapper 720376

NUT, Speed
(Superseded to 028X76MA)

$4.49

$

Usually ships in 2-12 days

0

7

Snapper 2831277

NUT, Hex Flange 5/16-18 Whiz Lock
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

7

Snapper 1960686

NUT, Hex Flange 5/16-18 ESNA
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

8

Snapper 722085

PULLEY, Engine
(Superseded to 1501109MA)

$41.99

$

In Stock, only 2 left!

0

9

Snapper 1922755

WASHER, 3/8
(Superseded to 704128)

Note: (Used on 28" Models)

$4.99

$

In Stock, Qty 9

0

9

Snapper 1919381

WASHER, 5/16-1
(Superseded to 1919381SM)

Note: (Quantity 1 Used on 28" Models, Quantity 3 Used on 26" Models)

$4.49

$

Usually ships in 2-12 days

0

10

Snapper 1916965

LOCKWASHER, Spring 3/8
(Superseded to 703454)

Note: (Used on 28" Models)

$3.49

$

In Stock, Qty 15

0

11

Snapper 1960428

CAPSCREW, Hex Head 3/8-24 x 1-1/4 G8
(Superseded to 1960428SM)

Note: (Used on 28" Models)

$3.99

$

Usually ships in 2-12 days

0

11

Snapper 1921982

CAPSCREW, Hex Head 3/16-24 x 1-1/4 G8
(Superseded to 703299)

Note: (Used on 26" Models)

$4.99

$

Usually ships in 2-12 days

0

12

Snapper 1733324

V-BELT, Drive, 3L 33.13
(Superseded to 1733324SM)

$19.99

$

In Stock, Qty 20+

0

13

Snapper 1733051

V-BELT, Auger, 4L 36.50
(Superseded to 1733051SM)

$40.99

$

In Stock, Qty 9

0

14

Snapper 1733014

STOP, Belt
(Superseded to 1739070YP)

$7.99

$

In Stock, Qty 5

0

15

Snapper 1917356

LOCKWASHER, Spring 5/16
(Superseded to 703116)

Note: (Quantity 3 Used on 28" Models, Quantity 4 Used on 26" Models)

$3.49

$

In Stock, Qty 20+

0

16

Snapper 1921515

CAPSCREW, Hex Head 5/16-24 x 3/4 G5
(Superseded to 1921515SM)

$3.99

$

Usually ships in 2-12 days

0

17

Snapper 722090

IDLER BRACKET ASSEMBLY, Drive Belt
(Superseded to 1687797YP)

$8.49

$

In Stock, only 2 left!

0

18

Snapper 722072

BUSHING, Idler Bracket
(Superseded to 1501065MA)

$5.49

$

In Stock, only 2 left!

0

19

Snapper 724418

SPRING, Extension Idler
(Superseded to 53704MA)

$8.49

$

In Stock, only 2 left!

0

20

Snapper 722378

IDLER, Plastic Ball Bearing
(Superseded to 1502120MA)

$21.99

$

In Stock, Qty 6

0

21

Snapper 1960251

NUT, Hex Centerlock Jam 3/8-16
(Superseded to 703230)

$4.99

$

In Stock, Qty 9

0

22

Snapper 724823

CARRIAGE BOLT, 3/8-16 x 1-1/4
(Superseded to 703227)

$4.99

$

Usually ships in 2-12 days

0

23

Snapper 1733055

IDLER, Auger
(Superseded to 1733055SM)

$59.99

$

Usually ships in 2-12 days

0

24

Snapper 722118

SPACER/AUGER BRACKET
(Superseded to 1501200MA)

$5.99

$

Usually ships in 2-12 days

0

25

Snapper 80003590

WASHER, 1/2
(Superseded to 703128)

$3.49

$

In Stock, Qty 20+

0

26

Snapper 1733451

BRACKET & HUB ASSEMBLY, Spring
(Superseded to 1733451SM)

$20.99

$

In Stock, only 3 left!

0

27

Snapper 725367

PIN, Hair
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

28

Snapper 1736381

PIN, Clevis
(Superseded to 703313)

$4.99

$

In Stock, Qty 5

0

29

Snapper 1740906A

PANEL, Bottom
(Superseded to 1753969BMYP)

$75.99

$

Usually ships in 2-12 days

0

30

Snapper 1927429

SCREW, Hex Washer Head Taptite 1/4-20 x 5/8
(Superseded to 703054)

$4.49

$

In Stock, Qty 5

0

31

Snapper 722455

SPRING, Extension Auger Idler
(Superseded to 165X159MA)

$6.99

$

In Stock, Qty 9

0

32

Snapper 1733154D

FRAME, EZ Turn Axle
(Superseded to 1733154DSM)

Note: (Used on 28" Models)

$122.99

$

Usually ships in 2-12 days

0

32

Snapper 1739311D

FRAME, EZ Turn Axle
(Superseded to 1739311DYP)

Note: (Used on 26" Models) was 1740572D

$73.99

$

In Stock, only 1 left!

0

33

Snapper 1733583D

PLATE, Engine Mount
(Superseded to 1733583DSM)

$51.99

$

Usually ships in 2-12 days

0

34

Snapper 1924856

SCREW, Hex Washer Head Taptite 5/16-18 x 1/2
(Superseded to 703985)

$4.49

$

In Stock, only 3 left!

0

35

Snapper 1664847

SCREW, Hex Washer Head Taptite 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

36

Snapper 1733923

COVER, Belt w/Toolbox B&S
(Superseded to 1733923SM)

$75.99

$

Usually ships in 2-12 days

0

39

Snapper 722887

SCREW, 1/4-AB x 3/4 Hex
(Superseded to 26X306MA)

$4.99

$

Usually ships in 2-12 days

0

40

Snapper 1733898

SHAFT, Seal
(Superseded to 1733898SM)

$6.49

$

Usually ships in 2-12 days

0

41

Snapper 1733868A

SEAL, Plate
(Superseded to 1733868BMYP)

$13.99

$

In Stock, only 1 left!

0

42

Snapper 1733897

SEAL, Strip
(Superseded to 1733897SM)

$8.99

$

Usually ships in 2-12 days

0

43

Snapper 1733924

CLIP, Pine Tree
(Superseded to 1733924SM)

Note: (Used on 28" Models)

$3.99

$

Usually ships in 2-12 days

0

44

Snapper 725996

CAPSCREW, Hex Head 5/16-24 x 1 G8
(Superseded to 703301)

$3.99

$

In Stock, only 2 left!

0

45

Snapper 7023590

PIN, Cotter, 1/4
(Superseded to 7023590SM)

$3.99

$

In Stock, Qty 20+

0
