L 1428 E (1695330) - Simplicity 28" Snow Thrower, 13.5hp Handles & Controls Group Parts Diagram

28" Snow Thrower, 13.5hp

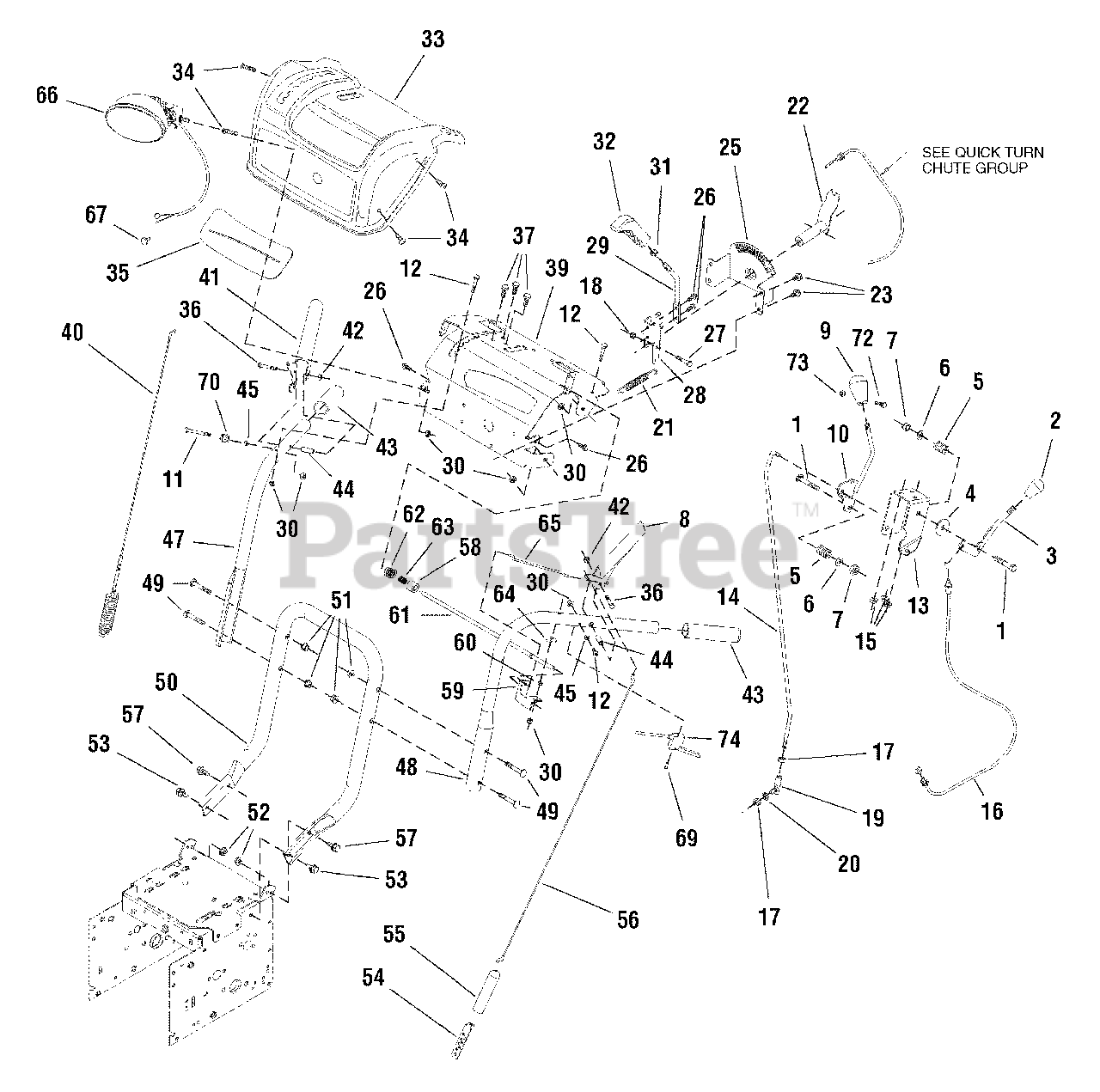

Handles & Controls Group Parts Diagram

  • Title

1

Simplicity 1923701SM

CAPSCREW, Hex Head 3/8-16 x 2 G5
(Superseded to 703589)

$4.49

$

In Stock, only 1 left!

0

2

Simplicity 1732470SM

KNOB, Interior Thread 3/8-16

$19.99

$

In Stock, Qty 8

0

3

Simplicity 1732427SM

ROD, 3/8 Diameter 5" Large, 3/8-16 x 1 Chute

$14.99

$

Usually ships in 2-12 days

0

4

Simplicity 1924356SM

WASHER, 3/8
(Superseded to 703591)

$5.49

$

In Stock, Qty 20+

0

5

Simplicity 50786MA

SPRING

$5.49

$

Usually ships in 2-12 days

0

6

Simplicity 1918266SM

WASHER, 3/8
(Superseded to 703590)

$3.99

$

In Stock, Qty 10

0

7

Simplicity 1919439SM

NUT, Hex Lock ESNA Light 3/8-16
(Superseded to 703117)

$3.49

$

In Stock, Qty 20+

0

8

Simplicity 1722667SM

HANDLE, Clutch L.H.

$37.99

$

In Stock, only 1 left!

0

9

Simplicity 1733192SM

KNOB, Slot Speed

$8.49

$

Usually ships in 2-12 days

0

10

Simplicity 1733205SM

ROD & PLATE ASSEMBLY, Speed Control

$36.99

$

In Stock, only 3 left!

0

11

Simplicity 1923282SM

CAPSCREW, Hex Head 1/4-20 x 2-1/2 G5
(Superseded to 703821)

$3.99

$

Usually ships in 2-12 days

0

12

Simplicity 1921962SM

CAPSCREW, Hex Head 1/4-20 x 1-3/4 G5
(Superseded to 703586)

$4.99

$

Usually ships in 2-12 days

0

13

Simplicity 1733045ASM

BRACKET, Trac & Deflector Control

$18.99

$

Usually ships in 2-12 days

0

14

Simplicity 1734354SM

ROD
(Superseded to 704085)

$22.99

$

Usually ships in 2-12 days

0

15

Simplicity 1931277SM

NUT, Hex Flange 5/16-18, Whiz Lock Small
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

16

Simplicity 1732971SM

CABLE, Deflector Control
(Superseded to 1750623YP)

$49.99

$

In Stock, only 4 left!

0

17

Simplicity 2820263SM

NUT, Hex 5/16-24
(Superseded to 703331)

$3.99

$

In Stock, Qty 20+

0

18

Simplicity 1960608SM

NUT, Hex Flange 1/4-20 Centerlock Large

$4.99

$

Usually ships in 2-12 days

0

19

Simplicity 50782MA

BALLJOINT, Steel

$21.99

$

In Stock, Qty 7

0

20

Simplicity 1917356SM

LOCKWASHER, Spring 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

21

Simplicity 1732970SM

SPRING, Extension

$7.99

$

Usually ships in 2-12 days

0

22

Simplicity 1732365SM

TUBE & BRACKET ASSEMBLY, Cable Support

$63.99

$

Usually ships in 2-12 days

0

23

Simplicity 1924856SM

SCREW, Hex Washer Head Taptite 5/16-18 x 1/2
(Superseded to 703985)

$4.49

$

In Stock, only 3 left!

0

25

Simplicity 1732364SM

SUPPORT, Chute Control 14GA

$27.99

$

Usually ships in 2-12 days

0

26

Simplicity 1927429SM

SCREW, Hex Washer Head Taptite 1/4-20 x 5/8
(Superseded to 703054)

$4.49

$

In Stock, Qty 5

0

27

Simplicity 1732944SM

BOLT, Shoulder 1/4-20

$15.99

$

Usually ships in 2-12 days

0

28

Simplicity 1733142SM

BRACKET, Support Quick Turn

$34.99

$

Usually ships in 2-12 days

0

29

Simplicity 1732369SM

ROD, Chute

$

$

Not available

30

Simplicity 1920397SM

NUT, Hex Lock ESNA Light 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

31

Simplicity 1917421SM

NUT, Hex Jam 3/8-16
(Superseded to 703996)

$4.99

$

In Stock, Qty 11

0

32

Simplicity 306689MA

GRIP, Lever

$14.99

$

Usually ships in 2-12 days

0

33

Simplicity 1733777CSM

COVER, Panel

$142.99

$

Usually ships in 2-12 days

0

34

Simplicity 1960715SM

SCREW, Truss Head Torx Drive 1/4-20 x 3/4
(Superseded to 770135)

$3.99

$

In Stock, Qty 15

0

35

Simplicity 1733204SM

BELLOWS, Black Rubber Quick Turn

$31.99

$

Usually ships in 2-12 days

0

36

Simplicity 1922837SM

CAPSCREW, Hex Head 1/4-20 x 1-1/2 G5
(Superseded to 703234)

$4.49

$

In Stock, only 4 left!

0

37

Simplicity 1931333SM

CARRIAGE BOLT, 5/16-18 x 3/4 G5
(Superseded to 703185)

$3.49

$

In Stock, Qty 16

0

39

Simplicity 1732064ASM

SUPPORT, Dash Panel Cover

$131.99

$

Usually ships in 2-12 days

0

40

Simplicity 1732471SM

CABLE & SPRING ASSEMBLY, Auger Drive R.H.

$

$

Not available

41

Simplicity 1722638SM

HANDLE, Clutch R.H.
(Superseded to 1739783AYP)

$28.99

$

In Stock, only 1 left!

0

42

Simplicity 1923358SM

NUT, Hex Centerlock 1/4-20
(Superseded to 703954)

$4.99

$

In Stock, Qty 20+

0

43

Simplicity 1726317SM

GRIP

$8.49

$

In Stock, only 1 left!

0

44

Simplicity 1715655SM

SPACER

$7.99

$

Usually ships in 2-12 days

0

45

Simplicity 1678392SM

SPACER
(Superseded to 703137)

$6.99

$

Usually ships in 2-12 days

0

47

Simplicity 1734587ASM

HANDLE, Upper R.H.

$51.99

$

Usually ships in 2-12 days

0

48

Simplicity 1734586ASM

HANDLE, Upper L.H.

$55.99

$

In Stock, only 1 left!

0

49

Simplicity 1960723SM

CARRIAGE BOLT, 5/16-18 x 2-1/4 G5
(Superseded to 704421)

$5.49

$

In Stock, only 1 left!

0

50

Simplicity 1732781ASM

HANDLE, Lower

$159.99

$

Usually ships in 2-12 days

0

51

Simplicity 1960686SM

NUT, Hex Flange 5/16-18
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

52

Simplicity 1935048SM

NUT, Hex Flange 5/16-18 Two-Way Lock
(Superseded to 704067)

$3.99

$

In Stock, Qty 14

0

53

Simplicity 1664847SM

SCREW, Hex Washer Head Taptite 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

54

Simplicity 313441MA

BRACKET, Cable Adjusting

$

$

Not available

55

Simplicity 308146MA

BOOT, Spring End Cover

$6.49

$

In Stock, only 2 left!

0

56

Simplicity 1502113MA

CABLE,

$22.99

$

In Stock, Qty 20+

0

57

Simplicity 1921333SM

CAPSCREW, Hex Head 5/16-18 x 1 G5
(Superseded to 703585)

$4.99

$

In Stock, only 1 left!

0

58

Simplicity 1679166SM

SPACER, Powdered Metal

$7.49

$

In Stock, only 2 left!

0

59

Simplicity 1733505ASM

BRACKET, Free Hand Control 12GA
(Superseded to 1733505BMYP)

$14.99

$

Usually ships in 2-12 days

0

60

Simplicity 1733095SM

SPACER, Powdered Metal

$4.49

$

Usually ships in 2-12 days

0

61

Simplicity 1733509SM

ROD & SPRING ASSEMBLY, w/Pin

$81.99

$

Usually ships in 2-12 days

0

62

Simplicity 1960027SM

WASHER, 1/2
(Superseded to 703128)

$3.49

$

In Stock, Qty 20+

0

63

Simplicity 2108360SM

SPRING, Compression

$5.49

$

In Stock, only 1 left!

0

64

Simplicity 1960353SM

WASHER, 1/4
(Superseded to 703229)

$4.49

$

In Stock, Qty 8

0

65

Simplicity 1722630SM

ROD, Hold Down E-Coat

$7.49

$

Usually ships in 2-12 days

0

66

Simplicity 1732321SM

HEADLIGHT ASSEMBLY, Oval Amber
(Superseded to 1688087)

Note: (Only used on models w/light)

$

$

Not available

67

Simplicity 1704351SM

FASTENER, Panel

$4.99

$

In Stock, only 4 left!

0

69

Simplicity 1725702SM

SCREW, Pan Head Torx #10 x 1/2 Thick Cut

Note: (Only used on models w/EZ-Turn)

$5.49

$

Usually ships in 2-12 days

0

70

Simplicity 579860MA

SPOOL CABLE, Auger Control

$5.99

$

In Stock, Qty 10

0

72

Simplicity 1960589SM

SCREW, Round Head Phillips #10-24 x 3/4

$3.99

$

Usually ships in 2-12 days

0

73

Simplicity 1933896SM

NUT, Hex Lock 10-24 w/Nylon Insert
(Superseded to 703412)

$4.49

$

In Stock, only 2 left!

0

74

Simplicity 1718791SM

CABLE & HANDLE ASSEMBLY

Note: (Only used on models w/EZ-Turn)

$70.99

$

In Stock, only 4 left!

0
