L-13 (13A5472F190) - White Outdoor 38" Lawn Tractor (1997) Deck, Grills And Seat Ass'y Parts Diagram

38" Lawn Tractor

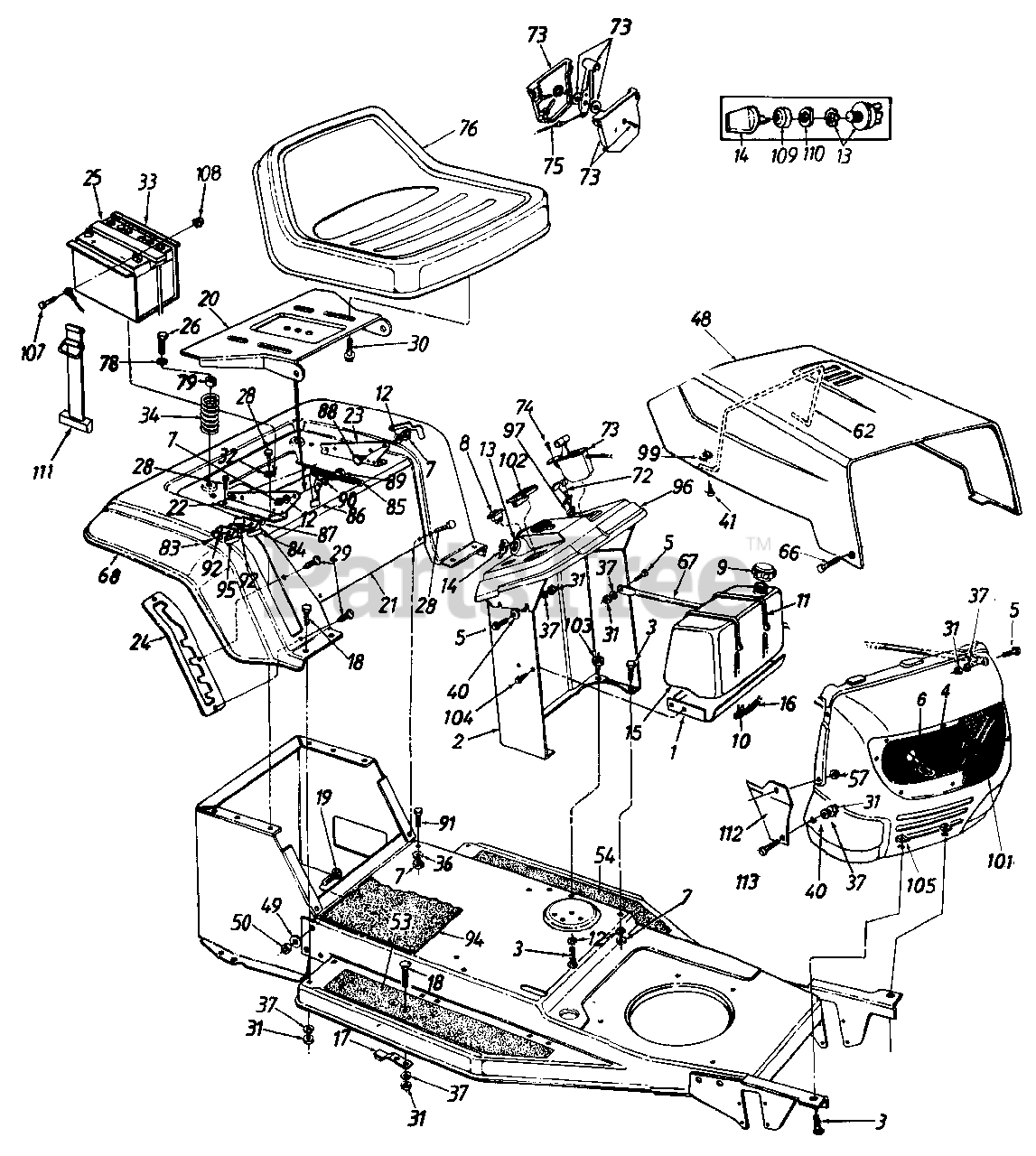

Deck, Grills And Seat Ass'y Parts Diagram

  • Title

1

White Outdoor 17932

Gas Tank Support Brkt.
(Superseded to 17932-0637)

Variations

White Outdoor 17932-0637

BRACKET-TANK SUPPORT - POWDER BLACK (0637)

$

$

Not available

$

$

2

White Outdoor 17933A

Pedestal

Variations

White Outdoor 17933A-0648

PEDESTAL - TECH GRAY (0648)

$

$

Not available

White Outdoor 17933A-0483

PEDESTAL - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 17933A-0498

PEDESTAL - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 17933A-0637

PEDESTAL - POWDER BLACK (0637)

$

$

Not available

White Outdoor 17933A-0638

PEDESTAL - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 17933A-0662

PEDESTAL - OYSTER GRAY (0662)

$

$

Not available

$

$

3

White Outdoor 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

4

White Outdoor 725-0963

Bulb
(Superseded to 925-0963)

$7.49

$

In Stock, Qty 5

0

5

White Outdoor 710-0258

Hex Bolt 1/4 x .62" Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

6

White Outdoor 725-1651

Socket
(Superseded to 925-1651)

$

$

Not available

7

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

8

White Outdoor 725-0634

Light Switch
(Superseded to 925-0634)

$17.99

$

In Stock, only 4 left!

0

9

White Outdoor 751-0603

Gas Cap
(Superseded to 751-0603B)

$23.99

$

In Stock, only 3 left!

0

10

White Outdoor 726-0205

Hose Clamp

$3.99

$

In Stock, Qty 20+

0

11

White Outdoor 726-0209

Cable Tie
(Superseded to 726-0230)

$27.99

$

In Stock, only 1 left!

0

12

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

13

White Outdoor 725-0267

Ignition Switch
(Superseded to 925-0267B)

$35.99

$

In Stock, Qty 20+

0

14

White Outdoor 725-1341B

Ignition Key

$10.99

$

In Stock, only 1 left!

0

15

White Outdoor 751-0553

Fuel Tank
(Superseded to 751-0555B)

$

$

Not available

16

White Outdoor 751-0535-15

Gas Line 15" Long
(Superseded to 751-10349-16)

$19.99

$

In Stock, Qty 11

0

17

White Outdoor 761-0194

Blade Brake Ass'y.
(Superseded to 961-0194A)

$

$

Not available

18

White Outdoor 710-0134

Carriage Bolt 1/4-20 x .62"

$4.49

$

In Stock, Qty 20+

0

19

White Outdoor 710-0793

Ribbed Neck Bolt 3/8-24 x .8"

$

$

Not available

20

White Outdoor 783-0039A

Seat Pivot Brkt.

Variations

White Outdoor 783-0039A-0637

Seat Pivot Bracket, Black - POWDER BLACK (0637)

$71.99

$

Usually ships in 3-6 days

0

White Outdoor 783-0039A-0638

Seat Pivot Bracket, Black - MTD/TROY-BILT RED (0638)

$71.99

$

Usually ships in 3-6 days

0

White Outdoor 783-0039A-0648

Seat Pivot Bracket, Black - TECH GRAY (0648)

$71.99

$

Usually ships in 3-6 days

0

White Outdoor 783-0039A-0662

Seat Pivot Bracket, Black - OYSTER GRAY (0662)

$71.99

$

Usually ships in 3-6 days

0

White Outdoor 783-0039A-0665

Seat Pivot Bracket, Black - YARDMAN GREEN (0665)

$71.99

$

Usually ships in 3-6 days

0

White Outdoor 783-0039A-0667

Seat Pivot Bracket, Black - MIDNIGHT BLUE (0667)

$71.99

$

Usually ships in 3-6 days

0

$71.99

$

Usually ships in 3-6 days

0

21

White Outdoor 783-0354-0648

Rear Fender

$

$

Not available

22

White Outdoor 17704

Seat Hinge Support Brkt.- R.H.

Variations

White Outdoor 17704-0637

No Longer Available BRACKET-SEAT HINGE - POWDER BLACK (0637)

$

$

Not available

$

$

23

White Outdoor 17703

Seat Hinge Support Brkt.- L.H.

Variations

White Outdoor 17703-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

24

White Outdoor 17553

Deck Lift Index Brkt.

$

$

Not available

25

White Outdoor 725-1705D

Battery
(Superseded to 925-1707D)

$

$

Not available

26

White Outdoor 710-0817

Hex Self-Tap Screw 5/6-18 x 1.25" Lg.

$6.99

$

In Stock, Qty 15

0

27

White Outdoor 710-0255

Truss Mach. Scr. 1/4-20 x .75" Lg.
(Superseded to 710-0924)

$4.49

$

In Stock, Qty 20+

0

28

White Outdoor 710-0726

Hex AB-Tap Scr. 5/16 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

29

White Outdoor 710-1017

Torx Mach. AB-Tap Scr. 1/4 x .62" Lg.

$8.49

$

In Stock, Qty 9

0

30

White Outdoor 710-0870

Hex Self-Tap Scr. 3/8-16 x .62" Lg. (Gr. 5)

$6.49

$

In Stock, only 1 left!

0

31

White Outdoor 712-3006

Hex Nut 1/4-20 Thd.

$4.99

$

In Stock, Qty 17

0

32

White Outdoor 736-0607

External L-Wash. 5/16" I.D.

$3.99

$

In Stock, Qty 20+

0

33

White Outdoor 783-0349-0637

Battery Tray

$

$

Not available

34

White Outdoor 732-0588

Compression Spring

$15.99

$

In Stock, only 2 left!

0

36

White Outdoor 736-0242

Bell-Wash. 5/16" I.D.

$4.49

$

In Stock, Qty 20+

0

37

White Outdoor 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

40

White Outdoor 736-0270

Bell-Wash. .265" I.D. x .75"

$3.99

$

In Stock, Qty 20+

0

41

White Outdoor 710-0589

Pan Hd. Scr. 10-24 x .75" Lg.

$6.99

$

Usually ships in 3-6 days

0

42

White Outdoor 736-0400

Fl-Wash. .218" I.D. x .62"

$5.49

$

In Stock, Qty 11

0

48

White Outdoor 783-0250-0662

Hood
(Superseded to 783-0250A-0662)

$

$

Not available

49

White Outdoor 736-0217

L-Wash. 3/8" I.D.- H.D.

$4.49

$

In Stock, Qty 6

0

50

White Outdoor 712-0241

Hex L-Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

52

White Outdoor 710-0473

Truss Mach. Scr. #10-24 x .5" Lg.

$4.49

$

In Stock, only 2 left!

0

53

White Outdoor 735-0252

Foot Pad - R.H.

$

$

Not available

54

White Outdoor 735-0253

Foot Pad - L.H.

$

$

Not available

57

White Outdoor 712-3027

Lock Nut 1/4-20 Thd.
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

59

White Outdoor 723-0302

Hood Stop

$12.99

$

Usually ships in 3-6 days

0

62

White Outdoor 732-0704

Hood Spring

$

$

Not available

64

White Outdoor 712-0272

Hex Sems Nut #10-24 Thd.

$3.99

$

Usually ships in 3-6 days

0

65

White Outdoor 736-0413

Spr. Wash. .39" I.D. x .62" O.D.

$6.99

$

In Stock, only 2 left!

0

66

White Outdoor 738-0952

Shld. Bolt
(Superseded to 938-0952A)

$7.49

$

In Stock, Qty 10

0

67

White Outdoor 749-0722B

Grille Support

Variations

White Outdoor 749-0722B-0637

SUPPORT-GRILLE - POWDER BLACK (0637)

$

$

Not available

$

$

68

White Outdoor 731-0511-81

Trim Strip 81" Lg.

$105.99

$

Usually ships in 3-6 days

0

72

White Outdoor 746-0616A

Choke Control
(Superseded to 946-0616A)

$26.99

$

In Stock, Qty 5

0

73

White Outdoor 831-0823A

Throttle Control Box

$32.99

$

In Stock, Qty 20+

0

74

White Outdoor 710-0779A

Truss AB-Tap Scr. #10 x .5"

$4.49

$

In Stock, Qty 12

0

75

White Outdoor 746-0638

Throttle Wire
(Superseded to 946-0638)

$10.99

$

In Stock, Qty 8

0

76

White Outdoor 757-0371

Seat Assembly
(Superseded to 957-0371A)

$

$

Not available

78

White Outdoor 736-0159

Fl-Wash. .344" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

79

White Outdoor 722-0160

Bushing

$

$

Not available

83

White Outdoor 710-0227

Hex Tap Scr. 08 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

84

White Outdoor 725-1439

Safety Switch (Inner)

$8.49

$

In Stock, Qty 10

0

85

White Outdoor 732-0581B

Ext. Spring 5.31" Lg.
(Superseded to 932-0581B)

$14.99

$

In Stock, only 1 left!

0

86

White Outdoor 17239A

Seat Lift Brkt.
(Superseded to 17239C)

$

$

Not available

87

White Outdoor 726-0278

Insulator Boss Plate

$6.99

$

In Stock, Qty 10

0

88

White Outdoor 738-0155

Shld. Bolt .437" Dia. x .162" Lg.
(Superseded to 938-0155)

$6.99

$

Usually ships in 3-6 days

0

89

White Outdoor 738-0296

Shld. Bolt .437" Dia. x .268" Lg.

$4.49

$

In Stock, Qty 20+

0

90

White Outdoor 736-0141

Spr. Wash. .445" I.D. x .75" O.D.
(Superseded to 936-0141)

$6.99

$

In Stock, only 2 left!

0

91

White Outdoor 710-0604

Hex Wash. Hd. Scr. 5/16-18 x .62" Lg.
(Superseded to 710-0604A)

$4.49

$

In Stock, Qty 20+

0

92

White Outdoor 726-0279

Insulator Plate

$3.99

$

In Stock, Qty 8

0

94

White Outdoor 735-0254

Center Foot Pad

$

$

Not available

95

White Outdoor 725-1303

Safety Switch (Outer)
(Superseded to 925-1303)

$6.49

$

In Stock, Qty 7

0

96

White Outdoor 731-1675

Dash Panel
(Superseded to 931-1675)

$

$

Not available

97

White Outdoor 17782

Retainer Clip

$

$

Not available

98

White Outdoor 710-0351

Truss Mach. B-Tap Scr. #10 x .5" Lg.

$4.49

$

Usually ships in 3-6 days

0

99

White Outdoor 726-0130

Speed Nut
(Superseded to 926-0130)

$

$

Not available

100

White Outdoor 714-0104

Internal Cotter Pin 5/16" Dia.

$4.49

$

In Stock, Qty 20+

0

101

White Outdoor 783-0156A

Grille
(Superseded to 783-04979)

Variations

White Outdoor 783-0156A-0499

GRILL:2 STYLE - CUB BEIGE (0499)

$

$

Not available

White Outdoor 783-0156A-0483

GRILL:2 STYLE - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 783-0156A-0629

GRILL:2 STYLE - SILVER FLAKE (0629)

$

$

Not available

White Outdoor 783-0156A-0638

GRILLE STYLE 2 RED - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 783-0156A-0662

GRILL:2 STYLE - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 783-0156A-0665

GRILL:2 STYLE - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 783-0156A-0667

GRILL:2 STYLE - MIDNIGHT BLUE (0667)

$

$

Not available

White Outdoor 783-0156A-0674

GRILLE STYLE 2 YARD-MAN YELLOW - YARDMAN YELLOW (0674)

$

$

Not available

White Outdoor 783-0156A-0687

GRILL:2 STYLE - PINE GREEN (0687)

$

$

Not available

White Outdoor 783-0156A-0688

No Longer Available GRILLE-STYLE 3 - SPRING GREEN (0688)

$

$

Not available

White Outdoor 783-0156A-0689

GRILL:2 STYLE - POLO GREEN (0689)

$

$

Not available

White Outdoor 783-0156A-0691

GRILLE STYLE 2-BLACK - BLACK JACK (0691)

$

$

Not available

White Outdoor 783-0156A-0709

GRILL:2 STYLE - MASTERCRAFT GREEN (0709)

$

$

Not available

White Outdoor 783-0156A-0717

GRILL:2 STYLE - SILVER MIST (0717)

$

$

Not available

$94.99

$

Usually ships in 3-6 days

0

101

White Outdoor 731-1503A

Lens
(Superseded to 753-06310)

$143.99

$

Usually ships in 3-6 days

0

101

White Outdoor 726-04077

Nut, Push 3/32

Note: Not shown

$

$

Not available

102

White Outdoor 725-0925

Ammeter
(Superseded to 925-0925)

$31.99

$

In Stock, Qty 6

0

103

White Outdoor 712-3007

Hex Jam Nut 5/16-18 Thd.

$6.99

$

In Stock, only 2 left!

0

104

White Outdoor 710-0599

Hex Wash. Hd. Tap Scr. 1/4-20 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

105

White Outdoor 726-0211

U-Nut 5/16-18 Thd.

$4.49

$

In Stock, only 1 left!

0

106

White Outdoor 736-0222

Ext. L-Wash. 1/4" I.D.

$5.99

$

In Stock, only 3 left!

0

107

White Outdoor 710-3015

Hex Bolt 1/4-20 x .75" Lg.

$3.99

$

In Stock, Qty 20+

0

108

White Outdoor 712-0271

Hex Sems Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 19

0

109

White Outdoor 725-1347

Ignition Cap

$4.99

$

In Stock, only 1 left!

0

110

White Outdoor 725-1346

Ignition Nut 5/8-32 Thd.
(Superseded to 925-1346)

$

$

Not available

111

White Outdoor 723-0444

Battery Strap

$22.99

$

Usually ships in 3-6 days

0

112

White Outdoor 783-0366-0662

Side Panel - R.H.

$

$

Not available

112

White Outdoor 783-0367-0662

Side Panel - L.H.

Note: Not shown

$

$

Not available

113

White Outdoor 710-0924

Pan Hd. Mach. Scr. 1/4-20 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0
