L 1226EX (1696010) - Snapper 26" Snow Thrower, 11.5hp Engine & Frame Group Parts Diagram

26" Snow Thrower, 11.5hp

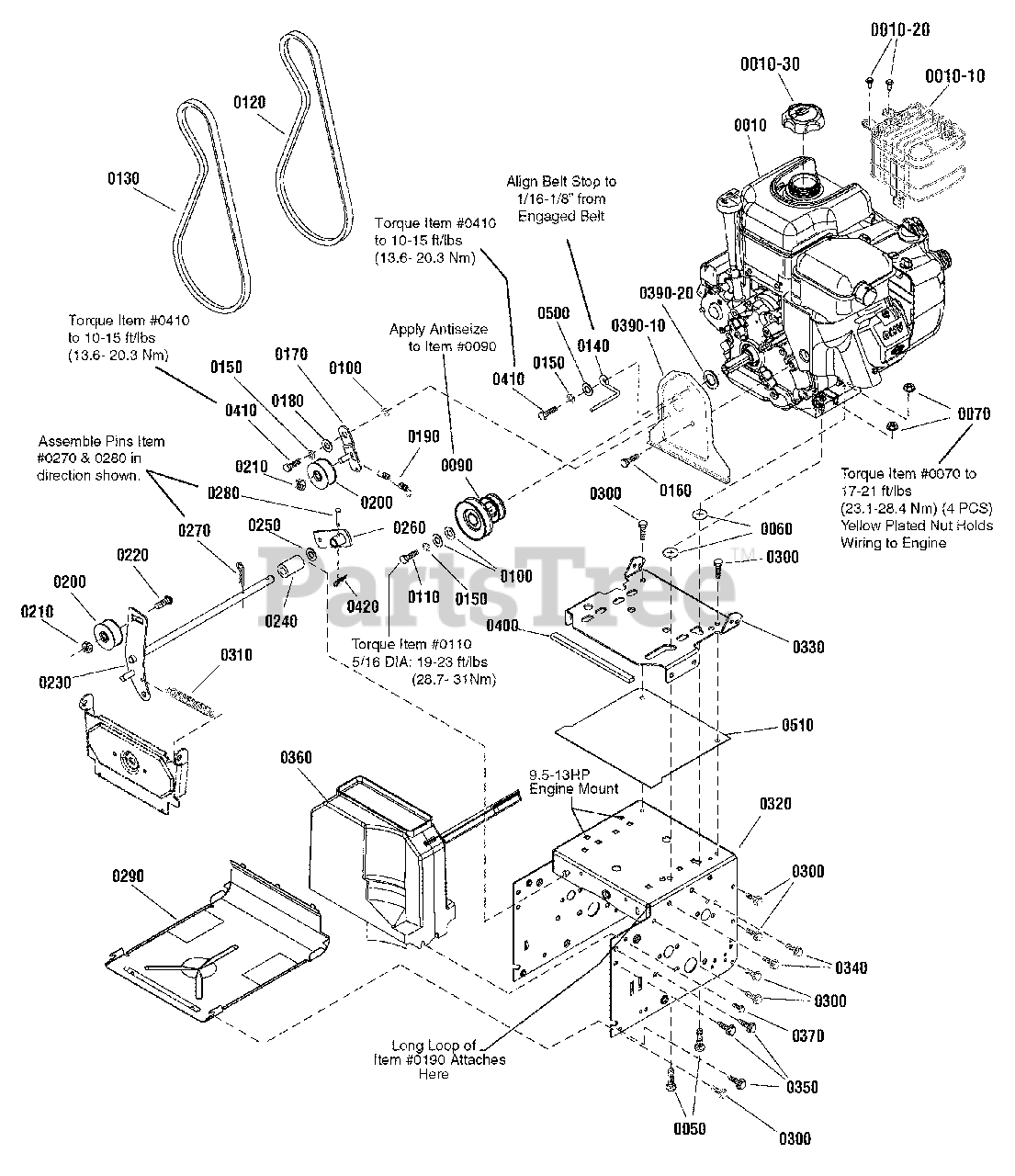

Engine & Frame Group Parts Diagram

  • Title

0010

Snapper 15C104-0158-H8

* ENGINE, 11.5TP Briggs & Stratton

Note: (Engine Model: 15C104-0158-H8)

$

$

Not available

0010-10

Snapper 793193

* GUARD, Muffler

$55.99

$

Usually ships in 2-12 days

0

0010-20

Snapper 699584

* SCREW, Muffler Guard
(Superseded to 699579)

$332.99

$

Usually ships in 2-12 days

0

0010-30

Snapper 795027

* CAP, Fuel

$10.99

$

In Stock, Qty 20+

0

0050

Snapper 720064

BOLT, Carriage, 5/16-18 x 1-1/2
(Superseded to 704210)

$4.99

$

In Stock, Qty 12

0

0060

Snapper 720376

NUT, Push, 1/4
(Superseded to 028X76MA)

$4.49

$

Usually ships in 2-12 days

0

0070

Snapper 1739305

NUT, Hex Flange, ESNA, 5/16-18
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

0090

Snapper 722085

PULLEY
(Superseded to 1501109MA)

$41.99

$

In Stock, Qty 5

0

0100

Snapper 1919381

WASHER, 05/16
(Superseded to 1919381SM)

$4.49

$

In Stock, only 2 left!

0

0110

Snapper 1921982

CAPSCREW, Hex Head, 5/16-24 x 1-1/4, G5
(Superseded to 703299)

$4.99

$

Usually ships in 2-12 days

0

0120

Snapper 1733324

V-BELT, Traction Drive, 3L, 33.13
(Superseded to 1733324SM)

$19.99

$

In Stock, Qty 20+

0

0130

Snapper 1736421

V-BELT, 4L, 38.35, Auger
(Superseded to 1736421YP)

$30.99

$

In Stock, Qty 20+

0

0140

Snapper 1739070

BELT GUIDE
(Superseded to 1739070YP)

$7.99

$

In Stock, Qty 5

0

0150

Snapper 1917356

LOCKWASHER, Spring, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

0160

Snapper 1921515

CAPSCREW, Hex Head, 5/16-24 x 3/4, G5
(Superseded to 1921515SM)

$3.99

$

Usually ships in 2-12 days

0

0170

Snapper 722090

IDLER BRACKET
(Superseded to 1687797YP)

$8.49

$

In Stock, Qty 7

0

0180

Snapper 722072

BUSHING, Idler Bracket
(Superseded to 1501065MA)

$5.49

$

In Stock, only 4 left!

0

0190

Snapper 722457

SPRING, Extension, Idler
(Superseded to 165X164MA)

$7.49

$

In Stock, only 3 left!

0

0200

Snapper 722378

IDLER
(Superseded to 1502120MA)

$21.99

$

In Stock, Qty 10

0

0210

Snapper 1960251

NUT, Hex Centerlock Jam, 3/8-16
(Superseded to 703230)

$4.99

$

In Stock, Qty 9

0

0220

Snapper 724823

BOLT, Carriage, Short Neck, 3/8-16 x 1-1/2, G5
(Superseded to 703227)

$4.99

$

Usually ships in 2-12 days

0

0230

Snapper 722132

AUGER IDLER
(Superseded to 1501226YZMA)

$52.99

$

Usually ships in 2-12 days

0

0240

Snapper 722118

SPACER, 1/2 ID x 1 OD x 1-3/4"
(Superseded to 1501200MA)

$5.99

$

Usually ships in 2-12 days

0

0250

Snapper 80003590

WASHER, 1/2
(Superseded to 703128)

$3.49

$

In Stock, Qty 20+

0

0260

Snapper 1733451

ARM, Control
(Superseded to 1733451SM)

$20.99

$

In Stock, Qty 5

0

0270

Snapper 725367

PIN, Hair
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

0280

Snapper 1736381

PIN, Clevis
(Superseded to 703313)

$4.99

$

In Stock, Qty 6

0

0290

Snapper 1740906BM

PANEL, Bottom
(Superseded to 1753969BMYP)

$75.99

$

Usually ships in 2-12 days

0

0300

Snapper 1927429

SCREW, Hex Washer Head, Taptite, 1/4-20 x 5/8
(Superseded to 703054)

$4.49

$

In Stock, Qty 5

0

0310

Snapper 722455

SPRING, Extension, Auger
(Superseded to 165X159MA)

$6.99

$

In Stock, Qty 9

0

0320

Snapper 1740572D

FRAME
(Superseded to 1740572DYP)

$128.99

$

Usually ships in 2-12 days

0

0330

Snapper 1733583D

PLATE, Engine Mount
(Superseded to 1733583DSM)

$51.99

$

Usually ships in 2-12 days

0

0340

Snapper 722838

SCREW, Hex Washer Head, 5/16-18 x 1/2
(Superseded to 25X020MA)

$4.99

$

In Stock, Qty 6

0

0350

Snapper 1664847

SCREW, Hex Washer Head, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0360

Snapper 1733923

BELT COVER ASSEMBLY
(Superseded to 1733923SM)

$75.99

$

Usually ships in 2-12 days

0

0370

Snapper 1751355

SCREW, Hex Washer Head, Tap, SEMS, 1/4-20 x 3/4
(Superseded to 1751355YP)

$6.49

$

Usually ships in 2-12 days

0

0390-10

Snapper 1750241

WATER SHIELD
(Superseded to 1750241YP)

$13.99

$

Usually ships in 2-12 days

0

0390-20

Snapper 1733898

SEAL, Foam
(Superseded to 1733898SM)

$6.49

$

Usually ships in 2-12 days

0

0400

Snapper 1750172

STRIP, Seal
(Superseded to 1750172YP)

$7.49

$

Usually ships in 2-12 days

0

0410

Snapper 725996

BOLT, Hex, 5/16-24 x 1
(Superseded to 703301)

$3.99

$

In Stock, only 2 left!

0

0420

Snapper 7023590

PIN, Cotter, Self Lock, 1/4
(Superseded to 7023590SM)

$3.99

$

In Stock, Qty 20+

0

0500

Snapper 7091528

WASHER, Flat, 3/8
(Superseded to 703302)

$4.49

$

In Stock, Qty 20+

0

0510

Snapper 1750135

SEAL, Engine Plate
(Superseded to 1750135YP)

$15.99

$

Usually ships in 2-12 days

0
