L 1226EX (1696010) - Snapper 26" Snow Thrower, 11.5hp Chute & Rotation Group Parts Diagram

26" Snow Thrower, 11.5hp

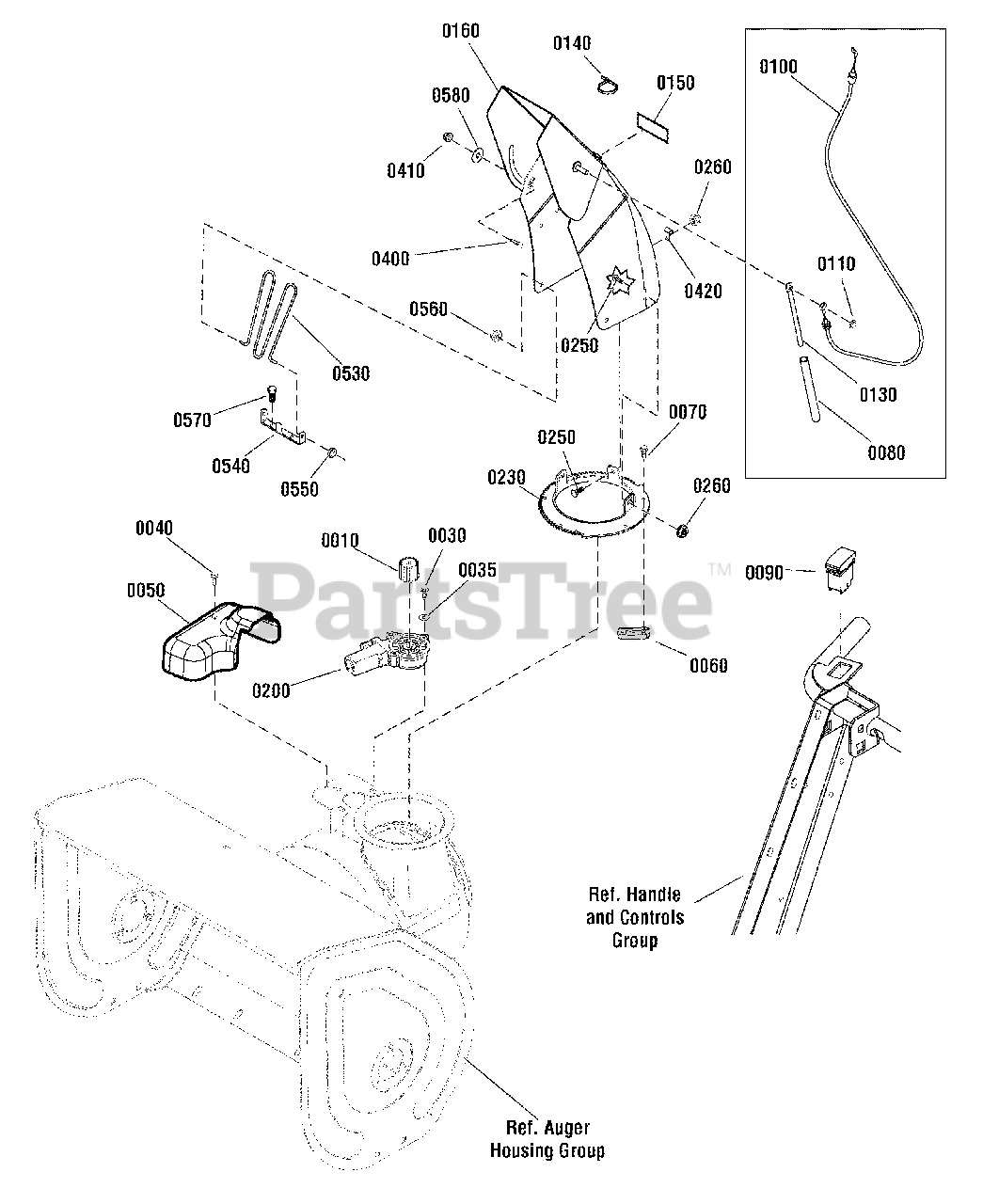

Chute & Rotation Group Parts Diagram

  • Title

0010

Snapper 1728967

PINION
(Superseded to 1728967SM)

$17.99

$

In Stock, only 2 left!

0

0030

Snapper 1739621

SCREW, Button Head Torx, M5 x .8 x 14
(Superseded to 1739621YP)

$4.49

$

In Stock, Qty 13

0

0035

Snapper 7091552

WASHER, Flat, 1/4
(Superseded to 7091552SM)

$3.99

$

In Stock, Qty 14

0

0040

Snapper 1925592

SCREW, Hex Washer Head, Taptite, 1/4-20 x 3/4
(Superseded to 703466)

$3.99

$

In Stock, Qty 10

0

0050

Snapper 1752877

COVER, Electric Chute Rotation
(Superseded to 1752877YP)

$16.99

$

In Stock, only 1 left!

0

0060

Snapper 7011938

RETAINER, Spout
(Superseded to 7011938SM)

$

$

Not available

0070

Snapper 1960001

SCREW, Hex Washer Head, Plastite, 10-14 x 5/8
(Superseded to 703062)

$4.49

$

In Stock, only 3 left!

0

0080

Snapper 1734647

SPRING, Compression, 6"
(Superseded to 1734647SM)

$3.99

$

Usually ships in 2-12 days

0

0090

Snapper 1752240

SWITCH, Chute Rotation
(Superseded to 1687904)

$82.99

$

In Stock, Qty 12

0

0100

Snapper 1750623

CABLE ASSEMBLY, Chute Deflector
(Superseded to 1750623YP)

$49.99

$

In Stock, Qty 5

0

0110

Snapper 1932718

NUT, Push, 5/16
(Superseded to 704028)

$5.49

$

In Stock, only 3 left!

0

0130

Snapper 1734708A

ROD, Spring Guide
(Superseded to 1734708ASM)

$13.99

$

Usually ships in 2-12 days

0

0140

Snapper 2825094

TIE, Self Lock
(Superseded to 1701011SM)

$5.49

$

In Stock, only 2 left!

0

0150

Snapper 1733601

DECAL, Hinge
(Superseded to 1733601SM)

$12.99

$

In Stock, only 1 left!

0

0160

Snapper 1738230H

CHUTE

$

$

Currently unavailable

0200

Snapper 1739309

MOTOR, Chute Rotation
(Superseded to 708703)

$86.99

$

In Stock, Qty 7

0

0230

Snapper 1737962BM

GEAR, Chute
(Superseded to 1737962BMYP)

$40.99

$

Usually ships in 2-12 days

0

0250

Snapper 1931317

BOLT, Carriage, Short Neck, 1/4-20 x 3/4, G5

$3.99

$

In Stock, only 3 left!

0

0260

Snapper 1960685

NUT, Hex KEPS, 1/4-20
(Superseded to 703061)

$3.49

$

In Stock, Qty 11

0

0400

Snapper 1931333

BOLT, Carriage, Short Neck, 5/16-18 x 3/4, G5
(Superseded to 703185)

$3.49

$

In Stock, Qty 12

0

0410

Snapper 1739305

NUT, Hex Flange, ESNA, 5/16-18
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

0420

Snapper 1739331

CLIP, Cable
(Superseded to 703174)

$4.49

$

Usually ships in 2-12 days

0

0530

Snapper 1733475

GUARD, Chute
(Superseded to 1733475SM)

$21.99

$

Usually ships in 2-12 days

0

0540

Snapper 1737683

BRACKET, Chute Guard
(Superseded to 1737683AYP)

$17.99

$

Usually ships in 2-12 days

0

0550

Snapper 1738174

GROMMET
(Superseded to 1738174YP)

$4.49

$

Usually ships in 2-12 days

0

0560

Snapper 1960140

NUT, Push, 3/16
(Superseded to 1960140SM)

$3.49

$

Usually ships in 2-12 days

0

0570

Snapper 1925003

SCREW, Hex Washer Head, Taptite, 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, only 4 left!

0

0580

Snapper 2860210

WASHER, Nylon, 3/8
(Superseded to 2860210SM)

$4.49

$

In Stock, only 2 left!

0
