L 1226EX (1695853) - Snapper 26" Snow Thrower, 11.5hp Handles & Controls Group Parts Diagram

26" Snow Thrower, 11.5hp

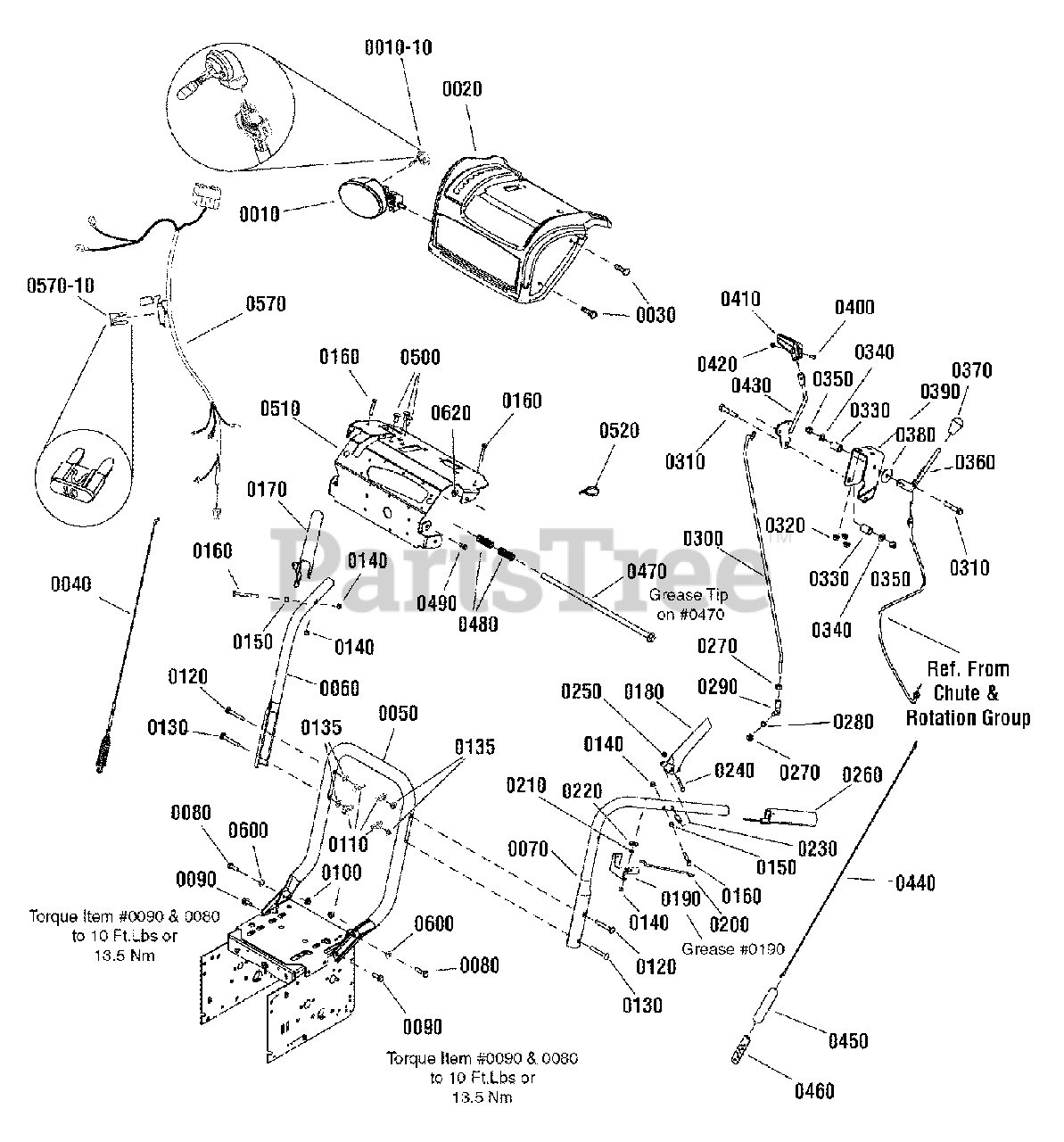

Handles & Controls Group Parts Diagram

  • Title

0010

Snapper 1737966

HEADLIGHT, Oval
(Superseded to 1737966YP)

$97.99

$

Usually ships in 2-12 days

0

0010-10

BULB, 881-12V 27W Halogen Lamp

Note: (Included with Ref. No. 0010)

$

$

Not available

0020

Snapper 1738110D

COVER, Panel
(Superseded to 1738110DSM)

$85.99

$

Usually ships in 2-12 days

0

0030

Snapper 1960715

SCREW, Truss Head Torx, 1/4-20 x 3/4
(Superseded to 770135)

$3.99

$

In Stock, Qty 15

0

0040

Snapper 1732471

CABLE & SPRING ASSEMBLY, Auger Drive, RH
(Superseded to 1732471SM)

$

$

Not available

0050

Snapper 1737759A

HANDLE, Lower
(Superseded to 1737759AYP)

$176.99

$

Usually ships in 2-12 days

0

0060

Snapper 1734587A

HANDLE, Upper, RH
(Superseded to 1734587ASM)

$51.99

$

Usually ships in 2-12 days

0

0070

Snapper 1734586A

HANDLE, Upper, LH
(Superseded to 1734586ASM)

$55.99

$

In Stock, only 1 left!

0

0080

Snapper 1921333

CAPSCREW, Hex Head, 5/16-18 x 1, G5
(Superseded to 703585)

$4.99

$

Usually ships in 2-12 days

0

0090

Snapper 1664847

CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0100

Snapper 1935048

NUT, Hex Flange, Two Way Lock, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

0110

Snapper 7035744

KNOB, Wing, 5/16-18
(Superseded to 7105085YP)

$3.99

$

In Stock, Qty 20+

0

0120

Snapper 1750299

BOLT, Carriage, Curved Head, 5/16-18 x 2-1/4
(Superseded to 703168)

$3.99

$

In Stock, only 1 left!

0

0130

Snapper 7091189

BOLT, Carriage, Curved Head, 5/16-18 x 2
(Superseded to 703059)

$4.49

$

In Stock, Qty 10

0

0135

Snapper 7090391

WASHER, SAE, 5/16
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

0140

Snapper 1920397

NUT, Hex Lock, ESNA Light, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

0150

Snapper 1678392

SPACER, 1/4 ID x 3/8 OD x .33
(Superseded to 703137)

$6.99

$

Usually ships in 2-12 days

0

0160

Snapper 1921962

CAPSCREW, Hex Head, 1/4-20 x 1-3/4, G5
(Superseded to 703586)

$4.99

$

Usually ships in 2-12 days

0

0170

Snapper 1739783A

LEVER, Clutch, RH
(Superseded to 1739783AYP)

$28.99

$

In Stock, only 1 left!

0

0180

Snapper 1739782A

LEVER, Clutch, LH
(Superseded to 1739782AYP)

$

$

Not available

0190

Snapper 1733505BM

BRACKET, Pivot, Free Hand
(Superseded to 1733505BMYP)

$14.99

$

Usually ships in 2-12 days

0

0200

Snapper 1736360

ROD, Hold Down
(Superseded to 1736360YP)

$11.99

$

Usually ships in 2-12 days

0

0210

Snapper 1733095

SPACER, 1/4 ID x 3/8 OD x 1/8
(Superseded to 1733095SM)

$4.49

$

Usually ships in 2-12 days

0

0220

Snapper 1960353

WASHER, 1/4
(Superseded to 703229)

$4.49

$

In Stock, Qty 7

0

0230

Snapper 1736542

SPACER, Stepped
(Superseded to 703223)

$4.49

$

Usually ships in 2-12 days

0

0240

Snapper 1750554

SCREW, Hex Washer Head, Shoulder, 10-24
(Superseded to 1750554YP)

$4.99

$

In Stock, only 1 left!

0

0250

Snapper 1933896

NUT, Hex Lock, Nylon Insert, 10-24
(Superseded to 703412)

$4.49

$

In Stock, only 2 left!

0

0260

Snapper 1726317

GRIP
(Superseded to 1726317SM)

$8.49

$

In Stock, only 1 left!

0

0270

Snapper 2820263

NUT, Hex, 5/16-24
(Superseded to 703331)

$3.99

$

In Stock, Qty 20+

0

0280

Snapper 1917356

LOCKWASHER, Spring, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

0290

Snapper 1739290

BALL JOINT
(Superseded to 703224)

$21.99

$

In Stock, only 2 left!

0

0300

Snapper 1751543

ROD, Speed Control
(Superseded to 704085)

$22.99

$

Usually ships in 2-12 days

0

0310

Snapper 1923701

CAPSCREW, Hex Head, 3/8-16 x 2, G5
(Superseded to 703589)

$4.49

$

In Stock, only 1 left!

0

0320

Snapper 1931277

NUT, Hex Flange, Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0330

Snapper 724361

SPRING
(Superseded to 50786MA)

$5.49

$

Usually ships in 2-12 days

0

0340

Snapper 1918266

WASHER, 3/8
(Superseded to 71072MA)

$4.49

$

In Stock, only 4 left!

0

0350

Snapper 1919439

NUT, Hex Lock, ESNA Light, 3/8-16
(Superseded to 703117)

$3.49

$

In Stock, Qty 20+

0

0360

Snapper 1732427

ROD, Chute
(Superseded to 1732427SM)

$14.99

$

Usually ships in 2-12 days

0

0370

Snapper 723122

GRIP
(Superseded to 306689MA)

$14.99

$

Usually ships in 2-12 days

0

0380

Snapper 1924356

WASHER, 3/8
(Superseded to 703591)

$5.49

$

In Stock, Qty 20+

0

0390

Snapper 1737684

BRACKET, Controls
(Superseded to 1737684YP)

$16.99

$

Usually ships in 2-12 days

0

0400

Snapper 1960589

SCREW, Round Head Phillips, #10-24 x 3/4
(Superseded to 1960589SM)

$3.99

$

Usually ships in 2-12 days

0

0410

Snapper 1733192

KNOB-, Slot Speed
(Superseded to 1733192SM)

$8.49

$

Usually ships in 2-12 days

0

0420

Snapper 1933896

NUT, Hex Lock, Nylon Insert, 10-24
(Superseded to 703412)

$4.49

$

In Stock, only 2 left!

0

0430

Snapper 1736836

SPEED LEVER, BLACK ZINC
(Superseded to 703047)

$56.99

$

Usually ships in 2-12 days

0

0440

Snapper 727331

CABLE, Front Drive
(Superseded to 1502113MA)

$22.99

$

In Stock, Qty 20+

0

0450

Snapper 723154

BOOT, Spring End Cover
(Superseded to 308146MA)

$6.49

$

Usually ships in 2-12 days

0

0460

Snapper 723259

BRACKET, Cable Adjusting
(Superseded to 313441MA)

$

$

Not available

0470

Snapper 1733509

ROD & SPRING ASSEMBLY
(Superseded to 1733509SM)

$81.99

$

Usually ships in 2-12 days

0

0480

Snapper 2108360

SPRING, Compression, 2-1/4
(Superseded to 2108360SM)

$5.49

$

In Stock, only 1 left!

0

0490

Snapper 1927429

CAPSCREW, Hex Washer Head, Taptite, 1/4-20 x 5/8
(Superseded to 703054)

$4.49

$

In Stock, Qty 5

0

0500

Snapper 1931333

BOLT, Carriage, Short Neck, 5/16-18 x 3/4, G5
(Superseded to 703185)

$3.49

$

In Stock, Qty 12

0

0510

Snapper 1732064BM

COVER, Dash
(Superseded to 1732064BMYP)

$136.99

$

Usually ships in 2-12 days

0

0520

Snapper 2825094

TIE, Self Locking
(Superseded to 1701011SM)

$5.49

$

In Stock, only 2 left!

0

0570

Snapper 1737592

WIRING HARNESS
(Superseded to 1737592YP)

$62.99

$

Usually ships in 2-12 days

0

0570-10

* FUSE, Mini, 10 Amp

$

$

Not available

0600

Snapper 725331

WASHER, Internal Tooth, 5/16
(Superseded to 703350)

Note: (Was 7090391)

$4.49

$

In Stock, only 2 left!

0

0620

Snapper 5025391

NUT, 1/4-20 Flange Hex Nyloc
(Superseded to 5025391FS)

$3.99

$

In Stock, Qty 20+

0
