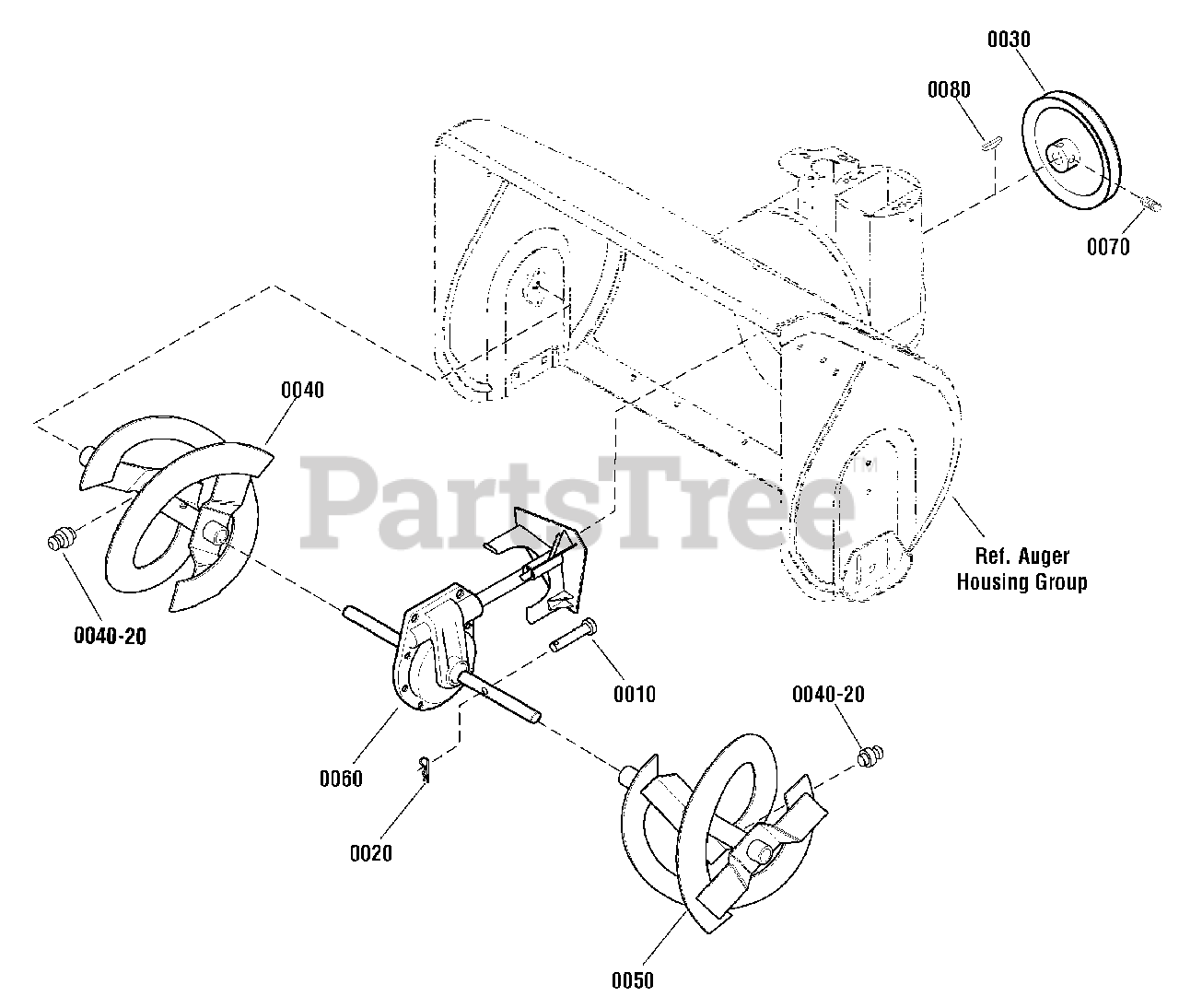

L 1226EX (1695671) - Snapper 26" Snow Thrower, 11.5hp Auger Drive Group - Med. Duty Parts Diagram

26" Snow Thrower, 11.5hp

Auger Drive Group - Med. Duty Parts Diagram

  • Title
0010

Snapper 1668344

PIN, Shear
(Superseded to 703063)

$4.49

$

In Stock, Qty 20+

0

0020

Snapper 7023590

PIN, Cotter
(Superseded to 7023590SM)

$3.99

$

In Stock, Qty 20+

0

0030

Snapper 1732185

PULLEY
(Superseded to 1732185SM)

$87.99

$

In Stock, only 4 left!

0

0040

Snapper 1737082BM

AUGER ASSEMBLY, 24" R.H.
(Superseded to 1737082BMYP)

Note: (Includes Ref. No. 0040-20) (26" CE/Export)

$106.99

$

Usually ships in 2-12 days

0

0040-20

Snapper 2821133

FITTING, Zerk
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

0050

Snapper 1737083BM

AUGER ASSEMBLY, L.H.
(Superseded to 1737083BMYP)

Note: (Includes Ref. No. 0040-20) (26" CE/Export)

$149.99

$

Usually ships in 2-12 days

0

0060

Snapper 1736712

GEAR CASE ASSEMBLY, Med. Duty
(Superseded to 1739656YP)

$658.99

$

Usually ships in 2-12 days

0

0070

Snapper 1928721

SCREW, Set, 5/16-18 x 1/2, G8
(Superseded to 1928721SM)

$4.99

$

In Stock, only 2 left!

0

0080

Snapper 2818312

KEY, Woodruff
(Superseded to 703891)

$4.99

$

In Stock, Qty 18

0
