L 1226E (1695847) - Snapper 26" Snow Thrower, 11.5hp Gear Case Assembly - 26" Med. Duty Parts Diagram

26" Snow Thrower, 11.5hp

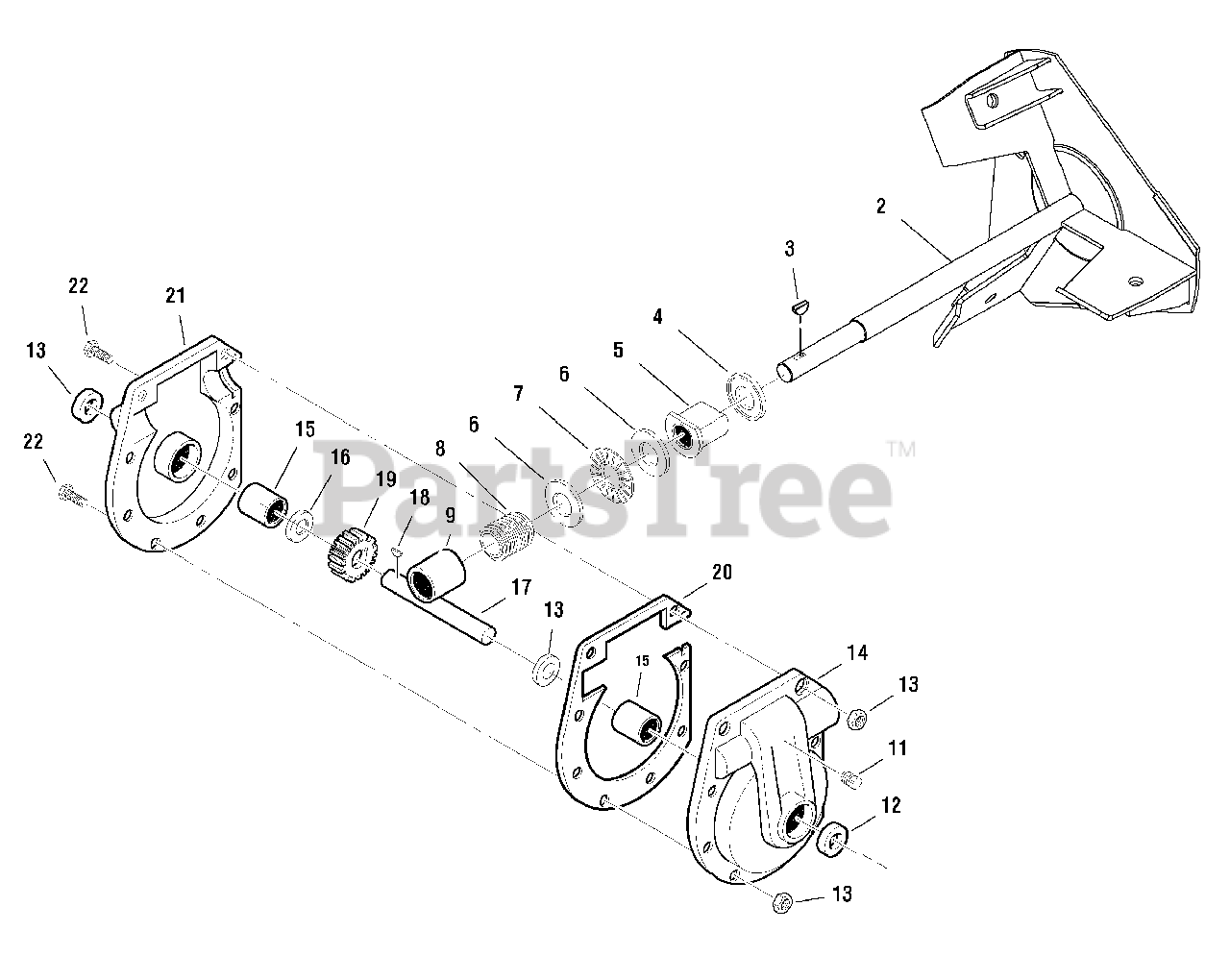

Gear Case Assembly - 26" Med. Duty Parts Diagram

  • Title
2

Snapper 1736709A

IMPELLER ASSEMBLY
(Superseded to 1736709AYP)

$290.99

$

Usually ships in 2-12 days

0

3

Snapper 724366

KEY
(Superseded to 50795MA)

$5.99

$

In Stock, only 1 left!

0

4

Snapper 724423

RING
(Superseded to 53737MA)

$4.99

$

In Stock, Qty 8

0

5

Snapper 724729

BEARING, Flange, 3/4 x 1-1/8
(Superseded to 583126MA)

$13.99

$

In Stock, Qty 6

0

6

Snapper 724079

WASHER, 3/4 x 1-1/4
(Superseded to 48275MA)

$6.49

$

In Stock, Qty 6

0

7

Snapper 724352

BEARING, Roller, 3/4 x 1-1/4
(Superseded to 50684MA)

$6.49

$

In Stock, only 1 left!

0

8

Snapper 724421

ROLLED WORM CASE
(Superseded to 53732MA)

$49.99

$

In Stock, only 1 left!

0

9

Snapper 724420

SLEEVE, Brearing, 3/4 x 7/8
(Superseded to 53731MA)

$5.49

$

In Stock, Qty 11

0

11

Snapper 724426

PLUG, Pipe, 1/4-18
(Superseded to 703122)

$3.49

$

Usually ships in 2-12 days

0

12

Snapper 725874

SEAL, Oil
(Superseded to 780151MA)

$10.99

$

In Stock, Qty 6

0

13

Snapper 725338

NUT, Hex-Flange, Locking, 5/16-24
(Superseded to 703123)

$3.49

$

In Stock, Qty 20+

0

14

Snapper 725981

GEAR CASE, L.H.
(Superseded to 895MA)

$

$

Not available

15

Snapper 724424

SLEEVE, Bearing
(Superseded to 53743MA)

$9.99

$

Usually ships in 2-12 days

0

16

Snapper 2168111

THRUST WASHER, 1 x 1.54
(Superseded to 2168111SM)

$6.99

$

Usually ships in 2-12 days

0

17

Snapper 1736711

SHAFT, Auger Output
(Superseded to 1736711YP)

$68.99

$

Usually ships in 2-12 days

0

18

Snapper 725433

KEY, Woodruff, 1-3/4 x 1/4
(Superseded to 704280)

$4.99

$

In Stock, Qty 9

0

19

Snapper 724419

GEAR, Worm
(Superseded to 1752500YP)

$79.99

$

In Stock, Qty 5

0

20

Snapper 725983

GASKET, Gearbox
(Superseded to 897MA)

$

$

Not available

21

Snapper 725982

GEAR CASE, R.H.
(Superseded to 896MA)

$32.99

$

In Stock, only 4 left!

0

22

Snapper 725996

CAPSCREW, Hex, 5/16 - 24 x 1
(Superseded to 703301)

$3.99

$

In Stock, only 2 left!

0
