L 1226E (1695847) - Snapper 26" Snow Thrower, 11.5hp Chute & Rotation Group - Electric Parts Diagram

26" Snow Thrower, 11.5hp

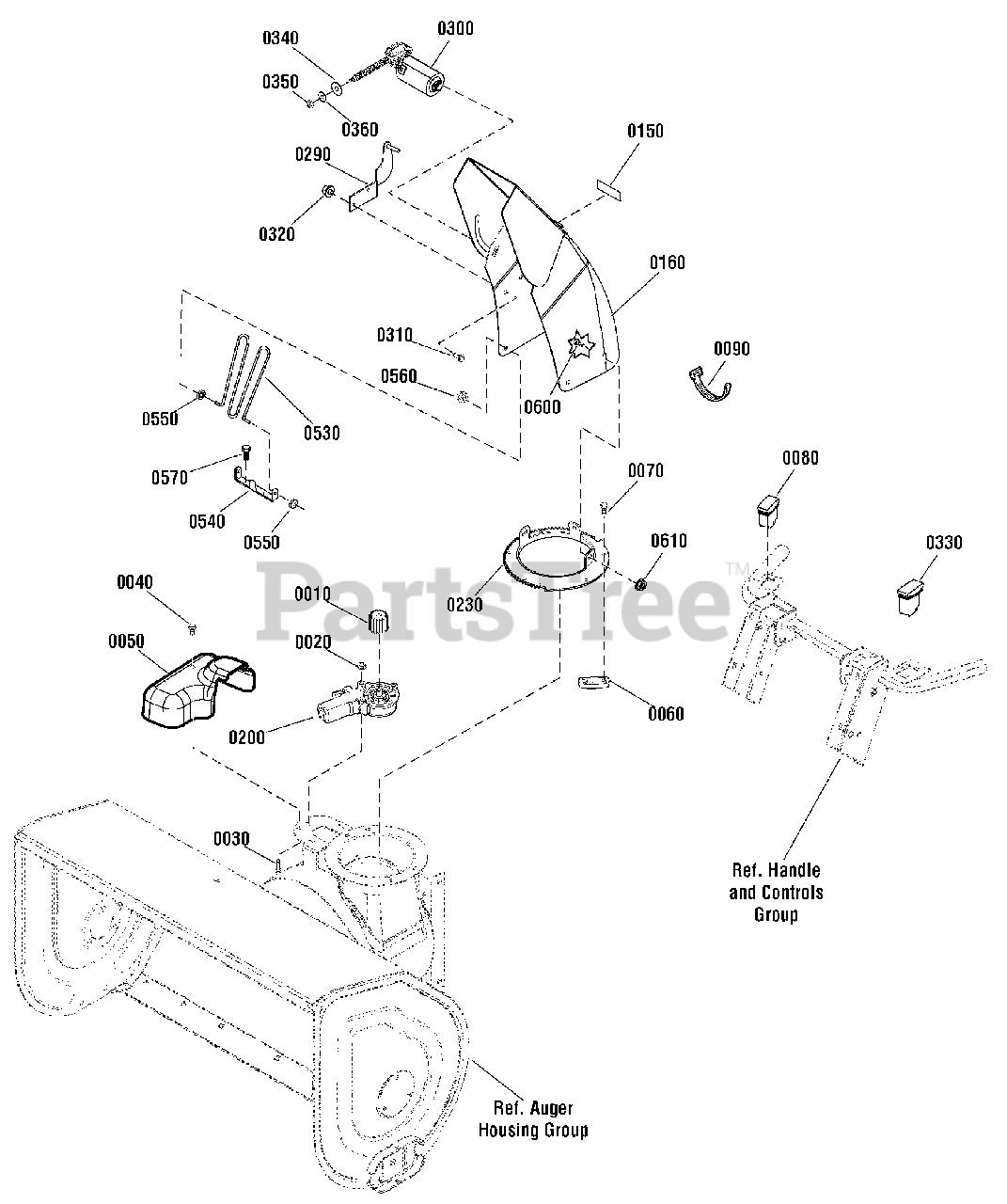

Chute & Rotation Group - Electric Parts Diagram

  • Title

0010

Snapper 1728967

PINION
(Superseded to 1728967SM)

$17.99

$

In Stock, only 4 left!

0

0020

Snapper 1960745

NUT, Hex Flange, Whiz Lock, #10-24
(Superseded to 703917)

$3.49

$

In Stock, Qty 20+

0

0030

Snapper 2860604

CAPSCREW, Hex Washer, #10 x 1-1/4
(Superseded to 2860604SM)

$4.49

$

Usually ships in 2-12 days

0

0040

Snapper 1925592

SCREW, Hex Washer Head, Taptite, 1/4-20 x 3/4
(Superseded to 703466)

$3.99

$

In Stock, Qty 10

0

0050

Snapper 1737455

COVER, Electric Chute Rotation
(Superseded to 1752877YP)

$16.99

$

In Stock, only 1 left!

0

0060

Snapper 7011938

RETAINER, Spout
(Superseded to 7011938SM)

$

$

Not available

0070

Snapper 1960001

SCREW, Hex Washer Head, Plastite, 10-14 x 5/8
(Superseded to 703062)

$4.49

$

Usually ships in 2-12 days

0

0080

Snapper 1738243

SWITCH, Chute Rotation
(Superseded to 1738243YP)

$54.99

$

Usually ships in 2-12 days

0

0090

Snapper 2825094

TIE, Self Locking
(Superseded to 1701011SM)

$5.49

$

In Stock, only 2 left!

0

0150

Snapper 1733601

DECAL, Hinge
(Superseded to 1733601SM)

$12.99

$

In Stock, only 1 left!

0

0160

Snapper 1738231H

CHUTE
(Superseded to 1738231HYP)

$128.99

$

Usually ships in 2-12 days

0

0200

Snapper 1728965

MOTOR, Spout Rotator
(Superseded to 1728965SM)

$176.99

$

In Stock, Qty 8

0

0230

Snapper 1737962BM

GEAR, Chute
(Superseded to 1737962BMYP)

$40.99

$

Usually ships in 2-12 days

0

0290

Snapper 1738267BM

BRACKET, Weld Stud
(Superseded to 1738267BMYP)

$30.99

$

Usually ships in 2-12 days

0

0300

Snapper 1737941

MOTOR, Chute Deflector
(Superseded to 1737941YP)

$143.99

$

In Stock, Qty 6

0

0310

Snapper 1960715

SCREW, Truss Head Torx, 1/4-20 x 3/4
(Superseded to 770135)

$3.99

$

In Stock, Qty 15

0

0320

Snapper 1960694

NUT, Hex Flange, ESNA, 1/4-20
(Superseded to 703463)

$4.49

$

In Stock, Qty 20+

0

0330

Snapper 1738242

SWITCH, Deflector Control
(Superseded to 1738242YP)

$54.99

$

Usually ships in 2-12 days

0

0340

Snapper 1738244

WASHER, Rubber
(Superseded to 1738244YP)

$4.49

$

In Stock, Qty 11

0

0350

Snapper 1738245

NUT, 1/4-20 LH Thread Nylon Patched
(Superseded to 703143)

$3.49

$

In Stock, Qty 6

0

0360

Snapper 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

0530

Snapper 1733475

GUARD, Chute
(Superseded to 1733475SM)

Note: (C/E Export Only)

$21.99

$

Usually ships in 2-12 days

0

0540

Snapper 1737683

BRACKET, Chute Guard
(Superseded to 1737683AYP)

Note: (C/E Export Only)

$17.99

$

Usually ships in 2-12 days

0

0550

Snapper 1738174

GROMMET, Chute Guard Bracket
(Superseded to 1738174YP)

Note: (C/E Export Only)

$4.49

$

Usually ships in 2-12 days

0

0560

Snapper 1960140

NUT, Push, For 3/16 Stud
(Superseded to 1960140SM)

Note: (C/E Export Only)

$3.49

$

Usually ships in 2-12 days

0

0570

Snapper 1925003

SCREW, Hex Washer Head, Taptite, 1/4-20 x 1/2
(Superseded to 704130)

Note: (C/E Export Only)

$3.99

$

In Stock, Qty 5

0

0600

Snapper 720386

BOLT, Carriage, Short Neck, 1/4-20 x 3/4

$

$

Not available

0610

Snapper 1960685

NUT, Hex Flange, Keps, 1/4-20 Blk
(Superseded to 703061)

Note: (Was 2860694)

$3.49

$

In Stock, Qty 11

0
