L 1226E (1695847) - Snapper 26" Snow Thrower, 11.5hp Auger Housing Group - 28" & 30" Parts Diagram

26" Snow Thrower, 11.5hp

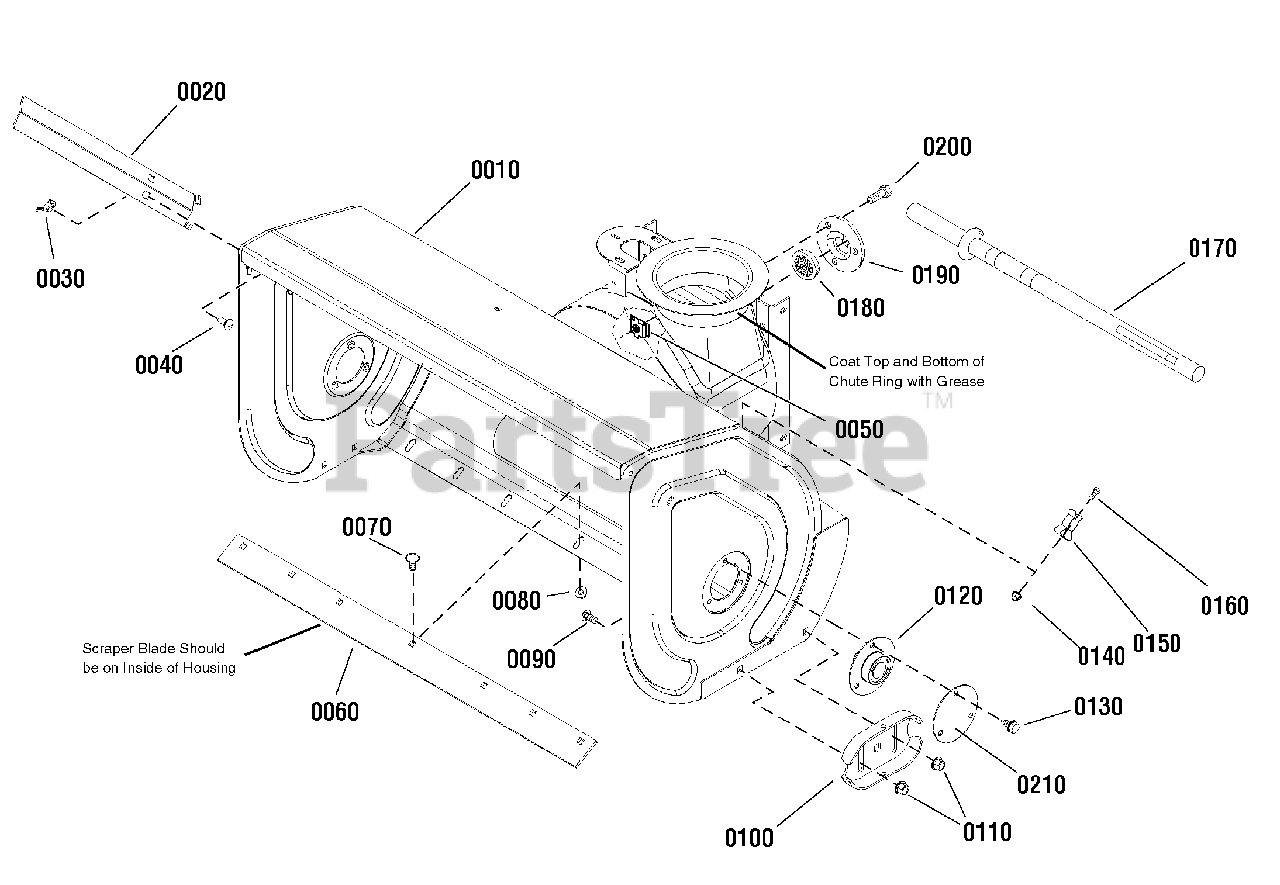

Auger Housing Group - 28" & 30" Parts Diagram

  • Title

0010

Snapper 1739377D

AUGER HOUSING, 26"
(Superseded to 1687524YP)

Note: (Was 1751184D)

$467.99

$

Usually ships in 2-12 days

0

0010

Snapper 1738252D

AUGER HOUSING, 28"
(Superseded to 1687541YP)

$501.99

$

Usually ships in 2-12 days

0

0010

Snapper 1738434D

AUGER HOUSING, 30"
(Superseded to 1687554YP)

$638.99

$

Usually ships in 2-12 days

0

0020

Snapper 1733102BM

DRIFT CUTTER
(Superseded to 1733102ASM)

Note: (CE/Export & 26" Domestic Models Only)

$31.99

$

In Stock, only 4 left!

0

0030

Snapper 725347

NUT, Wing, Serrated, 5/16-18
(Superseded to 703141)

Note: (CE/Export & 26" Domestic Models Only)

$3.49

$

In Stock, only 3 left!

0

0040

Snapper 723873

BOLT, Carriage, 5/16-18 x 3/4
(Superseded to 703225)

Note: (CE/Export & 26" Domestic Models Only)

$3.99

$

In Stock, Qty 18

0

0050

Snapper 1930659

RETAINER, Nut, 5/16-18
(Superseded to 1930659SM)

$5.99

$

Usually ships in 2-12 days

0

0060

Snapper 1732384BM

BLADE, Scraper, 26"
(Superseded to 1732384BMYP)

$48.99

$

In Stock, only 2 left!

0

0060

Snapper 1709947BM

BLADE, Scraper, 28"
(Superseded to 1709947BMYP)

$45.99

$

In Stock, Qty 18

0

0060

Snapper 1732385BM

BLADE, Scraper, 30"
(Superseded to 1732385BMYP)

$51.99

$

In Stock, Qty 5

0

0070

Snapper 1960699

BOLT, Carriage, 5/16-18 x 5/8, G5
(Superseded to 703159)

Note: (Qty 5 Used on 28")

$3.99

$

In Stock, Qty 12

0

0080

Snapper 1935048

NUT, Hex Flange, Two Way Lock, 5/16-18
(Superseded to 704067)

Note: (Qty 5 Used on 28")

$3.99

$

In Stock, Qty 20+

0

0090

Snapper 1960711

BOLT, Carriage, 3/8-16 x 3/4, G5
(Superseded to 703448)

$4.49

$

In Stock, Qty 20+

0

0100

Snapper 1727854BM

SKID SHOE
(Superseded to 1727854BMYP)

$16.99

$

In Stock, Qty 20+

0

0110

Snapper 1960687

NUT, Hex Flange, ESNA, 3/8-16
(Superseded to 703158)

$3.49

$

Usually ships in 2-12 days

0

0120

Snapper 1733103

BEARING, Flange
(Superseded to 1733103SM)

$11.99

$

In Stock, Qty 9

0

0120

Snapper 724427

BEARING, Flange
(Superseded to 53757MA)

Note: (CE Export Only)

$9.99

$

In Stock, only 2 left!

0

0130

Snapper 1931202

CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 1-1/4
(Superseded to 703167)

$3.99

$

In Stock, only 3 left!

0

0130

Snapper 722839

CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

Note: (CE Export Only)

$4.49

$

In Stock, Qty 20+

0

0140

Snapper 722401

NUT, Nylock, 10 x 24
(Superseded to 703412)

$4.49

$

In Stock, only 2 left!

0

0150

Snapper 1736620

CLAMP
(Superseded to 1736620YP)

$6.49

$

In Stock, only 2 left!

0

0160

Snapper 1960569

SCREW,Truss Head Torx, #10-24 x 3/8
(Superseded to 1960569SM)

$4.49

$

Usually ships in 2-12 days

0

0170

Snapper 1736094

BRUSH, Cleanout
(Superseded to 1736094YP)

$34.99

$

In Stock, only 4 left!

0

0180

Snapper 2108202

BEARING, Ball
(Superseded to 2108202SM)

$11.99

$

In Stock, Qty 20+

0

0190

Snapper 1665982

RETAINER, Bearing
(Superseded to 1665982SM)

$6.99

$

In Stock, Qty 17

0

0200

Snapper 1960738

CAPSCREW, Hex Flange, Whiz Lock, 5/16-18 x 3/4
(Superseded to 703354)

$5.49

$

In Stock, Qty 10

0

0210

Snapper 1734932BM

COVER, Bushing
(Superseded to 1734932BMYP)

$11.99

$

Usually ships in 2-12 days

0
