L 1226E (1695679) - Snapper 26" Snow Thrower, 11.0hp Auger Drive Group - Heavy Duty Parts Diagram

26" Snow Thrower, 11.0hp

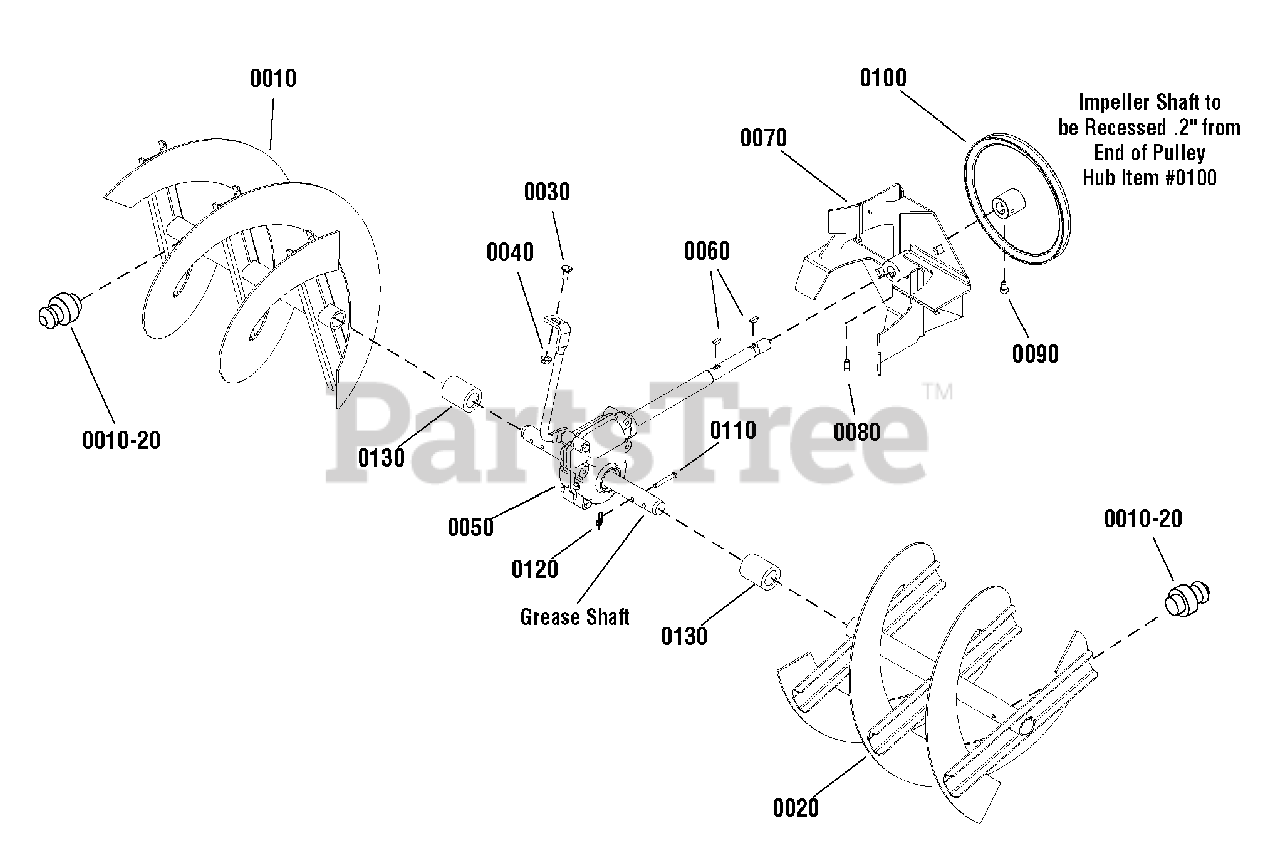

Auger Drive Group - Heavy Duty Parts Diagram

  • Title

0010

Snapper 1737082BM

AUGER ASSEMBLY, 24", R.H.
(Superseded to 1737082BMYP)

Note: (Use with 26" Domestic) (Inc. Ref. 0010-20)

$106.99

$

Usually ships in 2-12 days

0

0010

Snapper 1737078BM

AUGER ASSEMBLY, 28", R.H.
(Superseded to 1737078BMYP)

Note: (Use with 28" & 30" Housing) (Inc. Ref. 0010-20)

$155.99

$

Usually ships in 2-12 days

0

0020

Snapper 1737083BM

AUGER ASSEMBLY, 24", L.H.
(Superseded to 1737083BMYP)

Note: (Inc. Ref. 0010-20)

$149.99

$

Usually ships in 2-12 days

0

0020

Snapper 1737079BM

AUGER ASSEMBLY, 28", L.H.
(Superseded to 1737079BMYP)

Note: (Inc. Ref. 0010-20)

$208.99

$

Usually ships in 2-12 days

0

0010-20

Snapper 2821133

FITTING, Zerk
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

0030

Snapper 1931333

BOLT, Carriage, 5/16-18 x 3/4, G5
(Superseded to 703185)

$3.49

$

In Stock, Qty 12

0

0040

Snapper 1931277

NUT, Hex Flange, Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0050

Snapper 1732303

GEAR CASE ASSEMBLY, Heavy Duty
(Superseded to 1732303SM)

$512.99

$

Usually ships in 2-12 days

0

0060

Snapper 2818312

KEY, Woodruff
(Superseded to 703891)

$4.99

$

In Stock, Qty 16

0

0070

Snapper 1612187BM

IMPELLER
(Superseded to 1612187BMYP)

$201.99

$

In Stock, only 1 left!

0

0080

Snapper 1960474

SCREW, Set, 3/8-16 x 1/2, G8
(Superseded to 1960474SM)

$5.99

$

In Stock, Qty 5

0

0090

Snapper 1928721

SCREW, Set, 5/16-18 x 1/2, G8
(Superseded to 1928721SM)

$4.99

$

In Stock, only 2 left!

0

0100

Snapper 1732185

PULLEY, 8.40 OD, 3/4 ID
(Superseded to 1732185SM)

$87.99

$

In Stock, only 4 left!

0

0110

Snapper 1668344

PIN, Shear, 1-3/4
(Superseded to 703063)

$4.49

$

In Stock, Qty 20+

0

0120

Snapper 7023590

PIN, Cotter
(Superseded to 7023590SM)

$3.99

$

In Stock, Qty 20+

0

0130

Snapper 1733406

SPACER, 1"
(Superseded to 1733406SM)

Note: (Used with 26" Domestic & all 30" Housing)

$5.49

$

In Stock, only 2 left!

0
