L 1226E (1695571) - Snapper 26" Snow Thrower, 11.5hp (2009) Auger Housing & Chute Group Parts Diagram

26" Snow Thrower, 11.5hp

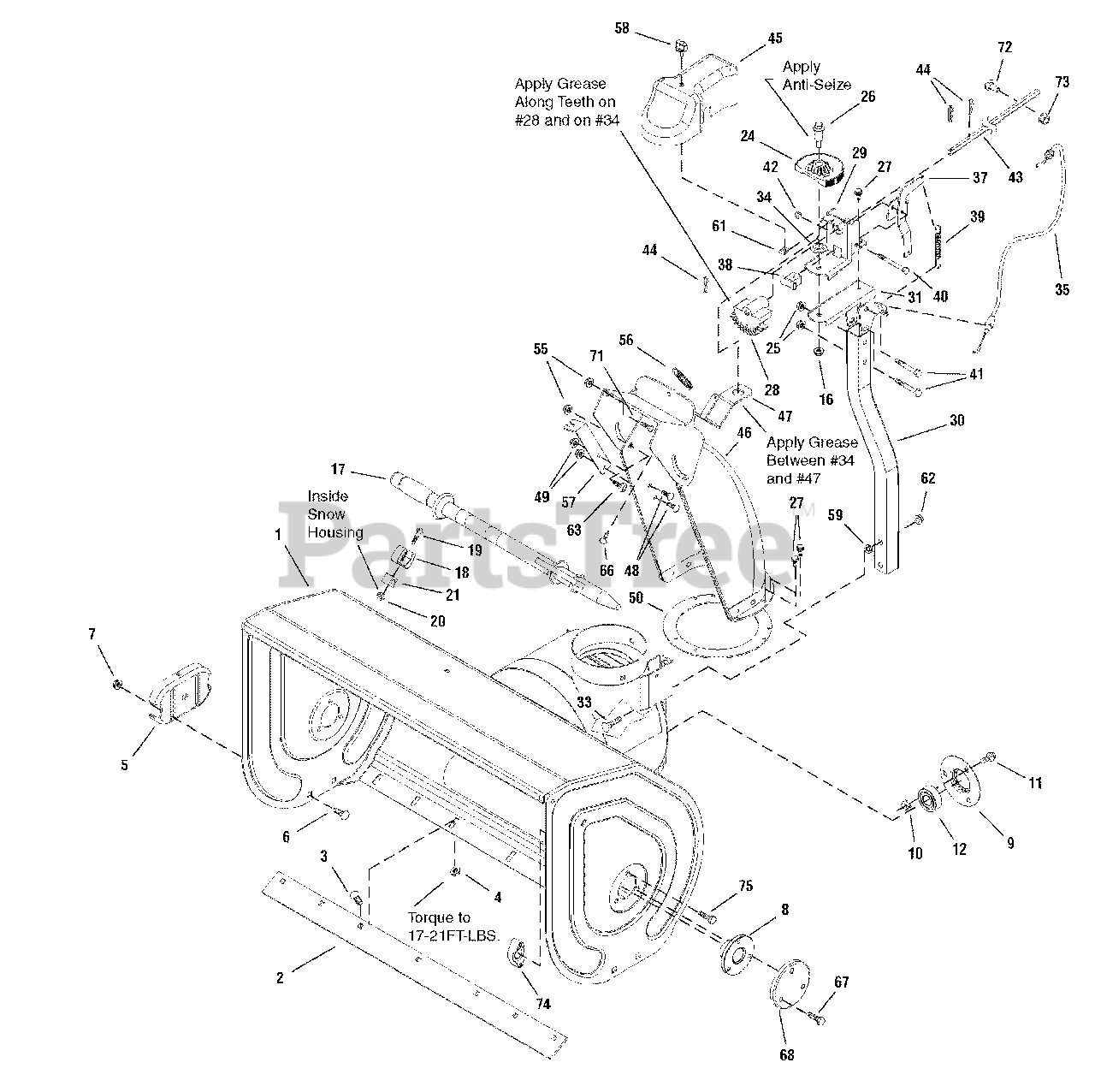

Auger Housing & Chute Group Parts Diagram

  • Title

1

Snapper 1736708D

HOUSING ASSEMBLY, 26"
(Superseded to 1736708DYP)

Note: (Used on 26" Models)

$467.99

$

Usually ships in 2-12 days

0

1

Snapper 1734556D

HOUSING ASSEMBLY, 28"
(Superseded to 1734556DYP)

Note: (Used on 28" Models)

$957.99

$

Usually ships in 2-12 days

0

2

Snapper 1732384A

BLADE, Scraper 26"
(Superseded to 1732384BMYP)

$48.99

$

In Stock, only 2 left!

0

2

Snapper 1709947A

BLADE, Scraper 28"
(Superseded to 1709947BMYP)

$45.99

$

In Stock, Qty 18

0

3

Snapper 1960699

CARRIAGE BOLT, 5/16-18 x 5/8 G5
(Superseded to 703159)

$3.99

$

In Stock, Qty 12

0

4

Snapper 1935048

NUT, Hex Flange 5/16-18 Two-Way Lock
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

5

Snapper 1727854A

SKID, Shoe Reversible
(Superseded to 1727854BMYP)

$16.99

$

In Stock, Qty 20+

0

6

Snapper 1960711

CARRIAGE BOLT, 3/8-16 x 3/4 G5
(Superseded to 703448)

$4.49

$

In Stock, Qty 20+

0

7

Snapper 1960687

NUT, Hex Flange 3/8-16 ESNA
(Superseded to 703158)

$3.49

$

Usually ships in 2-12 days

0

8

Snapper 1733103

BEARING, Flange
(Superseded to 1733103SM)

Note: (Used on 28" Models)

$11.99

$

In Stock, Qty 8

0

9

Snapper 1665982

BEARING, Retainer
(Superseded to 1665982SM)

$6.99

$

In Stock, Qty 16

0

10

Snapper 1930659

RETAINER, Nut, 5/16-18
(Superseded to 1930659SM)

$5.99

$

Usually ships in 2-12 days

0

11

Snapper 1960738

SCREW, Hex Whiz Lock Flange 5/16-18 x 3/4
(Superseded to 703354)

$5.49

$

In Stock, Qty 6

0

12

Snapper 2108202

BEARING
(Superseded to 2108202SM)

$11.99

$

In Stock, Qty 20+

0

16

Snapper 1931277

NUT, Hex Flange 5/16-18, Whiz Lock
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

17

Snapper 1736094

STICK, Cleanout w/Brush
(Superseded to 1736094YP)

$34.99

$

In Stock, only 3 left!

0

18

Snapper 722242

CLIP, Retainer
(Superseded to 1501672MA)

$8.99

$

In Stock, Qty 17

0

19

Snapper 2860604

CAPSCREW, Hex Washer, #10 x 1-1/4
(Superseded to 2860604SM)

$4.49

$

Usually ships in 2-12 days

0

20

Snapper 1933896

NUT, Hex Lock 10-24 w/Nylon Insert
(Superseded to 703412)

$4.49

$

In Stock, only 2 left!

0

21

Snapper 724565

BLOCK, Universal Pivot
(Superseded to 578063MA)

$5.49

$

In Stock, only 2 left!

0

24

Snapper 1732608

GEAR, 13 Tooth
(Superseded to 1732608SM)

$82.99

$

Usually ships in 2-12 days

0

25

Snapper 1960684

NUT, Hex Keps Conical Washer, 5/16-18
(Superseded to 703222)

$5.99

$

In Stock, only 2 left!

0

26

Snapper 1732412

BOLT, Shoulder 5/16-18 x 3/5
(Superseded to 1732412SM)

$15.99

$

Usually ships in 2-12 days

0

27

Snapper 1925003

SCREW, Hex Washer Head Taptite 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, only 1 left!

0

28

Snapper 1732607

GEAR, Sector 34 Tooth Powdered Metal
(Superseded to 1732607SM)

$82.99

$

Usually ships in 2-12 days

0

29

Snapper 1732602A

SUPPORT, Driver Gear
(Superseded to 1732602ASM)

$67.99

$

Usually ships in 2-12 days

0

30

Snapper 1734414A

TUBE, Support
(Superseded to 1734414ASM)

$20.99

$

Usually ships in 2-12 days

0

31

Snapper 1732606A

BRACKET, Gear Support
(Superseded to 1732606ASM)

$39.99

$

Usually ships in 2-12 days

0

33

Snapper 1931353

CARRIAGE BOLT, 3/8-16 x 1-3/4
(Superseded to 703858)

$4.99

$

In Stock, Qty 6

0

34

Snapper 1733026

WASHER, Powdered Metal
(Superseded to 1733026SM)

$4.49

$

Usually ships in 2-12 days

0

35

Snapper 1732238

CABLE, Chute Brake
(Superseded to 1732238SM)

$50.99

$

In Stock, only 1 left!

0

37

Snapper 1732837A

BRACKET, Brake
(Superseded to 1732837ASM)

$10.99

$

Usually ships in 2-12 days

0

38

Snapper 1732308

ARM & PAD ASSEMBLY, Brake
(Superseded to 1732308SM)

$

$

Not available

39

Snapper 1679554

SPRING, Extension
(Superseded to 1679554SM)

$7.49

$

Usually ships in 2-12 days

0

40

Snapper 1923282

CAPSCREW, Hex Head 1/4-20 x 2-1/2 G5
(Superseded to 703821)

$3.99

$

In Stock, only 1 left!

0

41

Snapper 1922127

CAPSCREW, Hex Head 5/16-18 x 1-3/4
(Superseded to 704288)

$4.99

$

Usually ships in 2-12 days

0

42

Snapper 1923358

NUT, Hex Centerlock 1/4-20
(Superseded to 703954)

$4.99

$

In Stock, Qty 20+

0

43

Snapper 1736707

ROD, Hex Chute
(Superseded to 1736707YP)

$27.99

$

Usually ships in 2-12 days

0

44

Snapper 1722460

PIN, Quick
(Superseded to 703430)

$3.49

$

In Stock, only 1 left!

0

45

Snapper 1732241

COVER, Chute
(Superseded to 1732241SM)

$70.99

$

Usually ships in 2-12 days

0

46

Snapper 1732506

CHUTE & DEFLECTOR ASSEMBLY
(Superseded to 1732506SM)

$

$

Not available

47

Snapper 1732028

BRACKET, Chute Support
(Superseded to 1732028SM)

$23.99

$

Usually ships in 2-12 days

0

48

Snapper 1960252

CARRIAGE BOLT, 1/4-20 x 5/8 G5
(Superseded to 1960252SM)

$3.99

$

In Stock, only 1 left!

0

49

Snapper 1960294

NUT, Hex Flange 1/4-20 Whiz Lock
(Superseded to 703233)

$4.49

$

In Stock, Qty 5

0

50

Snapper 1732172A

RING, Chute Base
(Superseded to 1732172ASM)

$38.99

$

Usually ships in 2-12 days

0

55

Snapper 1960686

NUT, Hex Flange 5/16-18 ESNA
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

56

Snapper 1733455

SPRING, Extension
(Superseded to 1733455SM)

$9.49

$

In Stock, only 1 left!

0

57

Snapper 1733082A

BRACKET, Cable
(Superseded to 1733082ASM)

$23.99

$

Usually ships in 2-12 days

0

58

Snapper 696239

KNOB & SCREW ASSEMBLY
(Superseded to 696239SM)

$8.49

$

In Stock, only 1 left!

0

59

Snapper 1931942

NUT, Push Pal 3/8
(Superseded to 703986)

$4.49

$

Usually ships in 2-12 days

0

61

Snapper 1960593

NUT, Retainer Speed #10-24 w/Extrusion
(Superseded to 1960593SM)

$4.99

$

Usually ships in 2-12 days

0

62

Snapper 1960680

NUT, Hex Keps Conical Washer 3/8-16
(Superseded to 1960680SM)

$6.49

$

Usually ships in 2-12 days

0

63

Snapper 1960756

SCREW, Truss Head Trox Drive 5/16-18 x 3/4
(Superseded to 1960756SM)

$4.49

$

Usually ships in 2-12 days

0

66

Snapper 7091542

SCREW, Pan Head Self Tap Torx 5/16-18 x 1/2
(Superseded to 703932)

$4.99

$

Usually ships in 2-12 days

0

67

Snapper 1931202

SCREW, Hex Washer head Taptite 5/16-18 x 1-1/4
(Superseded to 703167)

Note: (Used on 28" Models)

$3.99

$

In Stock, only 3 left!

0

68

Snapper 1734932A

COVER, Bushing
(Superseded to 1734932BMYP)

Note: (Used on 28" Models)

$11.99

$

Usually ships in 2-12 days

0

71

Snapper 1960086

SCREW, Truss Head Torx 5/16-18 x 7/8
(Superseded to 1960086SM)

$4.99

$

In Stock, only 2 left!

0

72

Snapper 720065

BOLT, Carriage, 1/4-20 x 1
(Superseded to 703584)

$3.99

$

In Stock, Qty 9

0

73

Snapper 1960694

NUT, Flange, Nylock, 1/4-20
(Superseded to 703463)

$4.49

$

In Stock, Qty 20+

0

74

Snapper 724427

BEARING, Auger Shaft
(Superseded to 53757MA)

Note: (Used on 26" Models)

$9.99

$

In Stock, only 2 left!

0

75

Snapper 722839

SCREW, 5/16-18 x 3/4
(Superseded to 703228)

Note: (Used on 26" Models)

$4.49

$

In Stock, Qty 20+

0
