L 1226E (1695571) - Snapper 26" Snow Thrower, 11.5hp (2009) Auger Drive Group - 26" Model Parts Diagram

26" Snow Thrower, 11.5hp

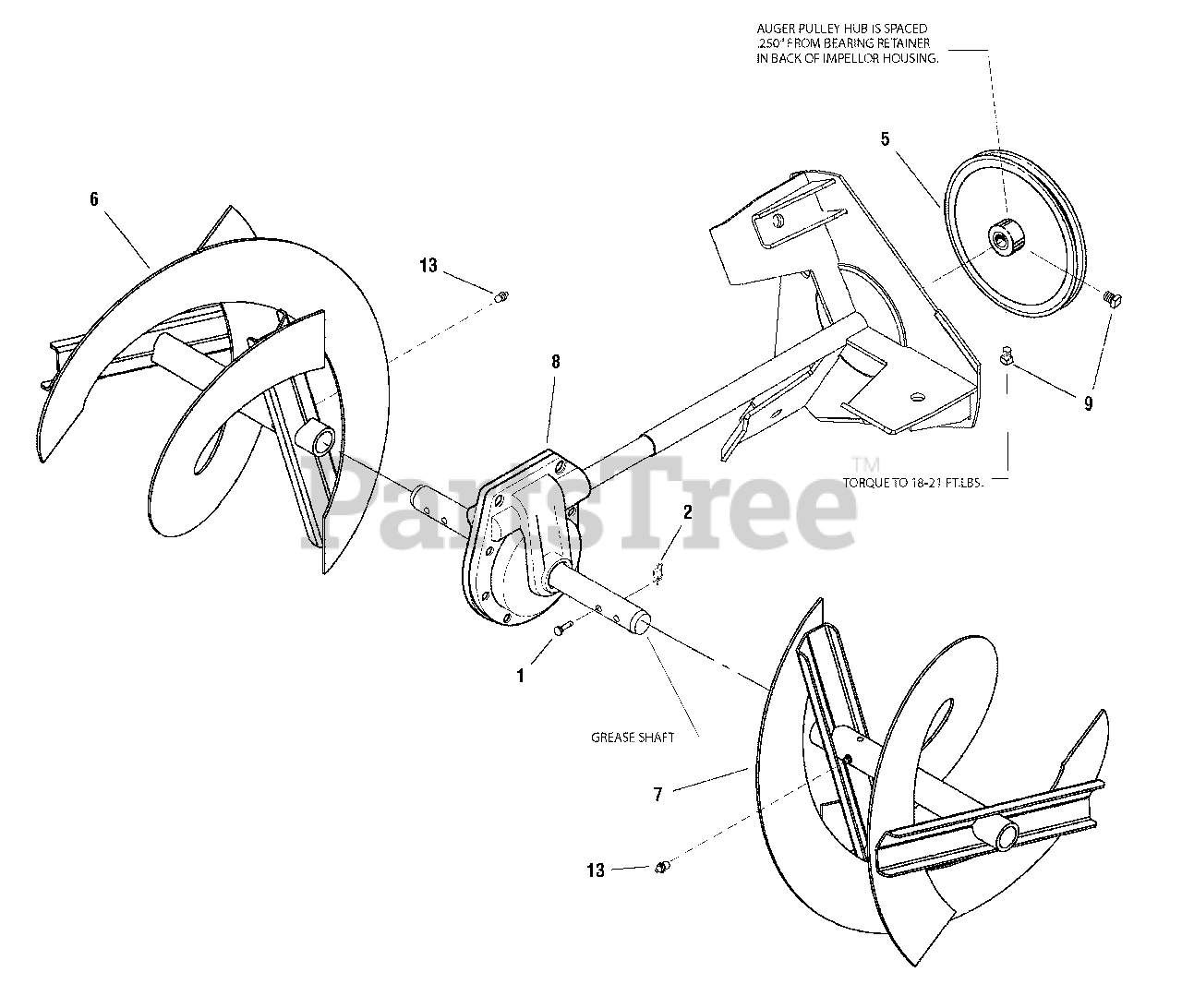

Auger Drive Group - 26" Model Parts Diagram

  • Title

1

Snapper 1668344

PIN, SHEAR
(Superseded to 703063)

$4.49

$

In Stock, Qty 20+

0

2

Snapper 7023590

COTTER PIN, 1/4" Self Locking
(Superseded to 7023590SM)

$3.99

$

In Stock, Qty 20+

0

5

Snapper 1732185

PULLEY, w/Hub
(Superseded to 1732185SM)

$87.99

$

In Stock, only 4 left!

0

6

Snapper 1734674A

AUGER ASSEMBLY, 24" & 26" R.H.
(Superseded to 1734674BMYP)

$207.99

$

Usually ships in 2-12 days

0

7

Snapper 1734673A

AUGER ASSEMBLY, 24" & 26" L.H.
(Superseded to 1734673BMYP)

$149.99

$

Usually ships in 2-12 days

0

8

Snapper 1739656

GEAR BOX ASSEMBLY KIT
(Superseded to 1739656YP)

$658.99

$

Usually ships in 2-12 days

0

9

Snapper 1928721

SCREW, Set, Square Head Cup Point 5/16-18 x 1/2 G8
(Superseded to 1928721SM)

$4.99

$

In Stock, only 2 left!

0

13

Snapper 2821133

FITTING, Lube, 1/4 Drive, No Check Ball
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0
