L 1226 E (1695986) - Simplicity 26" Snow Thrower, 11.5hp Chute & Rotation Group - Electric Chute/Remote Deflector 26" Parts Diagram

26" Snow Thrower, 11.5hp

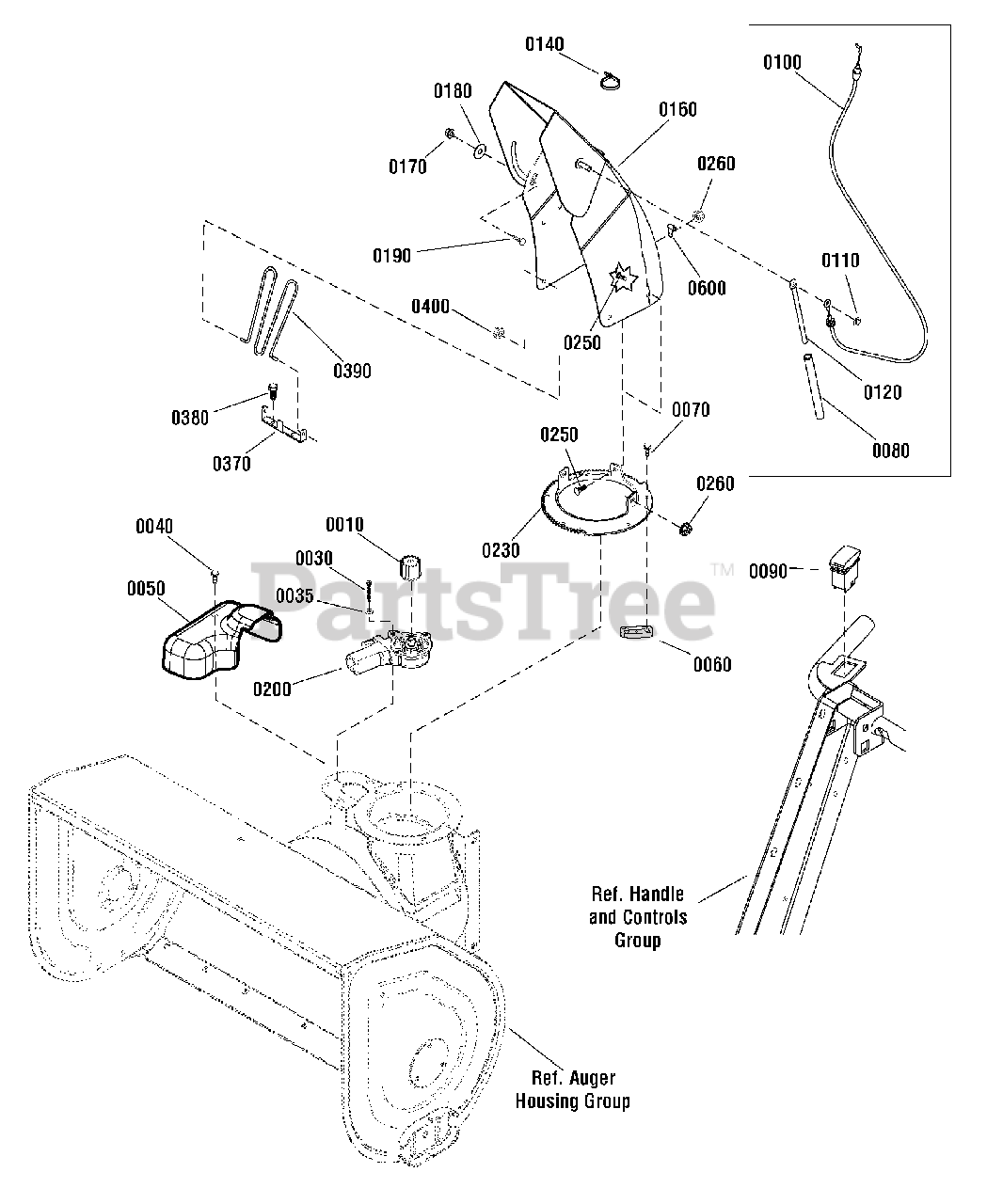

Chute & Rotation Group - Electric Chute/Remote Deflector 26" Parts Diagram

  • Title

0010

Simplicity 1728967

PINION, 1-1/4 Lg
(Superseded to 1728967SM)

$17.99

$

In Stock, Qty 7

0

0030

Simplicity 2860604

CAPSCREW, Hex Washer, #10 x 1-1/4, G2
(Superseded to 2860604SM)

$4.49

$

In Stock, only 2 left!

0

0035

Simplicity 7091552

WASHER, Flat, 7/32 x 1/2 OD
(Superseded to 7091552SM)

$3.99

$

In Stock, Qty 16

0

0040

Simplicity 1925592

CAPSCREW, Hex Washer, Self-Tapping, 1/4-20 x 3/8
(Superseded to 703466)

$3.99

$

In Stock, Qty 11

0

0050

Simplicity 1737455

COVER, Electric Chute Rotation
(Superseded to 1752877YP)

$16.99

$

In Stock, only 1 left!

0

0060

Simplicity 7011938

RETAINER, Spout
(Superseded to 7011938SM)

$

$

Not available

0070

Simplicity 1960001

CAPSCREW, Hex Washer, 10-14 x 5/8
(Superseded to 703062)

$4.49

$

In Stock, Qty 12

0

0080

Simplicity 1734647

SPRING, Compression, 9/16 OD X 6-1/16 Lg
(Superseded to 1734647SM)

$3.99

$

Usually ships in 2-12 days

0

0090

Simplicity 1752240

SWITCH, Rocker, Chute Rotation, 5-Pin
(Superseded to 1687904)

$82.99

$

In Stock, Qty 20+

0

0100

Simplicity 1750623

CABLE, Deflector Control
(Superseded to 1750623YP)

$49.99

$

In Stock, only 4 left!

0

0110

Simplicity 1932718

PUSHNUT, 5/16 Dia. 5/8 OD
(Superseded to 704028)

$5.49

$

In Stock, only 4 left!

0

0120

Simplicity 1734708A

ROD, 5/16 Dia., 5.88 Lg
(Superseded to 1734708ASM)

$13.99

$

Usually ships in 2-12 days

0

0140

Simplicity 1701011

TIE, Self Locking, 7-5/16 Lg
(Superseded to 1701011SM)

$5.49

$

In Stock, only 2 left!

0

0160

Simplicity 1738230C

CHUTE ASSEMBLY, 30"
(Superseded to 1738230CYP)

$131.99

$

Usually ships in 2-12 days

0

0170

Simplicity 1960686

NUT, Hex Flange, 5/16-18
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

0180

Simplicity 2860210

WASHER, Nylon, 3/8
(Superseded to 2860210SM)

$4.49

$

In Stock, only 3 left!

0

0190

Simplicity 1931333

BOLT, Carriage, 5/16-18 X 0 3/4, G5
(Superseded to 703185)

$3.49

$

In Stock, Qty 16

0

0200

Simplicity 1739309

MOTOR, Spout Rotator, 38"
(Superseded to 708703)

$86.99

$

In Stock, Qty 10

0

0230

Simplicity 1737962

GEAR, Chute, Tall
(Superseded to 1737962BMYP)

$40.99

$

Usually ships in 2-12 days

0

0250

Snapper 1931317

BOLT, Carriage, 1/4-20 x 3/4

$3.99

$

In Stock, only 3 left!

0

0260

Simplicity 2860694

NUT, Hex Flange, 1/4-20, ESNA
(Superseded to 703463)

$4.49

$

In Stock, Qty 20+

0

0370

Simplicity 1737683A

BRACKET, Chute Guard
(Superseded to 1737683AYP)

Note: (CE/Export)

$17.99

$

Usually ships in 2-12 days

0

0380

Simplicity 1925003

CAPSCREW, Hex Washer, Taptite, 1/4-20 x 1/2
(Superseded to 704130)

Note: (CE/Export)

$3.99

$

In Stock, Qty 7

0

0390

Simplicity 1733475

GUARD, Chute
(Superseded to 1733475SM)

Note: (CE/Export)

$21.99

$

Usually ships in 2-12 days

0

0400

Simplicity 1960140

PUSHNUT, 3/16 Dia.
(Superseded to 1960140SM)

Note: (CE/Export)

$3.49

$

Usually ships in 2-12 days

0

0600

Simplicity 1739331

CLIP
(Superseded to 703174)

$4.49

$

Usually ships in 2-12 days

0
