L 1226 E (1695660) - Simplicity 26" Snow Thrower, 11.5hp Wheels & Tires Group Parts Diagram

26" Snow Thrower, 11.5hp

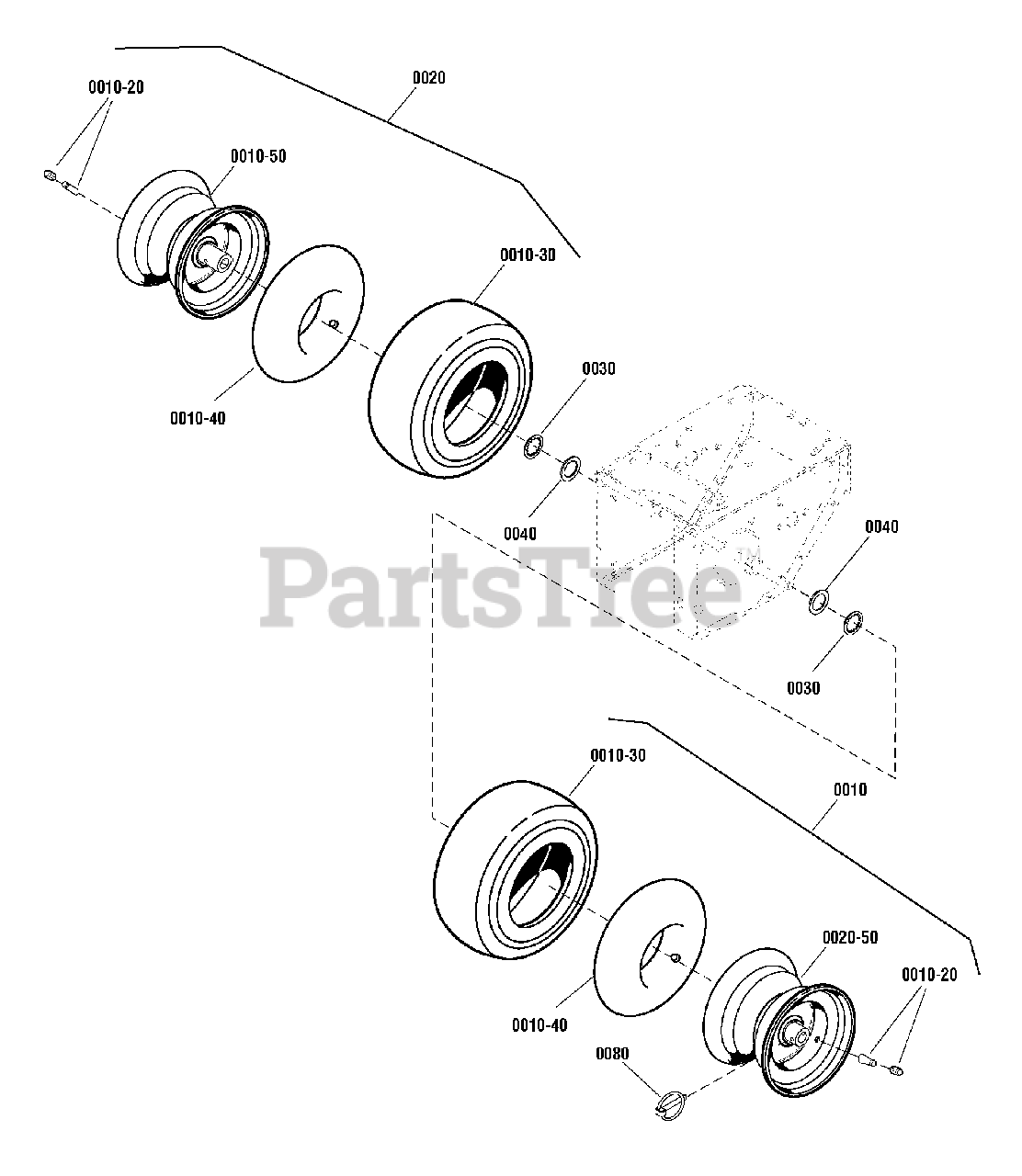

Wheels & Tires Group Parts Diagram

  • Title
0010

Simplicity 1738357

WHEEL ASSEMBLY, 15 x 5-6 2P, K467, L.H.
(Superseded to 1738357YP)

Note: (26" Models Only) (Includes Ref. Nos. 0010-20, 0010-30 & 0010-50)

$142.99

$

Usually ships in 2-12 days

0

0010

Simplicity 1738361

WHEEL ASSEMBLY, Artic Trac, 4.80, L.H.
(Superseded to 1738361YP)

Note: (28" Models Only) (Includes Ref. Nos. 0010-20, 0010-30 & 0010-50)

$152.99

$

Usually ships in 2-12 days

0

0010

Simplicity 1738363

WHEEL ASSEMBLY, 15 x 5-6, W3, L.H.
(Superseded to 1738363YP)

Note: (30" Models Only) (Includes Ref. Nos. 0010-20, 0010-30 & 0010-50)

$153.99

$

Usually ships in 2-12 days

0

0010-20

Simplicity 2172353

VALVE STEM & CAP
(Superseded to 7012234SM)

$6.49

$

Usually ships in 2-12 days

0

0010-30

Simplicity 1739104

TIRE, 15 x 5-6, 2 Ply, K467

Note: (26" Models Only)

$

$

Not available

0010-30

Simplicity 1737155

TIRE, 4.80-8, 2 Ply, K467
(Superseded to 1737155YP)

Note: (28" Models Only)

$74.99

$

Usually ships in 2-12 days

0

0010-30

Simplicity 1737156

TIRE, 16 x 6-1/2-8, K467

Note: (30" Models Only)

$

$

Not available

0010-40

Simplicity 1664090

TUBE, Tire 15 x 5-6
(Superseded to 1664090SM)

Note: (26" & 30" Models Only)

$26.99

$

In Stock, only 3 left!

0

0010-50

*RIM, Tire, L.H.

$

$

Not available

0020

Simplicity 1738356

WHEEL ASSEMBLY, 15 x 5-6 2P, K467, R.H.
(Superseded to 1738356YP)

Note: (26" Models Only) (Includes Ref. Nos. 0010-20, 0010-30 & 0020-50)

$145.99

$

Usually ships in 2-12 days

0

0020

Simplicity 1738360

WHEEL ASSEMBLY, Artic Trac, 4.80, R.H.
(Superseded to 1738360YP)

Note: (28" Models Only) (Includes Ref. Nos. 0010-20, 0010-30 & 0020-50)

$152.99

$

Usually ships in 2-12 days

0

0020

Simplicity 1738362

WHEEL ASSEMBLY, 15 x 5-6, W3, R.H.
(Superseded to 1738362YP)

Note: (30" Models Only) (Includes Ref. Nos. 0010-20, 0010-30 & 0020-50)

$153.99

$

Usually ships in 2-12 days

0

0020-50

*RIM, Tire, R.H.

$

$

Not available

0080

Simplicity 1731186

PIN, Klik, 5/16 x 2
(Superseded to 703160)

Note: (28" & 30" Models Only)

$5.49

$

In Stock, Qty 7

0

0080

Simplicity 725431

PIN, Klik, 1/4 x 1-3/8
(Superseded to 500016MA)

Note: (26" Models Only)

$15.99

$

In Stock, only 2 left!

0

0090

Simplicity 725394

WASHER, Flat, 3/4 ID x 1-1/8 OD
(Superseded to 712120MA)

Note: (26" Models Only)

$4.99

$

In Stock, Qty 20+

0

0100

Simplicity 1657528

RING, Retaining
(Superseded to 1657528SM)

Note: (26" Models Only)

$4.49

$

In Stock, Qty 20+

0
