L 1226 E (1695660) - Simplicity 26" Snow Thrower, 11.5hp Engine & Frame Group - 11.5TP Parts Diagram

26" Snow Thrower, 11.5hp

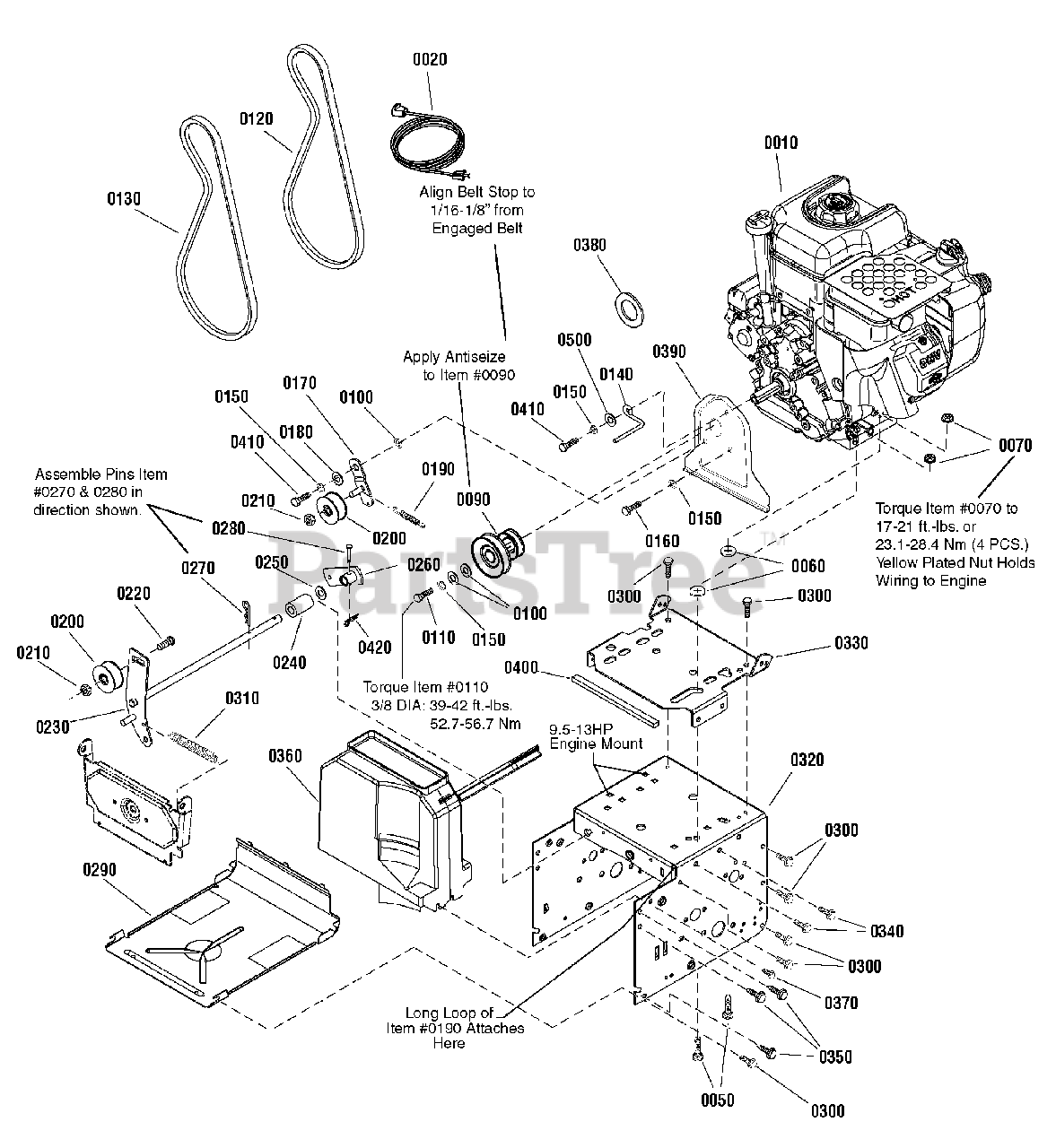

Engine & Frame Group - 11.5TP Parts Diagram

  • Title

0010

Simplicity 15C114-0123-E8

*ENGINE, 11.5TP Briggs & Stratton

Note: (CE/Export Only) (Engine Model: 15C114-0123-E8)

$

$

Not available

0010

Simplicity 15C114-0131-E8

*ENGINE, 11.5TP Briggs & Stratton

Note: (Domestic Only) (Engine Model: 15C114-0131-E8)

$

$

Not available

0020

Simplicity 6219MA

CORD, Electrical

Note: (Domestic Only)

$40.99

$

In Stock, only 2 left!

0

0050

Simplicity 002X97MA

BOLT, Carriage, 5/16-18 x 1-1/2
(Superseded to 704210)

$4.99

$

In Stock, Qty 12

0

0060

Simplicity 028X76MA

NUT, Push for 1/4 Diameter Thread

$4.49

$

Usually ships in 2-12 days

0

0070

Simplicity 1739305YP

NUT, ESNA, 5/16-18
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

0090

Simplicity 1501109MA

PULLEY, Engine

$41.99

$

In Stock, Qty 5

0

0100

Simplicity 1919381SM

WASHER, 5/16
(Superseded to 703298)

$4.49

$

In Stock, only 2 left!

0

0110

Simplicity 1921982SM

CAPSCREW, Hex Head, 5/16-24 x 1-1/4
(Superseded to 703299)

$4.99

$

Usually ships in 2-12 days

0

0120

Simplicity 1733324SM

V-BELT, Drive, 3L, 33.1

$19.99

$

In Stock, Qty 20+

0

0130

Simplicity 1733051SM

V-BELT, Auger, 4L, 36.5

$40.99

$

In Stock, Qty 9

0

0140

Simplicity 1739070YP

GUIDE, Belt

$7.99

$

In Stock, Qty 5

0

0150

Simplicity 1917356SM

LOCKWASHER, Spring
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

0160

Simplicity 1921515SM

CAPSCREW, Hex Head, 5/16-24 x 3/4

$3.99

$

Usually ships in 2-12 days

0

0170

Simplicity 1501112YZMA

BRACKET, Idler
(Superseded to 1687797YP)

$8.49

$

In Stock, Qty 7

0

0180

Simplicity 1501065MA

BUSHING, Idler Bracket

$5.49

$

In Stock, Qty 5

0

0190

Simplicity 53704MA

SPRING, Extension, Idler

$8.49

$

In Stock, only 3 left!

0

0200

Simplicity 1502120MA

IDLER

$21.99

$

In Stock, Qty 13

0

0210

Simplicity 1960251SM

NUT, Hex Centerlock Jam, 3/8-16
(Superseded to 703230)

$4.99

$

In Stock, Qty 11

0

0220

Simplicity 585781MA

BOLT, Carriage, 3/8-16 x 1-1/4
(Superseded to 703227)

$4.99

$

Usually ships in 2-12 days

0

0230

Simplicity 1733055SM

IDLER, Auger

$59.99

$

Usually ships in 2-12 days

0

0240

Simplicity 1501200MA

SPACER, 1/2 ID x 1 OD x 1-3/4

$5.99

$

Usually ships in 2-12 days

0

0250

Simplicity 1960027SM

WASHER, 1/2
(Superseded to 703128)

$3.49

$

In Stock, Qty 20+

0

0260

Simplicity 1733451SM

ARM, Control

$20.99

$

In Stock, Qty 5

0

0270

Simplicity 0031X6MA

PIN, Hair
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

0280

Simplicity 1736381YP

PIN, Clevis
(Superseded to 703313)

$4.99

$

In Stock, Qty 6

0

0290

Simplicity 1740906BMYP

PANEL, Bottom
(Superseded to 1753969BMYP)

$75.99

$

Usually ships in 2-12 days

0

0300

Simplicity 1927429SM

CAPSCREW, Hex Washer Head, Taptite, 1/4-20 x 5/8
(Superseded to 703054)

$4.49

$

In Stock, Qty 5

0

0310

Simplicity 165X159MA

SPRING, Extension, Auger

$6.99

$

In Stock, Qty 9

0

0320

Simplicity 1740572CSM

FRAME BOX, Standard

$148.99

$

Usually ships in 2-12 days

0

0330

Simplicity 1733583CSM

PLATE, Engine Mount

$48.99

$

Usually ships in 2-12 days

0

0340

Simplicity 1924856SM

CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 1/2
(Superseded to 703985)

$4.49

$

In Stock, only 3 left!

0

0350

Simplicity 1664847SM

CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0360

Simplicity 1733923SM

COVER, Belt

$75.99

$

Usually ships in 2-12 days

0

0370

Simplicity 26X306MA

CAPSCREW, Hex Head, Taptite, 1/4 x 3/4

$4.99

$

Usually ships in 2-12 days

0

0380

Simplicity 1733898SM

SEAL, Foam

$6.49

$

Usually ships in 2-12 days

0

0390

Simplicity 1733868BMYP

PLATE, Seal

$13.99

$

In Stock, only 1 left!

0

0400

Simplicity 1733897SM

SEAL, Foam

$8.99

$

Usually ships in 2-12 days

0

0410

Simplicity 910828MA

BOLT, Hex, 5/16-24 x 1
(Superseded to 703301)

$3.99

$

In Stock, only 3 left!

0

0420

Simplicity 7023590SM

COTTER PIN, Self Locking, 1/4

$3.99

$

In Stock, Qty 20+

0

0500

Simplicity 7091528SM

WASHER, Flat

$3.99

$

Usually ships in 2-12 days

0
