L-12 (136C471F190) - White Outdoor 38" Lawn Tractor (1996) Steering Assembly Parts Diagram

38" Lawn Tractor

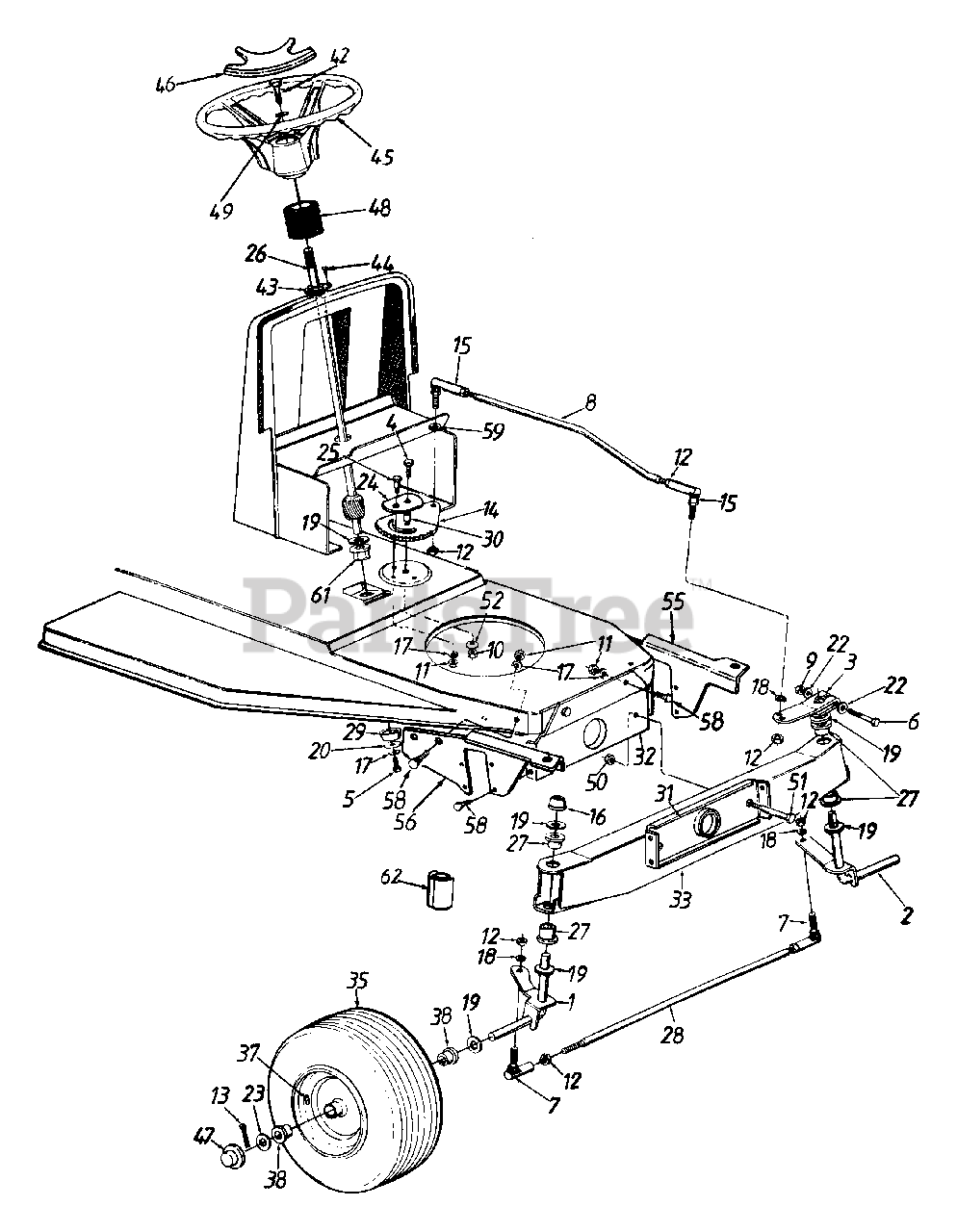

Steering Assembly Parts Diagram

  • Title

1

White Outdoor 97584A

Front Axle Ass'y. - R.H.
(Superseded to 97584A-0637)

Note: Code: N notates a new part (not previously existing).

Variations

White Outdoor 97584A-0637

Front Axle Assembly, RH - POWDER BLACK (0637)

$76.99

$

In Stock, only 4 left!

0

$76.99

$

In Stock, only 4 left!

0

2

White Outdoor 97585A

Front Axle Ass'y. - L.H.
(Superseded to 17585)

Note: Code: N notates a new part (not previously existing).

Variations

White Outdoor 97585A-0637

Front Axle Assembly, LH 3.2" X 4.69 - POWDER BLACK (0637)

$

$

Not available

$

$

3

White Outdoor 683-0055

Steering Arm
(Superseded to 983-0055-0637)

$47.99

$

In Stock, only 1 left!

0

4

White Outdoor 710-0152

Hex Bolt 3/8-24 x 1" Lg.
(Superseded to 710-1039)

$4.49

$

In Stock, Qty 20+

0

5

White Outdoor 710-0538

Hex Bolt 5/16-18 x .62" (Spec)

$4.49

$

In Stock, Qty 9

0

6

White Outdoor 710-0772

Hex Bolt 5/16-24 x 2" Lg.

$4.49

$

Usually ships in 3-6 days

0

7

White Outdoor 723-3018

Ball Joint 3/8-24 Thd.
(Superseded to 923-3018)

$16.99

$

In Stock, Qty 20+

0

8

White Outdoor 711-0838

Steering Drag Link

$

$

Not available

9

White Outdoor 712-0237

Hex L-Nut 5/16-24 Thd.

$4.99

$

In Stock, only 4 left!

0

10

White Outdoor 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

11

White Outdoor 712-3010

Hex Nut 5/16-18 Thd. (Gr. 5)

$4.49

$

In Stock, Qty 20+

0

12

White Outdoor 712-0262

Hex Jam Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 20+

0

13

White Outdoor 714-0470

Cotter Pin 1/8 Dia.

$4.49

$

In Stock, Qty 20+

0

14

White Outdoor 717-0622A

Steering Gear Segment
(Superseded to 717-0622C)

$53.99

$

In Stock, only 2 left!

0

15

White Outdoor 723-3018

Drag Link Ball Joint 3/8-24 Thd.
(Superseded to 923-3018)

$16.99

$

In Stock, Qty 20+

0

16

White Outdoor 726-0214

Push Cap

$10.99

$

In Stock, only 4 left!

0

17

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

18

White Outdoor 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

19

White Outdoor 736-0187

Fl-Wash. .64" I.D. x 1.24"

$4.49

$

In Stock, Qty 20+

0

20

White Outdoor 736-0343

Fl-Wash. .340" I.D. x 1.125"

$4.49

$

In Stock, Qty 7

0

22

White Outdoor 736-0271

Spr. Wash. .32" I.D. x .62"
(Superseded to 936-0271)

$4.49

$

In Stock, Qty 10

0

23

White Outdoor 736-0285

Fl-Wash. .635" I.D. x 1.585"

$4.49

$

In Stock, Qty 20+

0

24

White Outdoor 17198A

Retainer Plate
(Superseded to 783P08577A)

$7.49

$

In Stock, Qty 20+

0

25

White Outdoor 738-0141

Shld. Bolt .437" Dia. x .350"
(Superseded to 938-0141)

$7.49

$

In Stock, Qty 7

0

26

White Outdoor 738-0937

Steering Shaft

Note: Code: N notates a new part (not previously existing).

$88.99

$

In Stock, only 1 left!

0

27

White Outdoor 741-0659

Hex Flange Brg. .632" I.D.
(Superseded to 941-0659)

$5.49

$

In Stock, Qty 5

0

28

White Outdoor 747-0753

Tie Rod

$34.99

$

In Stock, only 1 left!

0

29

White Outdoor 750-0532

Spacer .985" I.D.
(Superseded to 950-0532)

$

$

Not available

30

White Outdoor 750-0535

Spacer .380" I.D.
(Superseded to 950-0535)

$4.49

$

In Stock, Qty 20+

0

31

White Outdoor 17548

Front Pivot Bar Support Brkt.

Variations

White Outdoor 17548-0637

BRACKET-PIVOT - POWDER BLACK (0637)

$

$

Not available

White Outdoor 17548-0638

No Longer Available BRACKET-PIVOT SUP- - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 17548-0648

No Longer Available BRACKET-PIVOT SUP- - TECH GRAY (0648)

$

$

Not available

$

$

32

White Outdoor 17547

Rear Pivot Bar Support Brkt.
(Superseded to 17547-0637)

Variations

White Outdoor 17547-0637

BRACKET-PIVOT - POWDER BLACK (0637)

$

$

Not available

$

$

33

White Outdoor 683-0128

Pivot Bar Ass'y.
(Superseded to 683-0128B-0637)

Note: Code: N notates a new part (not previously existing).

Variations

White Outdoor 683-0128-0637

Steel Axle Pivot Bar Assembly - POWDER BLACK (0637)

$97.99

$

In Stock, only 2 left!

0

$97.99

$

In Stock, only 2 left!

0

35

White Outdoor 634-0087

Front Wheel Ass'y. Comp. 15" x 6"

Variations

White Outdoor 634-0087-0911

No Longer Available - Carlisle Gray (0911)

$

$

Not available

White Outdoor 634-0087-0912

No Longer Available - Dico Gray (0912)

$

$

Not available

White Outdoor 634-0087-0915

No Longer Available WHEEL ASSY W/TIRE - Duro Gray (0915)

$

$

Not available

White Outdoor 634-0087-0941

No Longer Available WHEEL ASSY W/TIRE - Carlisle Yellow (0941)

$

$

Not available

White Outdoor 634-0087-0981

No Longer Available - Carlisle Green (0981)

$

$

Not available

$

$

White Outdoor 734-0864

Tire Only

Variations

White Outdoor 734-0864-0901

TIRE 15 X 6 - Carlisle (0901)

$136.99

$

Usually ships in 3-6 days

0

White Outdoor 734-0864-0902

TIRE 15 X 6 DICO T - Dico (0902)

$136.99

$

Usually ships in 3-6 days

0

White Outdoor 734-0864-0904

TIRE - Cheng (0904)

$136.99

$

Usually ships in 3-6 days

0

White Outdoor 734-0864-0905

TIRE 15 X 6 - Duro (0905)

$49.99

$

Usually ships in 3-6 days

0

White Outdoor 734-0864-0906

TIRE-15X6 KENDA - Kenda (0906)

$

$

Not available

$111.99

$

Usually ships in 3-6 days

0

White Outdoor 634-0088

Rim Only

Variations

White Outdoor 634-0088-0499

No Longer Available - CUB BEIGE (0499)

$

$

Not available

White Outdoor 634-0088-0629

No Longer Available - SILVER FLAKE (0629)

$

$

Not available

White Outdoor 634-0088-0662

Rim Only - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 634-0088-0674

No Longer Available - YARDMAN YELLOW (0674)

$

$

Not available

White Outdoor 634-0088-0688

No Longer Available - SPRING GREEN (0688)

$

$

Not available

$

$

37

White Outdoor 734-0255

Air Valve
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0

38

White Outdoor 741-0487A

Bearing
(Superseded to 741-0487C)

$7.49

$

Usually ships in 3-6 days

0

White Outdoor 737-0211

Grease Fitting
(Superseded to 737-0211A)

Note: Not shown

$10.99

$

Usually ships in 3-6 days

0

42

White Outdoor 710-0643

Hex L-Bolt 5/16-18 x 1" Lg. (Gr. 5)

$6.99

$

In Stock, Qty 5

0

43

White Outdoor 741-0501

Steering Column Brg.
(Superseded to 941-0501)

$

$

Not available

44

White Outdoor 710-0837

Cr-Sunk Scr. #10 x 5/8" Lg.

$4.49

$

In Stock, Qty 5

0

45

White Outdoor 731-1686

Steering Wheel
(Superseded to 931-1686)

Note: Code: N notates a new part (not previously existing).

$

$

Not available

46

White Outdoor 731-1509

Steering Wheel Cap
(Superseded to 731-1509A)

$

$

Not available

47

White Outdoor 731-0484A

Hub Cap
(Superseded to 931-0484A)

$6.49

$

In Stock, Qty 20+

0

48

White Outdoor 731-0954

Bellow Steering Column
(Superseded to 931-0954)

$21.99

$

Usually ships in 3-6 days

0

49

White Outdoor 736-0242

Bell-Wash. .345" I.D. x .88"

$4.49

$

In Stock, Qty 20+

0

50

White Outdoor 712-0431

Hex Nut 3/8-16 Thd.
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

51

White Outdoor 738-0527

Shld. Bolt 1/2" Dia. x 2.04"

$8.49

$

In Stock, Qty 6

0

52

White Outdoor 736-0356

Bell-Wash. .39" x 1.38" O.D.
(Superseded to 936-0356)

$

$

Not available

55

White Outdoor 783-0255

Pivot Bar Side Plate - L.H.
(Superseded to 783-0255B)

Variations

White Outdoor 783-0255-0629

PLATE-PIVOT BAR LH - SILVER FLAKE (0629)

$

$

Not available

White Outdoor 783-0255-0637

PLATE-PIVOT BAR LH - POWDER BLACK (0637)

$

$

Not available

White Outdoor 783-0255-0638

PLATE-PIVOT BAR LH - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 783-0255-0648

PLATE-PIVOT BAR LH - TECH GRAY (0648)

$

$

Not available

White Outdoor 783-0255-0662

No Longer Available PLATE-PIVOT - OYSTER GRAY (0662)

$

$

Not available

$

$

56

White Outdoor 783-0256

Pivot Bar Side Plate - R.H.
(Superseded to 783-0256B-0637)

Variations

White Outdoor 783-0256-0629

PLATE-PIVOT BAR RH - SILVER FLAKE (0629)

$

$

Not available

White Outdoor 783-0256-0637

PLATE-PIVOT BAR RH - POWDER BLACK (0637)

$

$

Not available

White Outdoor 783-0256-0638

PLATE-PIVOT BAR RH - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 783-0256-0648

PLATE-PIVOT BAR RH - TECH GRAY (0648)

$

$

Not available

White Outdoor 783-0256-0662

PLATE-PIVOT BAR RH - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 783-0256-0665

PLATE-PIVOT BAR RH - YARDMAN GREEN (0665)

$

$

Not available

$

$

58

White Outdoor 710-0604

Hex Wash. Tap Scr. 5/16-18 x .62" Lg.
(Superseded to 710-0604A)

$4.49

$

In Stock, Qty 20+

0

59

White Outdoor 736-0217

L-Wash. 3/8" I.D. (H.D.)

$4.49

$

In Stock, Qty 8

0

61

White Outdoor 741-0225

Hex Flange Brg. .634" Dia.
(Superseded to 941-0225)

$7.49

$

In Stock, Qty 20+

0

62

White Outdoor 731-1649

Axle Cap

Note: Code: N notates a new part (not previously existing).

$

$

Not available

777-1007

L-12 Hood Side Labels

$

$

Not available

777-9733

Dash Labels

$

$

Not available

777-6808

Steering Cap Label

$

$

Not available

777-9732

Speed Control Label

$

$

Not available
