L-12 (134H471F190) - White Outdoor 38" Lawn Tractor (1994) Steering Assembly Parts Diagram

38" Lawn Tractor

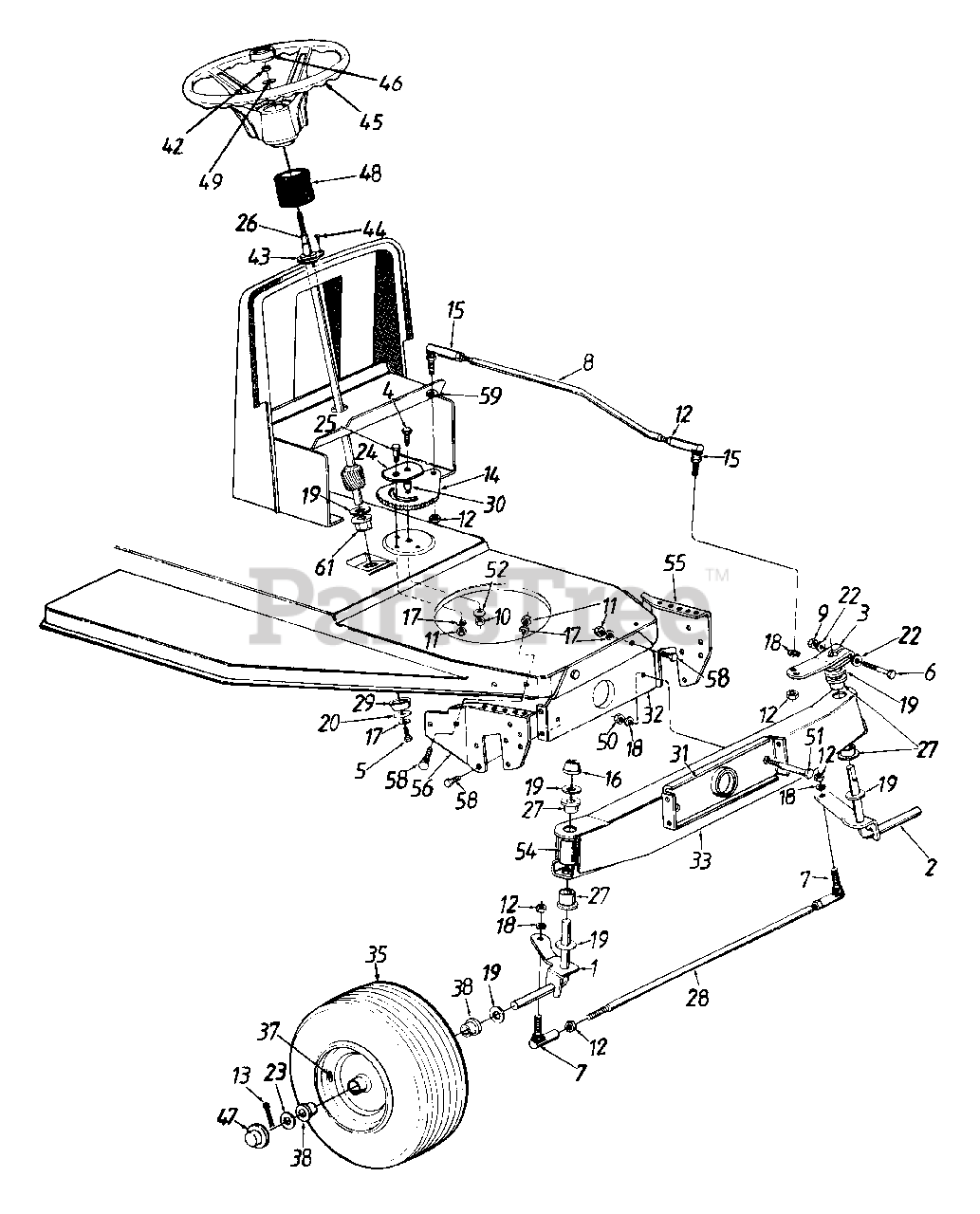

Steering Assembly Parts Diagram

  • Title

1

MTD 17584

Front Axle Ass'y.- R.H.
(Superseded to 97584A-0637)

$76.99

$

In Stock, only 4 left!

0

2

MTD 17585

Front Axle Ass'y.- L.H.
(Superseded to 97585A-0637)

$

$

Not available

3

MTD 983-0055-0637

Steering Arm

$47.99

$

In Stock, only 1 left!

0

4

MTD 710-1039

Hex Bolt 3/8-24 x 1" Lg.

$4.49

$

In Stock, only 3 left!

0

5

MTD 710-0538

Hex Bolt 5/16-18 x .62" (Spec)

$4.49

$

In Stock, Qty 9

0

6

MTD 710-0772

Hex Bolt 5/16-24 x 2" Lg.

$4.49

$

Usually ships in 3-6 days

0

7

MTD 923-3018

Ball Joint 3/8-24 Thd.

$16.99

$

In Stock, Qty 20+

0

8

MTD 711-0838

Steering Drag Link

$

$

Not available

9

MTD 912-0237

Hex L-Nut 5/16-24 Thd.
(Superseded to 712-0237)

$

$

Not available

10

MTD 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

11

MTD 912-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

12

MTD 912-0446

Hex Jam Nut, 3/8-24 Thd.

$6.99

$

In Stock, only 1 left!

0

13

MTD 914-0470

Cotter Pin 1/8 Dia.
(Superseded to 714-0470)

$4.49

$

In Stock, Qty 20+

0

14

MTD 717-0622C

Steering Gear Segment

$53.99

$

In Stock, only 2 left!

0

15

MTD 923-3018

Drag Link Ball Joint 3/8-24 Thd.

$16.99

$

In Stock, Qty 20+

0

16

MTD 726-0214

Push Cap

$10.99

$

In Stock, only 3 left!

0

17

MTD 936-0119

L-Wash. 5/16" I.D.

$4.99

$

In Stock, Qty 20+

0

18

MTD 936-0169

L-Wash. 3/8" I.D.
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

19

MTD 736-0187

Fl-Wash..64" I.D. x 1.24"

$4.49

$

In Stock, Qty 20+

0

20

MTD 736-0343

Fl-Wash..340" I.D. x 1.125"

$4.49

$

In Stock, Qty 7

0

22

MTD 936-0271

Spr. Wash..32" I.D. x .62"

$4.49

$

In Stock, Qty 10

0

23

MTD 736-0285

Fl-Wash ..635" I.D. x 1.585"

$4.49

$

In Stock, Qty 9

0

24

MTD 783-04644P

Retainer Plate
(Superseded to 783P08577A)

$7.49

$

In Stock, only 3 left!

0

25

MTD 938-0141

Shld. Bolt .437" Dia. x .350"

$7.49

$

In Stock, Qty 7

0

26

MTD 738-0730

Steering Shaft

$108.99

$

In Stock, only 1 left!

0

27

MTD 741-0487C

Hex Flange Brg..632" I.D.

$7.49

$

Usually ships in 3-6 days

0

28

MTD 747-0753

Tie Rod

$34.99

$

In Stock, only 1 left!

0

29

MTD 950-0532

Spacer .985" I.D.

$

$

Not available

30

MTD 950-0535

Spacer .380" I.D.

$4.49

$

In Stock, only 4 left!

0

31

MTD 17548

Front Pivot Bar Support Brkt.

Variations

MTD 17548-0637

BRACKET-PIVOT SUP- - POWDER BLACK (0637)

$

$

Not available

MTD 17548-0638

No Longer Available BRACKET-PI - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 17548-0648

No Longer Available BRACKET-PI - TECH GRAY (0648)

$

$

Not available

$

$

32

MTD 17547-0637

Rear Pivot Bar Support Brkt.

$

$

Not available

33

MTD 753-0642-0637

Pivot Bar Ass'y.

$127.99

$

In Stock, only 2 left!

0

35

MTD 634-0087

Front Wheel Ass'y. Comp. 15" x 6"

Note: NLA

Variations

MTD 634-0087-0911

No Longer Available - Carlisle Gray (0911)

$

$

Not available

MTD 634-0087-0912

No Longer Available - Dico Gray (0912)

$

$

Not available

MTD 634-0087-0915

No Longer Available WHEEL ASM - Duro Gray (0915)

$

$

Not available

MTD 634-0087-0941

No Longer Available WHEEL ASM - Carlisle Yellow (0941)

$

$

Not available

MTD 634-0087-0981

No Longer Available - Carlisle Green (0981)

$

$

Not available

$

$

35

MTD 734-0864

Tire Only

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 734-0864-0901

TIRE 15 X 6 - Carlisle (0901)

$136.99

$

Usually ships in 3-6 days

0

MTD 734-0864-0902

TIRE 15 X 6 DICO T - Dico (0902)

$136.99

$

Usually ships in 3-6 days

0

MTD 734-0864-0904

TIRE 15 X 6 - Cheng (0904)

$136.99

$

Usually ships in 3-6 days

0

MTD 734-0864-0905

Tire, 15 X 6 Square Tread - Duro (0905)

$49.99

$

Usually ships in 3-6 days

0

MTD 734-0864-0906

TIRE-15X6 KENDA - Kenda (0906)

$

$

Not available

$111.99

$

Usually ships in 3-6 days

0

35

MTD 634-0088

Rim Only

Note: NLA

Variations

MTD 634-0088-0499

No Longer Available - CUB BEIGE (0499)

$

$

Not available

MTD 634-0088-0629

No Longer Available - SILVER FLAKE (0629)

$

$

Not available

MTD 634-0088-0662

Rim Only - OYSTER GRAY (0662)

$

$

Not available

MTD 634-0088-0674

No Longer Available - YARDMAN YELLOW (0674)

$

$

Not available

MTD 634-0088-0688

No Longer Available - SPRING GREEN (0688)

$

$

Not available

$

$

37

MTD 934-0255

Air Valve

$4.49

$

In Stock, Qty 20+

0

38

MTD 741-0487C

Bearing

$7.49

$

Usually ships in 3-6 days

0

38

MTD 737-0211A

Grease Fitting

$10.99

$

Usually ships in 3-6 days

0

42

MTD 912-0237

Hex L-Nut 5/16-24 Thd.
(Superseded to 712-0237)

$

$

Not available

43

MTD 941-0501

Steering Column Brg.

$

$

Not available

44

MTD 710-0837

Cr-Sunk Scr. #10 x 5/8" Lg.

$4.49

$

In Stock, Qty 6

0

45

MTD 931-0806A

Steering Wheel

$

$

Not available

46

MTD 931-0220

Steering Wheel Cap

$9.49

$

In Stock, only 2 left!

0

47

MTD 931-0484A

Hub Cap

$6.49

$

In Stock, Qty 20+

0

48

MTD 931-0954

Bellow Steering Column

$21.99

$

Usually ships in 3-6 days

0

49

MTD 736-0242

Bell-Wash..345" I.D. x .88"

$4.49

$

In Stock, Qty 20+

0

50

MTD 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, only 2 left!

0

51

MTD 938-0527

Shld. Bolt 1/2" Dia. x 2.04"
(Superseded to 738-0527)

$8.49

$

In Stock, Qty 5

0

52

MTD 936-0356

Bell-Wash..39" x 1.38" O.D.

$

$

Not available

54

MTD 731-1389

Plastic Tube

$21.99

$

In Stock, only 3 left!

0

55

MTD 17545

Pivot Bar Side Plate - L.H.

Note: NLA

$

$

Not available

56

MTD 17546

Pivot Bar Side Plate - R.H.

Note: NLA

$

$

Not available

58

MTD 710-0604A

Hex Wash. Tap Scr. 5/16-18 x .62" Lg.

$4.49

$

In Stock, Qty 20+

0

59

MTD 936-0217

L-Wash. 3/8" I.D. (H.D.)
(Superseded to 736-0217)

$4.49

$

In Stock, Qty 8

0

61

MTD 941-0225

Hex Flange Brg..634" Dia.

$7.49

$

In Stock, Qty 20+

0

MTD 777-1007

L-12 Hood Side Labels

Note: NLA

$

$

Currently unavailable

MTD 777-6478

Frame Labels

Note: NLA

$

$

Currently unavailable

MTD 777-6808

Steering Cap Label

Note: NLA

$

$

Currently unavailable

MTD 777S30295

Speed Control Label

$20.99

$

Usually ships in 3-6 days

0
