L-12 (134H471F190) - White Outdoor 38" Lawn Tractor (1994) Drive Assembly Parts Diagram

38" Lawn Tractor

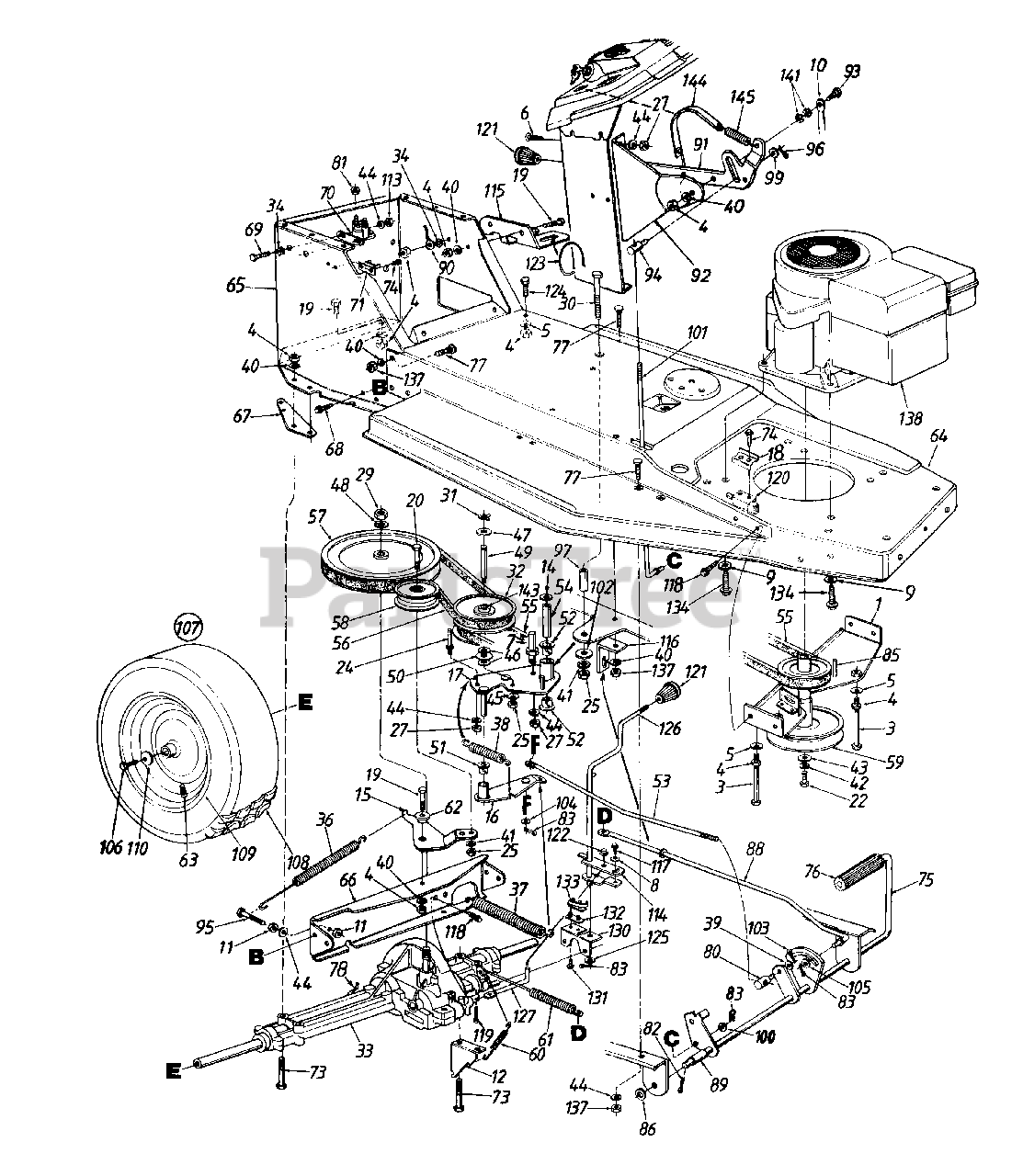

Drive Assembly Parts Diagram

  • Title

1

MTD 783-0265A-0637

Engine Pulley Belt Guard Ass'y.

$

$

Not available

3

MTD 710-0426

Hex Bolt 5/16-18 x 5-1/2" Lg.

Note: NLA

$

$

Currently unavailable

4

MTD 912-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

5

MTD 736-0242

Bell-Wash..345" I.D. x .88

$4.49

$

In Stock, Qty 20+

0

6

MTD 710-0286

Truss-Mach. Scr. 1/4-20 x .50"

$4.49

$

Usually ships in 3-6 days

0

7

MTD 911-1000

Belt Guard Pin 1/4-20 Thd.

$10.99

$

In Stock, only 2 left!

0

8

MTD 736-0270

Bell-Wash..265" I.D. x .75

$3.99

$

In Stock, Qty 20+

0

9

MTD 736-3072

Fl-Wash. 3/8" I.D. x .97" O.D.

$4.49

$

In Stock, Qty 20+

0

10

MTD 749-0836

Speed Selector Brace

Note: NLA

$

$

Not available

11

MTD 912-0138

Hex Nut 1/4-28 Thd.
(Superseded to 712-0138)

$

$

Not available

12

MTD 17128A-0637

Spring Retainer Brkt.

$16.99

$

Usually ships in 3-6 days

0

14

MTD 736-0247

Fl-Wash. 3/8" I.D. x 1.26" O.D.

$9.49

$

In Stock, Qty 15

0

15

MTD 17694-0637

Idler Bracket

$16.99

$

Usually ships in 3-6 days

0

16

MTD 16554A-0637

Var. Speed Torque Brkt. Ass'y.

$20.99

$

Usually ships in 3-6 days

0

17

MTD 16676A

Variable Speed Brkt. Ass'y.

Note: NLA

$

$

Not available

18

MTD 17962

Switch Plate

$4.99

$

In Stock, only 3 left!

0

19

MTD 710-3008

Hex Bolt 5/16-18 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

20

MTD 710-0151

Hex Bolt 3/8-24 x 2.0" Lg. Gr. 5

$7.49

$

In Stock, only 3 left!

0

22

MTD 710-0757

Hex Bolt 7/16-20 x 1.5" Lg.

$9.99

$

In Stock, only 1 left!

0

24

MTD 911-1000

Belt Guard Pin

$10.99

$

In Stock, only 2 left!

0

25

MTD 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

27

MTD 912-0287

Hex Nut 1/4-20 Thd.

$4.99

$

Usually ships in 3-6 days

0

29

MTD 712-3035

Hex Jam Nut 9/16-18 Thd.

$6.99

$

Usually ships in 3-6 days

0

30

MTD 710-0902

Hex Bolt 3/8-24 x 3.75" Lg.

$7.99

$

Usually ships in 3-6 days

0

31

MTD 916-0114

Snap Ring

$6.99

$

In Stock, only 3 left!

0

32

MTD 917-0800A

Variable Speed Pulley Ass'y.

$245.99

$

In Stock, only 3 left!

0

33

MTD 918-0166D

Transaxle Ass'y. Comp.

$

$

Not available

34

MTD 736-0607

Ext. L-Wash. 5/16" I.D.

$3.99

$

In Stock, Qty 20+

0

36

MTD 932-0384

Extension Spring 6.12" Lg.

$14.99

$

In Stock, only 4 left!

0

37

MTD 732-0459C

Extension Spring 6.74" Lg.

$18.99

$

In Stock, only 1 left!

0

38

MTD 932-0568

Extension Spring 2.59" Lg.

$

$

Not available

39

MTD 936-0117

Fl-Wash..385" I.D. x .620"

$7.49

$

In Stock, only 1 left!

0

40

MTD 936-0119

L-Wash. 5/16" I.D.

$4.99

$

In Stock, Qty 20+

0

41

MTD 936-0169

L-Wash. 3/8" I.D.
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

42

MTD 936-0171

L-Wash. 7/16" I.D.
(Superseded to 736-0171)

$4.49

$

In Stock, only 4 left!

0

43

MTD 736-0322

Fl-Wash..450" I.D. x 1.25"

$9.49

$

In Stock, Qty 8

0

44

MTD 936-0329

L-Wash. 1/4" I.D.

$4.49

$

In Stock, Qty 11

0

45

MTD 736-0331

Bell-Wash..39" I.D. x 1.13"

$3.99

$

In Stock, Qty 16

0

46

MTD 736-0355

Fl-Wash..56" I.D. x 1.0" O.D.

$4.49

$

In Stock, Qty 12

0

47

MTD 936-0414

Washer "Teflon" .565 I.D.
(Superseded to 736-0414)

$

$

Not available

48

MTD 936-0427

Bell-Wash. 9/16" I.D. x 1.125" O.D.

$

$

Not available

49

MTD 938-0569

Shaft .56" Dia. x 3.875" Lg.

$33.99

$

In Stock, only 1 left!

0

50

MTD 941-0405

Thrust Brg. 1.25 O.D.

$

$

Not available

51

MTD 741-0419

Flanged Nyliner Brg.

$

$

Not available

52

MTD 741-0495

Nyliner Flanged Brg.

$4.99

$

Usually ships in 3-6 days

0

53

MTD 747-0599B

Speed Control Rod

$

$

Not available

54

MTD 750-0703

Spacer

$

$

Not available

55

MTD 954-0280A

V-Belt

$45.99

$

In Stock, only 1 left!

0

56

MTD 954-0281

V-Belt

$40.99

$

In Stock, only 1 left!

0

57

MTD 656-0003

V-Pulley 8" Dia.

$

$

Not available

58

MTD 756-0643A

Idler Pulley 3-1/8" Dia.

$40.99

$

In Stock, Qty 15

0

59

MTD 753-0905

Dbl. Pulley 6.0" Dia. x 3.56"

$141.99

$

Usually ships in 3-6 days

0

60

MTD 932-0303

Extension Spring 3.18" Lg.

$10.99

$

In Stock, Qty 12

0

61

MTD 932-0413

Extension Spring 7.08" Lg.

$12.99

$

In Stock, only 4 left!

0

62

MTD 748-0234

Shld. Spacer .500" Dia.

$4.49

$

Usually ships in 3-6 days

0

63

MTD 934-0255

Air Valve

$4.49

$

In Stock, Qty 20+

0

64

MTD 17588A

Front Frame

Note: NLA

Variations

MTD 17588A-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

MTD 17588A-0648

No Longer Available - TECH GRAY (0648)

$

$

Not available

$

$

65

MTD 783-0180A

Rear Frame

Variations

MTD 783-0180A-0483

No Longer Available FRAME-REAR - CHARCOAL GRAY (0483)

$

$

Not available

MTD 783-0180A-0637

No Longer Available FRAME-REAR - POWDER BLACK (0637)

$

$

Not available

MTD 783-0180A-0638

No Longer Available FRAME-REAR - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-0180A-0648

No Longer Available FRAME-REAR - TECH GRAY (0648)

$

$

Not available

MTD 783-0180A-0662

No Longer Available FRAME-REAR - OYSTER GRAY (0662)

$

$

Not available

MTD 783-0180A-0665

No Longer Available FRAME-REAR - YARDMAN GREEN (0665)

$

$

Not available

$

$

66

MTD 16654A-0637

Transaxle Support Brkt.

$

$

Not available

67

MTD 16659-0637

Transaxle Brkt. Reinforcement

$

$

Not available

68

MTD 710-0726

Hex Wash. AB-Tap Scr. 5/16 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

69

MTD 710-0751

Hex Bolt 1/4-20 x .62" Lg.

$3.99

$

In Stock, Qty 20+

0

70

MTD 925-1426A

Solenoid

$26.99

$

In Stock, Qty 20+

0

71

MTD 753-0685

Circuit Breaker

$

$

Not available

?72

MTD 936-0222

External L-Wash. 1/4" I.D.
(Superseded to 736-0222)

$

$

Not available

73

MTD 710-0176

Hex Bolt 5/16-18 x 2.75" Lg.

$4.49

$

In Stock, only 2 left!

0

74

MTD 710-0351

Truss Mach. B-Tap Scr. #10 x .50" Lg.

$4.49

$

In Stock, only 2 left!

0

75

MTD 17644A

Foot Pedal Rod Ass'y.

Note: NLA

Variations

MTD 17644A-0637

No Longer Available ROD ASM-F - POWDER BLACK (0637)

$

$

Not available

$

$

76

MTD 735-0239

Foot Pad
(Superseded to 735-0239A)

$12.99

$

Usually ships in 3-6 days

0

77

MTD 710-1012

Ribbed Neck Bolt 5/16-24 x .84"

$4.49

$

Usually ships in 3-6 days

0

78

MTD 932-0722A

Spring Anchor

$12.99

$

In Stock, only 4 left!

0

80

MTD 911-0198

Ferrule

$13.99

$

In Stock, Qty 17

0

81

MTD 712-0271

Hex Sems Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 10

0

82

MTD 914-0470

Cot-Pin 1/8" Dia. x 1.25" Lg.
(Superseded to 714-0470)

$4.49

$

In Stock, Qty 20+

0

83

MTD 914-0507

Cot-Pin 3/32" Dia. x .75" Lg.

$4.49

$

In Stock, Qty 17

0

85

MTD 914-0114

Sq. Key 1/4 x 2.0" Lg.

$4.49

$

In Stock, only 1 left!

0

86

MTD 936-0256

Fl-Wash..635" I.D. x 1.0"

$7.49

$

Usually ships in 3-6 days

0

88

MTD 747-0593

Brake Rod

$

$

Not available

89

MTD 750-0800

Spacer 5/8" I.D. x 1.2" Lg.

$

$

Not available

90

MTD 725-0976A

Ground Wire 7.25" Lg.

$

$

Not available

91

MTD 17457B

Speed Selector Lever

$18.99

$

Usually ships in 3-6 days

0

92

MTD 16694B

7 Speed Selector Brkt.

Note: NLA

$

$

Not available

93

MTD 738-0138A

Shld. Bolt .437" Dia. x .47" Lg.

$6.99

$

Usually ships in 3-6 days

0

94

MTD 911-0677

Ferrule

$17.99

$

In Stock, only 4 left!

0

95

MTD 710-0428

Hex Bolt 1/4-28 x 1.25" Lg.

$2.49

$

In Stock, only 1 left!

0

96

MTD 914-0104

Intern. Cot-Pin 5/16" Dia.
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

97

MTD 750-0703

Spacer .375" I.D. x .625"

$

$

Not available

99

MTD 936-0264

Fl-Wash..344" I.D. x .62"

$6.99

$

In Stock, only 3 left!

0

100

MTD 936-0463

Fl-Wash..25" I.D. x .62" O.D.
(Superseded to 736-0463)

$4.49

$

In Stock, only 2 left!

0

101

MTD 747-0675A

Speed Control Rod

$

$

Not available

102

MTD 936-0133

Fl-Wash. 3/8" I.D. x 1.25" O.D.
(Superseded to 736-0133)

$

$

Not available

103

MTD 914-0115

Cot-Pin 1/8" Dia. x 1.0" Lg.
(Superseded to 714-0115)

$3.99

$

In Stock, Qty 20+

0

104

MTD 936-0275

Fl-Wash..34" I.D. x .68"
(Superseded to 736-0275)

$

$

Not available

105

MTD 736-0278

Fl-Wash..34" I.D.

$5.99

$

Usually ships in 3-6 days

0

106

MTD 710-0627

Hex L-Bolt 5/16-24 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

107

MTD 734-0817

Rear Wheel Ass'y. Comp.

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 734-0817-0911

No Longer Available WHEEL ASM - Carlisle Gray (0911)

$

$

Not available

MTD 734-0817-0912

No Longer Available WHEEL ASM - Dico Gray (0912)

$

$

Not available

MTD 734-0817-0915

No Longer Available WHEEL ASM - Duro Gray (0915)

$

$

Not available

MTD 734-0817-0931

No Longer Available WHL ASM 1 - Carlisle Beige (0931)

$

$

Not available

MTD 734-0817-0932

No Longer Available WHEEL ASM - Dico Beige (0932)

$

$

Not available

MTD 734-0817-0941

No Longer Available WHL ASM 1 - Carlisle Yellow (0941)

$

$

Not available

MTD 734-0817-0981

No Longer Available WHEEL ASM - Carlisle Green (0981)

$

$

Not available

$

$

108

MTD 734-0448

Tire Only

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 734-0448-0901

No Longer Available TIRE 18 X - Carlisle (0901)

$

$

Not available

MTD 734-0448-0902

No Longer Available - Dico (0902)

$

$

Not available

MTD 734-0448-0905

No Longer Available - Duro (0905)

$

$

Not available

$

$

109

MTD 634-0070

Rear Wheel Rim Ass'y. Only
(Superseded to 634-04369)

Variations

MTD 634-0070-4009

WHEEL RIM - TEE WHITE (4009)

$154.99

$

Usually ships in 3-6 days

0

MTD 634-0070-0499

WHEEL RIM - CUB BEIGE (0499)

$165.99

$

Usually ships in 3-6 days

0

MTD 634-0070-0674

WHEEL RIM - YARDMAN YELLOW (0674)

$165.99

$

Usually ships in 3-6 days

0

MTD 634-0070-0629

WHEEL RIM - SILVER FLAKE (0629)

$165.99

$

Usually ships in 3-6 days

0

MTD 634-0070-0662

WHEEL RIM - OYSTER GRAY (0662)

$165.99

$

Usually ships in 3-6 days

0

MTD 634-0070-0688

WHEEL RIM - SPRING GREEN (0688)

$165.99

$

Usually ships in 3-6 days

0

$134.99

$

Usually ships in 3-6 days

0

110

MTD 736-0242

Bell-Wash..345" I.D. x .88"

$4.49

$

In Stock, Qty 20+

0

113

MTD 912-0298

Hex Jam Nut 1/4-20 Thd.

$6.49

$

Usually ships in 3-6 days

0

114

MTD 17178A

Shift Lever Adjusting Link

Note: NLA

$

$

Not available

115

MTD 783-1016B

Shift Lever Spring Brkt.

$

$

Not available

116

MTD 17597

Brake Rod Guide Brkt.

Note: NLA

Variations

MTD 17597-0637

No Longer Available BRACKET-BR - POWDER BLACK (0637)

$

$

Not available

$

$

117

MTD 910-0289

Hex Bolt 1/4-20 x .50 Lg.

$3.99

$

In Stock, only 3 left!

0

118

MTD 710-0599

Hex Wash. Hd. Tap Scr. 1/4-20 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

119

MTD 914-0149B

Intern. Cotter Pin
(Superseded to 714-0149B)

$

$

Not available

120

MTD 925-1657A

Safety Switch (Clutch)

$24.99

$

In Stock, Qty 5

0

121

MTD 920-0232

Knob

$10.99

$

In Stock, only 1 left!

0

122

MTD 926-0106

Retaining Ring
(Superseded to 726-0106)

$

$

Not available

123

MTD 732-0525

Compression Spring 1.5" Lg.

$10.99

$

In Stock, only 1 left!

0

124

MTD 710-0650

Hex Wash. Hd. Scr. 5/16-18 x 7/8" Lg.

$3.99

$

In Stock, Qty 20+

0

125

MTD 936-0226

Fl-Wash..469" I.D. x .88"

$3.99

$

In Stock, only 1 left!

0

126

MTD 747-0694A

Shift Rod Ass'y.

Variations

MTD 747-0694A-0637

No Longer Available ROD ASSY-SHIFT - POWDER BLACK (0637)

$

$

Not available

$

$

127

MTD 947-0685

Shift Rod

$

$

Not available

130

MTD 17179

Shift Lever Support

Note: NLA

$

$

Not available

131

MTD 710-0227

Hex Wash. Hd. #8 x .50" Lg.

$4.49

$

In Stock, Qty 15

0

132

MTD 926-0320

Insulator Nut Plate

$6.99

$

In Stock, Qty 9

0

133

MTD 753-0580

Spring Switch

$

$

Not available

134

MTD 710-0502A

Hex Tap Scr. 3/8-16 x 1.25"

$6.99

$

In Stock, only 2 left!

0

?135

MTD 710-0672

Hex Bolt 5/16-24 x 1 1/4" Lg. Gr. 5

$4.49

$

In Stock, Qty 18

0

137

MTD 912-3057

Hex Nut 5/16-24 Thd.

$6.99

$

In Stock, only 3 left!

0

138

Engine

$

$

Not available

141

MTD 936-0141

Wave Wash..445" I.D.

$6.99

$

Usually ships in 3-6 days

0

143

MTD 941-0404

Needle Brg.
(Superseded to 741-0404)

$

$

Not available

144

MTD 777-9586A

7-Speed Indicator Strip

Note: NLA

$

$

Not available

144

MTD 747-0816

Speed Indicator Hook

$

$

Not available

145

MTD 732-0691

Ext. Spring 2.04" Lg. (Style 0, 1)

Note: NLA

$

$

Not available

145

MTD 951-0302

Muffler

$

$

Not available

MTD 712-0250

Conduit L-Nut

Note: NLA

$

$

Not available
