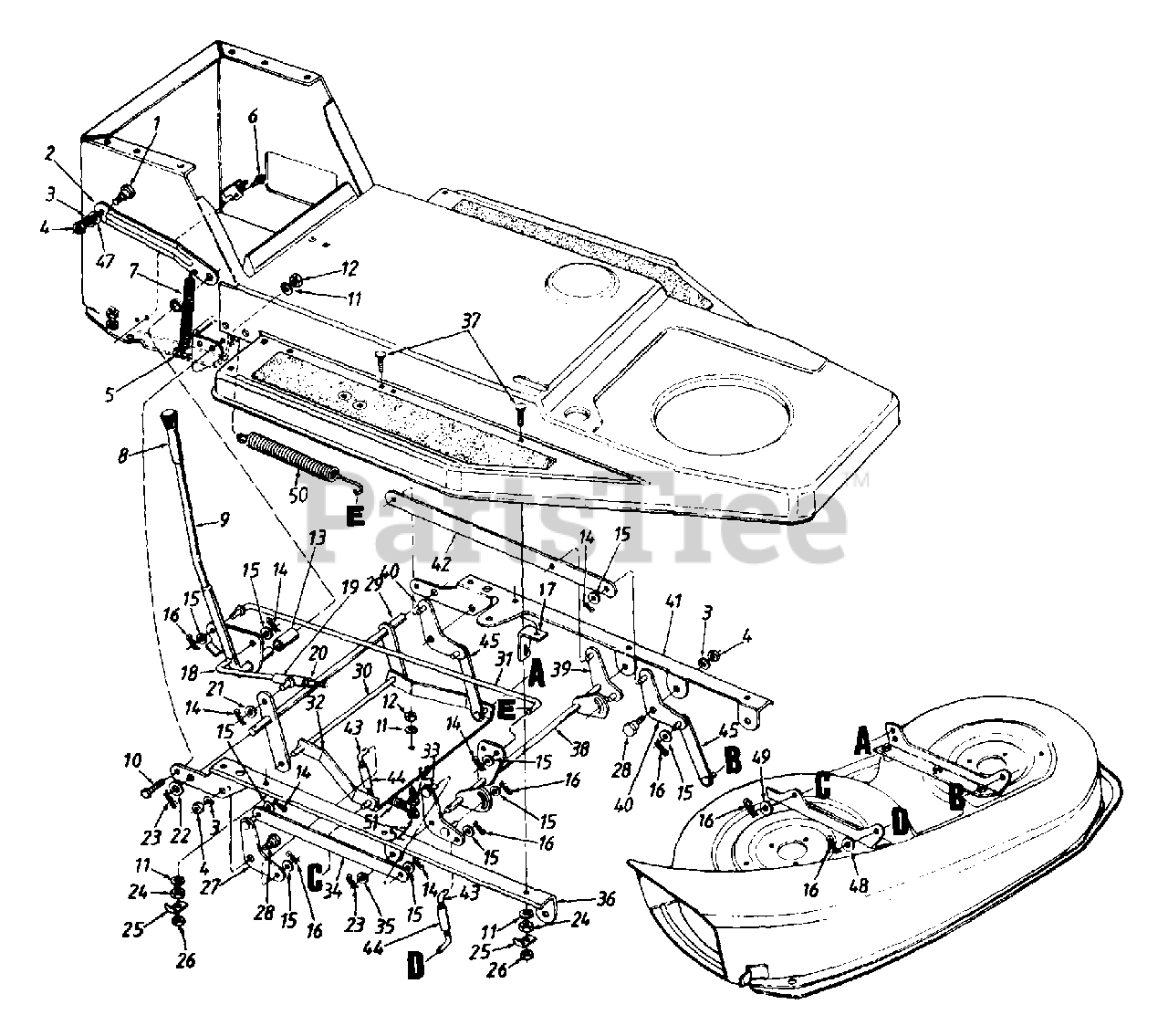

L-12 (134H471F190) - White Outdoor 38" Lawn Tractor (1994) Deck Assembly Parts Diagram

38" Lawn Tractor

Deck Assembly Parts Diagram

  • Title

1

MTD 738-0143

Shld. Bolt .5" Dia. x .34" Lg.

$4.49

$

In Stock, Qty 20+

0

2

MTD 17580-0637

Lift Handle Support Strap

$

$

Not available

3

MTD 936-0169

L-Wash. 3/8" I.D.
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

4

MTD 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, only 2 left!

0

5

MTD 710-0428

Hex Bolt 1/4-28 x 1.25" Lg.

$2.49

$

In Stock, only 1 left!

0

6

MTD 710-0599

Hex Wash. Hd. TT-Tap Scr. 1/4-20 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

7

MTD 732-0640

Ext. Spring

Note: NLA

$

$

Not available

8

MTD 720-0223

Grip

$14.99

$

In Stock, Qty 6

0

9

MTD 17591A

Deck Lift Handle Ass'y.

$

$

Not available

10

MTD 710-0604A

Hex Wash. TT-Tap Scr. 5/16-18 x .62" Lg.

$4.49

$

In Stock, Qty 20+

0

11

MTD 936-0119

L-Wash. 5/16" I.D.

$4.99

$

In Stock, Qty 20+

0

12

MTD 912-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

13

MTD 750-0379

Spacer 5/8" I.D. x .78"

$

$

Not available

14

MTD 914-0507

Cot-Pin 3/32" Dia. x .75" Lg.

$4.49

$

In Stock, Qty 17

0

15

MTD 936-0185

Fl-Wash..406" I.D. x .75" O.D.
(Superseded to 736-0185)

$3.99

$

In Stock, only 2 left!

0

16

MTD 914-0104

Internal Cot-Pin 5/16" Dia.
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

17

MTD 17597

Brake Rod Guide Ass'y.

Note: NLA

Variations

MTD 17597-0637

No Longer Available BRACKET-BR - POWDER BLACK (0637)

$

$

Not available

$

$

18

MTD 747-0746

Deck Engagement Rod

$

$

Not available

19

MTD 16682

Pivot Sleeve Ass'y.

Note: NLA

$

$

Not available

20

MTD 712-0130

Hex L-Nut 3/8-16 Thd.

$3.99

$

In Stock, Qty 13

0

21

MTD 936-0314

Thrust Washer .382" I.D.
(Superseded to 736-0314)

$

$

Not available

22

MTD 936-0116

Fl-Wash..635" I.D. x .93" O.D.

$6.99

$

In Stock, only 1 left!

0

23

MTD 914-0470

Cot-Pin 1/8 Dia. x 1.25" Lg.
(Superseded to 714-0470)

$4.49

$

In Stock, Qty 20+

0

24

MTD 912-3057

Hex Nut 5/16-24 Thd.

$6.99

$

In Stock, only 3 left!

0

25

MTD 726-0272

Harness Retainer

$7.49

$

Usually ships in 3-6 days

0

26

MTD 912-0237

Hex Cent. L-Nut 5/16-24 Thd.
(Superseded to 712-0237)

$

$

Not available

27

MTD 97555-0637

Deck Pivot Brkt. Ass'y.- R.H. Rear

$

$

Not available

28

MTD 938-0281

Shld. Bolt .625" Dia. x .170" Lg.
(Superseded to 738-0281)

$

$

Not available

29

MTD 17574-0637

Deck Link Shaft Ass'y.

$

$

Not available

30

MTD 738-0667

Shaft 11.2" Lg.

$

$

Not available

31

MTD 747-0745

Deck Lift Rod

$

$

Not available

32

MTD 17573A-0637

Deck Stabilizer Brkt.

$

$

Not available

33

MTD 17554

Deck Pivot Brkt. Ass'y. - R.H. Front

Note: NLA

Variations

MTD 17554-0637

No Longer Available BRACKET AS - POWDER BLACK (0637)

$

$

Not available

$

$

34

MTD 17563-0637

Connecting Link - R.H.

$

$

Not available

35

MTD 936-0336

Fl-Wash. 5/8" I.D. x 1.0" O.D.

$4.49

$

In Stock, Qty 7

0

36

MTD 17582-0637

Pivot Support Brkt. - R.H.

$

$

Not available

37

MTD 710-1012

Rib Neck Bolt 5/16-24 x .84" Lg.

$4.49

$

Usually ships in 3-6 days

0

38

MTD 17568-0637

Cross Shaft Ass'y.

$

$

Not available

39

MTD 17557-0637

Deck Pivot Brkt. Ass'y. - L.H.

$

$

Not available

40

MTD 17556-0637

Deck Pivot Brkt. Ass'y. - L.H.

$

$

Not available

41

MTD 17581A-0637

Pivot Support Brkt. - L.H.

$

$

Not available

42

MTD 17562-0637

Connecting Link - L.H.

$

$

Not available

43

MTD 947-0584

Lift Link 3/8-24 x 1.25" Lg.

$12.99

$

Usually ships in 3-6 days

0

44

MTD 97709

Adj. Lift Link Ass'y.

$36.99

$

Usually ships in 3-6 days

0

45

MTD 17598

Deck Lift Link Ass'y.

Note: NLA

$

$

Not available

47

MTD 936-0192

Fl-Wash..531" I.D. x .94"

$4.49

$

In Stock, Qty 18

0

48

MTD 936-0185

Fl-Wash..406" I.D. x .75"
(Superseded to 736-0185)

$3.99

$

In Stock, only 2 left!

0

49

MTD 936-0101

Fl-Wash. 3/8" I.D.

$4.99

$

Usually ships in 3-6 days

0

50

MTD 732-0638

Ext. Spring .87" Dia.

$

$

Not available

51

MTD 732-0603

Ext. Spring 11" Lg.

Note: NLA

$

$

Not available

52

MTD 710-3038

Hex Bolt 5/16-18 x 7/8" Lg.

$4.99

$

In Stock, only 3 left!

0
