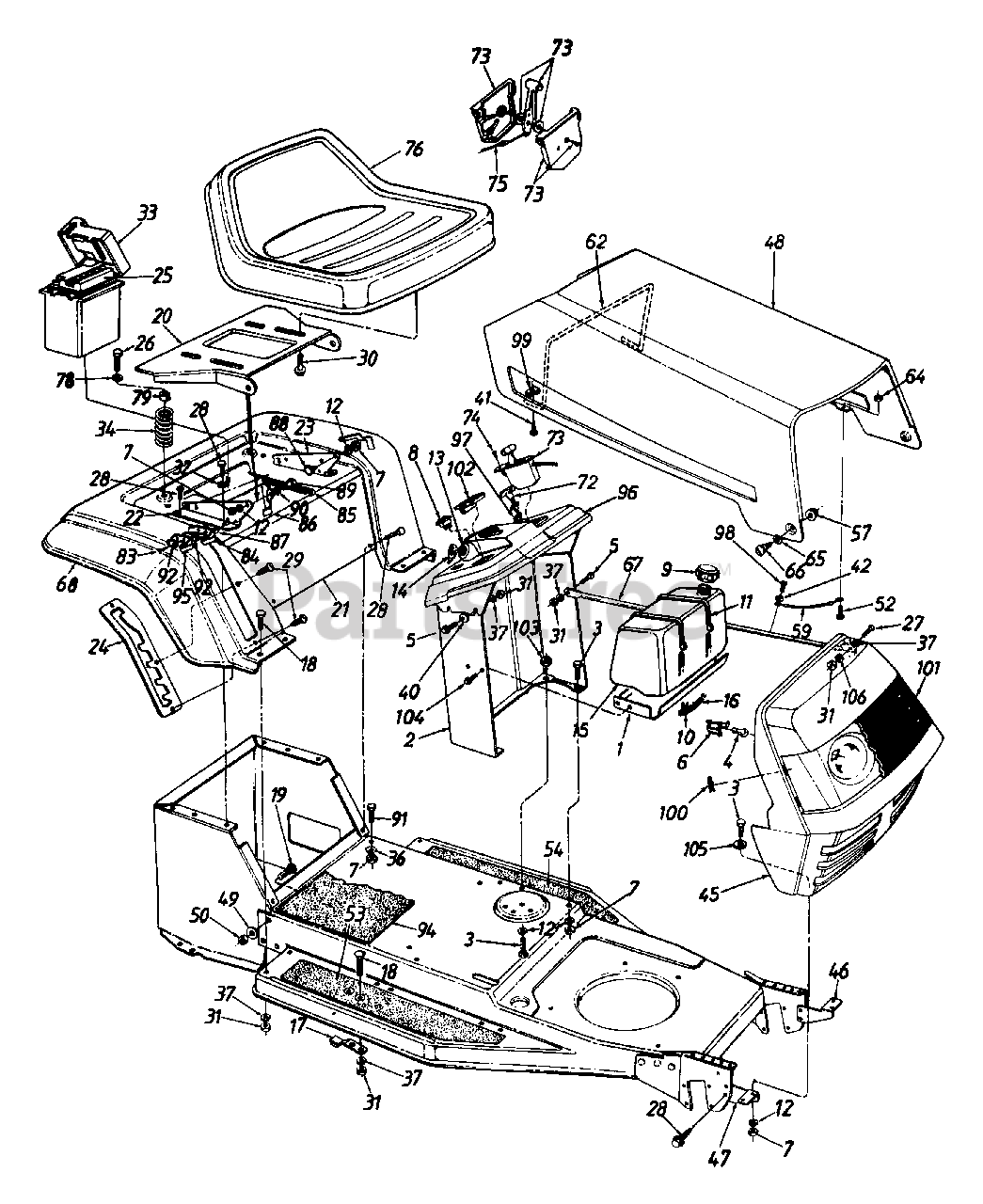

L-12 (134H471F190) - White Outdoor 38" Lawn Tractor (1994) Complete Assembly Parts Diagram

38" Lawn Tractor

Complete Assembly Parts Diagram

  • Title

1

MTD 17932-0637

Gas Tank Support Brkt.

$

$

Not available

2

MTD 17933A

Pedestal

Variations

MTD 17933A-0648

No Longer Available PEDESTAL - TECH GRAY (0648)

$

$

Not available

MTD 17933A-0483

PEDESTAL - CHARCOAL GRAY (0483)

$

$

Not available

MTD 17933A-0498

PEDESTAL - OLD CUB YELLOW (0498)

$

$

Not available

MTD 17933A-0637

PEDESTAL - POWDER BLACK (0637)

$

$

Not available

MTD 17933A-0638

No Longer Available PEDESTAL - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 17933A-0662

PEDESTAL - OYSTER GRAY (0662)

$

$

Not available

$

$

3

MTD 710-3008

Hex Bolt 5/16-18 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

4

MTD 925-0963

Bulb

$7.49

$

In Stock, only 1 left!

0

5

MTD 710-0751

Hex Bolt 1/4 x .62" Lg.

$3.99

$

In Stock, Qty 20+

0

6

MTD 925-1651

Socket

$

$

Not available

7

MTD 912-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

8

MTD 925-0634

Light Switch

$17.99

$

In Stock, only 4 left!

0

9

MTD 751-0603A

Gas Cap
(Superseded to 751-0603B)

$23.99

$

Usually ships in 3-6 days

0

10

MTD 726-0205

Hose Clamp

$3.99

$

In Stock, Qty 18

0

11

MTD 726-0230

Cable Tie

$27.99

$

In Stock, only 1 left!

0

12

MTD 936-0119

L-Wash. 5/16" I.D.

$4.99

$

In Stock, Qty 20+

0

13

MTD 925-0267B

Ignition Switch

$35.99

$

In Stock, Qty 20+

0

14

MTD 925-0201

Ignition Key

$9.49

$

In Stock, only 1 left!

0

15

MTD 751-0555B

Fuel Tank
(Superseded to 751-0555D)

$89.99

$

In Stock, only 1 left!

0

16

MTD 751-10349-16

Gas Line 15" Long

$19.99

$

In Stock, Qty 11

0

17

MTD 961-0194A

Blade Brake Ass'y.

$

$

Not available

18

MTD 710-0134

Carriage Bolt 1/4-20 x .62"

$4.49

$

In Stock, Qty 20+

0

19

MTD 710-0793

Ribbed Neck Bolt 3/8-24 x .8"

$

$

Not available

20

MTD 783-0039A

Seat Pivot Brkt.

Variations

MTD 783-0039A-0637

Seat Pivot Bracket, Black - POWDER BLACK (0637)

$71.99

$

Usually ships in 3-6 days

0

MTD 783-0039A-0638

Seat Pivot Bracket, Black - MTD/TROY-BILT RED (0638)

$71.99

$

Usually ships in 3-6 days

0

MTD 783-0039A-0648

Seat Pivot Bracket, Black - TECH GRAY (0648)

$71.99

$

Usually ships in 3-6 days

0

MTD 783-0039A-0662

Seat Pivot Bracket, Black - OYSTER GRAY (0662)

$71.99

$

Usually ships in 3-6 days

0

MTD 783-0039A-0665

Seat Pivot Bracket, Black - YARDMAN GREEN (0665)

$71.99

$

Usually ships in 3-6 days

0

MTD 783-0039A-0667

Seat Pivot Bracket, Black - MIDNIGHT BLUE (0667)

$71.99

$

Usually ships in 3-6 days

0

$71.99

$

Usually ships in 3-6 days

0

21

MTD 17590

Rear Fender

Note: NLA

Variations

MTD 17590-0483

No Longer Available FENDER-RR - CHARCOAL GRAY (0483)

$

$

Not available

MTD 17590-0638

No Longer Available FENDER-RR - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 17590-0648

No Longer Available FENDER-RR - TECH GRAY (0648)

$

$

Not available

MTD 17590-0662

No Longer Available FENDER-RR - OYSTER GRAY (0662)

$

$

Not available

MTD 17590-0665

No Longer Available FENDER-RR - YARDMAN GREEN (0665)

$

$

Not available

$

$

22

MTD 17704

Seat Hinge Support Brkt. - R.H.

Note: NLA

Variations

MTD 17704-0637

No Longer Available BRACKET-SE - POWDER BLACK (0637)

$

$

Not available

$

$

23

MTD 17703

Seat Hinge Support Brkt. - L.H.

Note: NLA

Variations

MTD 17703-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

24

MTD 17553

Deck Lift Index Brkt.

$

$

Not available

25

MTD 753-0607

Battery

$170.99

$

Usually ships in 3-6 days

0

26

MTD 710-0817

Hex Self-Tap Screw 5/6-18 x 1.25" Lg.

$6.99

$

In Stock, Qty 15

0

27

MTD 710-0924

Truss Mach. Scr. 1/4-20 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

28

MTD 710-0726

Hex AB-Tap Scr. 5/16 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

29

MTD 710-1017

Torx Mach. AB-Tap Scr. 1/4 x .62" Lg.

$8.49

$

In Stock, Qty 9

0

30

MTD 710-0623

Hex Self-Tap Scr. 3/8-16 x .75" Lg.

$4.49

$

In Stock, only 2 left!

0

31

MTD 912-0287

Hex Nut 1/4-20 Thd.

$4.99

$

In Stock, only 1 left!

0

32

MTD 736-0607

External L-Wash. 5/16" I.D.

$3.99

$

In Stock, Qty 20+

0

33

MTD 731-0871B

Battery Box w/Cover

$

$

Not available

34

MTD 732-0588

Compression Spring

$15.99

$

In Stock, only 2 left!

0

36

MTD 736-0242

Bell-Wash. 5/16" I.D.

$4.49

$

In Stock, Qty 20+

0

37

MTD 936-0329

L-Wash. 1/4" I.D.

$4.49

$

In Stock, Qty 11

0

40

MTD 736-0270

Bell-Wash. .265" I.D. x .75"

$3.99

$

In Stock, Qty 20+

0

41

MTD 710-3009

Pan Hd. Scr. 10-24 x .75" Lg.

$7.49

$

Usually ships in 3-6 days

0

42

MTD 936-0400

Fl-Wash..218" I.D. x .62"
(Superseded to 736-0400)

$

$

Not available

45

MTD 17940B

Grille

Variations

MTD 17940B-0483

No Longer Available GRILLE-STY - CHARCOAL GRAY (0483)

$

$

Not available

MTD 17940B-0499

No Longer Available GRILLE-STY - CUB BEIGE (0499)

$

$

Not available

MTD 17940B-0629

No Longer Available GRILLE-STY - SILVER FLAKE (0629)

$

$

Not available

MTD 17940B-0637

GRILLE-STYLE 1 - POWDER BLACK (0637)

$

$

Not available

MTD 17940B-0638

No Longer Available GRILLE-STY - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 17940B-0648

No Longer Available GRILLE-STY - TECH GRAY (0648)

$

$

Not available

MTD 17940B-0650

No Longer Available GRILLE-STY - RED METALLIC (0650)

$

$

Not available

MTD 17940B-0662

No Longer Available GRILLE-STY - OYSTER GRAY (0662)

$

$

Not available

MTD 17940B-0665

No Longer Available GRILLE-STY - YARDMAN GREEN (0665)

$

$

Not available

MTD 17940B-0667

No Longer Available GRILLE-STY - MIDNIGHT BLUE (0667)

$

$

Not available

MTD 17940B-0674

No Longer Available GRILLE-STY - YARDMAN YELLOW (0674)

$

$

Not available

MTD 17940B-0691

GRILLE-STYLE 1 - BLACK JACK (0691)

$

$

Not available

$

$

46

MTD 17595

Grille Mtg. Brkt. - L.H.

Note: NLA

$

$

Not available

47

MTD 17596

Grille Mtg. Brkt. - R.H.

Note: NLA

$

$

Not available

48

MTD 17941

Hood

Note: NLA

Variations

MTD 17941-0483

No Longer Available HOOD - CHARCOAL GRAY (0483)

$

$

Not available

MTD 17941-0629

No Longer Available HOOD - SILVER FLAKE (0629)

$

$

Not available

MTD 17941-0638

No Longer Available HOOD - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 17941-0648

No Longer Available HOOD - TECH GRAY (0648)

$

$

Not available

MTD 17941-0650

No Longer Available HOOD - RED METALLIC (0650)

$

$

Not available

MTD 17941-0662

No Longer Available HOOD - OYSTER GRAY (0662)

$

$

Not available

MTD 17941-0665

No Longer Available HOOD - YARDMAN GREEN (0665)

$

$

Not available

MTD 17941-0667

No Longer Available HOOD - MIDNIGHT BLUE (0667)

$

$

Not available

MTD 17941-0686

No Longer Available HOOD - SIMPLICITY ORANGE (0686)

$

$

Not available

$

$

49

MTD 936-0217

L-Wash. 3/8" I.D. - H.D.
(Superseded to 736-0217)

$4.49

$

In Stock, Qty 8

0

50

MTD 712-0241

Hex L-Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

52

MTD 710-0473

Truss Mach. Scr. #10-24 x .5" Lg.

$4.49

$

In Stock, only 2 left!

0

53

MTD 723-0308B

Foot Pad - R.H.

Note: NLA

$

$

Not available

54

MTD 723-0309B

Foot Pad - L.H.

$

$

Not available

57

MTD 712-0380

Lock Nut 1/4-28 Thd.

$3.99

$

In Stock, only 2 left!

0

59

MTD 723-0302

Hood Stop

$12.99

$

Usually ships in 3-6 days

0

62

MTD 732-0699

Hood Spring

$

$

Not available

64

MTD 712-0272

Hex Sems Nut #10-24 Thd.

$3.99

$

In Stock, only 1 left!

0

65

MTD 736-0413

Spr. Wash..39" I.D. x .62" O.D.

$6.99

$

In Stock, only 2 left!

0

66

MTD 938-0952A

Shld. Bolt

$7.49

$

In Stock, Qty 10

0

67

MTD 749-0722B-0637

Grille Support

$

$

Not available

68

MTD 731-0511-81

Trim Strip 81" Lg.

$105.99

$

Usually ships in 3-6 days

0

72

MTD 946-0616A

Choke Control

$26.99

$

In Stock, Qty 5

0

73

MTD 831-0823A

Throttle Control Box

$32.99

$

In Stock, Qty 20+

0

74

MTD 710-0779A

Truss AB-Tap Scr. #10 x .5"

$4.49

$

In Stock, Qty 12

0

75

MTD 746-0501

Throttle Wire (B&S)

$17.99

$

In Stock, only 1 left!

0

76

MTD 957-0360A

Seat Assembly

$

$

Not available

78

MTD 936-0159

Fl-Wash..344" I.D. x .88" O.D.
(Superseded to 736-0159)

$

$

Not available

79

MTD 722-0160

Bushing

$

$

Not available

83

MTD 710-0227

Hex Tap Scr. #8 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

84

MTD 725-1439

Safety Switch (Seat)

$8.49

$

In Stock, Qty 10

0

85

MTD 932-0581B

Ext. Spring 5.31" Lg.

$14.99

$

In Stock, only 1 left!

0

86

MTD 17239C

Seat Lift Brkt.

$

$

Not available

87

MTD 726-0278

Insulator Boss Plate

$6.99

$

In Stock, Qty 10

0

88

MTD 938-0155

Shld. Bolt .437" Dia. x .162" Lg.

$6.99

$

Usually ships in 3-6 days

0

89

MTD 938-0296

Shld. Bolt .437" Dia. x .268" Lg.
(Superseded to 738-0296)

$4.49

$

In Stock, Qty 20+

0

90

MTD 936-0141

Spr. Wash..445" I.D. x .75" O D.

$6.99

$

Usually ships in 3-6 days

0

91

MTD 710-0604A

Hex Wash. Hd. Scr. 5/16-18 x .62" Lg.

$4.49

$

In Stock, Qty 20+

0

92

MTD 726-0279

Insulator Plate

$3.99

$

In Stock, Qty 8

0

94

MTD 723-0423

Center Foot Pad

Note: NLA

$

$

Not available

95

MTD 925-1303

Safety Switch (Seat)

$6.49

$

In Stock, Qty 7

0

96

MTD 731-1228

Dash Panel

Note: NLA

$

$

Not available

97

MTD 17782

Retainer Clip

$

$

Not available

98

MTD 710-0351

Truss Mach. B-Tap Scr. #10 x .5" Lg.

$4.49

$

Usually ships in 3-6 days

0

99

MTD 926-0130

Speed Nut

$

$

Not available

100

MTD 914-0104

Internal Cotter Pin 5/16" Dia.
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

101

MTD 931-1099A

Lens

$92.99

$

In Stock, only 1 left!

0

102

MTD 925-0925

Ammeter

$31.99

$

In Stock, Qty 6

0

103

MTD 712-3007

Hex Jam Nut 5/16-18 Thd.

$6.99

$

In Stock, only 3 left!

0

104

MTD 710-0599

Hex Wash. Hd. Tap Scr. 1/4-20 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

105

MTD 736-3078

Fl-Wash..344" I.D. x 1" O.D.

$4.49

$

In Stock, Qty 20+

0

106

MTD 936-0222

Ext. L-Wash. 1/4" I.D.
(Superseded to 736-0222)

$

$

Not available
