L-12 (134H471F190) - White Outdoor 38" Lawn Tractor (1994) 38-Inch Mowing Deck Parts Diagram

38" Lawn Tractor

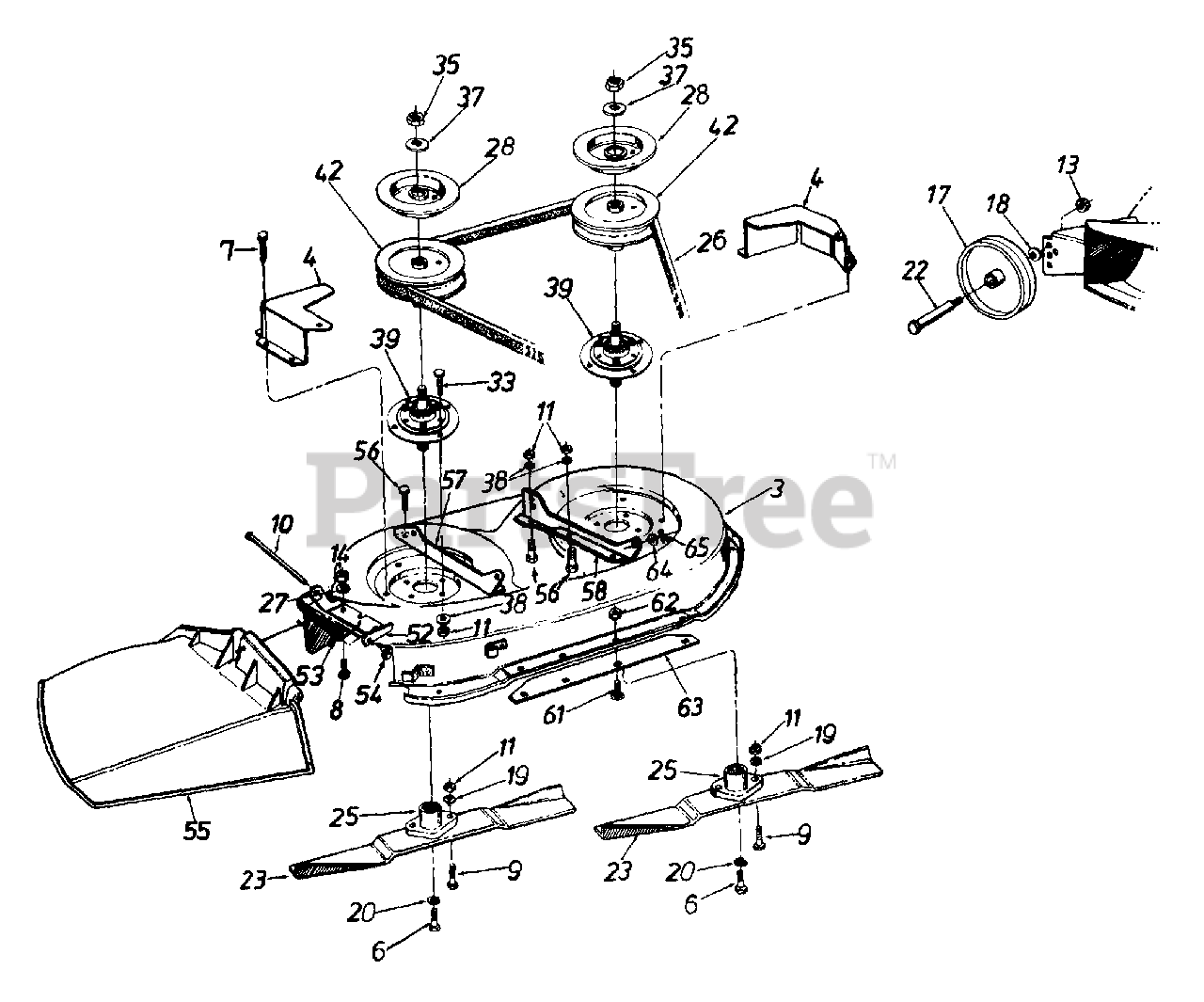

38-Inch Mowing Deck Parts Diagram

  • Title

3

MTD 753-04376

38" Deck Ass'y. w/Deck Wheels

$

$

Not available

4

MTD 17665-0637

Belt Guard Deck

$48.99

$

In Stock, only 2 left!

0

6

MTD 710-1039

Hex Bolt 3/8-24 x 1.0" Lg.

$4.49

$

In Stock, Qty 20+

0

7

MTD 710-0599

Hex Wash. Hd. TT-Tap Scr. 1/4-20 Thd.

$4.49

$

In Stock, Qty 20+

0

8

MTD 710-0751

Hex Bolt 1/4-20 x .62"

$3.99

$

In Stock, Qty 20+

0

9

MTD 710-0888

Hex Bolt Special 5/16-24 x 1.0"

$4.49

$

In Stock, Qty 20+

0

10

MTD 911-0792

Hinge Pin

$4.99

$

In Stock, only 1 left!

0

11

MTD 912-3057

Hex Nut 5/16-24 Thd.

$6.99

$

In Stock, only 3 left!

0

13

MTD 912-0181

Hex Top L-Nut 3/8-16 Thd.
(Superseded to 712-0181)

$

$

Not available

14

MTD 912-0287

Hex Nut 1/4-20 Thd.

$4.99

$

In Stock, only 1 left!

0

17

MTD 734-0973

Deck Wheel - 5"

$12.99

$

In Stock, Qty 20+

0

18

MTD 736-0105

Bell - Wash. .40" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

19

MTD 936-0119

L - Wash. 5/16" I.D.

$4.99

$

In Stock, Qty 20+

0

20

MTD 936-0217

L - Wash. 3/8" I.D. - H.D.
(Superseded to 736-0217)

$4.49

$

In Stock, Qty 8

0

22

MTD 938-0373

Shld. Bolt .498" Dia. x 1.53"

$9.49

$

In Stock, Qty 20+

0

23

MTD 942-0473A

High - Lift Blade

$33.99

$

In Stock, Qty 5

0

25

MTD 748-0300

Blade Adapter

$13.99

$

In Stock, only 4 left!

0

26

MTD 954-0329A

V - Belt

$52.99

$

In Stock, only 1 left!

0

27

MTD 736-0270

Bell - Wash. 1/4" I.D.

$3.99

$

In Stock, Qty 20+

0

28

MTD 09322

Brake Disc

$

$

Not available

33

MTD 710-0157

Hex Bolt 5/16-24 x .75" Lg.

$4.49

$

In Stock, Qty 18

0

35

MTD 712-0318

Hex Jam Nut 5/8-18 Thd.

$3.49

$

In Stock, Qty 12

0

37

MTD 936-0158

L - Wash. 5/8" I.D.

$4.49

$

In Stock, Qty 11

0

38

MTD 736-0242

Bell - Wash. .345" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

39

MTD 753-05319

Blade Spindle Ass'y. Comp.

Note: Includes item 33

$128.99

$

In Stock, Qty 10

0

42

MTD 756-0486

5" Dia. Pulley

$54.99

$

In Stock, only 3 left!

0

52

MTD 703-1693A

Hinge Mtg. Brkt.

$23.99

$

In Stock, only 4 left!

0

53

MTD 732-0602A

Torsion Spring

$12.99

$

In Stock, Qty 5

0

54

MTD 926-0106

Push Nut
(Superseded to 726-0106)

$

$

Not available

55

MTD 931-1032B

Chute Ass'y. Comp.
(Superseded to 631-05229)

Note: Includes items #10, 52, 53, 54, 55)

$81.99

$

In Stock, Qty 6

0

56

MTD 710-0157

Hex Bolt 5/16-24 x .75" Lg.

$4.49

$

In Stock, Qty 18

0

57

MTD 17572-0637

Deck Hanger Channel - R.H.

$37.99

$

Usually ships in 3-6 days

0

58

MTD 17571-0637

Deck Hanger Channel - L.H.

$

$

Not available

61

MTD 710-0167

Carr. Bolt 1/4-20 x .5" Lg.
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

62

MTD 712-0271

Hex Sems Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 20+

0

63

MTD 17863-0637

Deck Skirt Ext.

$

$

Not available

64

MTD 936-0185

Fl - Wash. .406" I.D. x .73" O.D.
(Superseded to 736-0185)

$3.99

$

In Stock, Qty 20+

0

65

MTD 914-0104

Hairpin Clip 3/8" Dia.
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0
