L-12 (132-455F190) - White Outdoor 38" Lawn Tractor (1992) Single Speed Transaxle - Left Hand P/N 618-0024 Parts Diagram

38" Lawn Tractor

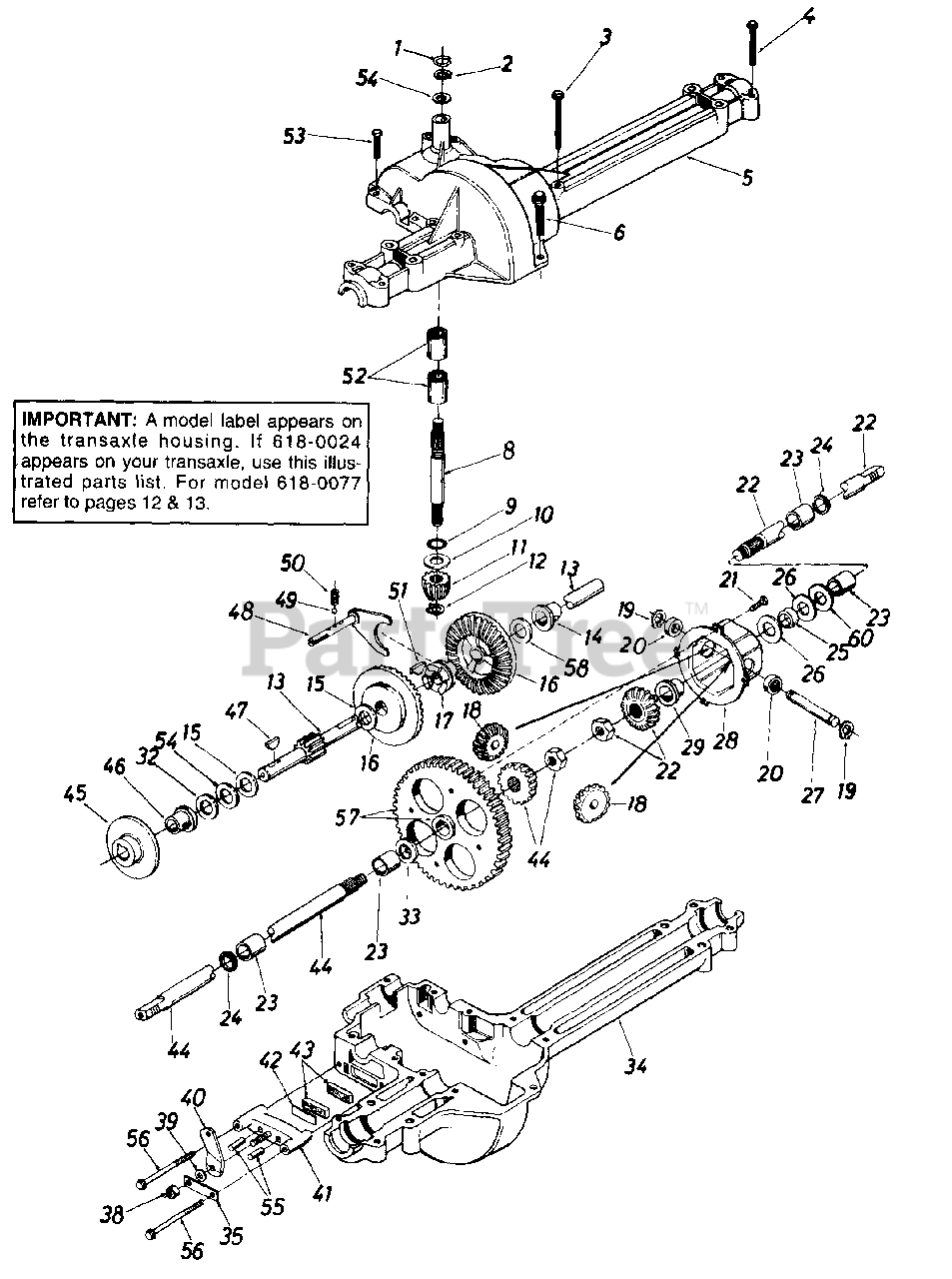

Single Speed Transaxle - Left Hand P/N 618-0024 Parts Diagram

  • Title

White Outdoor 618-0024

Single Speed Transaxle Left Hand

$

$

Not available

1

White Outdoor 732-0614

Wire Ring

$6.49

$

In Stock, only 2 left!

0

2

White Outdoor 716-0108

Retaining - Ring

$5.49

$

Usually ships in 3-6 days

0

3

White Outdoor 710-0854

Hex Bolt 1/4-20 x 1.75" Lg.
(Superseded to 710-1026)

$6.99

$

In Stock, Qty 13

0

4

White Outdoor 710-0809

Hex Tap Scr. 1/4-20 x 1.25" Lg.

$6.99

$

In Stock, Qty 19

0

5

White Outdoor 717-0764A

Upper Housing
(Superseded to 717-0540)

$

$

Not available

6

White Outdoor 710-0642

Hex TT-Tap Scr. 1/4-20 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

8

White Outdoor 711-0861

Input Shaft

$

$

Not available

9

White Outdoor 721-0178

Square Seal 5/8" I.D.
(Superseded to 921-0178)

$

$

Not available

10

White Outdoor 736-0335

Thrust Washer 5/8" I.D. x 1.25" O.D.

$6.99

$

In Stock, Qty 8

0

11

White Outdoor 717-0633

Pinion Input 14T
(Superseded to 917-0633)

$22.99

$

In Stock, only 1 left!

0

12

White Outdoor 716-0171

Retaining Ring
(Superseded to 916-0171)

$5.99

$

Usually ships in 3-6 days

0

13

White Outdoor 717-0768

Drive Shaft

$

$

Not available

14

White Outdoor 741-0336

Flange Brg. 5/8" I.D. x 3/4" Lg.
(Superseded to 941-0336)

$11.99

$

In Stock, only 2 left!

0

15

White Outdoor 736-0335

Fl-Wash. 5/8" I.D. x 1.25"

$6.99

$

In Stock, Qty 8

0

16

White Outdoor 717-0757

Bevel Gear 42T

$

$

Not available

17

White Outdoor 717-0667

Clutch Collar
(Superseded to 917-0667)

$

$

Not available

18

White Outdoor 717-1020

Miter Gear 15T (H.D.)

$

$

Not available

19

White Outdoor 716-0184

Snap Ring
(Superseded to 916-0184)

$4.99

$

Usually ships in 3-6 days

0

20

White Outdoor 741-0589

Thrust Bearing
(Superseded to 941-0589)

$6.49

$

Usually ships in 3-6 days

0

21

White Outdoor 710-0862A

Pan Head Scr. 1/4-20 x .50" Lg. w/Patch

$4.99

$

Usually ships in 3-6 days

0

22

White Outdoor 717-1023

Axle R.H. Ass'y.

$112.99

$

Usually ships in 3-6 days

0

23

White Outdoor 741-0340

Sleeve Bearing 3/4" I.D. x 1.0" Lg.
(Superseded to 741-05060)

$8.99

$

In Stock, Qty 11

0

24

White Outdoor 721-0179

Oil Seal 3/4" I.D.

$8.99

$

In Stock, Qty 20+

0

25

White Outdoor 750-0827

Axle Spacer

$

$

Not available

26

White Outdoor 736-0445

Fl-Wash. .760" I.D. x 1.5" O.D.

$4.49

$

In Stock, Qty 11

0

27

White Outdoor 711-0918

Cross Shaft

$15.99

$

Usually ships in 3-6 days

0

28

White Outdoor 717-1252

Differential Can Ass'y.
(Superseded to 918-04089)

$

$

Not available

29

Part of Ref. 28

$

$

Not available

32

White Outdoor 736-0495

Thrust Wash. 5/8" I.D. x 1" O.D. x .025" Thk.

$4.49

$

In Stock, only 2 left!

0

White Outdoor 736-0336

Fl-Wash. 5/8" I.D. x 1" O.D. x .030" Thk.
(Superseded to 936-0336)

$4.49

$

In Stock, Qty 7

0

White Outdoor 736-0494

Thrust Wash. 5/8" I.D. x 1" O.D. x .035" Thk.

$4.99

$

In Stock, only 4 left!

0

White Outdoor 736-0337

Fl-Wash. 5/8" I.D. x 1" O.D. x .040" Thk.

$4.49

$

In Stock, Qty 9

0

33

White Outdoor 736-0445

Fl-Wash. .760" I.D. x 1.5" O.D.

$4.49

$

In Stock, Qty 11

0

34

White Outdoor 719-0303

Lower Housing
(Superseded to 753-0714)

$

$

Not available

35

White Outdoor 718-0150

Anti-Rotation Brkt.

$4.99

$

Usually ships in 3-6 days

0

38

White Outdoor 712-0273

Hex Nut 5/16-24 Thd.
(Superseded to 912-0273)

$4.99

$

Usually ships in 3-6 days

0

39

White Outdoor 736-0371

Fl-Wash. .344" I.D. x .875" O.D.

$4.49

$

In Stock, only 3 left!

0

40

White Outdoor 717-0772A

Actuating Arm
(Superseded to 717-0772B)

Note: Code: N notates a new part (not previously existing).

$12.99

$

Usually ships in 3-6 days

0

41

White Outdoor 761-0198

Brake Yoke
(Superseded to 961-0198B)

$25.99

$

In Stock, only 1 left!

0

42

White Outdoor 717-0682

Puck Plate
(Superseded to 917-0682)

$9.99

$

In Stock, Qty 7

0

43

White Outdoor 717-0678

Brake Puck
(Superseded to 917-0678)

$7.49

$

In Stock, only 1 left!

0

44

White Outdoor 717-1022

Axle L.H. Ass'y.

$

$

Not available

45

White Outdoor 717-0677

Brake Disc

$

$

Not available

46

White Outdoor 741-0337

Flange Bearing 5/8" I.D. x 15/16" Lg.
(Superseded to 941-0337)

$10.99

$

In Stock, Qty 6

0

47

White Outdoor 714-0161

Woodruff Key 3/16 x 5/8 HT
(Superseded to 914-0161)

$4.49

$

In Stock, Qty 20+

0

48

White Outdoor 717-0754

Shift Fork Ass'y.
(Superseded to 917-0754)

$112.99

$

In Stock, only 1 left!

0

49

White Outdoor 741-0862

Ball Detent .250" Dia.

$4.49

$

In Stock, Qty 20+

0

50

White Outdoor 732-0863

Spring Detent
(Superseded to 932-0863)

$4.49

$

In Stock, only 2 left!

0

51

White Outdoor 714-0169

#9 Hi-Pro Key 3/16" x 3/4" Dia, HT
(Superseded to 914-0169)

$10.99

$

In Stock, Qty 7

0

52

White Outdoor 741-0335

Needle Brg. 5/8" I.D. x 1/2" Lg.
(Superseded to 941-0335)

$18.99

$

In Stock, only 3 left!

0

53

White Outdoor 710-0855

Hex Bolt 1/4-20 x 1.00" Lg.
(Superseded to 710-0788)

$7.49

$

In Stock, only 2 left!

0

54

White Outdoor 736-0349

Fl-Wash. 5/8" I.D. x 1" O.D. x .020 Thk.

$4.49

$

In Stock, Qty 20+

0

55

White Outdoor 741-0343

Actuating Pin 5/16" Dia.

$10.99

$

In Stock, Qty 7

0

56

White Outdoor 710-1206

Hex Wash Hd. Self-Tap Scr. 1/4-20 Thd.

$7.49

$

In Stock, Qty 6

0

57

White Outdoor 717-0767

Differential Gear 72T Ass'y. w/Bearing
(Superseded to 917-0767)

$

$

Not available

58

White Outdoor 736-0349

Fl-Wash. 5/8" I.D. x 1" O.D. x .020 Thk.

$4.49

$

In Stock, Qty 20+

0

White Outdoor 736-0495

Thrust Wash. 5/8" I.D. x 1" O.D. x .025" Thk.

$4.49

$

In Stock, only 2 left!

0

60

White Outdoor 736-0492

Fl-Wash. .76" I.D. x 1.5" O.D. x .010" Thk.
(Superseded to 936-0492)

$6.99

$

Usually ships in 3-6 days

0

White Outdoor 736-0493

Fl-Wash. .76" I.D. x 1.5" O.D. x .020" Thk.
(Superseded to 936-0493)

$4.99

$

Usually ships in 3-6 days

0

White Outdoor 736-0351

Fl-Wash. .76" I.D. x 1.5" O.D. x .030" Thk.

$4.49

$

In Stock, Qty 20+

0

White Outdoor 736-0445

Fl-Wash. .76" I.D. x 1.5" O.D. x .060" Thk.

$4.49

$

In Stock, Qty 11

0

White Outdoor 737-0148

Grease - Shell (10 oz.)
(Superseded to 737-0300A)

$34.99

$

In Stock, Qty 20+

0
