L-12 (131-455F190) - White Outdoor 38" Lawn Tractor (1991) Deck Lift Assembly Parts Diagram

38" Lawn Tractor

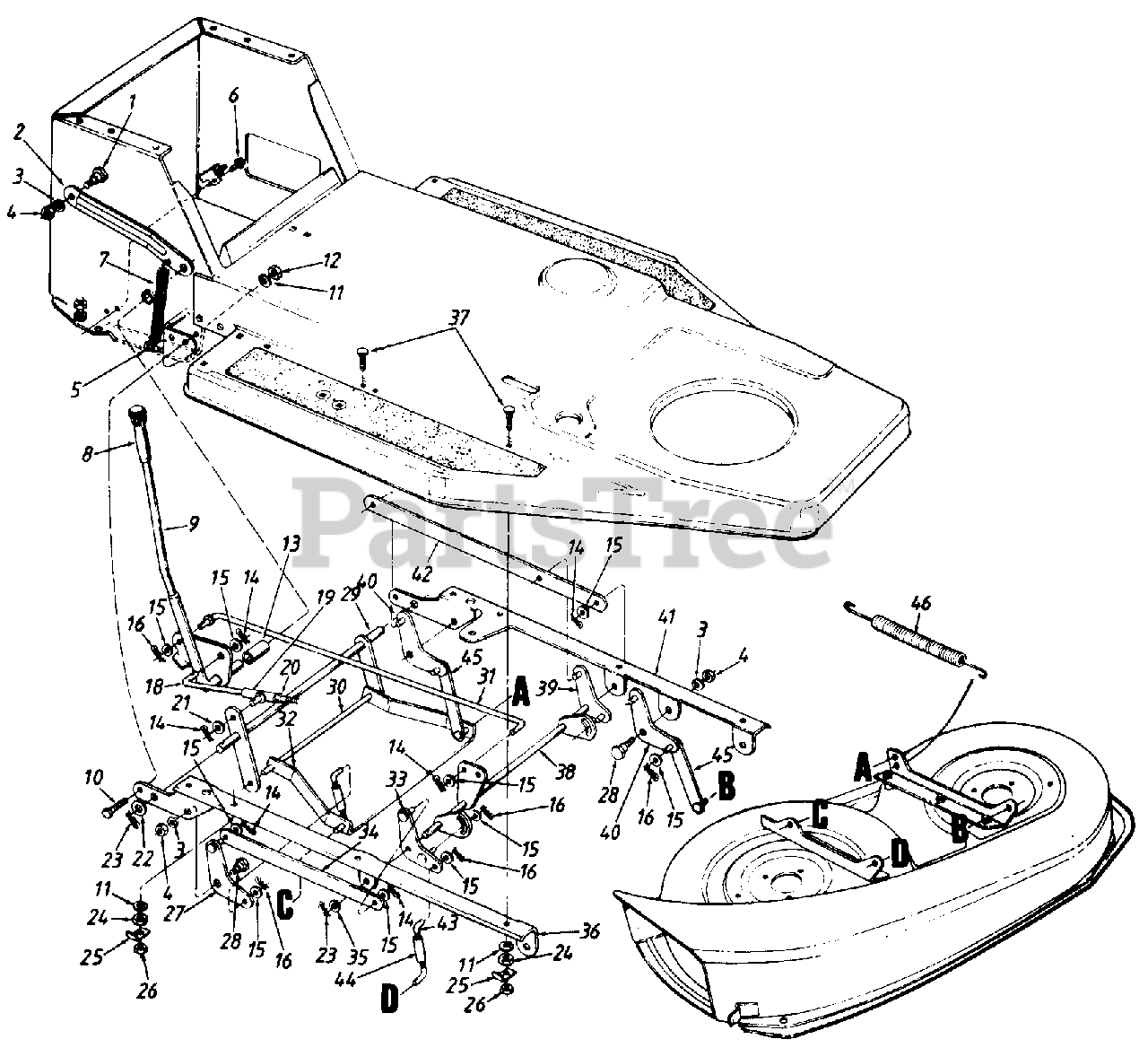

Deck Lift Assembly Parts Diagram

  • Title

1

White Outdoor 738-0258

Shld. Bolt .5" Dia. x .25" Lg.
(Superseded to 938-0258)

$

$

Not available

2

White Outdoor 17580

Lift Handle Support Strap

Variations

White Outdoor 17580-0637

STRAP-LIFT SUPPORT - POWDER BLACK (0637)

$

$

Not available

$

$

3

White Outdoor 736-0169

L-Wash. 3/8n l.D.

$3.99

$

In Stock, Qty 20+

0

4

White Outdoor 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 6

0

5

White Outdoor 710-0428

Hex Bolt 1/4-28 x 1.25" Lg.

$2.49

$

In Stock, only 1 left!

0

6

White Outdoor 710-0599

Hex Wash. Hd. TT-Tap Scr. 1/4-20 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

7

White Outdoor 732-0640

Ext. Spring

$

$

Not available

8

White Outdoor 720-0223

Grip

$14.99

$

In Stock, Qty 7

0

9

White Outdoor 17591

Deck Lift Handle Ass'y.
(Superseded to 17591A)

$

$

Not available

10

White Outdoor 710-0604

Hex Wash. TT-Tap Scr. 5/16-18 x .62" Lg.
(Superseded to 710-0604A)

$4.49

$

In Stock, Qty 20+

0

11

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

12

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

13

White Outdoor 741-0557

Nylon Sleeve Brg.

$

$

Not available

14

White Outdoor 714-0507

Cot-Pin 3/32" Dia. x .75" Lg.

$4.49

$

In Stock, Qty 12

0

15

White Outdoor 736-0185

Fl-Wash. 406n l.D. x .75" O.D.

$3.99

$

In Stock, Qty 20+

0

16

White Outdoor 714-0104

Internal Cot-Pin 5/16" Dia.

$4.49

$

In Stock, Qty 20+

0

18

White Outdoor 747-0746

Deck Engagement Rod

$

$

Not available

19

White Outdoor 16682

Pivot Sleeve Ass'y.

$

$

Not available

20

White Outdoor 712-0130

Hex L-Nut 3/8-16 Thd.

$3.99

$

In Stock, Qty 11

0

21

White Outdoor 736-0314

Thrust Washer .382" I.D.

$6.99

$

Usually ships in 3-6 days

0

22

White Outdoor 736-0162

Fl-Wash. .635" I.D. x 1.04 O.D.

$4.49

$

In Stock, Qty 20+

0

23

White Outdoor 714-0470

Cot-Pin 1/8 Dia. x 1.25" Lg.

$4.49

$

In Stock, Qty 20+

0

24

White Outdoor 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.99

$

In Stock, only 2 left!

0

25

White Outdoor 17615

Harness Retainer
(Superseded to 726-0272)

$7.49

$

Usually ships in 3-6 days

0

26

White Outdoor 712-0237

Hex Cent. L-Nut 5/16-24 Thd.

$4.99

$

In Stock, only 4 left!

0

27

White Outdoor 17555

Deck Pivot Brkt. Ass'y.-R.H. Rear
(Superseded to 97555-0637)

$

$

Not available

28

White Outdoor 738-0281

Shld. Bolt .625n Dia. x .170" Lg.

$10.99

$

In Stock, only 2 left!

0

29

White Outdoor 17574

Deck Link Shaft ASs'y.

Variations

White Outdoor 17574-0637

SHAFT ASSY-DECK - POWDER BLACK (0637)

$

$

Not available

$

$

30

White Outdoor 738-0667

Shaft 11.2" Lg.

$

$

Not available

31

White Outdoor 747-0745

Deck Lift Rod

$

$

Not available

32

White Outdoor 17573

Deck Stabilizer Brkt.
(Superseded to 17573A-0637)

$

$

Not available

33

White Outdoor 17554

Deck Pivot Brkt. Ass'y.-R.H. Front

Variations

White Outdoor 17554-0637

BRACKET ASSY-PIV-L - POWDER BLACK (0637)

$

$

Not available

$

$

34

White Outdoor 17563

Connecting Link-R.H.

Variations

White Outdoor 17563-0637

LINK-CONNECTING-RH - POWDER BLACK (0637)

$

$

Not available

$

$

35

White Outdoor 736-0336

Fl-Wash. 5/8n l.D. x 1.0n O.D.
(Superseded to 936-0336)

$4.49

$

In Stock, Qty 7

0

36

White Outdoor 17582

Pivot Support Brkt.-R.H.
(Superseded to 17582-0637)

Variations

White Outdoor 17582-0637

BRACKET-PIVOT SUP- - POWDER BLACK (0637)

$

$

Not available

$

$

37

White Outdoor 710-1012

Rib Neck Bolt 5/16-24 X 84n Lg.

$4.49

$

Usually ships in 3-6 days

0

38

White Outdoor 17568

Cross Shaft Ass'y.
(Superseded to 17568-0637)

Variations

White Outdoor 17568-0637

SHAFT ASSY-CROSS - POWDER BLACK (0637)

$

$

Not available

$

$

39

White Outdoor 17557

Deck Pivot Brkt. Ass'y.-L.H.

Variations

White Outdoor 17557-0637

BRACKET ASSY-PIV-L - POWDER BLACK (0637)

$

$

Not available

$

$

40

White Outdoor 17556

Deck Pivot Brkt. Ass'y.-L.H.
(Superseded to 17556-0637)

Variations

White Outdoor 17556-0637

BRACKET ASSY-PIV-L - POWDER BLACK (0637)

$

$

Not available

$

$

41

White Outdoor 17581

Pivot Support Brkt.-L.H.
(Superseded to 17581A-0637)

Variations

White Outdoor 17581-0637

BRACKET-SUPPORT PI - POWDER BLACK (0637)

$

$

Not available

$

$

42

White Outdoor 17562

Connecting Link-L.H.
(Superseded to 17562-0637)

Variations

White Outdoor 17562-0637

LINK-CONNECTING-LH - POWDER BLACK (0637)

$

$

Not available

$

$

43

White Outdoor 747-0584

Lift Link 3/8-24 X 1.25n Lg.
(Superseded to 947-0584)

$12.99

$

Usually ships in 3-6 days

0

44

White Outdoor 17709

Adj. Lift Link Ass'y.
(Superseded to 97709)

$36.99

$

Usually ships in 3-6 days

0

45

White Outdoor 17598

Deck Lift Link Ass'y.

$

$

Not available

46

White Outdoor 732-0564

Deck Spring 10.33n Lg.
(Superseded to 932-0564)

$

$

Not available
