L-12 (131-455F190) - White Outdoor 38" Lawn Tractor (1991) Body Assembly Parts Diagram

38" Lawn Tractor

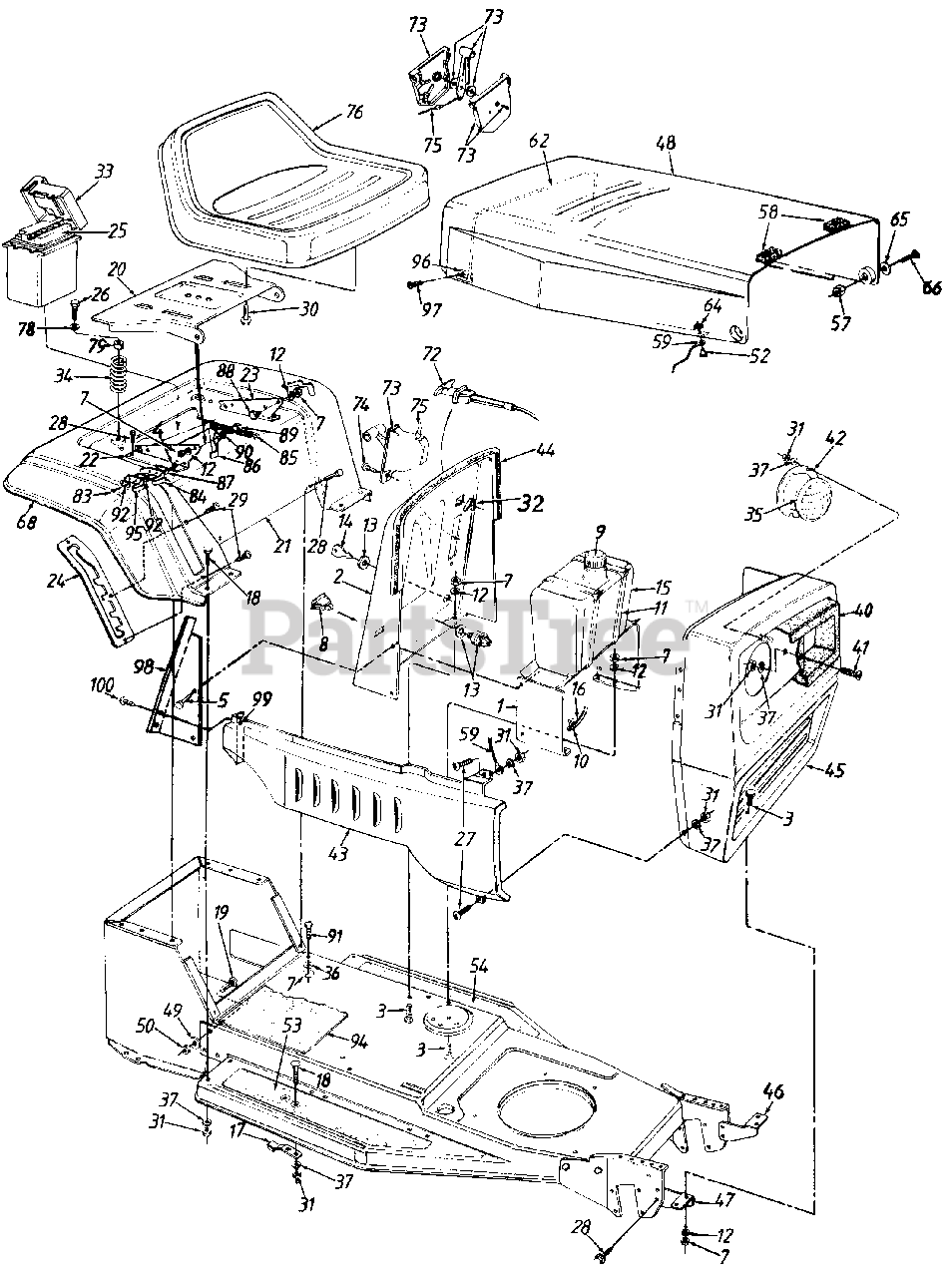

Body Assembly Parts Diagram

  • Title

1

White Outdoor 16655A

Dash Panel Support Brkt.

$

$

Not available

2

White Outdoor 16656

Dash Panel

Variations

White Outdoor 16656-0637

No Longer Available PANEL-DASH - POWDER BLACK (0637)

$

$

Not available

$

$

3

White Outdoor 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

4

White Outdoor 736-0222

External L-Wash. 114" I.D.

$5.99

$

In Stock, only 3 left!

0

5

White Outdoor 710-0776A

Hex AB-Tap Scr. 1/4 x .62"
(Superseded to 710-0896)

$4.49

$

In Stock, Qty 20+

0

7

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

8

White Outdoor 725-0634

Light Switch
(Superseded to 925-0634)

$17.99

$

In Stock, only 4 left!

0

9

White Outdoor 751-3071

Gas Cap
(Superseded to 751-0603B)

$23.99

$

In Stock, only 3 left!

0

10

White Outdoor 726-0205

Hose Clamp

$3.99

$

In Stock, Qty 20+

0

11

White Outdoor 726-0209

Cable Tie
(Superseded to 726-0230)

$27.99

$

In Stock, only 1 left!

0

12

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

13

White Outdoor 725-0267

Ignition Switch
(Superseded to 925-0267B)

$35.99

$

In Stock, Qty 20+

0

14

White Outdoor 725-0201

Ignition Key
(Superseded to 925-0201)

$9.49

$

In Stock, only 1 left!

0

15

White Outdoor 751-0553

Fuel Tank
(Superseded to 751-0555B)

$

$

Not available

16

White Outdoor 751-0535-15

Gas Line-15" Lg.
(Superseded to 751-10349-16)

$19.99

$

In Stock, Qty 11

0

17

White Outdoor 761-0194

Blade Brake Ass'y.
(Superseded to 961-0194A)

$

$

Not available

18

White Outdoor 710-0134

Carriage Bolt 1/4-20 x .62"

$4.49

$

In Stock, Qty 20+

0

19

White Outdoor 710-0793

Ribbed Neck Bolt 3/8-24 x .8"

$

$

Not available

20

White Outdoor 15607D

Seat Pivot Brkt.
(Superseded to 783-0039A)

$71.99

$

Usually ships in 3-6 days

0

21

White Outdoor 17590

Rear Fender

Variations

White Outdoor 17590-0483

No Longer Available FENDER-RR - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 17590-0638

No Longer Available FENDER-RR - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 17590-0648

No Longer Available FENDER-RR - TECH GRAY (0648)

$

$

Not available

White Outdoor 17590-0662

No Longer Available FENDER-RR - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 17590-0665

No Longer Available FENDER-RR - YARDMAN GREEN (0665)

$

$

Not available

$

$

22

White Outdoor 17704

Seat Hinge Support Brkt.-R.H.

Variations

White Outdoor 17704-0637

No Longer Available BRACKET-SEAT HINGE - POWDER BLACK (0637)

$

$

Not available

$

$

23

White Outdoor 17703

Seat Hinge Support Brkt.-L.H.

Variations

White Outdoor 17703-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

24

White Outdoor 17553

Deck Lift Index Brkt.

$

$

Not available

25

White Outdoor 725-0514A

Battery
(Superseded to 753-0607)

$170.99

$

Usually ships in 3-6 days

0

26

White Outdoor 710-0817

Hex Self-Tap Screw 5/6-18 x 1.25" Lg.

$6.99

$

In Stock, Qty 15

0

27

White Outdoor 710-0286

Truss Mach. Scr. 1/4-20 x .5" Lg

$4.49

$

Usually ships in 3-6 days

0

28

White Outdoor 710-0726

Hex AB-Tap Scr. 5/16 x .75" Lg

$4.49

$

In Stock, Qty 20+

0

29

White Outdoor 710-1017

Torx Mach. AB-Tap Scr. 1/4 x .62" Lg.

$8.49

$

In Stock, Qty 9

0

30

White Outdoor 710-0623

Hex Self-Tap Scr. 3/8-16 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

31

White Outdoor 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

32

White Outdoor 17782

Retainer Clip

$

$

Not available

33

White Outdoor 731-0871A

Battery Box w/Cover
(Superseded to 731-0871B)

$

$

Not available

34

White Outdoor 732-0588

Compression Spring

$15.99

$

In Stock, only 2 left!

0

35

White Outdoor 725-0222

Headlight
(Superseded to 925-0222)

$58.99

$

In Stock, only 4 left!

0

36

White Outdoor 736-0242

Bell-Wash. 5116" I.D.

$4.49

$

In Stock, Qty 20+

0

37

White Outdoor 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

40

White Outdoor 731-0465

Bezel

$

$

Not available

41

White Outdoor 710-0346

C-Sunk Mach. Scr. 1/4-20 x 1.5"

$

$

Not available

42

White Outdoor 09960

Headlight Retainer

$

$

Not available

43

White Outdoor 17714

Side Panel-R.H.

$

$

Not available

White Outdoor 16283A

Side Panel-L.H.

Note: (Not Shown)

$

$

Not available

44

White Outdoor 731-0511-31

Trim Strip 31" Lg.

$41.99

$

Usually ships in 3-6 days

0

45

White Outdoor 16277

Grille Ass'y.

Variations

White Outdoor 16277-0629

No Longer Available - SILVER FLAKE (0629)

$

$

Not available

White Outdoor 16277-0638

No Longer Available GRILLE - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 16277-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

$

$

46

White Outdoor 17595

Grille Mtg. Brkt.-L.H.

$

$

Not available

47

White Outdoor 17596

Grille Mtg. Brkt.-R.H.

$

$

Not available

48

White Outdoor 16646

Hood

Variations

White Outdoor 16646-0499

No Longer Available HOOD - CUB BEIGE (0499)

$

$

Not available

White Outdoor 16646-0629

No Longer Available HOOD - SILVER FLAKE (0629)

$

$

Not available

White Outdoor 16646-0638

No Longer Available HOOD - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

49

White Outdoor 736-0217

L-Wash. 3181' I.D.-H.D.

$4.49

$

In Stock, Qty 6

0

50

White Outdoor 712-0241

Hex L-Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

52

White Outdoor 710-0473

Truss Mach. Scr. #10-24 x .5" Lg.

$4.49

$

In Stock, only 2 left!

0

53

White Outdoor 723-0308B

Foot Pad-R.H.

$

$

Not available

54

White Outdoor 723-0309B

Foot Pad-L.H.

$

$

Not available

57

White Outdoor 712-0380

Lock Nut 1/4-28 Thd.

$3.99

$

In Stock, only 2 left!

0

58

White Outdoor 722-0157

Foam Strip

$4.49

$

Usually ships in 3-6 days

0

59

White Outdoor 723-0302

Hood Stop

$12.99

$

Usually ships in 3-6 days

0

62

White Outdoor 732-0559

Hood Spring

$

$

Not available

64

White Outdoor 712-0272

Hex Sems Nut #10-24 Thd.

$3.99

$

Usually ships in 3-6 days

0

65

White Outdoor 736-0413

Spr. Wash. .39" I.D. x .62" O.D.

$6.99

$

In Stock, only 2 left!

0

66

White Outdoor 738-0724

Shld. Bolt
(Superseded to 938-0952A)

$7.49

$

In Stock, Qty 10

0

68

White Outdoor 731-0511-81

Trim Strip 81" Lg.

$105.99

$

Usually ships in 3-6 days

0

72

White Outdoor 746-0617A

Choke Control

$

$

Not available

73

White Outdoor 831-0823A

Throttle Control Box

$32.99

$

In Stock, Qty 20+

0

74

White Outdoor 710-0779A

Truss AB-Tap Scr. #10 x .5"

$4.49

$

In Stock, Qty 12

0

75

White Outdoor 746-0501

Throttle Wire

$17.99

$

In Stock, only 1 left!

0

76

White Outdoor 757-0338

Seat Assembly
(Superseded to 957-0360A)

$

$

Not available

78

White Outdoor 736-0159

Flat Wash. .344" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

79

White Outdoor 722-0160

Bushing

$

$

Not available

83

White Outdoor 710-0227

Hex Tap Scr. #8 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

84

White Outdoor 725-1439

Safety Switch

Note: (Seat)

$8.49

$

In Stock, Qty 10

0

85

White Outdoor 732-0581

Ext. Spring 5.31" Lg.
(Superseded to 932-0581B)

$14.99

$

In Stock, only 1 left!

0

86

White Outdoor 17239A

Seat Lift Brkt.
(Superseded to 17239C)

$

$

Not available

87

White Outdoor 726-0278

Insulator Boss Plate

$6.99

$

In Stock, Qty 10

0

88

White Outdoor 738-0155

Shld. Bolt 437" Dia. x .162" Lg.
(Superseded to 938-0155)

$6.99

$

Usually ships in 3-6 days

0

89

White Outdoor 738-0296

Shld. Bolt .437" Dia. x .268" Lg.

$4.49

$

In Stock, Qty 20+

0

90

White Outdoor 736-0141

Spr. Wash. 445" l.D. x .75" O.D.
(Superseded to 936-0141)

$6.99

$

In Stock, only 2 left!

0

91

White Outdoor 710-0604

Hex Wash. Hd. Scr. 5/16-18 x .62" Lg.
(Superseded to 710-0604A)

$4.49

$

In Stock, Qty 20+

0

92

White Outdoor 726-0279

Insulator Plate

$3.99

$

In Stock, Qty 8

0

94

White Outdoor 723-0310A

Center Foot Pad

$

$

Not available

95

White Outdoor 725-1303

Safety Switch
(Superseded to 925-1303)

Note: (Seat)

$6.49

$

In Stock, Qty 7

0

96

White Outdoor 731-0895

Hood Spring Retainer

$

$

Not available

97

White Outdoor 710-0697

Oval Hd. Self-Tap Scr. .5" Lg.

$

$

Not available

98

17592

Side Panel Mtg. Brkt.-R.H.

$

$

Not available

White Outdoor 17593

Side Panel Mtg. Brkt.-L.H.

Note: (Not Shown)

$

$

Not available

99

White Outdoor 712-0147

Speed Nut #10-24 Thd.

$6.99

$

Usually ships in 3-6 days

0

100

White Outdoor 710-0351

Truss Mach. B-Tap Scr. #10 x .5" La.

$4.49

$

Usually ships in 3-6 days

0
