L-11 (138-346-190) - White Outdoor 32" Lawn Tractor (1988) Electrical System Parts Diagram

32" Lawn Tractor

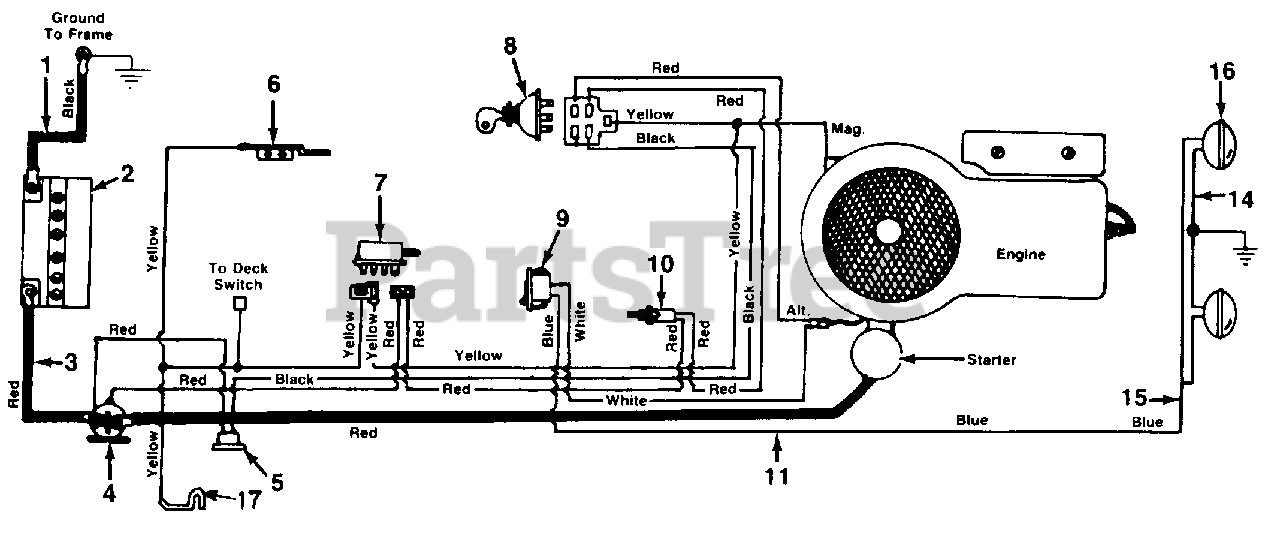

Electrical System Parts Diagram

  • Title
1

White Outdoor 725-0976

Ground Wire
(Superseded to 725-0976A)

$

$

Not available

2

White Outdoor 725-0514

Battery
(Superseded to 753-0607)

$170.99

$

Usually ships in 3-6 days

0

3

White Outdoor 725-0926

Electric Wire

$

$

Not available

4

White Outdoor 725-0771

Solenoid
(Superseded to 925-0771)

$35.99

$

In Stock, only 1 left!

0

5

White Outdoor 725-0459

Circuit Breaker
(Superseded to 753-0685)

$

$

Not available

6

White Outdoor 725-0758

Spring Switch
(Superseded to 753-0580)

$

$

Not available

7

White Outdoor 725-0803

Safety Switch
(Superseded to 725-0803B)

$33.99

$

In Stock, only 1 left!

0

8

White Outdoor 725-0267

Key Switch
(Superseded to 925-0267B)

$35.99

$

In Stock, Qty 20+

0

9

White Outdoor 725-0634

Light Switch
(Superseded to 925-0634)

$17.99

$

In Stock, only 4 left!

0

10

White Outdoor 725-0577

Safety Switch (Black)

$

$

Not available

11

White Outdoor 725-1336

Harness

Note: (B&S)

$

$

Not available

14

White Outdoor 725-0916

Ground Wire
(Superseded to 725-0916A)

$

$

Not available

15

725-1243

Headlight Harness

$

$

Not available

16

White Outdoor 725-0222

Lamp
(Superseded to 925-0222)

$58.99

$

In Stock, only 4 left!

0

17

White Outdoor 725-1303

Seat Switch
(Superseded to 925-1303)

Note: (Not Shown)

$6.49

$

In Stock, Qty 7

0
