L-11 (138-346-190) - White Outdoor 32" Lawn Tractor (1988) Deck Assembly Parts Diagram

32" Lawn Tractor

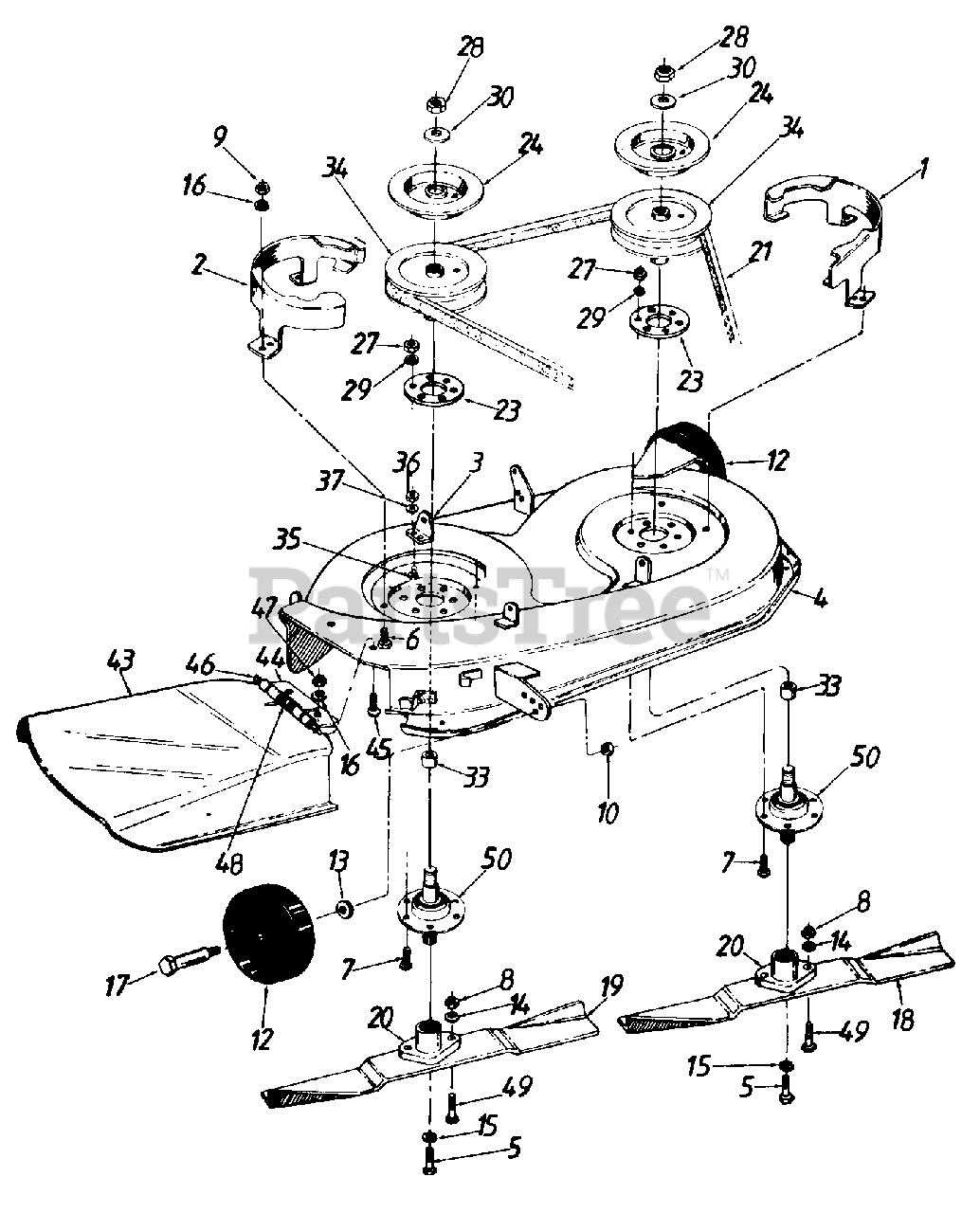

Deck Assembly Parts Diagram

  • Title

1

White Outdoor 16607

Belt Guard Deck-L.H.

Variations

White Outdoor 16607-0637

GUARD-BELT-LH - POWDER BLACK (0637)

$

$

Not available

$

$

2

White Outdoor 16608

Belt Guard Deck-R.H.

$

$

Not available

3

White Outdoor 16666

Rear Deck Brkt.-R.H.

Variations

White Outdoor 16666-0637

No Longer Available BRACKET-DECK RR-RH - POWDER BLACK (0637)

$

$

Not available

$

$

4

17101

32" Deck Ass'y.

$

$

Not available

17134

32" Deck Ass'y. Comp.

Note: (Service Only)

$

$

Not available

5

White Outdoor 710-0152

Hex Bolt 3/8-24 x 1.0" Lg.
(Superseded to 710-1039)

$4.49

$

In Stock, Qty 20+

0

6

White Outdoor 710-0195

Hex Bolt 1/4-28 x .62" Lg.
(Superseded to 910-0195)

$3.99

$

In Stock, only 1 left!

0

7

White Outdoor 710-1012

Rib Neck Bolt

$4.49

$

Usually ships in 3-6 days

0

8

White Outdoor 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

9

White Outdoor 712-0138

Hex Nut 1/4-28 Thd.

$6.99

$

Usually ships in 3-6 days

0

10

White Outdoor 712-0181

Hex L-Nut 3/8-16 Thd.

$4.49

$

In Stock, only 3 left!

0

12

White Outdoor 734-0973

Deck Wheel

$12.99

$

In Stock, Qty 20+

0

13

White Outdoor 736-0105

Bell-Wash. .380" I.D. x .88

$4.49

$

In Stock, Qty 20+

0

14

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

15

White Outdoor 736-0217

L-Wash. 3/8" I.D. H.D.

$4.49

$

In Stock, Qty 8

0

16

White Outdoor 736-0270

Bell-Wash. .265" l.D. x .75

$3.99

$

In Stock, Qty 20+

0

17

White Outdoor 738-0373

Shld. Bolt .498" Dia. x 1.53 Lg.
(Superseded to 938-0373)

$9.49

$

In Stock, Qty 20+

0

18

White Outdoor 742-0477

L.H High-Lift Blade

$

$

Not available

19

White Outdoor 742-0480

R.Ho High-Lift Blade

$

$

Not available

20

White Outdoor 748-0300

Blade Adapter

$13.99

$

In Stock, only 4 left!

0

21

White Outdoor 754-0355

V-Belt
(Superseded to 954-0355)

$53.99

$

Usually ships in 3-6 days

0

23

White Outdoor 09164

Reinforcement Plate
(Superseded to 09164A-0637)

$33.99

$

In Stock, only 2 left!

0

24

White Outdoor 09322

Brake Disc

$

$

Not available

27

White Outdoor 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

28

White Outdoor 712-0318

Hex Jam Nut 5/8-18 Thd.

$3.49

$

In Stock, Qty 12

0

29

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

30

White Outdoor 736-0158

L-Wash. 5/8" I.D.

$4.49

$

In Stock, Qty 11

0

33

White Outdoor 750-0456

Spacer

$4.49

$

In Stock, Qty 20+

0

34

White Outdoor 756-0486

5" Dia. Pulley

$54.99

$

In Stock, only 3 left!

0

35

White Outdoor 710-0258

Hex Scr. 1/4-20 x .62" Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

36

White Outdoor 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

37

White Outdoor 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

43

White Outdoor 17136

Chute Ass'y.
(Superseded to 753-0567)

$136.99

$

Usually ships in 3-6 days

0

44

White Outdoor 17137

Chute Bracket

$

$

Not available

45

White Outdoor 710-0255

Truss-Mach. Scr. 1/4-20 x .75" Lg.
(Superseded to 710-0924)

$4.49

$

In Stock, Qty 20+

0

46

White Outdoor 711-0808

Hinge Pin

$

$

Not available

47

White Outdoor 712-0298

Hex Jam Nut 1/4-20 Thd.
(Superseded to 912-0298)

$6.49

$

Usually ships in 3-6 days

0

48

White Outdoor 732-0542

Torsion Spring 1.14" Lg.
(Superseded to 932-0542)

$

$

Not available

49

White Outdoor 710-0888

Hex Bolt 5/16-24 x 1.0" Lg.

Note: (Special)

$4.49

$

In Stock, Qty 20+

0

50

White Outdoor 717-0900

Blade Spindle Complete
(Superseded to 917-0900A)

$

$

Not available
