L-11 (138-346-190) - White Outdoor 32" Lawn Tractor (1988) Body Assembly Parts Diagram

32" Lawn Tractor

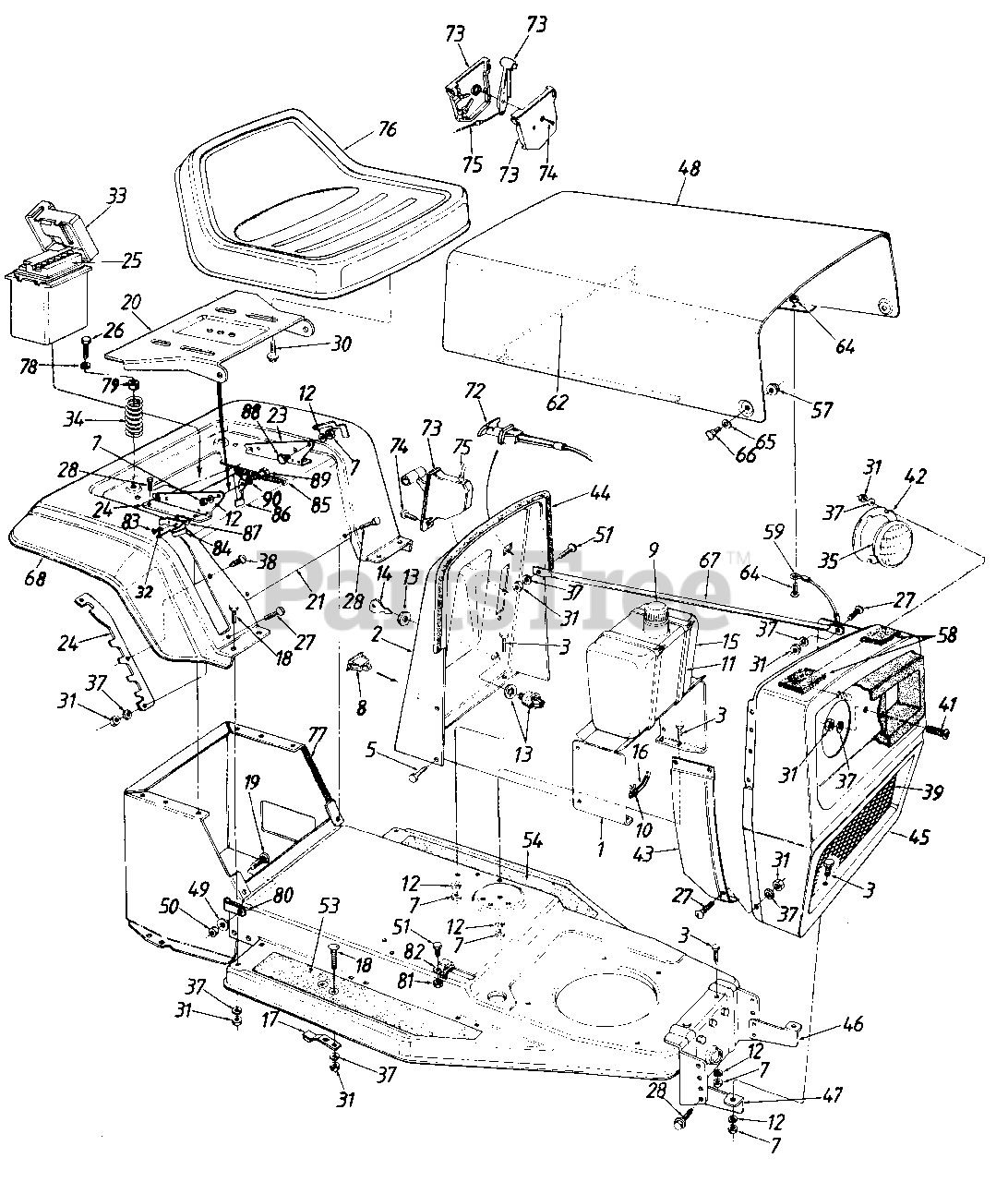

Body Assembly Parts Diagram

  • Title

1

White Outdoor 16655

Dash Panel Support Brkt.

$

$

Not available

2

White Outdoor 16656

Dash Panel

Variations

White Outdoor 16656-0637

No Longer Available PANEL-DASH - POWDER BLACK (0637)

$

$

Not available

$

$

3

White Outdoor 710-0118

Hex Bolt 5/16-18 x .75" Lg.'
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

5

White Outdoor 710-0776

Hex AB-Tap Scr. 1/4 x .62"
(Superseded to 710-0896)

$4.49

$

In Stock, Qty 20+

0

7

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

8

White Outdoor 725-0634

Light Switch
(Superseded to 925-0634)

$17.99

$

In Stock, only 4 left!

0

9

White Outdoor 723-0333

Gas Gauge
(Superseded to 923-0333)

$

$

Not available

10

White Outdoor 726-0207

Hose Clamp

$

$

Not available

11

White Outdoor 726-0209

Cable Tie
(Superseded to 726-0230)

$27.99

$

In Stock, only 1 left!

0

12

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

13

White Outdoor 725-0267

Ignition Switch
(Superseded to 925-0267B)

$35.99

$

In Stock, Qty 20+

0

14

White Outdoor 725-0201

Ignition Key
(Superseded to 925-0201)

$9.49

$

In Stock, only 1 left!

0

15

White Outdoor 751-0172

Fuel Tank
(Superseded to 753-0503)

$

$

Not available

16

White Outdoor 751-0173

Gas Line
(Superseded to 751-10349-16)

$19.99

$

In Stock, Qty 11

0

17

White Outdoor 761-0157

Blade Brake Ass'y.
(Superseded to 961-0168D)

$31.99

$

In Stock, only 1 left!

0

18

White Outdoor 710-0134

Carriage Bolt 1/4-20 x .62"

$4.49

$

In Stock, Qty 20+

0

19

White Outdoor 710-0793

Ribbed Neck Bolt 3/8-24 x .8"

$

$

Not available

20

White Outdoor 15607

Seat Pivot Brkt.
(Superseded to 783-0039A)

$71.99

$

Usually ships in 3-6 days

0

21

16660

Rear Fender

$

$

Not available

23

White Outdoor 17283

Seat Hinge Support Brkt. L.H.

$

$

Not available

17284

Seat Hinge Support Brkt. R. H.

$

$

Not available

24

White Outdoor 17133

Deck Lift Index Brkt.

$

$

Not available

25

White Outdoor 725-0514

Battery
(Superseded to 753-0607)

$170.99

$

Usually ships in 3-6 days

0

26

White Outdoor 710-0602

Hex Self-Tap Screw 5/6-18 x 1" Lg.

$4.49

$

In Stock, Qty 20+

0

27

White Outdoor 710-0255

Truss Mach. Scr. 1/4-20 x .75" Lg.
(Superseded to 710-0924)

$4.49

$

In Stock, Qty 20+

0

28

White Outdoor 710-0726

Hex AB-Tap Scr. 5/16 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

White Outdoor 712-0158

Hex L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 18

0

30

White Outdoor 710-0623

Hex Self-Tap Scr. 3/8-16 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

31

White Outdoor 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

32

White Outdoor 736-0426

Fiber Washer

$

$

Not available

33

White Outdoor 731-0871

Battery Box wlCover
(Superseded to 731-0871B)

$

$

Not available

34

White Outdoor 732-0548

Compression Spring

$

$

Not available

35

White Outdoor 725-0222

Headlight
(Superseded to 925-0222)

$58.99

$

In Stock, only 4 left!

0

White Outdoor 736-0242

Bell-Wash. 5/16" I.D.

$4.49

$

In Stock, Qty 20+

0

37

White Outdoor 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

38

White Outdoor 710-0224

Hex Wash. Hd. Tap Scr. #10 x .5" Lg.
(Superseded to 910-0224)

$3.99

$

In Stock, Qty 20+

0

39

White Outdoor 731-0881

Grille Insert

$

$

Not available

White Outdoor 731-0465

Bezel

$

$

Not available

41

White Outdoor 710-0346

C-Sunk Mach. Scr. 1/4-20 x 1 .5"

$

$

Not available

42

White Outdoor 09960

Headlight Retainer

$

$

Not available

43

14748

Side Panel-R.H.

$

$

Not available

14749

Side Panel-L.H.

Note: (Not Shown)

$

$

Not available

44

White Outdoor 731-0511

Trim Strip 26 l/2" Lg.

$3.99

$

Usually ships in 3-6 days

0

45

White Outdoor 14787

Grille

$

$

Not available

46

17143

Grille Mtg. Brkt.-L.H.

$

$

Not available

47

White Outdoor 17144

Grille Mtg. Brkt.-R.H.

$

$

Not available

48

White Outdoor 16681

Hood

Variations

White Outdoor 16681-0499

No Longer Available HOOD-86 CLASSIC - CUB BEIGE (0499)

$

$

Not available

White Outdoor 16681-0629

No Longer Available HOOD-86 CLASSIC - SILVER FLAKE (0629)

$

$

Not available

White Outdoor 16681-0638

No Longer Available HOOD-86 CLASSIC - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

49

White Outdoor 736-0217

L-Wash. 3/8" I.D.-H.D.

$4.49

$

In Stock, Qty 8

0

50

White Outdoor 712-0241

Hex L-Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

51

White Outdoor 710-0258

Hex Bolt 1/4-20 x .62" Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

White Outdoor 710-0473

Truss Mach Scr. #10-24 x .5" Lg.

$4.49

$

In Stock, only 2 left!

0

53

White Outdoor 723-0308

Foot Pad-R.H.

$

$

Not available

54

White Outdoor 723-0309

Foot Pad-L.H.
(Superseded to 723-0309B)

$

$

Not available

57

White Outdoor 712-0380

Lock Nut 1/4-28 Thd.

$3.99

$

In Stock, only 2 left!

0

58

White Outdoor 722-0157

Foam Strip

Note: (Optional)

$4.49

$

Usually ships in 3-6 days

0

59

White Outdoor 723-0302

Hood Stop

$12.99

$

Usually ships in 3-6 days

0

62

White Outdoor 732-0414

Hood Spring

$

$

Not available

64

White Outdoor 712-0272

Hex Sems Nut #10-24 Thd.

$3.99

$

In Stock, only 1 left!

0

65

White Outdoor 736-0413

Spr. Wash. .39" I.D. x .62" O.D.

$6.99

$

In Stock, only 2 left!

0

66

White Outdoor 738-0724

Shld. Bolt
(Superseded to 938-0952A)

$7.49

$

In Stock, Qty 10

0

67

White Outdoor 749-0722

Grille Support
(Superseded to 749-0722B-0637)

$

$

Not available

68

White Outdoor 731-0511

Trim Strip 79" Lg.

$3.99

$

Usually ships in 3-6 days

0

72

White Outdoor 746-0617

Choke Control

$

$

Not available

73

White Outdoor 831-0823

Throttle Control Box
(Superseded to 831-0823A)

$32.99

$

In Stock, Qty 20+

0

74

White Outdoor 710-0779

Truss AB-Tap Scr. #10 x .5"
(Superseded to 710-0779A)

$4.49

$

In Stock, Qty 12

0

75

White Outdoor 746-0501

Throttle Wire

$17.99

$

In Stock, only 1 left!

0

76

White Outdoor 757-0345

Seat Assembly
(Superseded to 957-0378)

$

$

Not available

77

White Outdoor 731-0511

Trim Strip 5" Lg.

$3.99

$

Usually ships in 3-6 days

0

78

White Outdoor 736-0159

Flat Wash. .344" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

79

White Outdoor 722-0160

Bushing

$

$

Not available

80

726-0267

Clamp

$

$

Not available

81

White Outdoor 712-0107

Hex L-Nut 1/4-20 Thd.
(Superseded to 912-0107)

$4.99

$

In Stock, only 1 left!

0

82

White Outdoor 726-0175

Clamp

$

$

Not available

83

White Outdoor 710-0227

Hex Tap Scr. #8 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

84

White Outdoor 725-1303

Spring Switch
(Superseded to 925-1303)

$6.49

$

In Stock, Qty 7

0

85

White Outdoor 732-0581

Ext. Spring 5.31" Lg.
(Superseded to 932-0581B)

$14.99

$

In Stock, only 1 left!

0

86

White Outdoor 17239

Seat Lift Brkt.
(Superseded to 17239C)

$

$

Not available

87

White Outdoor 726-0222

Insulator Nut Plate
(Superseded to 926-0320)

$6.99

$

In Stock, Qty 11

0

88

White Outdoor 738-0155

Shld. Bolt.437" Dia. x .162" Lg.
(Superseded to 938-0155)

$6.99

$

Usually ships in 3-6 days

0

89

White Outdoor 738-0296

Shld. Bolt .437" Dia. x .268"

$4.49

$

In Stock, Qty 20+

0

90

White Outdoor 736-0141

Spr Wash. .445" I.D. x .75" O.D.
(Superseded to 936-0141)

$6.99

$

Usually ships in 3-6 days

0
