L 10575 E (1694986) - Simplicity 30" Snow Thrower, 10.5hp Auger Housing & Chute Group Parts Diagram

30" Snow Thrower, 10.5hp

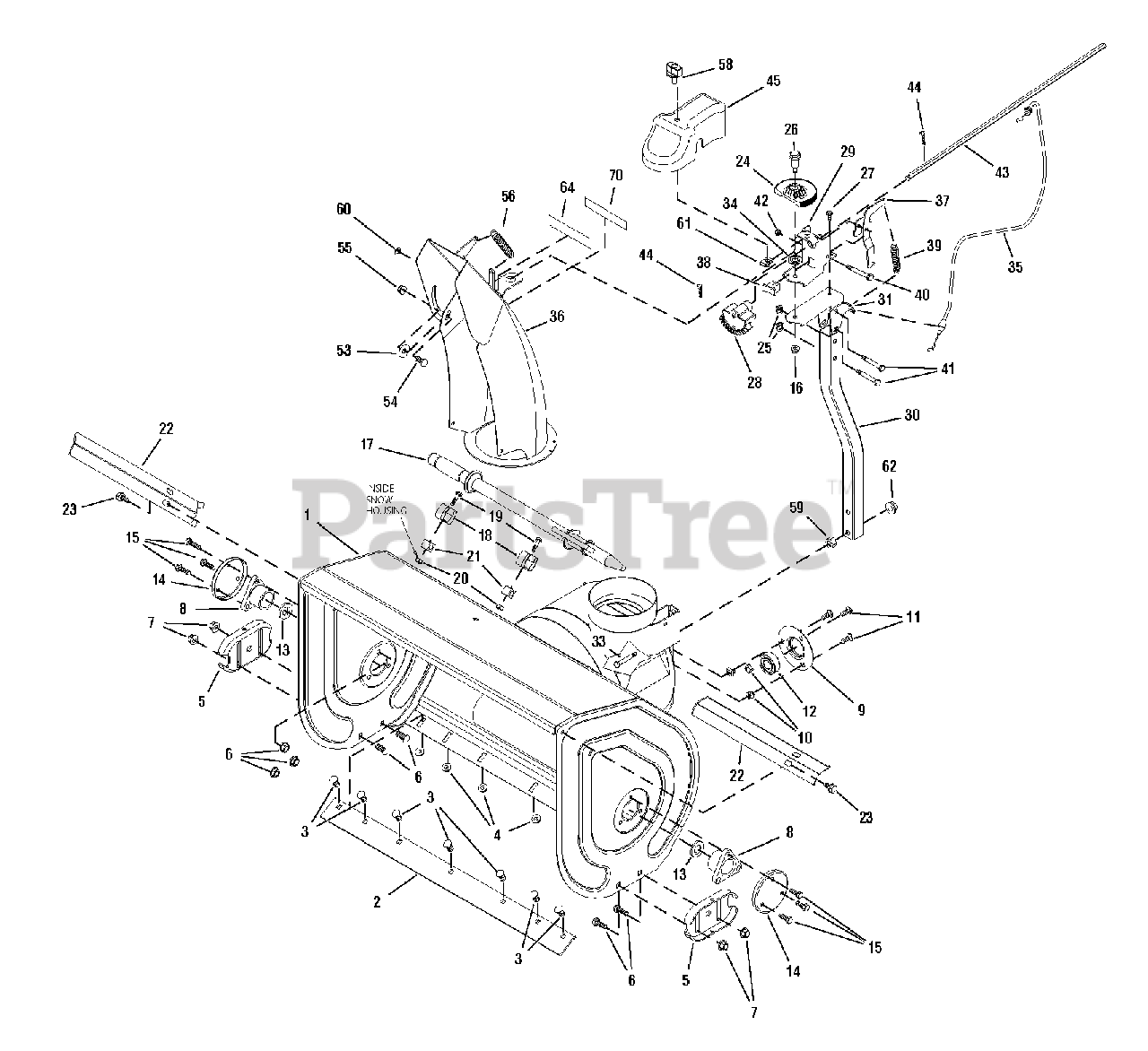

Auger Housing & Chute Group Parts Diagram

  • Title

1

Simplicity 1732268CSM

HOUSING ASSEMBLY, 26"
(Superseded to 1687378SM)

$877.99

$

Usually ships in 2-12 days

0

1

Simplicity 1732269CSM

HOUSING ASSEMBLY, 28"
(Superseded to 1687379SM)

$598.99

$

Usually ships in 2-12 days

0

1

Simplicity 1732270CSM

HOUSING ASSEMBLY, 30"
(Superseded to 1687380SM)

$615.99

$

Usually ships in 2-12 days

0

1

Simplicity 1732008CSM

HOUSING ASSEMBLY, 32"
(Superseded to 1687381SM)

$752.99

$

Usually ships in 2-12 days

0

2

Simplicity 1732384ASM

BLADE, Scraper, 26"
(Superseded to 1732384BMYP)

$48.99

$

In Stock, only 2 left!

0

2

Simplicity 1709947ASM

BLADE, Scraper, 28"
(Superseded to 1709947BMYP)

$45.99

$

In Stock, Qty 18

0

2

Simplicity 1732385ASM

BLADE, Scraper, 30"
(Superseded to 1732385BMYP)

$51.99

$

In Stock, Qty 5

0

2

Simplicity 1709948ASM

BLADE, Scraper, 32"
(Superseded to 1709948BMYP)

$58.99

$

In Stock, only 3 left!

0

3

Simplicity 1960699SM

CARRIAGE BOLT, 5/16-18 x 5/8 G5
(Superseded to 703159)

$3.99

$

In Stock, Qty 12

0

4

Simplicity 1935048SM

NUT, Hex Flange 5/16-18 Two-Way Lock
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

5

Simplicity 1727854ASM

SKID, Show Reversible
(Superseded to 1727854BMYP)

$16.99

$

In Stock, Qty 20+

0

6

Simplicity 1960711SM

CARRIAGE BOLT, 3/8-16 x 3/4 G5
(Superseded to 703448)

$4.49

$

In Stock, Qty 20+

0

7

Simplicity 1960687SM

NUT, Hex Flange 3/8-16 ESNA
(Superseded to 703158)

$3.49

$

Usually ships in 2-12 days

0

8

Simplicity 1665980SM

BEARING, Flange

$

$

Not available

9

Simplicity 1665982ASM

BEARING RETAINER
(Superseded to 1665982SM)

$6.99

$

In Stock, Qty 17

0

10

Simplicity 1930659SM

RETAINER, Nut, 5/16-18

$5.99

$

Usually ships in 2-12 days

0

11

Simplicity 1960738SM

SCREW, Hex Whiz Lock Flange 5/16-18 x 3/4
(Superseded to 703354)

$5.49

$

In Stock, Qty 10

0

12

Simplicity 1729578SM

BEARING
(Superseded to 2108202SM)

$11.99

$

In Stock, Qty 20+

0

13

Simplicity 1663189SM

SPACER

$6.49

$

In Stock, Qty 6

0

14

Simplicity 1668639CSM

CAP, Bearing
(Superseded to 1668639BMYP)

$51.99

$

Usually ships in 2-12 days

0

15

Simplicity 1923325SM

CAPSCREW, Hex Head 5/16-18 x 7/8 G5
(Superseded to 703408)

$4.99

$

In Stock, Qty 13

0

16

Simplicity 1931277SM

NUT, Hex Flange 5/16-18 Whiz Lock
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

17

Simplicity 1733209SM

STICK, Cleanout w/Brush
(Superseded to 1736094YP)

$34.99

$

In Stock, only 4 left!

0

18

Simplicity 722242

CLIP, Retainer
(Superseded to 1501672MA)

$8.99

$

In Stock, Qty 17

0

19

Simplicity 2860604SM

SCREW, Hex Washer Head Slot #10C x 1-1/4 G2

$4.49

$

Usually ships in 2-12 days

0

20

Simplicity 1933896SM

NUT, Hex Lock 10-24 w/Nylon Insert
(Superseded to 703412)

$4.49

$

In Stock, only 2 left!

0

21

Simplicity 724565

BLOCK, Universal Pivot
(Superseded to 578063MA)

$5.49

$

In Stock, only 2 left!

0

22

Simplicity 1733102CSM

CUTTER, Drift w/Tabs
(Superseded to 1733102ASM)

Note: (Used only on 30" & 32")

$31.99

$

In Stock, only 4 left!

0

23

Simplicity 1664847SM

SCREW, Hex Washer Head Taptitte 5/16-18 x 3/4
(Superseded to 703228)

Note: (Used only on 30" & 32")

$4.49

$

In Stock, Qty 20+

0

24

Simplicity 1732608SM

GEAR, 13 Tooth

$82.99

$

Usually ships in 2-12 days

0

25

Simplicity 1960684SM

NUT, Hex Keps 5/16-18 Conical Washer
(Superseded to 703222)

$5.99

$

In Stock, only 2 left!

0

26

Simplicity 1732412SM

BOLT, Shoulder 5/16-18 x 3/5 G5

$15.99

$

Usually ships in 2-12 days

0

27

Simplicity 1925003SM

SCREW, Hex Washer Head Taptite 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 5

0

28

Simplicity 1732607SM

GEAR, Sector 34 Tooth Powdered Metal

$82.99

$

Usually ships in 2-12 days

0

29

Simplicity 1732602ASM

SUPPORT, Driver Gear

$67.99

$

Usually ships in 2-12 days

0

30

Simplicity 1732227ASM

TUBE, Square 1-1/4
(Superseded to 1734414ASM)

$20.99

$

Usually ships in 2-12 days

0

31

Simplicity 1732606ASM

BRACKET, Gears Support

$39.99

$

Usually ships in 2-12 days

0

33

Simplicity 1923701SM

CAPSCREW, Hex Head 3/8-16 x 2 G5
(Superseded to 703589)

$4.49

$

In Stock, only 1 left!

0

34

Simplicity 1733026SM

WASHER, Powdered Metal

$4.49

$

Usually ships in 2-12 days

0

35

Simplicity 1732238SM

CABLE, Chute Brake 40" Long

$50.99

$

In Stock, only 1 left!

0

36

Simplicity 1732017CSM

CHUTE ASSEMBLY, Remote Deflector

$165.99

$

Usually ships in 2-12 days

0

37

Simplicity 1732837ASM

BRACKET, Brake

$10.99

$

Usually ships in 2-12 days

0

38

Simplicity 1732308SM

ARM & PAD ASSEMBLY, Brake

$

$

Not available

39

Simplicity 1679554SM

SPRING, Extension

$7.49

$

Usually ships in 2-12 days

0

40

Simplicity 1923282SM

CAPSCREW, Hex Head 1/4-20 x 2-1/2 G5
(Superseded to 703821)

$3.99

$

In Stock, only 1 left!

0

41

Simplicity 1921978SM

CAPSCREW, Hex Head 5/16-18 x 2 G5
(Superseded to 703867)

$4.99

$

In Stock, only 4 left!

0

42

Simplicity 1923358SM

NUT, Hex Centerlock 1/4-20
(Superseded to 703954)

$4.99

$

In Stock, Qty 20+

0

43

Simplicity 1732231SM

ROD, Hex, Chute

$39.99

$

Usually ships in 2-12 days

0

44

Simplicity 1722460SM

PIN, Quick
(Superseded to 703430)

$3.49

$

In Stock, only 1 left!

0

45

Simplicity 1732241SM

COVER, Chute

$70.99

$

Usually ships in 2-12 days

0

53

Simplicity 2860210SM

WASHER, Nylon

$4.49

$

In Stock, only 2 left!

0

54

Simplicity 1931333SM

CARRIAGE BOLT, 5/16-18 x 3/4 G5
(Superseded to 703185)

$3.49

$

In Stock, Qty 12

0

55

Simplicity 1960686SM

NUT, Hex Flange 5/16-18 ESNA
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

56

Simplicity 1733455SM

SPRING, Extension

$9.49

$

In Stock, only 1 left!

0

58

Simplicity 696239SM

KNOB & SCREW ASSEMBLY, 10-24 x 3/5

$8.49

$

In Stock, only 1 left!

0

59

Simplicity 1931942SM

NUT, Push Pal 3/8
(Superseded to 703986)

$4.49

$

Usually ships in 2-12 days

0

60

Simplicity 1932718SM

NUT, Push for 5/16 Diameter Stud Capped
(Superseded to 704028)

$5.49

$

In Stock, only 3 left!

0

61

Simplicity 1960593SM

NUT, Retainer Speed #10-24 w/Extrusion

$4.99

$

Usually ships in 2-12 days

0

62

Simplicity 1960680SM

NUT, Hex Keps, 3/8-16 Conical Washer

$6.49

$

Usually ships in 2-12 days

0

64

Simplicity 1706085SM

DECAL, Orange Strip for Chute Hinge

$13.99

$

Usually ships in 2-12 days

0

70

Simplicity 1733849SM

DECAL, Orange Chute Hinge

$2.99

$

Usually ships in 2-12 days

0
