L 1024E (1696612-00) - Snapper 24" Snow Thrower, 9.5hp Wheel & Tires Group Parts Diagram

24" Snow Thrower, 9.5hp

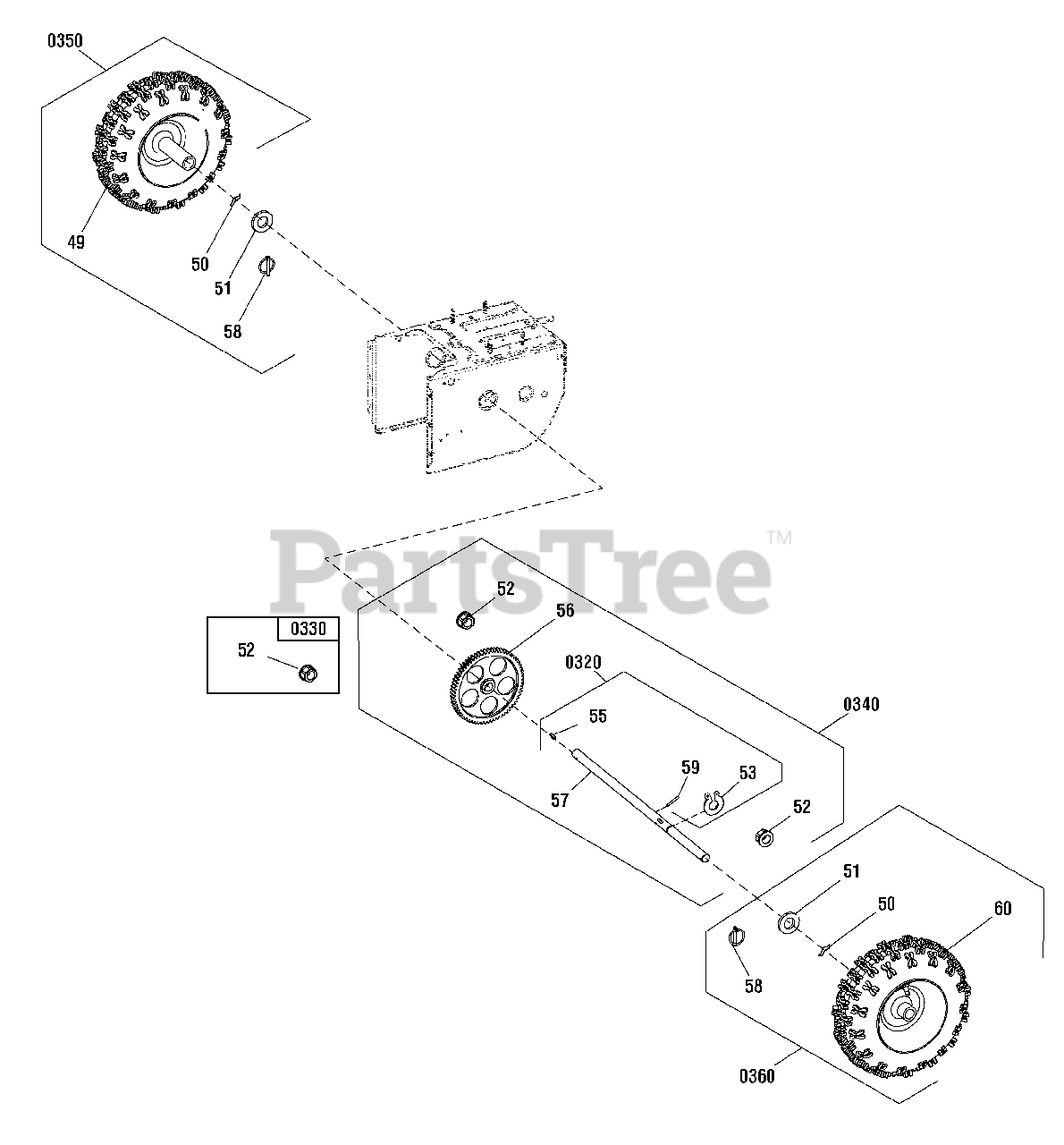

Wheel & Tires Group Parts Diagram

  • Title

0320

Snapper 707530

KIT, BEARING HARDWARE, AXLE

Note: (Incl. Ref. Nos. 53, 55, 59)

$9.49

$

Usually ships in 2-12 days

0

53

*Shaft circlip

$

$

Not available

55

*woodruff key

$

$

Not available

59

*spring pin

$

$

Not available

0330

Snapper 707532

KIT, AXLE SLEEVE

Note: (Incl. Ref. No. 52)

$15.99

$

Usually ships in 2-12 days

0

52

*Axle sleeve

$

$

Not available

0340

Snapper 707819

KIT, AXLE AND SPROCKET

Note: (Incl. Ref. Nos. 52, 53, 55, 56, 57, 59)

$90.99

$

Usually ships in 2-12 days

0

52

*Axle sleeve

$

$

Not available

53

*Shaft circlip

$

$

Not available

55

*woodruff key

$

$

Not available

56

*Driven gear

$

$

Not available

57

*Driven wheel Shaft

$

$

Not available

59

*spring pin

$

$

Not available

0350

Snapper 707845

KIT-WHEEL & TIRE, RIGHT (YELLOW)

Note: (Incl. Ref. No. 50, 51, 58, 60)

$107.99

$

Usually ships in 2-12 days

0

50

*corrugated gasket

$

$

Not available

51

*Flat Washer

$

$

Not available

58

*Klik pin

$

$

Not available

60

*Tire Assembly, Right

$

$

Not available

0360

Snapper 707843

KIT-WHEEL & TIRE, LEFT (YELLOW)

Note: (Incl. Ref. Nos. 49, 50, 51, 58)

$107.99

$

Usually ships in 2-12 days

0

49

*Tire Assembly, Left

$

$

Not available

50

*corrugated gasket

$

$

Not available

51

*Flat Washer

$

$

Not available

58

*Klik pin

$

$

Not available
