L 1024E (1696612-00) - Snapper 24" Snow Thrower, 9.5hp Handles & Controls Group (6965_A) Parts Diagram

24" Snow Thrower, 9.5hp

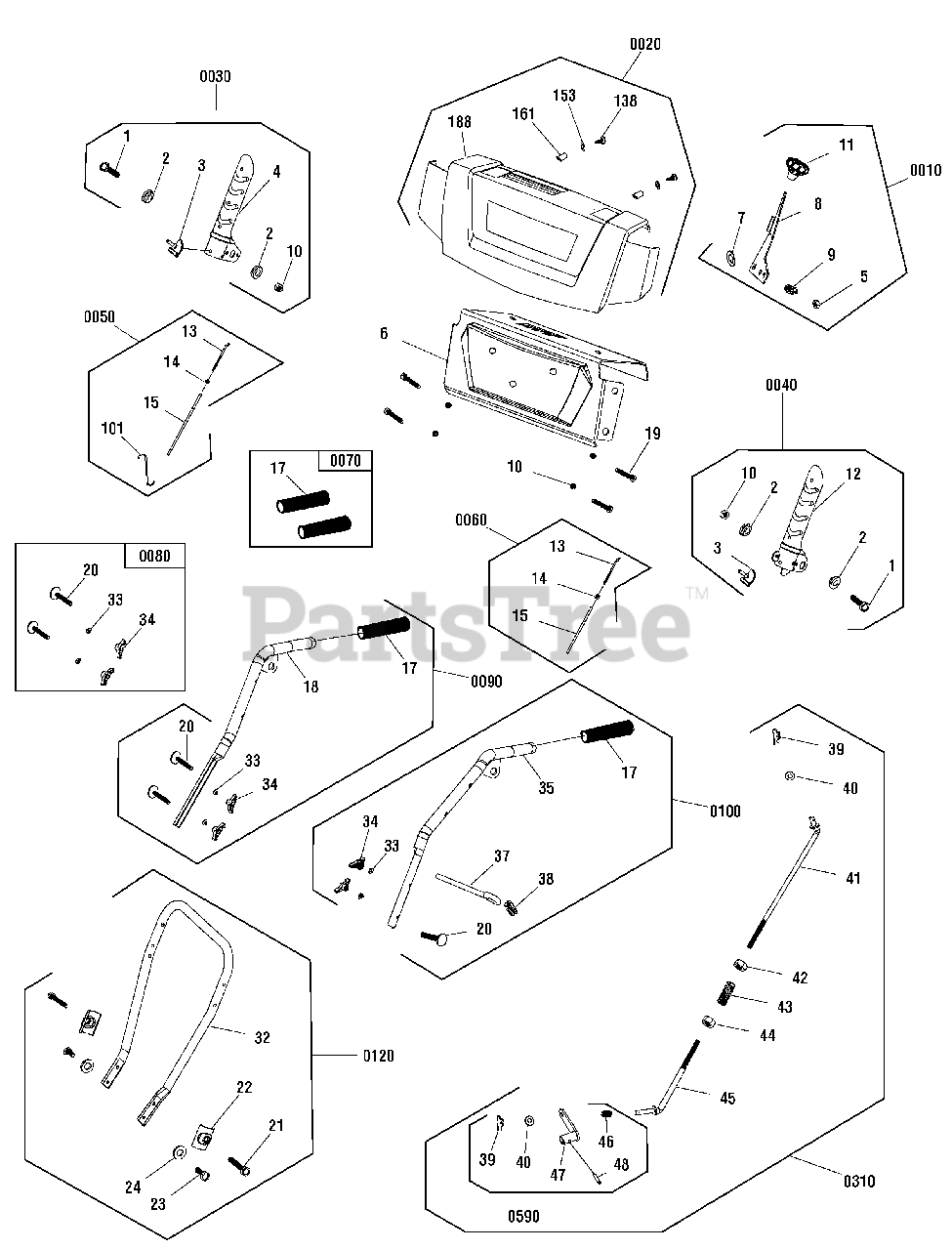

Handles & Controls Group (6965_A) Parts Diagram

  • Title

0010

Snapper 707794

KIT, LEVER, SPEED

Note: (Incl. Ref. Nos. 5, 7, 8, 9 & 11)

$31.99

$

In Stock, only 2 left!

0

5

*Lock nut, Hex Head, non-metal

Note: (Included with Ref. No. 0010)

$

$

Not available

7

*Flat Washer

Note: (Included with Ref. No. 0010)

$

$

Not available

8

*Speed Control Lever

Note: (Included with Ref. No. 0010)

$

$

Not available

9

*Spring, Speed Control

Note: (Included with Ref. No. 0010)

$

$

Not available

11

*Knob, Speed Control Lever

Note: (Included with Ref. No. 0010)

$

$

Not available

0020

Snapper 707798

KIT, DASH, SNAPPER

Note: (Incl. Ref. Nos. 161, 138, 188 & 153)

$

$

Currently unavailable

161

*Lamp Buckcle

Note: (Included with Ref. No. 0020)

$

$

Not available

138

*Bolt, Phill head

Note: (Included with Ref. No. 0020)

$

$

Not available

188

*Dash Panel

Note: (Included with Ref. No. 0020)

$

$

Not available

153

*Flat washer

Note: (Included with Ref. No. 0020)

$

$

Not available

0030

Snapper 707800

KIT, RIGHT HAND LEVER, TRACTION DRIVE

Note: (Incl. Ref. Nos. 1, 2, 3, 4 & 10)

$29.99

$

Usually ships in 2-12 days

0

1

*Screw, Hex head

Note: (Included with Ref. No. 0030)

$

$

Not available

2

*Pad, small tensioning plate

Note: (Included with Ref. No. 0030)

$

$

Not available

3

*Rubber Cap

Note: (Included with Ref. No. 0030)

$

$

Not available

4

*Traction drive engagement Lever

Note: (Included with Ref. No. 0030)

$

$

Not available

10

*Lock nut, Hex Head, non-metal

Note: (Included with Ref. No. 0030)

$

$

Not available

0040

Snapper 707802

KIT, LEFT HAND LEVER, AUGER DRIVE

Note: (Incl. Ref. Nos. 1, 2, 3, 10 & 12)

$29.99

$

Usually ships in 2-12 days

0

1

*Screw, Hex head

Note: (Included with Ref. No. 0040)

$

$

Not available

2

*Pad, small tensioning plate

Note: (Included with Ref. No. 0040)

$

$

Not available

3

*Rubber Cap

Note: (Included with Ref. No. 0040)

$

$

Not available

10

*Lock nut, Hex Head, non-metal

Note: (Included with Ref. No. 0040)

$

$

Not available

12

*Auger engagement Lever

Note: (Included with Ref. No. 0040)

$

$

Not available

0050

Snapper 707766

KIT, CABLE, TRACTION DRIVE

Note: (Incl. Ref. Nos. 13, 14 & 15)

$54.99

$

Usually ships in 2-12 days

0

13

*Steel rod

Note: (Included with Ref. No. 0050)

$

$

Not available

14

*copper nut

Note: (Included with Ref. No. 0050)

$

$

Not available

15

*Steel rod(1)

Note: (Included with Ref. No. 0050)

$

$

Not available

101

*Line Pressing Spring, Chute

$

$

Not available

0060

Snapper 707803

KIT, Cable, Auger Drive

Note: (Incl. Ref. Nos. 13, 14 & 16)

$158.99

$

Usually ships in 2-12 days

0

13

*Steel rod

Note: (Included with Ref. No. 0060)

$

$

Not available

14

*copper nut

Note: (Included with Ref. No. 0060)

$

$

Not available

16

*Steel rod(2)

Note: (Included with Ref. No. 0060)

$

$

Not available

0070

Snapper 707512

KIT, GRIP

$18.99

$

Usually ships in 2-12 days

0

17

*Grip

Note: (Included with Ref. No. 0070)

$

$

Not available

0080

Snapper 707835

KIT, UPPER HANDLE HARDWARE

Note: (Incl. Ref. Nos. 20, 33 & 34)

$38.99

$

Usually ships in 2-12 days

0

20

*Blade bolt

Note: (Included with Ref. No. 0080)

$

$

Not available

33

*Blade Washer

Note: (Included with Ref. No. 0080)

$

$

Not available

34

*Knob

Note: (Included with Ref. No. 0080)

$

$

Not available

0090

Snapper 707804

KIT, UPPER HANDLE, RIGHT

Note: (Incl. Ref. Nos. 17, 18, 20, 33 & 34)

$96.99

$

Usually ships in 2-12 days

0

20

*Blade bolt

Note: (Included with Ref. No. 0090)

$

$

Not available

33

*Blade Washer

Note: (Included with Ref. No. 0090)

$

$

Not available

34

*Knob

Note: (Included with Ref. No. 0090)

$

$

Not available

17

*Grip

Note: (Included with Ref. No. 0090)

$

$

Not available

18

*Right upper Handle

Note: (Included with Ref. No. 0090)

$

$

Not available

0100

Snapper 707805

KIT, UPPER HANDLE, LEFT

Note: (Incl. Ref. Nos. 17, 20, 33, 34, 35, 37 & 38)

$116.99

$

Usually ships in 2-12 days

0

20

*Blade bolt

Note: (Included with Ref. No. 0100)

$

$

Not available

33

*Blade Washer

Note: (Included with Ref. No. 0100)

$

$

Not available

34

*Knob

Note: (Included with Ref. No. 0100)

$

$

Not available

17

*Grip

Note: (Included with Ref. No. 0100)

$

$

Not available

35

*Left Upper Handle

Note: (Included with Ref. No. 0100)

$

$

Not available

37

*Chute Rotator Rod

Note: (Included with Ref. No. 0100)

$

$

Not available

38

*Rubber Ring, Chute Rotator Rod

Note: (Included with Ref. No. 0100)

$

$

Not available

0110

Snapper 707806

KIT, LOWER HANDLE HARDWARE

Note: (Incl. Ref. Nos. 21, 22, 23 & 24)

$10.99

$

Usually ships in 2-12 days

0

21

*Screw, Hex head

Note: (Included with Ref. No. 0110)

$

$

Not available

22

*Washer

Note: (Included with Ref. No. 0110)

$

$

Not available

23

*Screw, Hex head

Note: (Included with Ref. No. 0110)

$

$

Not available

24

*Flat Washer

Note: (Included with Ref. No. 0110)

$

$

Not available

0120

Snapper 707807

KIT, LOWER HANDLE

Note: (Incl. Ref. Nos. 21, 22, 23, 24 & 32)

$90.99

$

Usually ships in 2-12 days

0

21

*Screw, Hex head

Note: (Included with Ref. No. 0120)

$

$

Not available

22

*Washer

Note: (Included with Ref. No. 0120)

$

$

Not available

23

*Screw, Hex head

Note: (Included with Ref. No. 0120)

$

$

Not available

24

*Flat Washer

Note: (Included with Ref. No. 0120)

$

$

Not available

32

*Lower Handle

Note: (Included with Ref. No. 0120)

$

$

Not available

0310

Snapper 707818

KIT, SHIFT ROD

Note: (Incl. Ref. Nos. 39, 40, 41, 42, 43, 44, 45, 46, 47 & 48)

$54.99

$

Usually ships in 2-12 days

0

39

*pin

Note: (Included with Ref. No. 0310)

$

$

Not available

40

*Flat Washer

Note: (Included with Ref. No. 0310)

$

$

Not available

41

*Upper rod, Speed control

Note: (Included with Ref. No. 0310)

$

$

Not available

42

*Screw, Hex head

Note: (Included with Ref. No. 0310)

$

$

Not available

43

*regulating sleeve, drive rod

Note: (Included with Ref. No. 0310)

$

$

Not available

44

*Nut, Hex head

Note: (Included with Ref. No. 0310)

$

$

Not available

45

*Upper rod, Speed control

Note: (Included with Ref. No. 0310)

$

$

Not available

46

*regulating Spring

Note: (Included with Ref. No. 0310)

$

$

Not available

47

*Shift fork Arm

Note: (Included with Ref. No. 0310)

$

$

Not available

48

*spring pin

Note: (Included with Ref. No. 0310)

$

$

Not available

0590

KIT, SHIFT ROD HARDWARE

Note: (Incl. Ref. Nos. 39, 40, 41, 46, 47 & 48)

$

$

Not available

39

*pin

Note: (Included with Ref. No. 0590)

$

$

Not available

40

*Flat Washer

Note: (Included with Ref. No. 0590)

$

$

Not available

46

*regulating Spring

Note: (Included with Ref. No. 0590)

$

$

Not available

47

*Shift fork Arm

Note: (Included with Ref. No. 0590)

$

$

Not available

48

*spring pin

Note: (Included with Ref. No. 0590)

$

$

Not available
