L-10 (130-425E190) - White Outdoor 36" Lawn Tractor (1990) 36" Mowing Deck Assembly Parts Diagram

36" Lawn Tractor

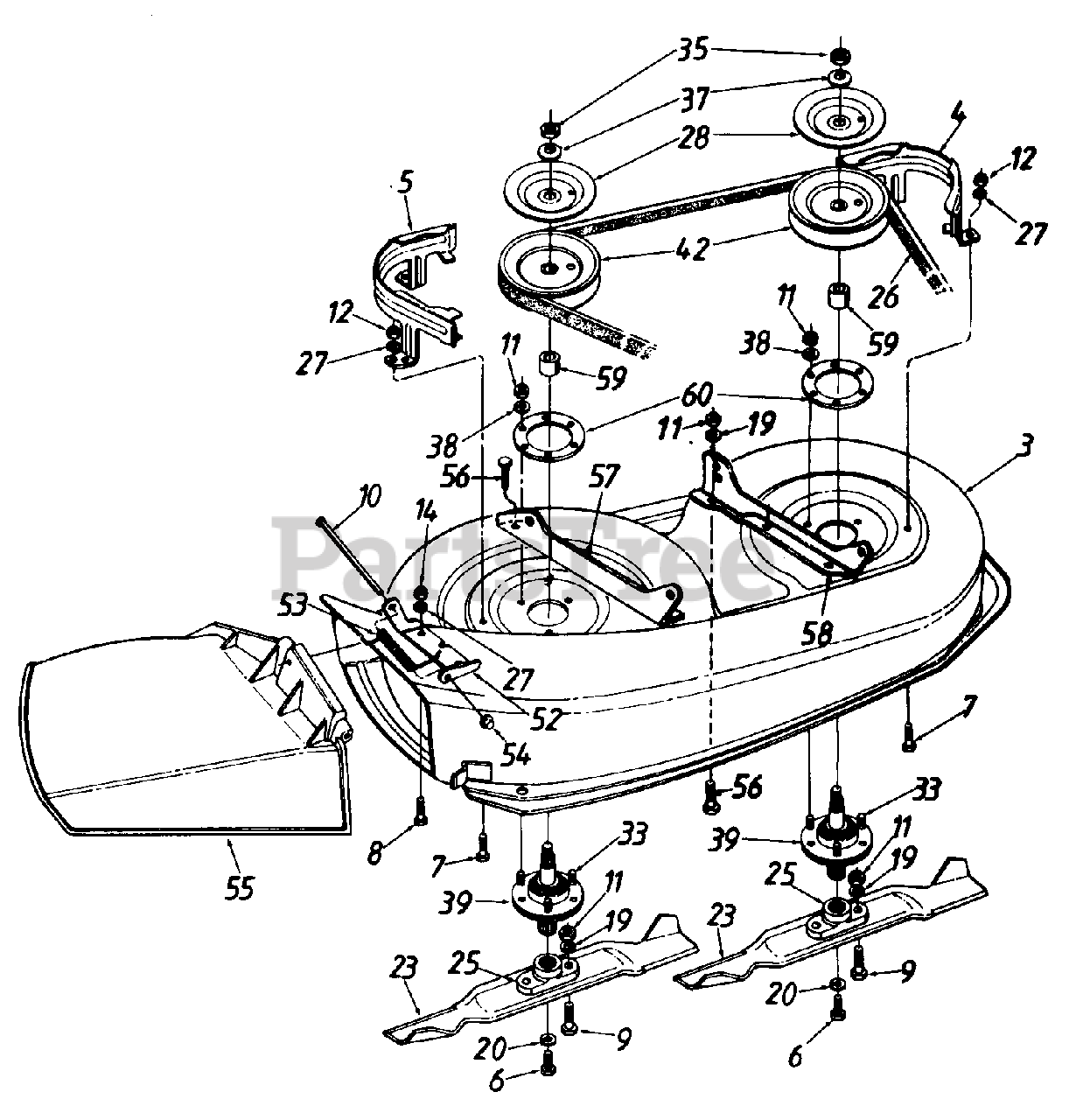

36" Mowing Deck Assembly Parts Diagram

  • Title

3

16879A

36" Deck Ass'y.

$

$

Not available

White Outdoor 813-04103

36" Deck Ass'y. Comp.

Note: (For Service Only)

Variations

White Outdoor 813-04103-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 813-04103-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

4

White Outdoor 16607

Belt Guard Deck-L.H.

Variations

White Outdoor 16607-0637

GUARD-BELT-LH - POWDER BLACK (0637)

$

$

Not available

$

$

5

White Outdoor 16608A

Belt Guard Deck-R.H.

Variations

White Outdoor 16608A-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

6

White Outdoor 710-0152

Hex Bolt 3/8-24 x 1.0" Lg.
(Superseded to 710-1039)

$4.49

$

In Stock, Qty 5

0

7

White Outdoor 710-0195

Hex Bolt 1/4-28 x .62" Lg.
(Superseded to 910-0195)

$3.99

$

In Stock, only 1 left!

0

8

White Outdoor 710-0255

Truss Mach. Scr. 1/4-20 x .75"
(Superseded to 710-0924)

$4.49

$

In Stock, Qty 20+

0

9

White Outdoor 710-0888

Hex Bolt Special 5/16-24 x 1.0"

$4.49

$

In Stock, Qty 5

0

10

White Outdoor 711-0792

Hinge Pin
(Superseded to 911-0792)

$4.99

$

Usually ships in 3-6 days

0

11

White Outdoor 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

12

White Outdoor 712-0138

Hex Nut 1/4-28 Thd.

$6.99

$

Usually ships in 3-6 days

0

14

White Outdoor 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

19

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

20

White Outdoor 736-0217

L-Wash. 3/8" I.D.-H.D.

$4.49

$

In Stock, Qty 9

0

23

White Outdoor 742-0496

High-Lift Blade

$

$

Not available

25

White Outdoor 748-0300

Blade Adapter

$13.99

$

In Stock, only 4 left!

0

26

White Outdoor 754-0364

"V"-Belt
(Superseded to 954-0364)

$66.99

$

Usually ships in 3-6 days

0

27

White Outdoor 736-0270

Bell-Wash. 1/4" I.D.

$3.99

$

In Stock, Qty 20+

0

28

White Outdoor 09322

Brake Disc

$

$

Not available

33

White Outdoor 710-1012

Rib Neck Bolt 5/16-24 x .84" Lg.

$4.49

$

Usually ships in 3-6 days

0

35

White Outdoor 712-0318

Hex Jam Nut 5/8-18 Thd.

$3.49

$

In Stock, Qty 13

0

37

White Outdoor 736-0158

L-Wash. 5/8" I.D.

$4.49

$

In Stock, only 1 left!

0

38

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

39

White Outdoor 717-0900

Blade Spindle Ass'y. Comp.
(Superseded to 917-0900A)

Note: (Incl. Ref. 33)

$

$

Not available

42

White Outdoor 756-0486

5" Dia. Pulley

$54.99

$

In Stock, only 3 left!

0

52

White Outdoor 703-1693

Hinge Mtg. Brkt.
(Superseded to 703-1693A)

$23.99

$

In Stock, only 4 left!

0

53

White Outdoor 732-0602

Torsion Spring
(Superseded to 732-0602A)

$12.99

$

In Stock, Qty 5

0

54

White Outdoor 726-0106

Push Nut

$3.99

$

Usually ships in 3-6 days

0

55

White Outdoor 731-1032

Chute Ass'y. Comp.
(Superseded to 631-05229)

$81.99

$

In Stock, Qty 6

0

56

White Outdoor 710-0157

Hex Bolt 5/16-24 x .75" Lg.

$4.49

$

In Stock, Qty 8

0

57

White Outdoor 17572

Deck Hanger Channel-R.H.
(Superseded to 17572-0637)

Variations

White Outdoor 17572-0637

CHANNEL-DECK HANGE - POWDER BLACK (0637)

$37.99

$

Usually ships in 3-6 days

0

$37.99

$

Usually ships in 3-6 days

0

58

White Outdoor 17571

Deck Hanger Channel-L.H.
(Superseded to 17571-0637)

Variations

White Outdoor 17571-0637

CHANNEL-DECK HANGE - POWDER BLACK (0637)

$

$

Not available

$

$

59

White Outdoor 750-0456

Spacer .79" I.D. x 1.0 O.D.

$4.49

$

In Stock, Qty 20+

0

60

White Outdoor 09164

Reinforcement Plate
(Superseded to 09164A-0637)

$33.99

$

In Stock, only 2 left!

0
