L 0815 DR - Electrolux/AYP Lawn Tractor TRANSAXLE AND REAR WHEEL Parts Diagram

Lawn Tractor

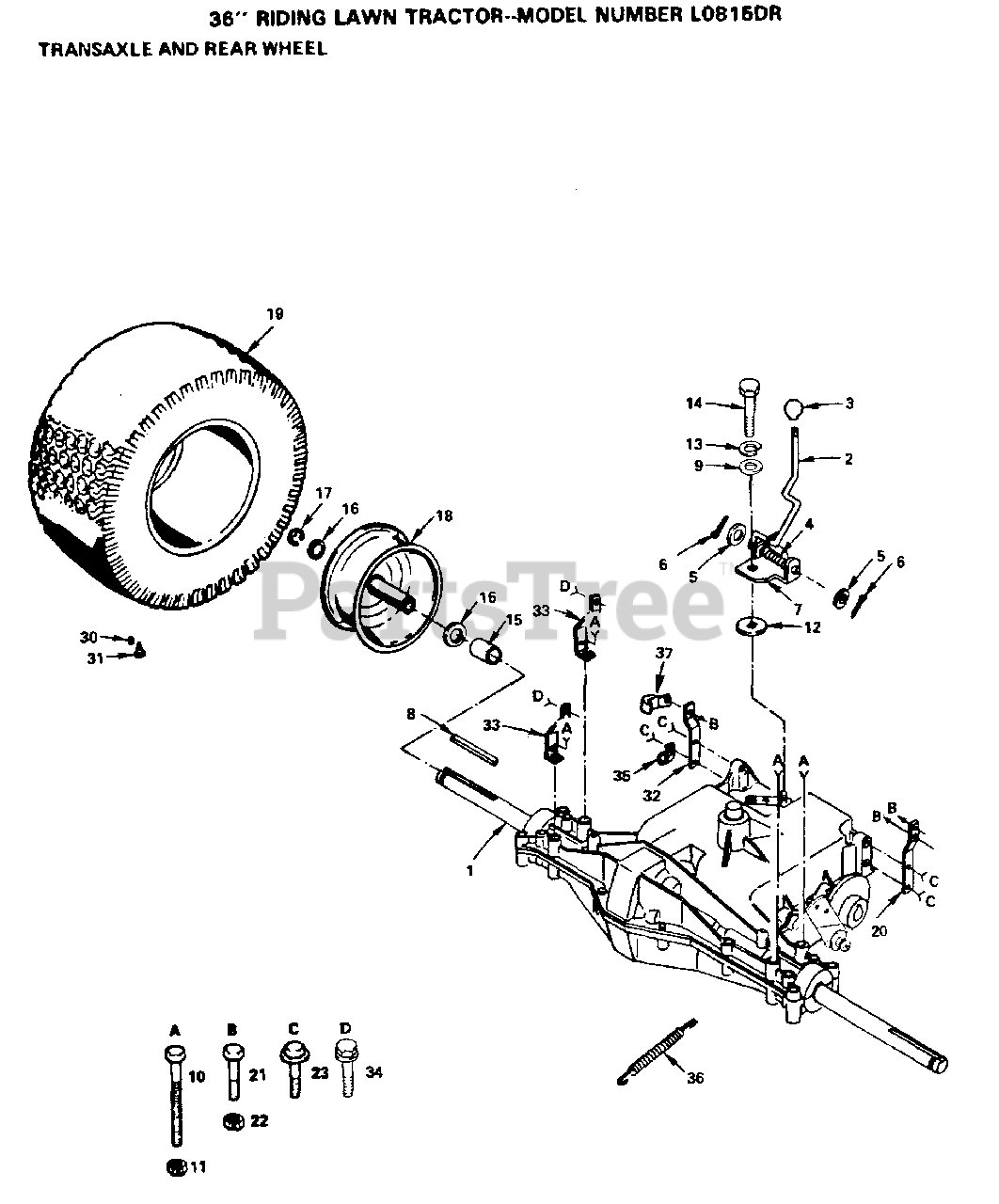

TRANSAXLE AND REAR WHEEL Parts Diagram

  • Title
1

Electrolux/AYP 4150-19

TRANSAXLE ASSY

$

$

Not available

2

Electrolux/AYP 105783X

ROD SHIFTER L T

$

$

Not available

3

Electrolux/AYP 106279X

CONTROL KNOB LT
(Superseded to 583650001)

$4.99

$

Usually ships in 3-10 days

0

4

Electrolux/AYP 105700X

SPRING LT
(Superseded to 532105700)

$

$

Not available

5

Electrolux/AYP 19151216

WASHER
(Superseded to 819151216)

$

$

Not available

6

Electrolux/AYP 76020416

PIN COTTER 1/8
(Superseded to 876020416)

$3.99

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 106632X

SHIFT PLATE LT
(Superseded to 583651801)

$12.99

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 2703J

SUB= 123583X

$

$

Not available

9

Electrolux/AYP 19091210

WASHER LT
(Superseded to 819091210)

$4.99

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 74760644

BOLT
(Superseded to 874760644)

$6.49

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 73680600

SUB= 73690600
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

12

Electrolux/AYP 105701X

WASH-SHFT PLT LT
(Superseded to 532105701)

$6.49

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 10040400

LOCKWASHER
(Superseded to 810040400)

$3.99

$

In Stock, only 2 left!

0

14

Electrolux/AYP 71040412

SUB= 74550412

$

$

Not available

15

Electrolux/AYP 105702X

"SPACER, SPLIT LT"

$

$

Not available

16

$

$

Not available

17

Electrolux/AYP 12000001

E-RING LT
(Superseded to 812000001)

$4.99

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 71652

SUB= 106108X427

$

$

Not available

19

Electrolux/AYP 71653

SUB= 122074X

$

$

Not available

Electrolux/AYP 7152J

TUBE.18X9.5-8
(Superseded to 532007152)

$74.99

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 105713X

TORQUE STRAP LT

$

$

Not available

21

Electrolux/AYP 74760512

BOLT
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

22

Murray 73680500

SUB= 73690500
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

23

Electrolux/AYP 17490512

SCREW
(Superseded to 583607701)

$7.49

$

Usually ships in 3-10 days

0

30

Electrolux/AYP 59192

VALVE CAP
(Superseded to 532059192)

$7.49

$

In Stock, Qty 9

0

31

Electrolux/AYP 65139

VALVE STEM LT
(Superseded to 532065139)

$9.99

$

In Stock, only 3 left!

0

32

Electrolux/AYP 105714X

TORQUE STRP LH LT

$

$

Not available

33

Electrolux/AYP 102782X

STRAP-CHASSIS LT

$

$

Not available

34

Electrolux/AYP 17490508

SCREW LT
(Superseded to 817490508)

$6.49

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 100207K

CLIP GTV
(Superseded to 532100207)

$4.99

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 58606

IDLER SPRING

$5.49

$

Usually ships in 3-10 days

0

37

Electrolux/AYP 2521R

CLIP SB
(Superseded to 583730101)

$

$

Not available
