L 0815 DR - Electrolux/AYP Lawn Tractor STEERING AND FRONT AXLE Parts Diagram

Lawn Tractor

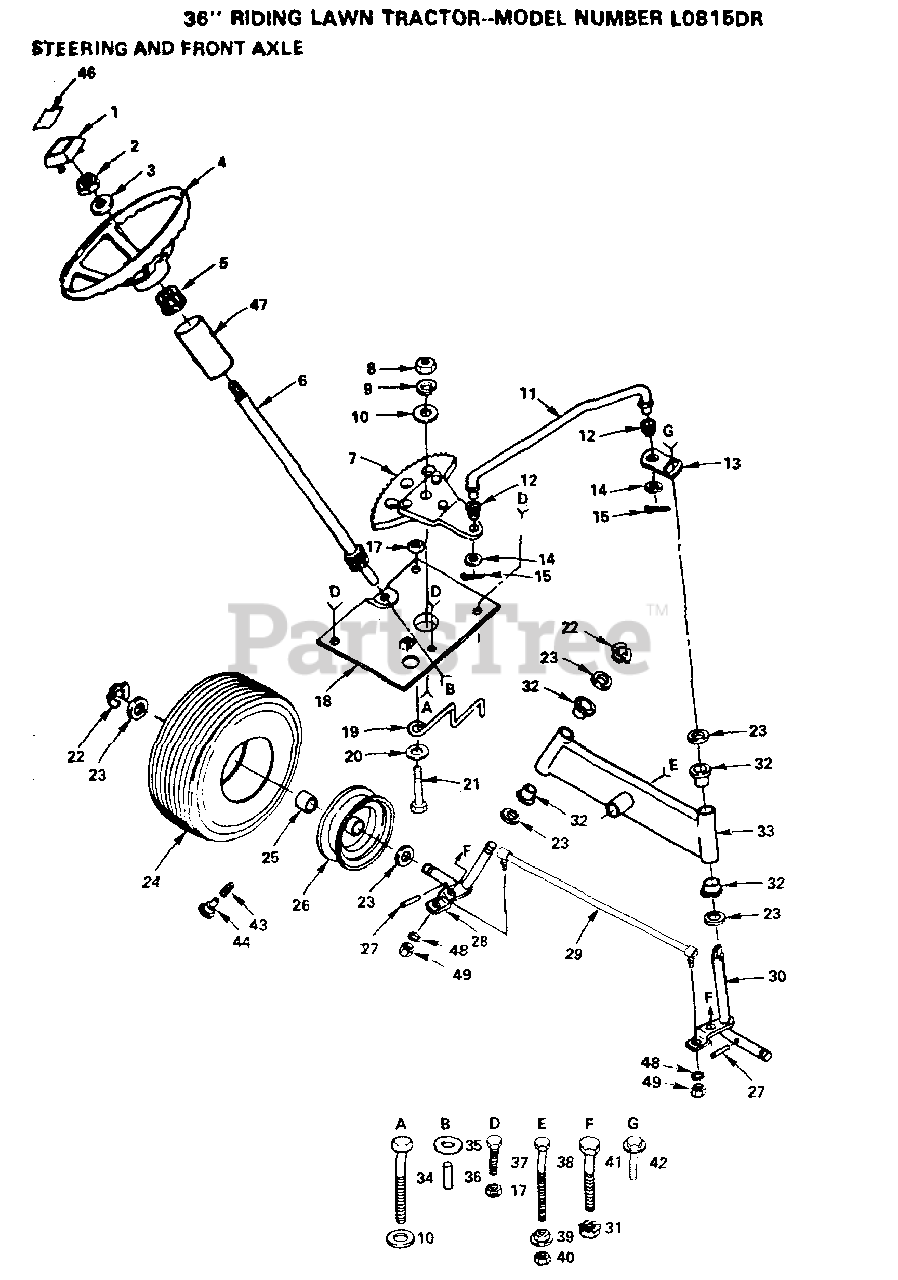

STEERING AND FRONT AXLE Parts Diagram

  • Title
1

Electrolux/AYP 100710L

INSERT-WHEEL LT
(Superseded to 532100710)

$

$

Not available

2

Electrolux/AYP 73360600

NUT
(Superseded to 873360600)

$6.49

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 19133808

WASHER T
(Superseded to 583789501)

$

$

Not available

4

$

$

Not available

5

Electrolux/AYP 104820X

ADAPTER-WHEEL LT
(Superseded to 532104820)

$17.99

$

Usually ships in 3-10 days

0

6

Electrolux/AYP 102804X

STEERING ASSM T

$

$

Not available

7

Electrolux/AYP 102787X

STRG SECTOR LT

$

$

Not available

8

Electrolux/AYP 73220800

NUT
(Superseded to 596433401)

$3.99

$

In Stock, Qty 16

0

9

Electrolux/AYP 10040800

LOCKWASHER
(Superseded to 810040800)

$6.99

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 19172414

WASHER LT
(Superseded to 583609401)

$2.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 102790X

DRAG LINK LT

$

$

Not available

12

Electrolux/AYP 102792X

SUB= 126847X

$

$

Not available

13

Electrolux/AYP 102830X

STEERING ARM LT
(Superseded to 583642101)

$7.99

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 19131414

WASHER
(Superseded to 819131414)

$6.49

$

In Stock, only 2 left!

0

15

Electrolux/AYP 76020416

PIN COTTER 1/8
(Superseded to 876020416)

$3.99

$

Usually ships in 3-10 days

0

17

Murray 73680500

SUB= 73690500
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

18

Electrolux/AYP 102786X

SUPPORT SECTOR LT

$

$

Not available

19

Electrolux/AYP 7320J

BELT GUIDE LT

$6.99

$

Usually ships in 3-10 days

0

20

$

$

Not available

21

$

$

Not available

22

Electrolux/AYP 12000029

RING
(Superseded to 812000029)

$4.99

$

Usually ships in 3-10 days

0

23

$

$

Not available

24

Electrolux/AYP 71651

SUB= 122073X

$

$

Not available

$

$

Not available

25

Electrolux/AYP 9040H

"FLANGE, BEARING"
(Superseded to 532009040)

$7.99

$

In Stock, Qty 20+

0

26

Electrolux/AYP 677A98

RIM ASSY LT

$

$

Not available

27

Electrolux/AYP 9530R

SUB= 5142H
(Superseded to 532437620)

$4.99

$

Usually ships in 3-10 days

0

$

$

Not available

29

$

$

Not available

30

Electrolux/AYP 109735X

SPINDLE RH T

$

$

Not available

31

Electrolux/AYP 73510600

NUT
(Superseded to 873510600)

$6.49

$

Usually ships in 3-10 days

0

32

Electrolux/AYP 3366R

COL. SRTG. BEAR.
(Superseded to 532003366)

$4.99

$

In Stock, Qty 19

0

33

Electrolux/AYP 104535X

FRONT AXLE LT

$

$

Not available

$

$

Not available

35

Electrolux/AYP 19171216

WASHER
(Superseded to 819171216)

$

$

Not available

36

$

$

Not available

37

Electrolux/AYP 74760512

BOLT
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

38

Electrolux/AYP 74761088

BOLT
(Superseded to 582739901)

$2.99

$

Usually ships in 3-10 days

0

$

$

Not available

$

$

Not available

41

Electrolux/AYP 74930624

BOLT
(Superseded to 874930624)

$7.99

$

Usually ships in 3-10 days

0

42

Electrolux/AYP 71020512

NLA
(Superseded to 871020512)

$

$

Not available

43

Electrolux/AYP 59192

VALVE CAP
(Superseded to 532059192)

$7.49

$

In Stock, Qty 9

0

44

Electrolux/AYP 65139

VALVE STEM LT
(Superseded to 532065139)

$9.99

$

In Stock, only 1 left!

0

46

$

$

Not available

$

$

Not available

48

Electrolux/AYP 10040500

LOCKWASHER
(Superseded to 810040500)

$4.99

$

Usually ships in 3-10 days

0

49

Electrolux/AYP 73610500

NUT
(Superseded to 582737001)

$2.99

$

Usually ships in 3-10 days

0
